Swivel Chair Base Mechanism

Product Definition

What the Swivel Chair Base Mechanism Is — and Where It Sits in Your Product Line

The swivel chair base mechanism is the bearing-and-plate assembly that mounts between the chair's five-star base and the seat or tilt mechanism above it. It provides 360° rotation, transfers the occupant's load to the base legs, and — in configurations with a locking function — holds the chair at a fixed orientation when the user engages the lock.

It is not the gas lift cylinder, not the tilt mechanism, and not the base legs themselves. It is the rotational interface between those components.

We produce this as a standalone assembly: a stamped upper plate, a stamped lower plate, a ball-bearing race between them, and the hardware that holds the stack together. The upper plate carries the mounting pattern for whatever tilt mechanism or seat plate sits above it; the lower plate connects to the gas lift cylinder collar or directly to the base hub, depending on the chair design.

Buyers source this part when they're assembling their own chair mechanisms, replacing a worn rotational component in an existing line, or building a private-label chair that needs a specific mounting geometry we can stamp to spec.

High-Volume, Repeat-Order Part

Once your chair frame is designed around a specific mounting pattern and load rating, you reorder the same spec every production run. We hold tooling for all standard configurations in-house — no dimensional drift, no re-qualification between orders.

View full chair mechanism line

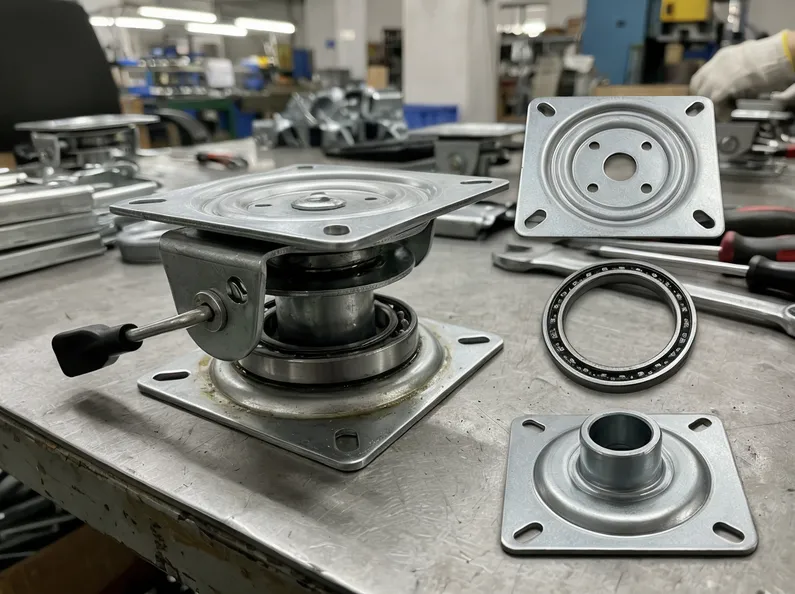

Swivel chair base mechanism assembly — upper plate, lower plate, ball-bearing race diagram

Stamped Upper Plate

Carries mounting pattern for tilt mechanism or seat plate above

Ball-Bearing Race

Full-circle steel race for smooth 360° continuous rotation

Stamped Lower Plate

Connects to gas lift cylinder collar or base hub

Optional Swivel Lock

Positive-engagement lock lever holds fixed orientation on demand

Engineering Data

Technical Specifications

Industry-standard values for this product type. Actual specifications depend on configuration — contact us for exact data sheets on specific variants.

Parameter

Specification

Upper plate material

Cold-rolled steel (SPCC), 2.0–2.5 mm

Lower plate material

Cold-rolled steel (SPCC), 2.0–2.5 mm

Bearing type

Steel ball-bearing race, full-circle

Static load capacity

150 kg (standard configuration)

Dynamic load capacity

100 kg at rated cycle life

Rotation

360°, continuous

Mounting pattern (upper)

Standard 4-hole, 65 mm × 65 mm; custom available

Center bore diameter

Ø28 mm standard; Ø50 mm / Ø60 mm variants available

Surface treatment

Zinc plating (std); nickel plating / powder coating available

Operating temperature

-10°C to 60°C

Cycle life

60,000+ rotations at rated load (BIFMA X5.1 equivalent)

Swivel lock

Optional — positive-engagement lock lever available

Specifications shown are industry-standard values for this product type. Contact us for detailed data sheets on specific configurations.

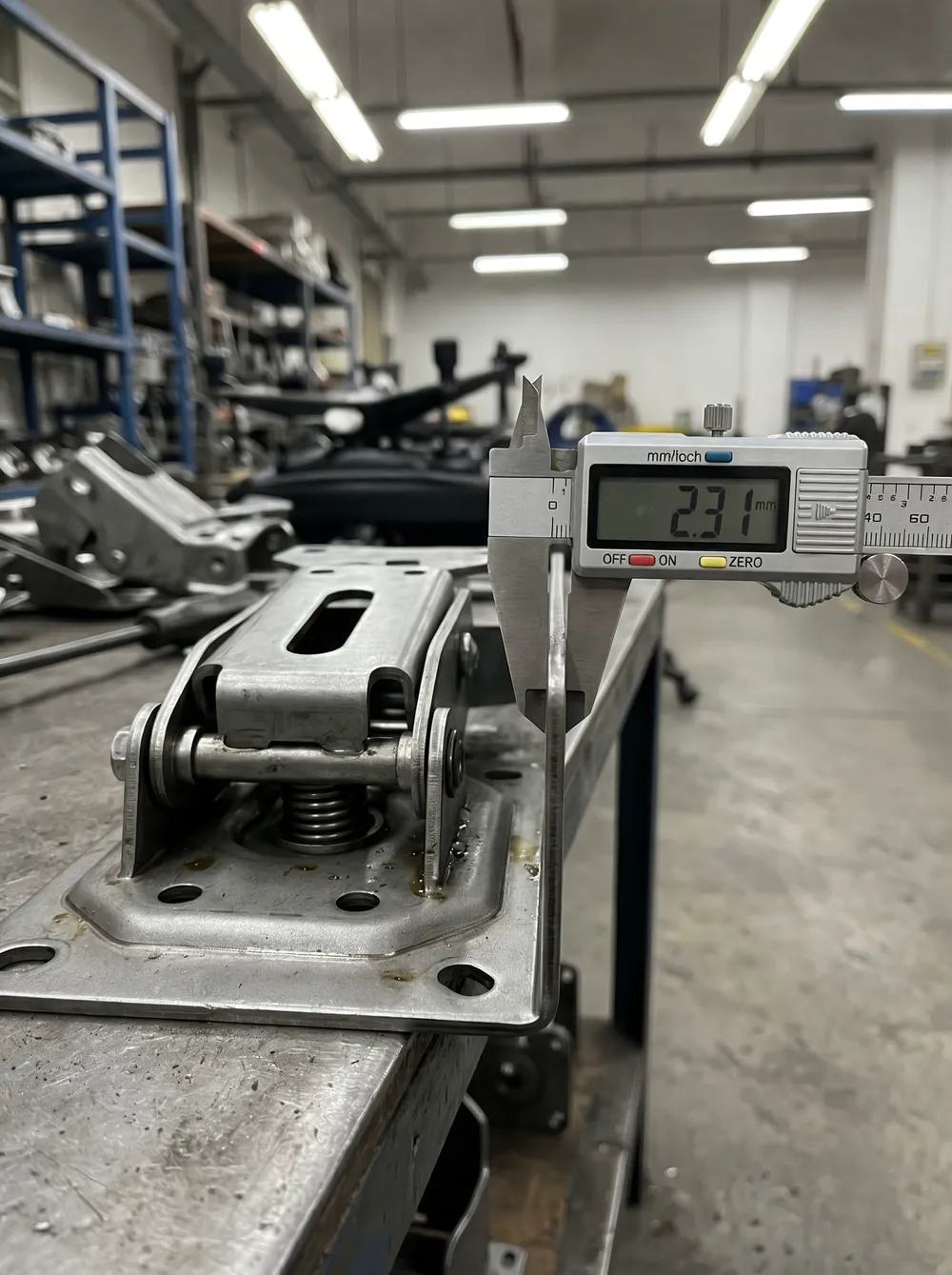

Cold-rolled steel plate thickness detail — 2.0–2.5mm SPCC swivel chair base mechanism

Plate Thickness: Why It Matters for Commercial Use

The 2.0–2.5 mm plate thickness is our standard range for commercial-grade applications. We've run thinner at 1.5 mm for budget seating lines — it works for residential use.

In commercial environments where the chair gets used 6–8 hours daily, the thinner plate shows fatigue at the bearing race seat after 30,000–40,000 cycles. We don't recommend it for anything going into an office or institutional environment.

150kg

Static Load

360°

Rotation

60K+

Cycle Life

Request Data Sheet

Bearing Engineering

Load Rating, Bearing Selection, and Why They Affect Your Warranty Exposure

The bearing race is the component that determines the service life of this assembly. Understanding the difference between bearing types is the difference between a clean warranty record and a pattern of returns.

Standard Specification

Full-Circle Steel Ball-Bearing Race

Distributes load evenly across the entire rotation path
Maintains smooth rotation after 50,000+ cycles
No notchy feel in the high-load forward-facing arc
Correct specification for commercial environments: office, hospitality, healthcare
Keeps warranty claims off your desk

Budget Alternative

Nylon-Bushing Swivel Assembly

Lower unit cost — available on request for budget residential lines
Develops play after 18 months in high-traffic commercial use
Generates returns, replacements, and buyer conversations about quality
Not recommended for hotel lobby, office, or healthcare seating

We've had buyers come to us after sourcing nylon-bushing assemblies from other suppliers and experiencing exactly this failure pattern. The unit cost difference is small; the downstream cost of warranty claims is not.

Standard Configuration

150 kg

Static Load Rating

Covers the vast majority of commercial seating applications — office, hospitality, healthcare, and standard task seating.

Reinforced Configuration

200 kg

Static Load Rating

Heavier plate gauge, larger bearing diameter. For bariatric seating and heavy-duty industrial chairs. Ask us about this specification.

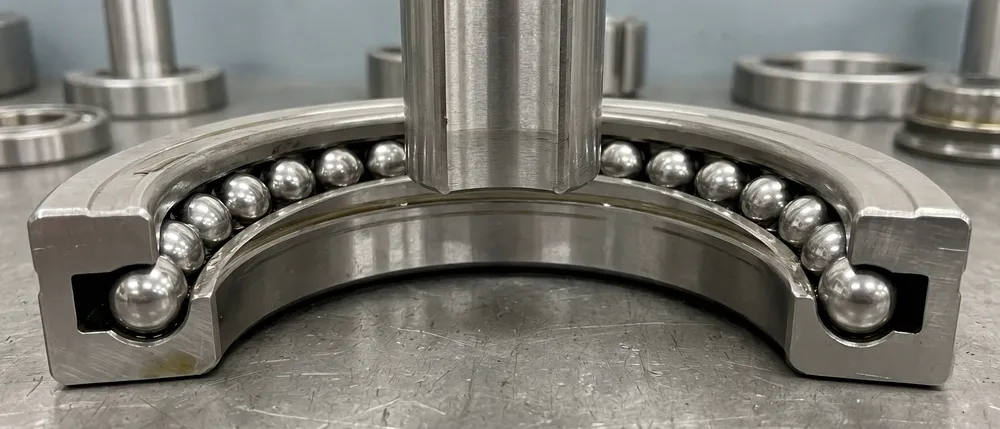

Full-circle steel ball-bearing race cross-section showing even load distribution across rotation path

Fitment & Compatibility

Mounting Patterns and Compatibility — Fitting Your Existing Chair Frame

The most common sourcing problem with swivel base mechanisms is mounting pattern mismatch. Your chair frame is drilled for a specific hole pattern; the mechanism plate has to match exactly, or your assembly line stops.

Upper Plate — Standard Hole Patterns

65 mm × 65 mm, 4-hole Most Common

Standard pattern for mid-range office and task chairs.

70 mm × 70 mm, 4-hole European

Common in European chair designs.

Custom Patterns MOQ 500

Any geometry within our stamping envelope, from 500 units.

Lower Plate — Center Bore Sizes

Ø28 mm bore Standard

Fits most domestic and export chair bases with standard gas lift cylinder collar.

Ø50 mm & Ø60 mm bore

For chairs using larger-diameter gas lift cylinders — more common in heavy-duty and ergonomic chair lines.

Need a Drop-In Replacement?

Send us a drawing or photo of your current part with hole pattern dimensions. We'll confirm compatibility or quote a custom stamp. We've matched dozens of non-standard patterns for buyers whose previous supplier closed or changed ownership.

Swivel chair base mechanism upper plate showing standard 65mm and 70mm 4-hole mounting patterns with dimensional callouts

Compliance & Finish

Surface Treatment Options and Market Compliance

The right surface treatment depends on your end market and whether the mechanism is visible in the finished chair. Below is a direct comparison of the three available options.

Standard

Zinc Plating

Trivalent chromium passivation — no hexavalent chromium. Corrosion resistance adequate for indoor commercial environments. Keeps assembly cost at the right level for mid-range seating.

Salt spray: 96 hours

RoHS compliant

Best for: indoor office, standard contract

Recommended for Export

Coastal / Humid Markets

Nickel Plating

Better salt spray performance for buyers supplying Southeast Asia, Middle East, and coastal Australia. Wipe-down compatible — suitable for healthcare disinfectant protocols.

Salt spray: 200+ hours

Disinfectant-resistant surface

Best for: coastal, healthcare, institutional

Visible Mechanism Designs

Powder Coating

Applied to the upper plate face for open-frame chair designs where the swivel plate is visible. Black or silver standard; custom RAL colors available on runs of 500+ units.

Standard: black, silver

Custom RAL: 500+ unit runs

Best for: design-forward, open-frame chairs

RoHS & EU Market Compliance

All surface treatments are RoHS compliant. The zinc plating line uses trivalent chromium passivation — no hexavalent chromium. CE marking covers the assembly for European market entry. Compliance documentation provided with shipment for EU and California market buyers.

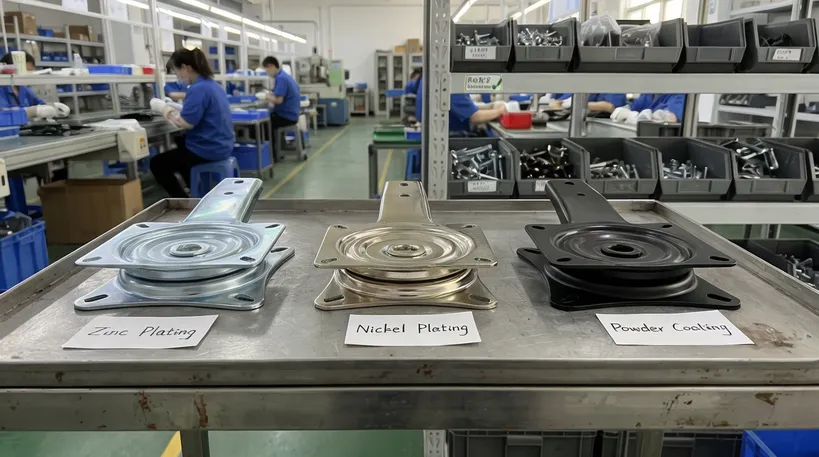

Swivel base mechanism surface treatment options — zinc plating, nickel plating, powder coating

Market Segments

Application Segments — Where This Part Generates Recurring Orders

Swivel base mechanisms are a direct-ratio reorder component across four distinct buyer segments. Each segment has different volume patterns, specification requirements, and reorder triggers.

Highest Volume

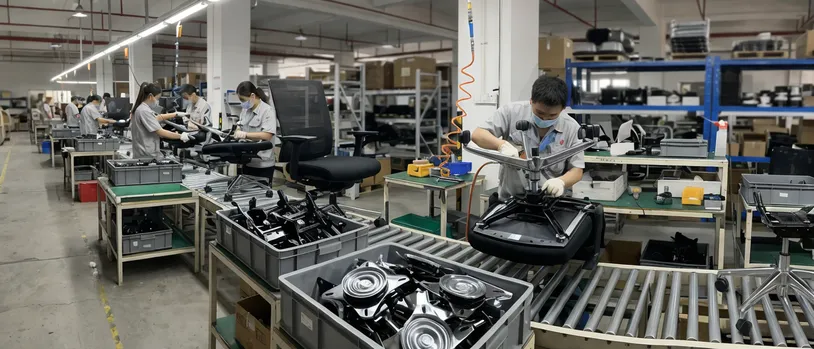

Contract Office Seating

Office chair manufacturers and contract furniture importers are the highest-volume buyers of this component. A mid-range task chair line running 5,000 units per month needs 5,000 swivel base mechanisms per month — it's a direct-ratio reorder.

The commercial value here is supply consistency: if your swivel mechanism supplier misses a delivery or ships out-of-spec parts, your chair assembly line stops. We hold tooling for your pattern in-house and run on a 25–35 day production cycle from order confirmation, so your procurement schedule has a reliable anchor point.

Reorder pattern: Monthly, direct ratio to chair production volume

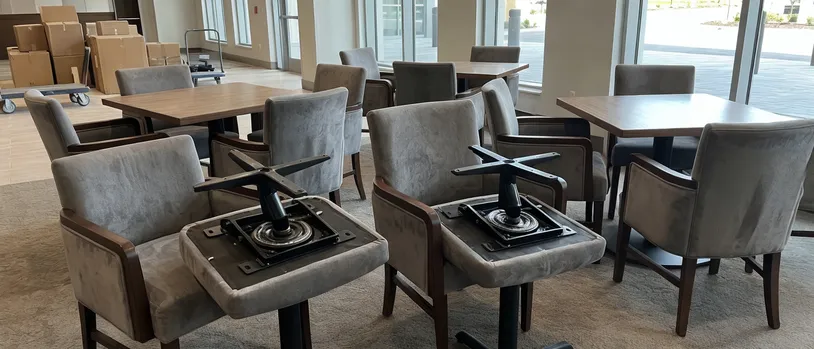

Hospitality contract seating — hotel lobby and restaurant chairs using swivel base mechanisms

Container Quantities

Hospitality and Contract Seating

Hotel lobby chairs, restaurant seating, and conference room chairs all use swivel base mechanisms and cycle through them at higher rates than office environments — the combination of heavier use patterns and less careful handling means replacement cycles of 3–5 years rather than 5–8 years.

Hospitality buyers often order in container quantities for initial fit-out, then reorder replacement mechanisms for maintenance. If you're supplying into this segment, the steel bearing race specification is non-negotiable — the warranty exposure on nylon-bushing assemblies in high-traffic hospitality environments is significant.

Replacement cycle: 3–5 years (vs. 5–8 years office)

Healthcare institutional seating — medical examination chairs with heavy-duty swivel base mechanisms

Predictable Reorder

Healthcare and Institutional Seating

Medical examination chairs, clinical workstation seating, and institutional task chairs require swivel mechanisms that meet load ratings and cycle life thresholds above standard office spec. Healthcare environments also have stricter surface treatment requirements — powder-coated or nickel-plated finishes that can be wiped down with disinfectant without degrading.

We produce mechanisms for this segment with heavier plate gauge and nickel plating as standard. Healthcare facility procurement tends to be on annual budgets with predictable reorder cycles, which makes it a reliable segment for distributors building a recurring revenue base.

Heavier plate gauge standard

Nickel plating standard

Single-Supplier Consolidation

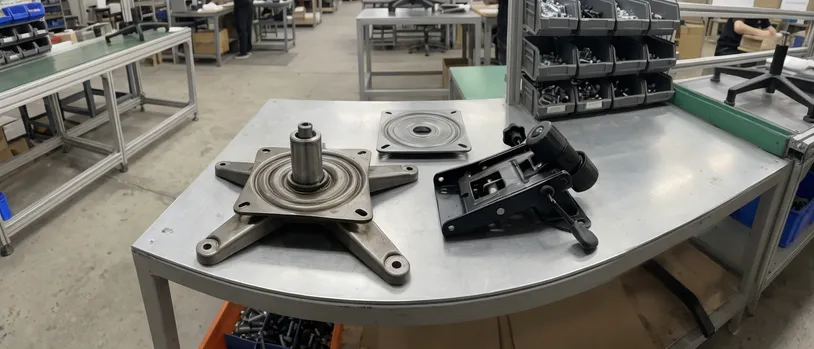

OEM Chair Manufacturers

If you manufacture complete chairs and source mechanisms as components, the swivel base mechanism is typically one of three or four mechanism SKUs you're buying per chair model. Consolidating those SKUs with a single supplier — swivel base, tilt mechanism, gas lift plate — reduces your procurement overhead and gives you a single point of contact for dimensional compatibility across the assembly.

We supply all three component types and can coordinate the mounting patterns across them so your assembly line doesn't need to manage fit tolerances between parts from different suppliers.

Swivel Base

This component

Tilt Mechanism

Coordinated fit

Gas Lift Plate

Coordinated fit

Tell us your target segment and volume

We'll recommend the right configuration — surface treatment, bearing spec, and plate gauge — for your application and market.

Get a Recommendation

Custom Manufacturing

OEM Customization: Mounting Patterns, Load Ratings, and Private Label

Standard catalog configurations cover most sourcing needs. When they don't, we have the tooling capability to produce to your spec.

Customization Dimension	What's Possible	MOQ
Upper plate mounting pattern	Any 4-hole or 6-hole pattern within stamping envelope	500 units
Lower plate center bore	Ø28 mm, Ø50 mm, Ø60 mm standard; custom on request	500 units
Plate gauge	1.5 mm (residential), 2.0–2.5 mm (commercial), 3.0 mm (heavy-duty)	500 units
Bearing configuration	Standard ball race; heavy-duty larger-diameter race for 200 kg+ rating	500 units
Surface treatment	Zinc plating, nickel plating, powder coat (standard or custom RAL)	500 units
Swivel lock	Optional lever-lock mechanism integrated into assembly	500 units
Private label / branding	Laser marking or stamped logo on plate face	500 units

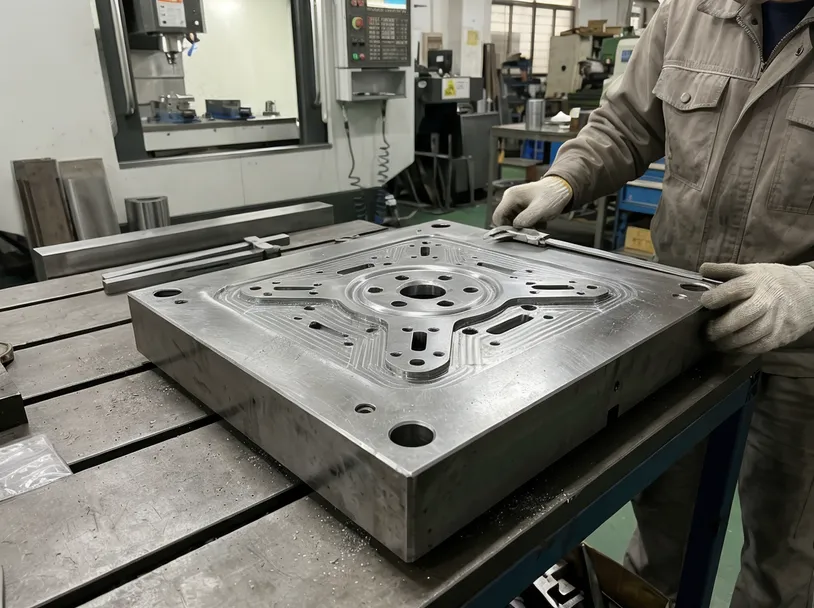

OEM custom mounting pattern tooling for swivel chair base mechanism

In-House Tooling — No Queue

Tooling for custom mounting patterns is cut in-house. First sample typically comes back in 15–20 days from drawing approval — faster than working through a third-party tool shop because we're not waiting in a queue.

If you need a custom pattern matched to an existing chair frame, send us the drawing or a physical sample with dimensions marked. We'll confirm the stamping feasibility and quote the tooling cost alongside the unit price.

Complete Mechanism Kit Option

For buyers who need a complete mechanism kit — swivel base, tilt plate, and gas lift adapter — we can coordinate the mounting geometry across all three components so they arrive as a matched set. That's a common request from OEM chair manufacturers who want to simplify their assembly BOM.

Send Your Drawing or Sample for a Custom Quote

Logistics & Landed Cost

Packaging, Container Loading, and Landed Cost

Swivel base mechanisms ship nested and stacked in standardized export cartons. Standard pack is 20–50 units per carton depending on plate size, with cartons palletized for 40HQ container loading.

Standard Export Cartons

20–50 units per carton depending on plate size. Nested and stacked configuration. Cartons palletized for 40HQ container loading. Your freight forwarder isn't improvising at the warehouse — pallet configurations for main variants are already worked out.

Container Loading Density

Use this number when calculating your landed cost per unit against your freight quote:

8,000–12,000

units per 40HQ container

(varies by configuration and packaging density)

Retail-Ready & E-Commerce Packaging

Available as part of an OEM arrangement. If you're selling into e-commerce channels (Amazon, Wayfair, or your own store) and need packaging that survives parcel carrier handling, we can design the pack configuration for that:

Reinforced corners
Inner foam support
Barcode labeling to your spec

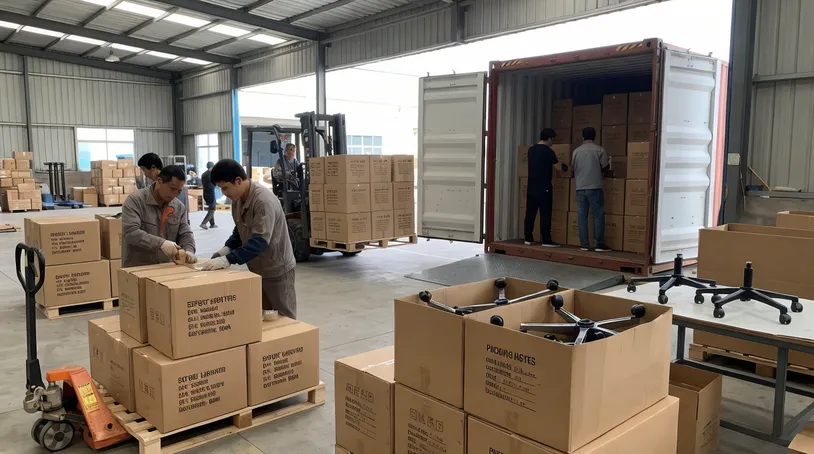

Export carton packing and container loading for swivel chair base mechanisms

Do the Container Math

A 40HQ container typically holds 8,000–12,000 swivel base mechanisms depending on configuration and packaging density. That's the number to use when you're calculating your landed cost per unit against your freight quote.

20–50

units per carton

40HQ

standard container

Request a Freight-Ready Quote

Start Sourcing the Swivel Chair Base Mechanism

If you know your mounting pattern and load rating, send us the spec — we'll quote within 24 hours.

If you're matching a replacement part to an existing chair frame, send a drawing or a photo with dimensions and we'll confirm compatibility.

If you're building a new chair line and need the swivel base mechanism coordinated with a tilt mechanism and gas lift plate, tell us your target price tier and end-use segment and we'll spec the full mechanism stack.
