Recliner and sofa mechanisms are the hardware that determines whether a piece of upholstered seating actually works — the linkage that controls a recliner's motion arc, the folding frame inside a sofa bed, the locking bar that holds a sleeper sofa flat under a sleeping load. We've been manufacturing this hardware since 2008, and it's the only thing we do.

Not a general hardware factory that added seating mechanisms to the catalog — every stamping die, every assembly jig, every QC checkpoint on this floor was built around furniture motion hardware.

The recliner and sofa category sits on two dedicated production lines inside our 12,000 m² facility. Those lines don't share capacity with chair mechanisms or table hardware — your sofa bed frame order doesn't queue behind an unrelated run. At 3,000,000 units annual output across the full facility, a 5,000-unit recliner mechanism order is a standard production run, not a scheduling negotiation.

We ship factory-direct to furniture manufacturers, importers, and distributors across North America, Europe, the Middle East, Southeast Asia, and Australia. No trading layer. Your order is quoted, produced, inspected, and packed by the same team that designed the tooling.

Learn more about our factory

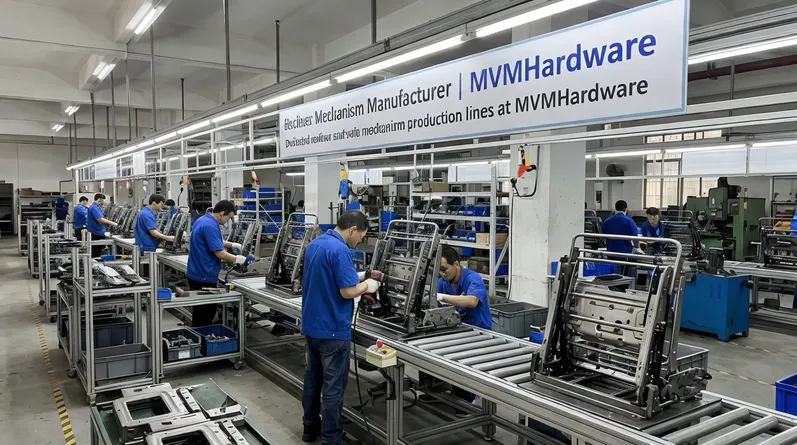

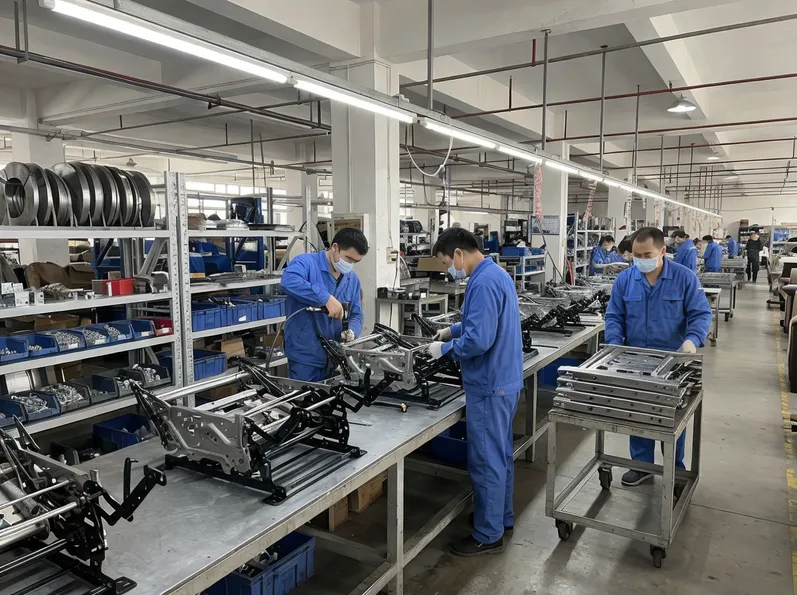

Dedicated recliner and sofa mechanism production lines at MVMHardware

12,000 m²

Dedicated facility

2008

Manufacturing since

3M+

Units/year capacity

2

Dedicated sofa/recliner lines

ISO 9001:2015

CE

SGS

RoHS

One Supplier, Complete Coverage

Product Line: Four Mechanisms, One Supplier

Each hardware type addresses a different seating configuration. The right choice depends on your furniture design and target market segment.

Manual & Wall-Hugger

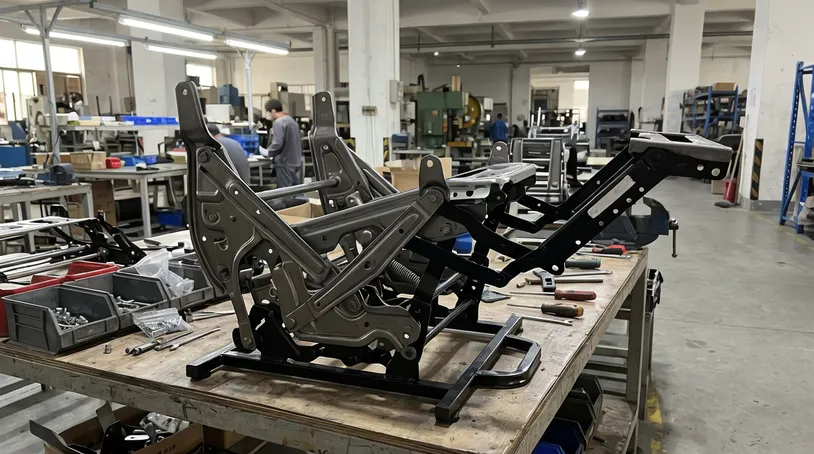

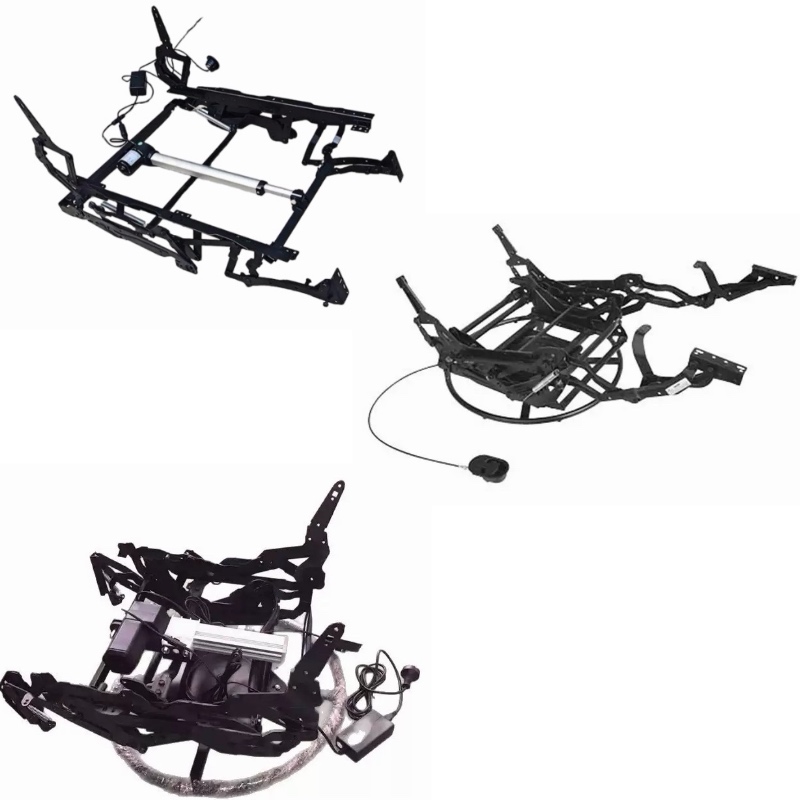

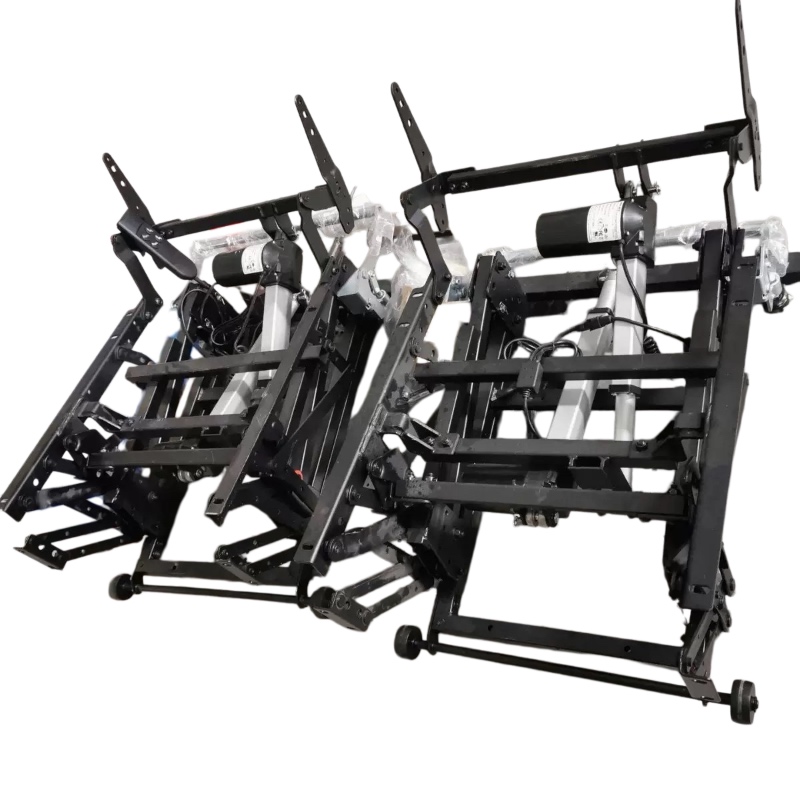

Recliner Chair Mechanism

The core linkage assembly that drives recliner motion — footrest extension, backrest recline, and the mechanical coordination between the two. We produce both manual (handle-actuated) and wall-hugger configurations.

The wall-hugger geometry is the one that takes more engineering attention: the pivot point has to be positioned so the chair moves forward as it reclines, keeping clearance from the wall without the occupant feeling the shift. We've refined that geometry across several tooling generations. If your market is apartment-scale living spaces — a growing segment in North America and Europe — wall-hugger is the configuration worth stocking.

Handle-actuated Wall-hugger geometry Apartment-scale optimized

View Recliner Chair Mechanism

1.2–1.5mm Wall Tube

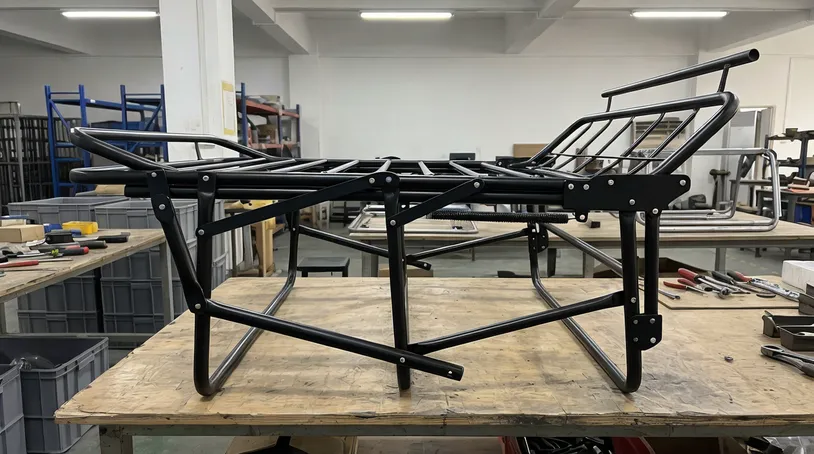

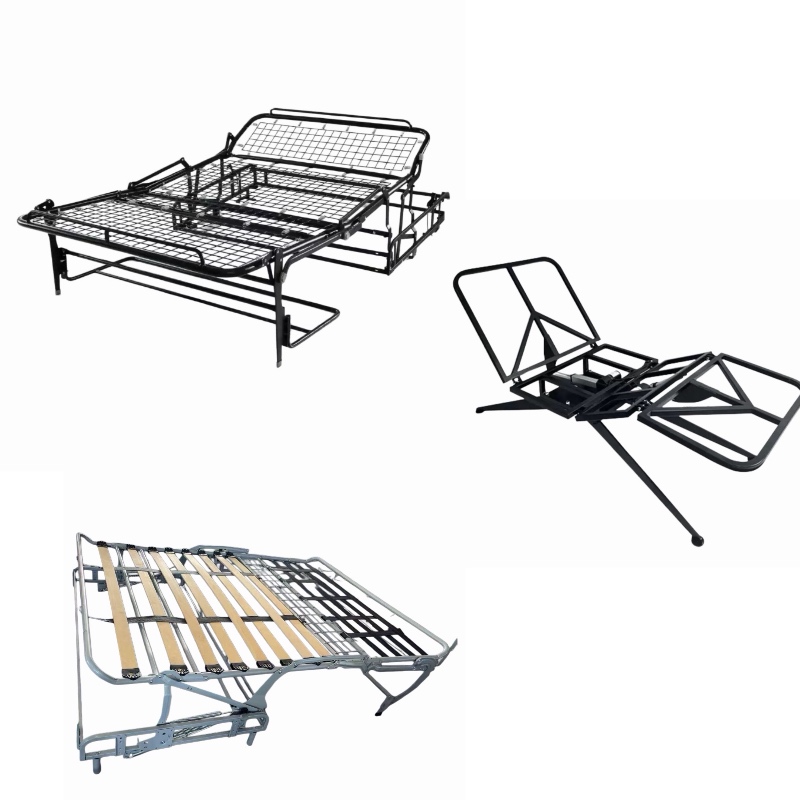

Sofa Bed Mechanism

The folding frame system that converts a sofa into a sleeping surface. Load requirements here are meaningfully different from recliner linkages — a sofa bed frame carries static sleeping loads across a wider span, which means the structural tube gauge and weld joint design matter more than they do on a single-seat recliner.

We run the main frame tubes at 1.2–1.5mm wall thickness depending on span width, with MIG-welded joints on all load-bearing connections. Folding geometry is engineered so the mattress platform lands flat and stays flat — a common failure point on cheaper frames is a slight bow in the deployed position that the end user notices immediately.

MIG-welded joints 1.2–1.5mm tube wall Flat-deploy geometry

View Sofa Bed Mechanism

Bi-fold & Tri-fold

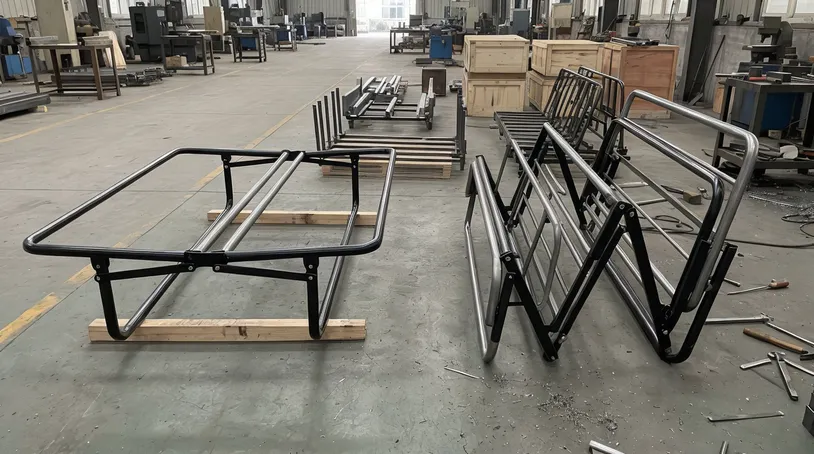

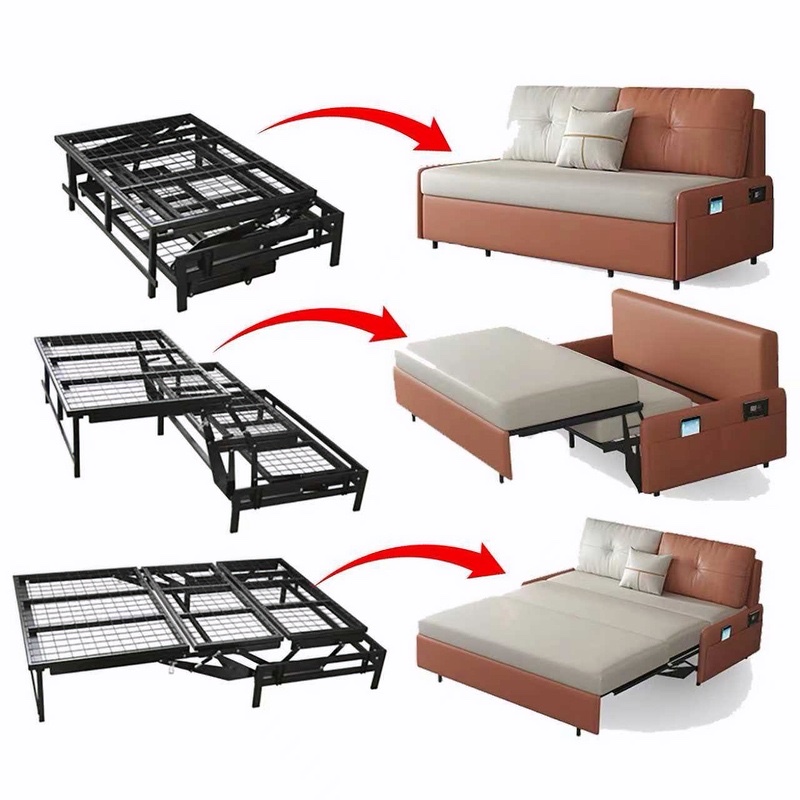

Sleeper Sofa Mechanism

A more compact folding hardware system designed for tighter sofa profiles where the full sofa bed frame geometry doesn't fit. The sleeper sofa mechanism uses a bifold or trifold linkage to deploy a sleeping surface from a shallower sofa body.

We produce these in both bi-fold and tri-fold configurations — the tri-fold suits deeper sofas where the mattress needs to pack into a smaller stack height. The tri-fold adds one more hinge point, which is also one more potential wear location — we run 20,000-cycle testing on the hinge assemblies as standard batch qualification.

Compact profile 20,000-cycle hinge test Bi-fold & tri-fold

View Sleeper Sofa Mechanism

±0.15mm Tolerance

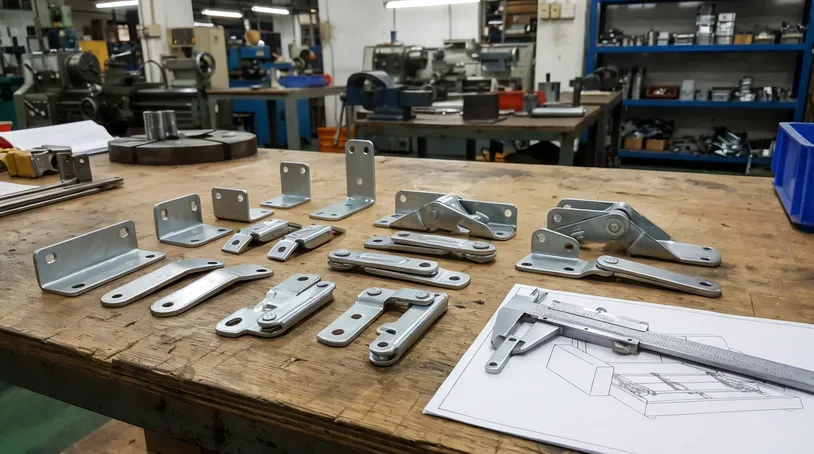

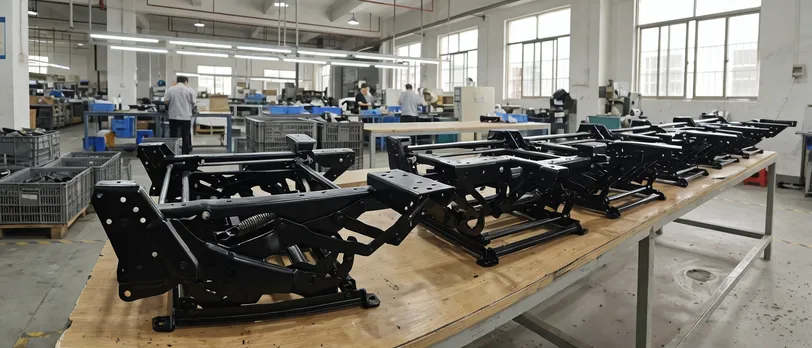

Couch Mechanism

Modular sectional and chaise hardware — the connecting brackets, reclining linkages, and adjustment fittings that go into multi-seat sofa configurations. This covers both fixed-position chaise hardware and power-ready frames for motorized reclining sections.

The modular nature of sectional furniture means dimensional consistency across a batch matters more than it does for standalone pieces — if your connecting brackets are off by 2mm batch-to-batch, your customer's sectional doesn't align. Our stamping tolerance of ±0.15mm on structural brackets is what keeps that consistent.

±0.15mm stamping tolerance Power-ready frames Modular sectional

View Couch Mechanism

Need help selecting the right mechanism?

Our engineering team can review your furniture design and recommend the correct hardware configuration.

Request a Quote

Manufacturing

How These Mechanisms Are Built: Materials and Process

Cold-rolled steel coil stock feeds our progressive stamping presses, where mechanism plates, linkage arms, and structural brackets are formed to ±0.15mm tolerance. That tolerance figure isn't marketing — it's the number our QC team checks on first-article and periodic pulls throughout each production run, because recliner linkage geometry is sensitive to cumulative dimensional drift. A bracket that's 0.3mm off on the pivot hole shifts the motion arc enough that the footrest doesn't fully extend.

Zinc alloy die-casting handles the smaller precision components — adjustment collars, handle fittings, decorative covers. Most mechanism factories in this region outsource die-cast parts to third-party foundries. We brought that process in-house in 2015. The reason is straightforward: die-cast components are where dimensional inconsistency and surface defects originate most often. When a buyer reports that a handle fitting feels loose or a finish is inconsistent batch-to-batch, the root cause is almost always the die-cast part. Owning that process means we own the fix, not a supplier negotiation.

Structural joints on load-bearing assemblies — sofa bed frames, recliner base brackets — are MIG welded. Lighter bracket assemblies use spot welding. After welding, parts move to surface treatment before final assembly.

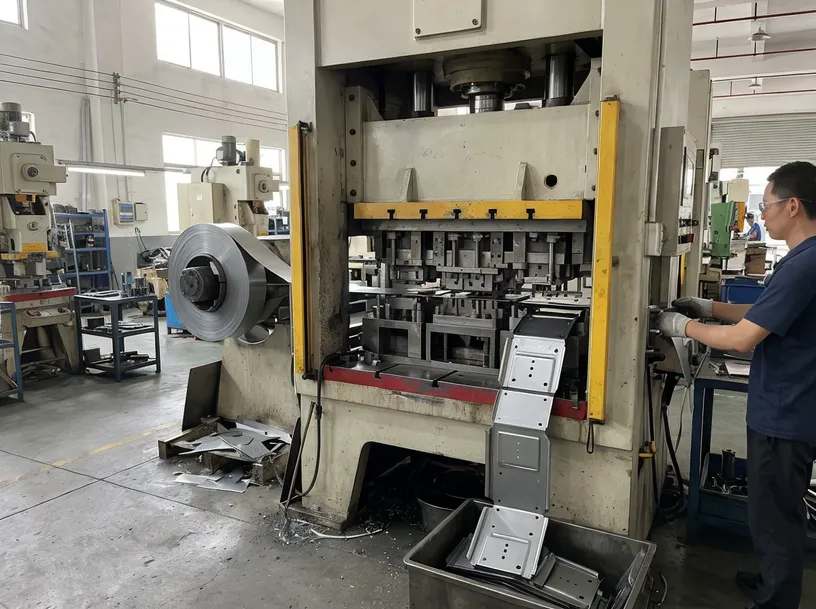

Progressive stamping press forming recliner mechanism plates to ±0.15mm tolerance

Process	Specification	Buyer Relevance
Progressive die stamping	±0.15mm tolerance	Consistent linkage geometry across your full batch
Zinc alloy die-casting	In-house, full dimensional control	No batch-to-batch variation on adjustment components
MIG welding (structural)	Load-bearing joints on frames and base brackets	Sofa bed frames hold static sleeping loads without joint fatigue
Powder coating	60–80μm film thickness, 500-hour salt spray rated	Zero RMA for surface failure on coastal-market accounts
Nickel / zinc electroplating	Tight-tolerance components where powder adds unacceptable thickness	Fit-critical parts stay within assembly clearance

Surface Treatment: Why 60–80μm Matters

Surface treatment is a full in-house line. The powder coating runs at 60–80μm consistent film thickness — the spec range that passes 500-hour salt spray without adhesion failure. We ran thinner at 45–55μm for a period to reduce material cost; the salt spray results on coastal-market shipments told us that was the wrong trade-off. Nickel and zinc plating are used on components where dimensional tolerance after coating is critical, because powder adds thickness that affects fit on tight-clearance assemblies.

Quality Assurance

Quality Control: What Happens Before Your Container Loads

ISO 9001:2015 is the framework. The actual process is three checkpoints that don't get skipped.

Incoming Inspection

Covers coil steel and zinc alloy ingot — material certification checked against mill reports, dimensional samples pulled on first-stamped parts from each coil change. We've had suppliers attempt material grade substitution mid-contract. The incoming check is what catches it before it becomes your problem.

In-Process Inspection

Runs at stamping (first-article and periodic dimensional checks), at welding (visual and pull-test on structural joints), and at surface treatment (film thickness measurement and adhesion cross-cut test on each coating run). Recliner and sofa bed mechanisms go through functional testing before reaching the final assembly line — motion range, lock engagement, load cycle verification.

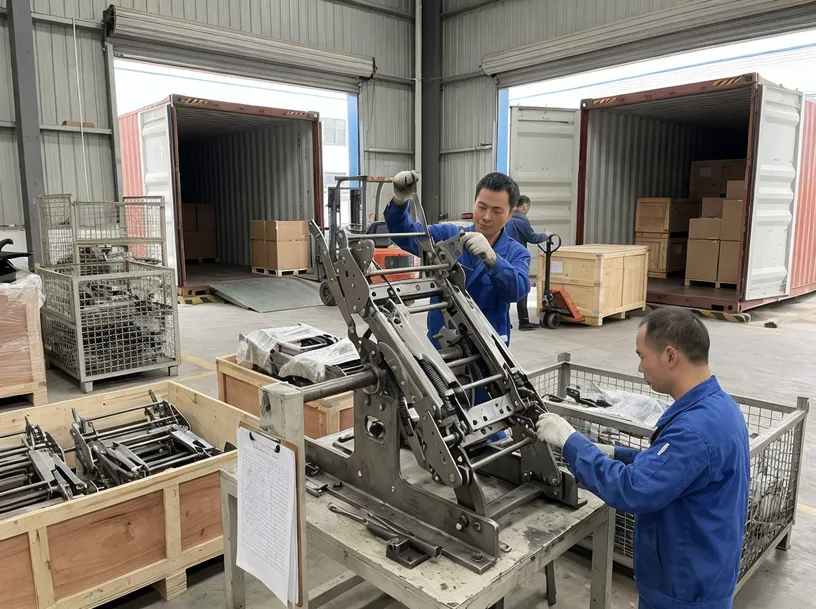

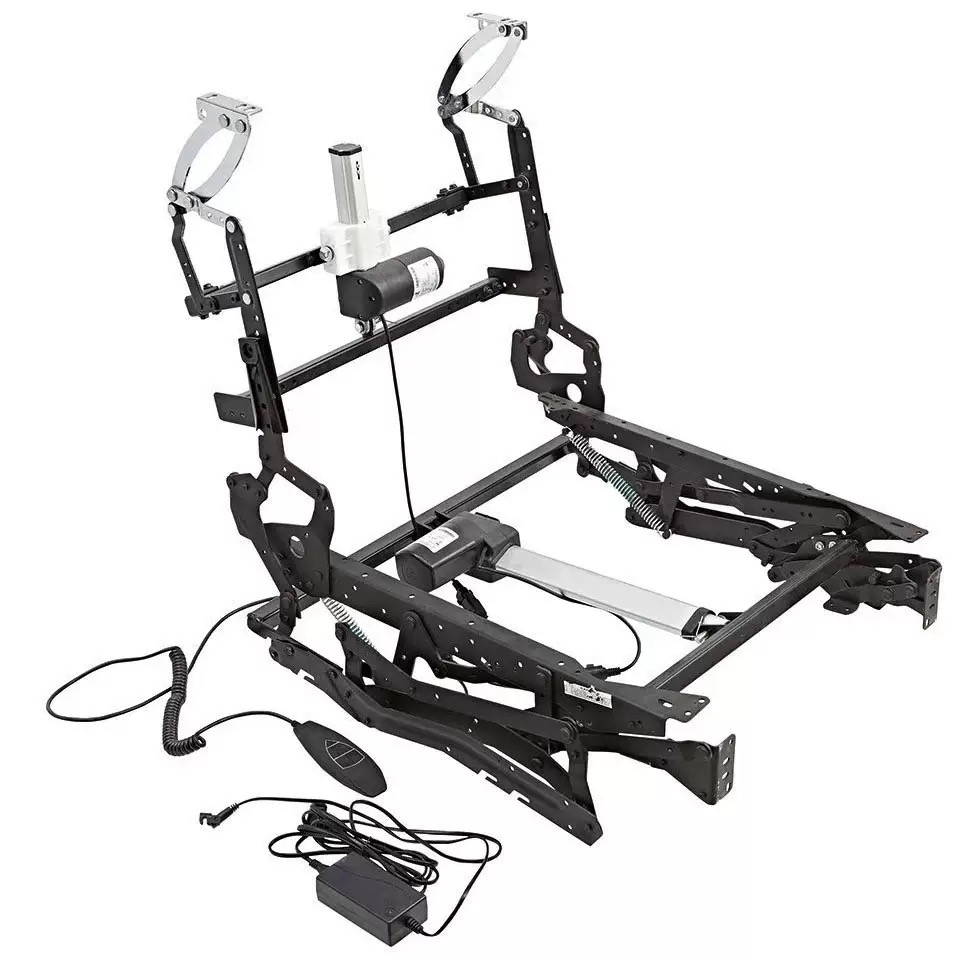

Outgoing Inspection

100% functional on every unit before packing. Not sampling — every unit. A mechanism that passes dimensional and load-cycle checks but has a sticky lock or a misaligned mounting point gets pulled at this stage. CE and SGS certifications cover the product range for European and international market compliance. RoHS documentation ships with orders for buyers whose downstream customers require it.

20,000-Cycle Load Testing

We run 20,000-cycle load testing on sofa bed and sleeper sofa hinge assemblies as standard batch qualification. For recliner mechanisms going into high-use commercial or hospitality environments, we can spec and test higher — ask us when you send your brief.

Framework

ISO 9001:2015

Market

CE & SGS

Compliance

RoHS Docs

Coverage

100% Units

Distribution & End Markets

Where These Mechanisms Sell: Market Segments Worth Knowing

Understanding where your product lands in the supply chain shapes how we spec, package, and document each order. These are the four segments we ship into regularly.

Core Volume

Residential Furniture Manufacturing

OEM supply to sofa and recliner brands that source mechanisms separately from their upholstery and frame production. Order patterns here tend to be 2,000–10,000 units per SKU on quarterly replenishment cycles, which suits our production scheduling well.

OEM/ODM Activity

Furniture Importers & Distributors

Buyers for North American and European retail channels. This segment drives the most OEM/ODM activity — buyers who need a mechanism spec'd to match a specific sofa design or retail price point, rather than selecting from a standard catalog. Our 12-person engineering team handles that development work in-house, with tooling built on-site so sample iterations don't wait on a third-party tooling shop.

Growing Segment

Hospitality & Contract Furnishing

Hotels, serviced apartments, and short-term rental operators specifying sofa beds and sleeper sofas at volume. This segment has grown for us over the past several years, driven by the expansion of apartment-hotel formats in Southeast Asia and the Middle East.

Hospitality spec differences that matter:

Higher cycle life requirements
Simpler operation — guests shouldn't need instructions
Surface finishes that hold up to housekeeping chemicals

DTC Supply

E-Commerce Furniture Brands

Sourcing convertible seating mechanisms for direct-to-consumer product lines. The packaging and assembly requirements here differ from traditional retail — mechanisms need to be packaged for end-user assembly, with clear mounting hardware and minimal tools required.

We handle that as part of the OEM arrangement, including branded carton design if needed.

Buyer Decision Guide

Selecting the Right Mechanism for Your Furniture Design

The four products in this category aren't interchangeable. The right choice depends on your sofa profile, target use environment, and price tier. Here's the decision logic we walk buyers through.

Deep Seat 90cm+

Sofa Bed Mechanism

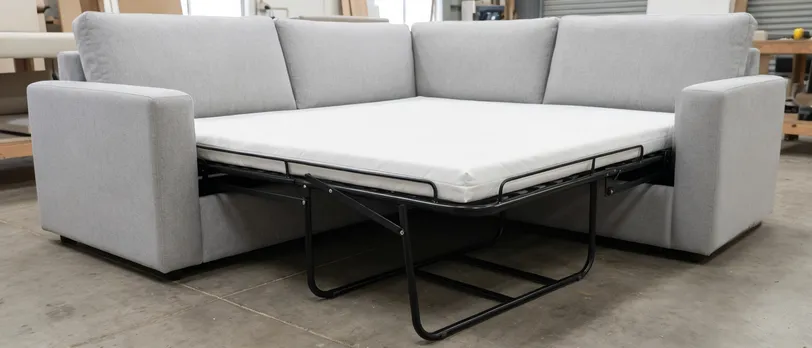

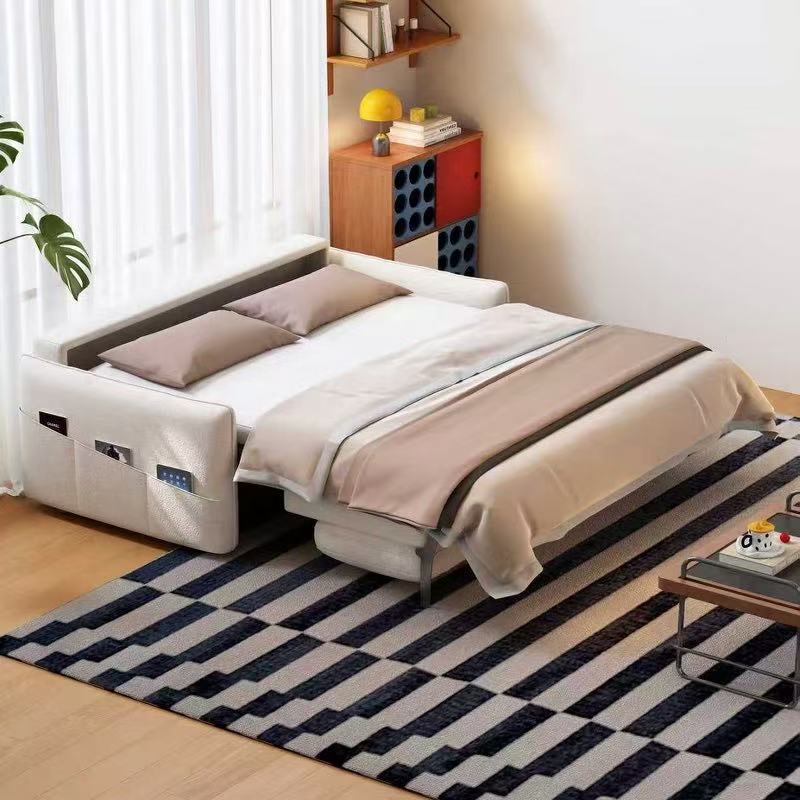

If your sofa has a deep seat (90cm+) and the design calls for a full sleeping surface, this is the correct choice. The full-frame system deploys a proper mattress platform and handles the static load correctly.

Important: Don't try to achieve this with a sleeper mechanism — the frame geometry isn't designed for it and you'll see joint fatigue within the first year of use.

View Sofa Bed Mechanism

Shallow Seat 75–85cm

Sleeper Sofa Mechanism

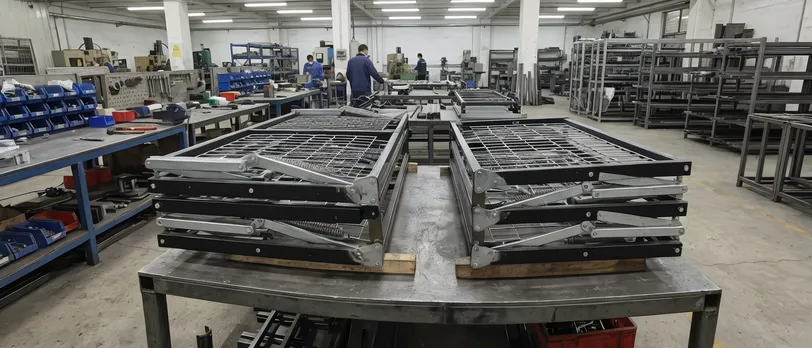

If your sofa profile is shallower (75–85cm seat depth) and space efficiency is the priority, use the Sleeper Sofa Mechanism in bi-fold or tri-fold configuration.

The tri-fold packs into a smaller stack height, which matters if your sofa design has a low back profile.

View Sleeper Sofa Mechanism

Standalone Chair

Recliner Chair Mechanism

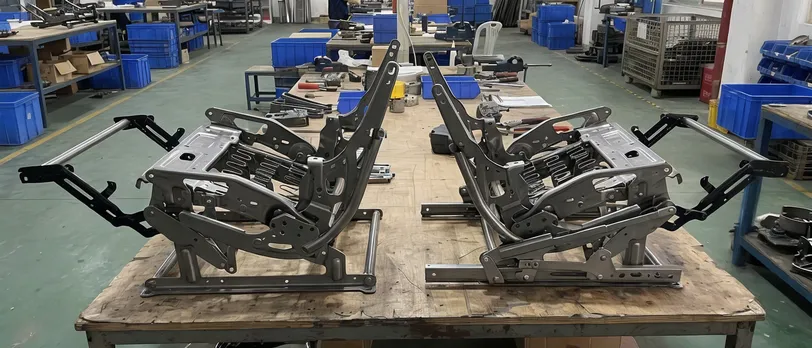

For standalone recliner chairs. Use the wall-hugger variant if your target market is urban residential. Standard (non-wall-hugger) suits larger living spaces and is simpler to produce — lower tooling cost if you're doing OEM.

View Recliner Chair Mechanism

Sectional / Multi-Seat

Couch Mechanism

For sectional or multi-seat sofas with reclining sections. The modular bracket system is designed for sectional assembly, and the dimensional consistency across a batch is what makes the sectional align correctly at your customer's end.

View Couch Mechanism

Not sure which configuration fits your design?

Send us a sketch or a photo of what you're currently sourcing. We'll tell you what we'd recommend and why — no obligation, and it takes us about a day to come back with a specific answer.

Send Your Sketch

Failure Mode Analysis

What Goes Wrong with Recliner Mechanisms — and How We Prevent It

This category has a short list of failure modes that experienced buyers have seen before. We know them because we've been manufacturing these mechanisms for 17 years and we've seen what comes back.

Failure Mode 01

Footrest Extension Binding or Stopping Short

Almost always a pivot geometry issue — the linkage arms aren't hitting the correct angular relationship at full extension. This happens when stamping tolerances are loose and the pivot holes drift across a production run.

Our Prevention

Our ±0.15mm stamping tolerance and periodic in-process dimensional checks are specifically what prevents this. A mechanism that binds at full extension is a warranty return; at scale, it's a significant RMA cost.

Failure Mode 02

Sofa Bed Frame Sagging in Deployed Position

The frame tubes are undersized for the span, or the weld joints on the cross-members are failing under repeated load cycles. A sagging sofa bed is a one-star review and a return; in hospitality, it's a contract cancellation.

Our Prevention

We run main frame tubes at 1.2–1.5mm wall thickness and MIG-weld all structural joints — not spot-weld, which is faster but doesn't have the penetration depth for load-bearing connections.

Failure Mode 03

Handle or Actuator Fitting Loosening Over Time

The die-cast adjustment collar or handle fitting has dimensional variation that creates play in the assembly. This is the failure mode that pushed us to bring die-casting in-house in 2015. When you outsource it, you're dependent on a foundry's batch-to-batch consistency — and foundries have their own cost pressures.

Our Prevention

When you control the die-cast process, you control the dimensional consistency of those components. Die-casting brought in-house in 2015 — eliminating foundry batch variation entirely.

Failure Mode 04

Surface Finish Failure on Coastal or Humid-Climate Shipments

Powder coat adhesion failure at weld seams, or zinc plating corrosion on components that weren't properly passivated. For buyers supplying into Southeast Asia, the Middle East, or coastal North America, this is the spec that protects your warranty exposure.

Our Prevention

We grind and pre-treat every weld seam before coating. Our powder line runs at 60–80μm — the thickness that passes 500-hour salt spray testing.

Custom Development

OEM and ODM: Custom Mechanism Development

A significant share of what we produce is OEM or ODM — mechanisms built to a buyer's specification or developed from a brief. The recliner and sofa category is where custom development is most common, because sofa designs vary enough that a standard catalog mechanism often doesn't fit the frame geometry or hit the target price point.

OEM: You Supply the Spec

Supply drawings or a sample reference. We review for manufacturability — if your spec has a geometry that will cause production problems or a tolerance that's tighter than necessary, we'll flag it before tooling starts, not after. Tooling is built in-house, which means revision cycles are faster: a geometry change on a sample goes back to our tooling team, not to a third-party shop with its own queue.

ODM: You Bring the Brief

Bring us a brief: target retail price, market segment, performance requirements, and any aesthetic direction on visible components. We develop the mechanism design, build the tooling, run samples, and iterate until the spec is locked. Our 12-person engineering team works exclusively on furniture mechanism hardware — the trade-offs in recliner pivot geometry, spring rate selection for tilt resistance, die-cast wall thickness that balances weight against structural integrity — these are problems they've solved before, not problems they're learning on your project.

Explore OEM/ODM Capabilities

In-house tooling and engineering team developing custom recliner mechanism

Program Parameters

500

MOQ — standard catalog mechanisms

12

Engineers — furniture mechanism hardware only

Surface Finish Options

Nickel Plating Zinc Plating Powder Coat — Standard Custom Colors (500+ units)

OEM/ODM MOQ Note

For OEM/ODM tooling projects, MOQ depends on tooling amortization — we give you the honest number based on your spec. Custom powder coat colors are available on runs of 500 units or more; below that, the powder line changeover cost doesn't make sense for either of us.

Logistics & Compliance

Container Loading and Export Documentation

We export to North America, Europe, the Middle East, Southeast Asia, and Australia. Standard production lead time for catalog mechanisms is 25–35 days from order confirmation and deposit. OEM/ODM projects with new tooling run on a milestone schedule — we give you the production timeline broken into stages, not a single delivery date that obscures where the time goes.

Container Packing Efficiency

Packaging is engineered for 40HQ container efficiency. Recliner mechanisms are packed in standardized cartons sized for the product's folded dimensions, with pallet configurations worked out for the main SKUs so your freight forwarder isn't improvising at the warehouse.

KD Packing Advantage

Sofa bed frames ship knocked-down where the design allows — KD packing typically increases 40HQ loading quantity by 30–40% versus assembled, which directly reduces your landed cost per unit.

Export Documentation Package

Full export documentation ships with every order:

Commercial invoice
Packing list
Bill of lading
Certificate of origin
Test reports

European Buyers

CE Declaration + SGS Reports

North American Importers

HTS Classification Docs on Request

40HQ

Container-optimized packing

30–40%

More units per container with KD packing

25–35

Days lead time, catalog mechanisms

5

Export regions served

Buyer Questions

Frequently Asked Questions

Technical and commercial questions we hear from importers, furniture brands, and OEM buyers. Direct answers — no marketing language.

What is the minimum order quantity for recliner and sofa mechanisms?

500 units for standard catalog mechanisms. For OEM/ODM projects with custom tooling, MOQ depends on tooling amortization and we'll give you the specific number based on your spec — not a round figure.

What load rating do sofa bed mechanisms need to meet for the North American market?

ASTM F1566 and BIFMA X5.4 are the relevant standards for seating and sofa bed hardware in the North American commercial market. For residential product, most buyers specify a static load rating of 250–300 kg on the deployed frame and a cycle life of 10,000+ open/close cycles.

We can provide test reports to either standard — specify your target market when you send the brief and we'll confirm which documentation your compliance team needs.

What's the difference between a sofa bed mechanism and a sleeper sofa mechanism — and which one do I need?

Sofa Bed Mechanism

Full folding frame system — deploys a complete mattress platform. Designed for sofas with 90cm+ seat depth.

Sleeper Sofa Mechanism

More compact bi-fold or tri-fold linkage for shallower sofa profiles (75–85cm seat depth) where the full frame geometry doesn't fit. Right choice for low back profiles or tight seat depths.

If you're not sure, send us the sofa dimensions and we'll tell you which system fits.

How do I prevent recliner mechanism binding after 6–12 months of use?

Binding at full footrest extension is almost always a pivot geometry issue caused by loose stamping tolerances — the linkage arms drift out of the correct angular relationship as dimensional variation accumulates across a production run.

Tolerance Spec

±0.15mm or tighter on stamping

With periodic in-process dimensional checks, not just first-article inspection

Pivot Pin Spec

Hardened steel pins required

Mild steel pivot pins wear oval under load cycles and introduce play that causes binding

Can recliner mechanisms be used in hospitality or contract furniture applications?

Yes, but the spec needs to match the use environment. We've supplied mechanisms into hotel and serviced apartment projects in Southeast Asia and the Middle East.

Higher cycle life: 30,000+ cycles versus 10,000–15,000 for residential

Simpler actuation: Single-handle or push-back rather than multi-step

Chemical-resistant finishes: Surface treatments that resist housekeeping chemicals

Tell us the use environment and we'll recommend the configuration and surface treatment that fits.

What surface finish options are available, and which is right for humid-climate markets?

Powder Coating — 60–80μm

Recommended for humid-climate markets (Southeast Asia, coastal Middle East, coastal North America). Passes 500-hour salt spray. Protects against corrosion-driven warranty claims.

Nickel Plating

Used on tight-tolerance components where powder coat thickness would affect fit.

Zinc Plating with Trivalent Chromium Passivation

Available for buyers with RoHS compliance requirements.

Get Started

Source Your Recliner and Sofa Mechanisms Here

New to This Category?

Most buyers start with a 2-unit sample order to test fit and function against their sofa frame before committing to a production run. We can ship samples from catalog stock within the standard lead time — tell us your sofa dimensions and target configuration and we'll pull the closest match.

[email protected] +86 132 1014 9517

Developing a New Sofa Design?

If you're developing a new sofa design and need a mechanism spec'd to fit, send us your frame drawings or a photo of what you're currently sourcing. Our engineering team will come back with a specific recommendation, a quote, and CAD drawings if the project moves forward.
