What a Coffee Table Mechanism Is — and Where the Sourcing Risk Lives

A coffee table mechanism is the hardware assembly that converts a static coffee table into a functional piece: a lift-top that rises and tilts toward the user for laptop or dining use, a flip-top that rotates to reveal interior storage, or a folding leg system that allows the table to collapse flat. The mechanism is a small fraction of the finished table's cost and the component that determines whether the product generates a warranty claim or a reorder.

The sourcing risk in this category is concentrated in two places. First, spring selection: a lift-top mechanism tuned for a 10kg tabletop will feel sluggish and wear prematurely under a 20kg solid wood surface. Most suppliers ship a standard spring rate regardless of what the buyer's top actually weighs. Second, pivot quality on flip-top mechanisms: an undersized pivot pin in a loose die-cast bore wears oval within the first year of use, and the smooth rotation the buyer approved on the sample degrades into a stiff, binding motion by the time the product is in the field.

We've been making coffee table mechanisms since 2008. The parent category page covers our full table surface mechanism range — this page is specific to coffee table applications: the motion types, the specs, the failure modes, and what to confirm before you place an order.

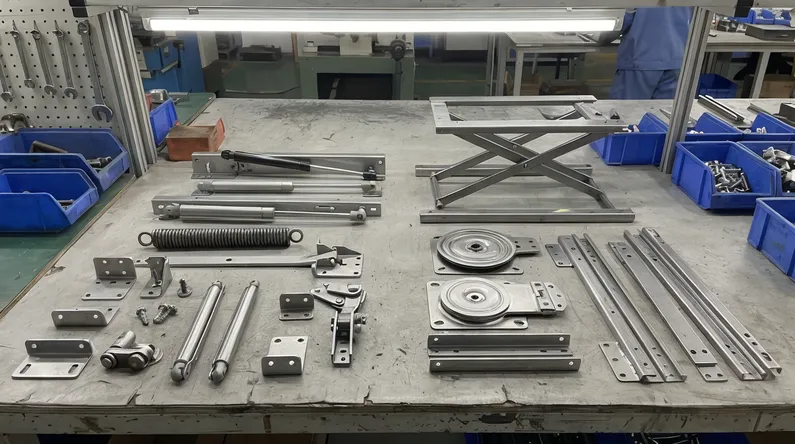

Coffee table lift-top mechanism showing spring assembly and pivot components

Spring Selection Risk

A mechanism tuned for 10kg wears prematurely under a 20kg solid wood surface. We require tabletop weight before confirming spring rate.

Pivot Quality Risk

An undersized pivot pin in a loose die-cast bore wears oval within the first year. Smooth sample rotation degrades to binding motion in the field.

Hardware Range

Mechanism Types for Coffee Table Applications

Coffee tables use a narrower set of motion hardware than dining or extension tables. The three types that cover the majority of the market:

Lift-Top Coffee Table Mechanism

The lift-top mechanism raises the tabletop and tilts it toward the user — the fitting that turns a coffee table into a work surface or dining platform. The mechanical requirement is a smooth, controlled lift arc that holds position at multiple angles without drift, and returns without slamming when released.

We produce lift-top mechanisms in cold-rolled steel (SPCC) with zinc plating on the spring and pivot components. The spring assembly is the critical variable. We require buyers to provide their tabletop material and dimensions before we confirm the spring rate — a mechanism specified for a 12kg MDF top behaves differently than one under a 22kg solid wood surface, and we won't ship a lift-top mechanism without knowing what it's going under. The spring wire runs at a heavier gauge than the minimum spec; the marginal material cost is real, and so is the difference in cycle life at the 12-month mark.

The lift arc geometry is stamped into the mechanism arms — the motion path is fixed by the tooling, not adjustable in the field. This means the sample approval stage matters: confirm the lift height, the tilt angle at the top of the arc, and the return behavior with your actual tabletop weight before you commit to a production run. We can adjust the arm geometry in tooling if the sample doesn't match your product requirement.

Field note: Most lift-top quality complaints we see from buyers who switched to us from other suppliers trace back to spring fatigue at 6–12 months. The root cause is almost always an undersized spring cross-section, not the spring count. It's a cost-cutting decision that shows up in the field, not in the factory.

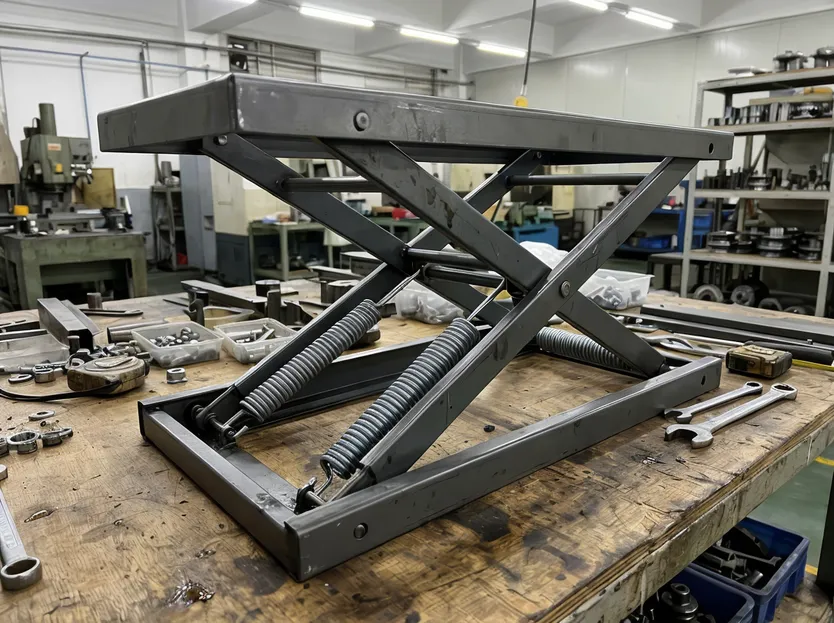

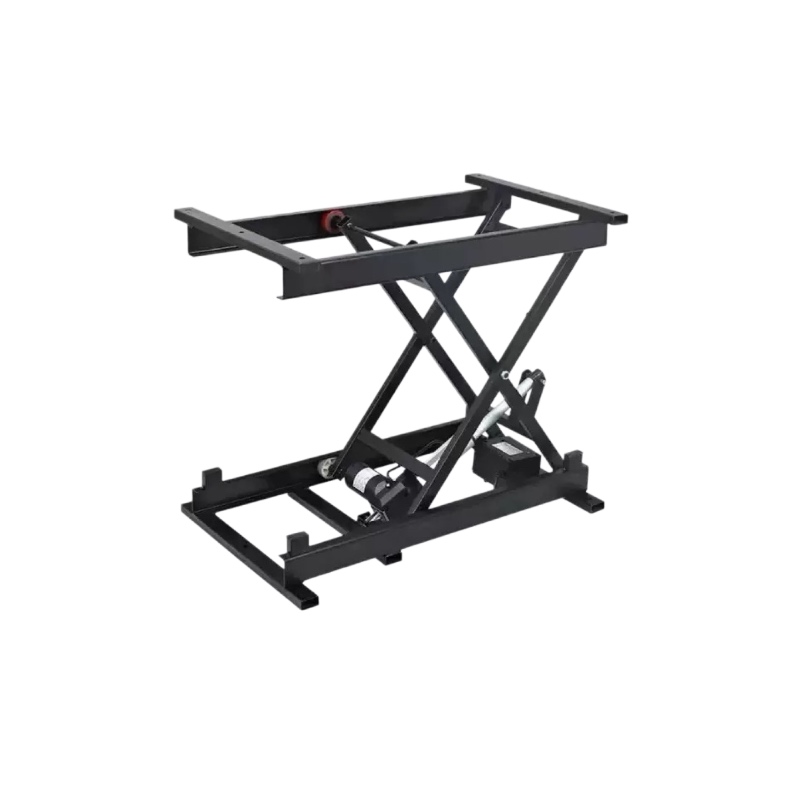

Lift-top coffee table mechanism showing spring assembly and arm geometry

SPCC

Cold-Rolled Steel

Zinc

Plated Finish

OEM

Arm Geometry

Flip-Top Coffee Table Mechanism

The flip-top mechanism rotates the tabletop 180° on a central pivot, typically to reveal an interior storage compartment. The pivot bearing carries the full surface weight through the rotation — bearing quality and pivot pin diameter determine whether the mechanism operates smoothly at 50,000 cycles or starts to bind within the first year.

We run a 16mm pivot pin as standard on flip-top coffee table mechanisms. Some suppliers use 12mm to reduce material cost; the difference is audible and tactile in the motion quality within the first year of use. The bearing housing is die-cast zinc alloy, produced in-house on our own die-casting equipment. We hold the bearing bore to ±0.05mm — that tolerance is why we brought die-casting in-house in the first place. A third-party foundry won't hold ±0.05mm on a bore that size without a premium tooling arrangement, and the loose bore is what causes the pivot pin to wear the housing oval over time.

For coffee table applications, the flip-top mechanism is typically paired with a soft-close damper on the rotation arc — the surface decelerates before it reaches the open position rather than snapping to a stop. We offer this as a standard configuration option; it adds to the unit cost but meaningfully reduces the warranty claim rate on premium product lines.

Spec

Standard Market

MVMHardware

Pivot Pin Diameter

12mm

16mm

Bore Tolerance

±0.15mm+

±0.05mm

Die-Casting

3rd-party foundry

In-house

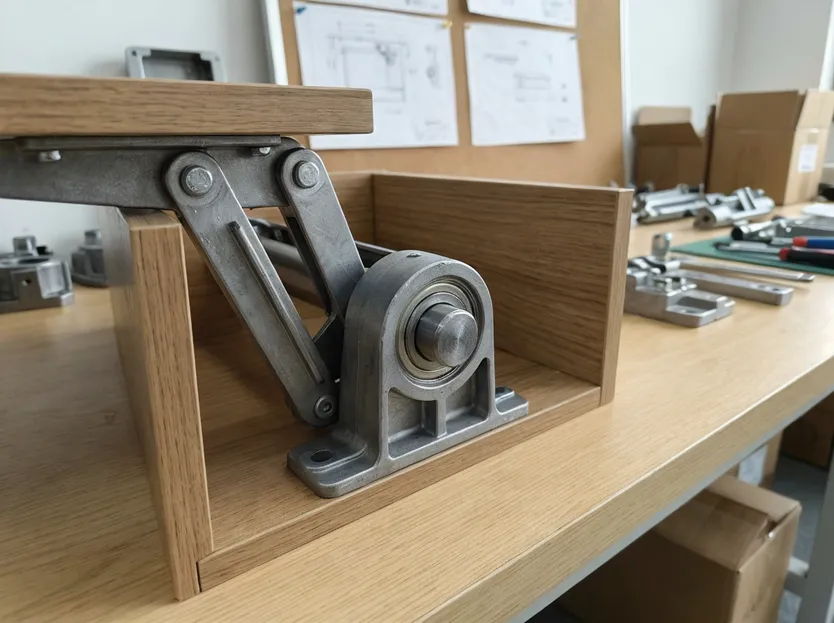

Flip-top coffee table mechanism pivot assembly with 16mm pin and die-cast zinc housing

Folding Leg and Bracket System

Folding leg brackets allow a coffee table to collapse flat for storage or transport — relevant for compact living furniture, outdoor occasional tables, and hospitality applications where tables are stored between uses. The load rating is the primary spec: a bracket supporting a 40kg surface load under dynamic use has different structural requirements than a lightweight folding trestle fitting.

We rate folding brackets by static load capacity and test to 3× rated load as a batch qualification standard. The bracket body is 2.0mm cold-rolled steel. We've had buyers ask about 1.5mm to reduce unit cost — the weight saving is negligible, the load margin reduction is not, and we don't offer the thinner spec on load-bearing brackets.

2.0mm

Steel Gauge

Cold-rolled steel bracket body. 1.5mm not offered on load-bearing specs.

3×

Test Load

Batch qualification at 3× rated static load capacity.

OEM

Applications

Compact living, outdoor occasional, and hospitality storage use cases.

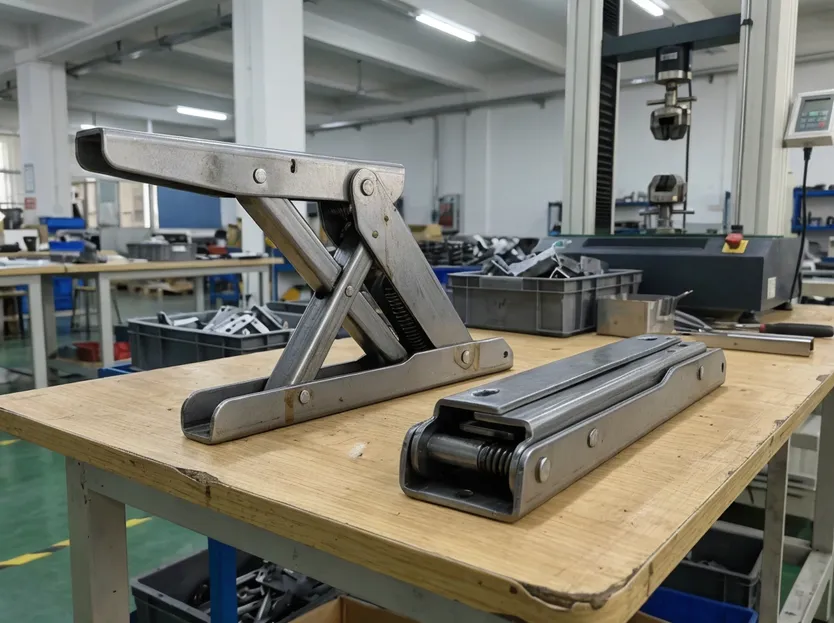

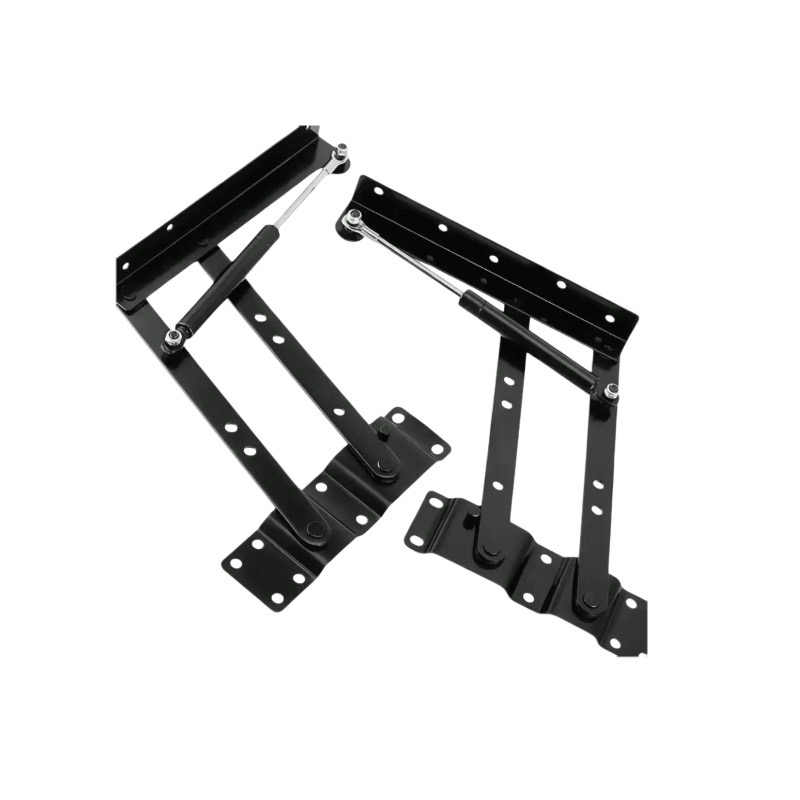

Folding leg bracket system for coffee table — 2.0mm cold-rolled steel, 3x load tested

Need a mechanism for a specific tabletop weight?

Tell us your tabletop material, dimensions, and target motion type. We'll confirm the correct spring rate and pivot spec before quoting.

Get a Quote View All Table Mechanisms

Engineering Data

Technical Specifications

These are industry-typical values for coffee table mechanism configurations. Actual specifications vary by mechanism type and custom configuration — contact us for exact data sheets on the specific mechanism you're evaluating.

Parameter	Lift-Top	Flip-Top	Folding Bracket
Primary material	SPCC cold-rolled steel	SPCC steel + zinc alloy die-cast	SPCC cold-rolled steel
Steel thickness	1.5mm – 2.0mm (arms/brackets)	1.5mm structural frame	2.0mm bracket body
Pivot pin diameter	10mm – 14mm	16mm (standard)	12mm hinge pin
Spring wire gauge	Matched to surface weight	N/A	N/A
Surface treatment	Zinc plating / powder coat	Zinc plating / nickel plating	Powder coat over zinc phosphate
Salt spray resistance	200h (zinc plate); 500h (powder coat)	200h (zinc plate)	500h (powder coat)
Static load rating	Up to 25kg surface weight	Up to 30kg surface weight	40kg – 80kg (by model)
Cycle life (tested)	50,000 cycles minimum	50,000 cycles minimum	30,000 cycles minimum
Dimensional tolerance	±0.15mm stamped components	±0.05mm bearing bore	±0.15mm stamped components
Certifications	ISO 9001:2015, CE, SGS, RoHS	ISO 9001:2015, CE, SGS, RoHS	ISO 9001:2015, CE, SGS, RoHS
MOQ	500 units	500 units	500 units

Specifications shown are industry-standard values for these mechanism types. Contact us for detailed product data sheets and confirmation of exact parameters for your application.

Request a Quote or Data Sheet

Buyer Context

Market Segments: Where Coffee Table Mechanisms Generate Margin

Coffee table mechanisms serve several distinct market segments, each with different volume patterns and margin profiles.

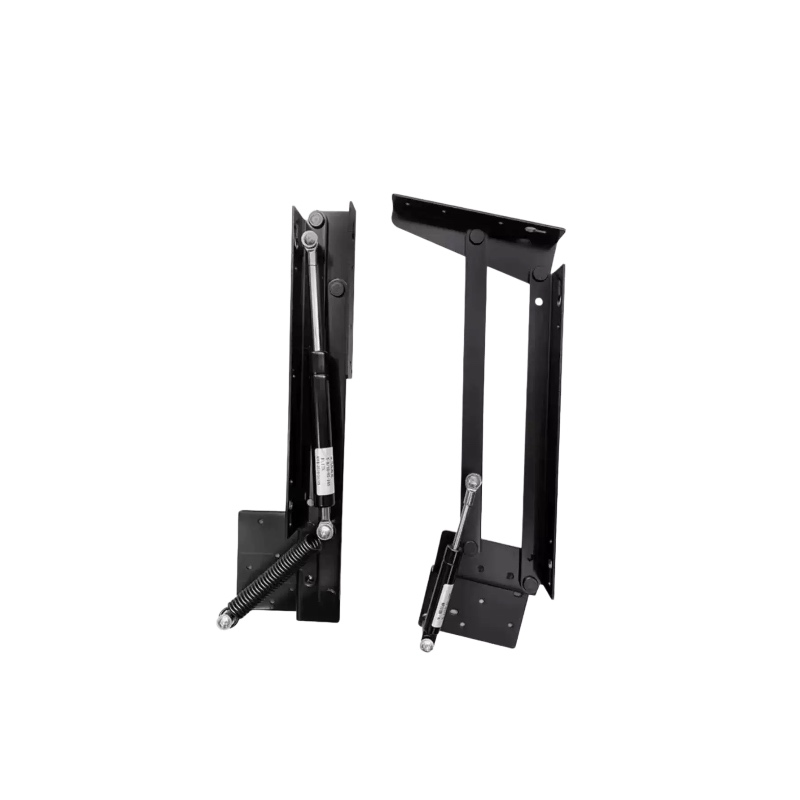

Residential lift-top coffee table mechanism for furniture retailers

Residential Multifunctional

Core Volume Segment

Lift-top coffee tables are a staple SKU for furniture retailers across North America and Europe — the mechanism is what justifies the price premium over a static table, and the segment reorders consistently once a working SKU is established.

A furniture importer running a lift-top coffee table line typically orders 1,000–5,000 mechanisms per SKU per season. The mechanism cost is a small fraction of the retail price, so the margin leverage is significant.

A reliable mechanism that eliminates warranty claims is worth more than a cheaper mechanism that generates returns at 2–3%.

Flip-top coffee table mechanism for compact urban living

Compact Living & Urban

Higher-Spec Hardware Demand

Wall-adjacent coffee tables with interior storage, fold-flat occasional tables for small apartments, and convertible pieces that serve multiple functions are all mechanism-dependent products.

This segment skews toward higher-spec hardware — the end consumer is paying for functionality, and a mechanism failure is a direct product return.

Buyers in this segment tend to be more specification-conscious and more willing to pay for documented cycle life and surface treatment quality.

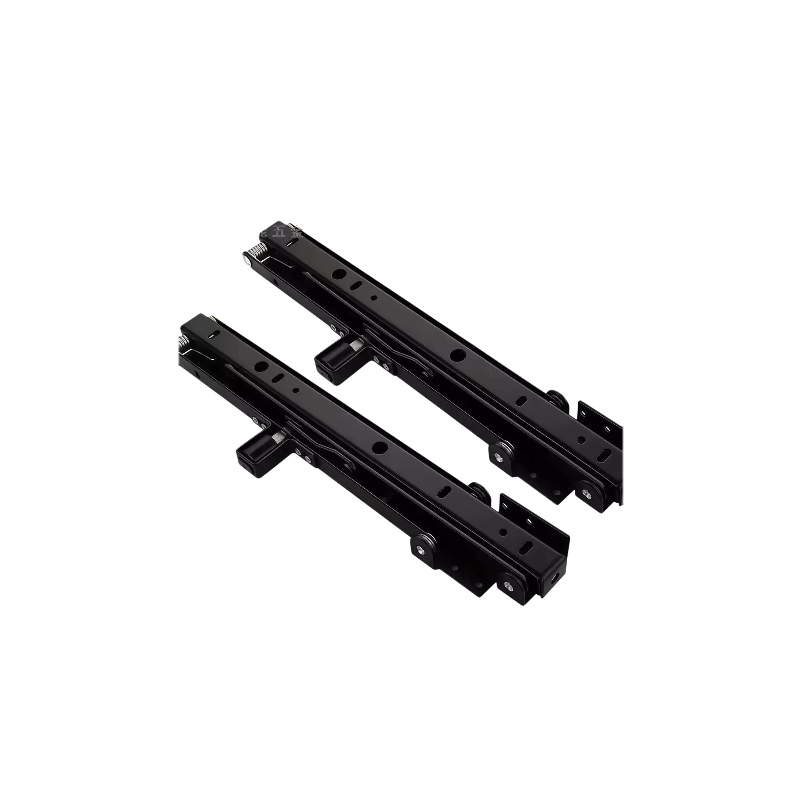

Coffee table mechanisms for hospitality and contract furniture fit-outs

Hospitality & Contract

Project-Based Orders, CE Required

Hotel room occasional tables, lobby furniture, and serviced apartment fit-outs require mechanisms that hold up to commercial use cycles and carry CE documentation.

Order patterns in this segment are project-based: a single hotel fit-out might specify 200–500 units of a single mechanism type, with repeat orders tied to property renovation cycles.

The documentation requirement (CE declaration, SGS test reports) is non-negotiable for most contract furniture buyers, and having it ready to ship with the order is a meaningful differentiator.

KD packaging for DTC e-commerce flat-pack coffee table mechanisms

E-Commerce & DTC

Packaging & Assembly Matter as Much as the Mechanism

E-commerce and direct-to-consumer furniture brands need mechanisms that survive mail-order shipping without damage and assemble reliably from printed instructions.

We can configure KD packaging with component labeling and assembly hardware included — relevant if your customer is a DTC brand building a flat-pack coffee table line.

The DTC furniture segment has grown substantially for our customers over the past few years. If you're building a product line for this channel, the mechanism packaging spec is worth discussing early — it affects carton design and assembly instruction development.

Sourcing Guidance

Specifying the Right Coffee Table Mechanism: What to Confirm Before You Order

The most common sourcing mistake in this category is treating the mechanism as a commodity and specifying by type alone. Three parameters determine whether the mechanism you approve on a sample performs the same way in production and in the field.

Tabletop Weight

For lift-top mechanisms, this is the single most critical input. Provide the tabletop material (MDF, particleboard, solid wood, glass), dimensions, and thickness. We calculate the surface weight and confirm the spring rate. Specifying a lift-top mechanism without this data means guessing on the most important spec.

Surface Treatment

Match the coating spec to your target market:

Indoor residential (North America, Northern Europe): zinc plating is sufficient.
Coastal markets (Southeast Asia, Florida, Gulf, Australia): specify powder coat over zinc phosphate pre-treatment. The phosphate layer is what makes coating adhesion hold in high-humidity conditions — without it, powder coat can delaminate at the steel interface within 12–18 months.
Outdoor-adjacent applications: discuss with us before specifying; not all mechanisms in our catalog are rated for direct weather exposure.

Cycle Life Requirement

The mechanism design is the same; the spring and pivot components are uprated to match the spec.

Residential standard 50,000 cycles

Premium / commercial 80,000–100,000 cycles

If your product carries a multi-year warranty or goes into a commercial environment, specify the higher tier and request the test report.

Ready to specify?

Send us your tabletop spec, target market, and annual volume — we'll come back with a specific mechanism recommendation and a quote that reflects the actual configuration.

Get a Quote

Manufacturing Process

How We Manufacture Coffee Table Mechanisms: Process Details That Affect Your Product

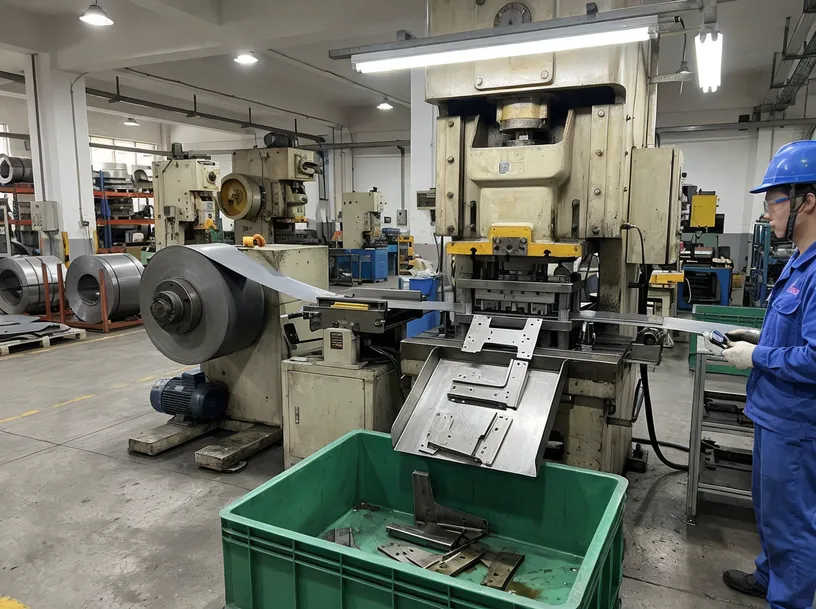

Cold-rolled steel stamping production line for coffee table mechanism arms and brackets

Stamped Steel Arms & Structural Plates

Mechanism arms, brackets, and structural plates are stamped from cold-rolled steel coil on progressive dies, held to ±0.15mm dimensional tolerance. That tolerance matters on the lift-top arm geometry: the motion arc is determined by the stamped profile, and a ±0.5mm variation in arm length changes the lift height and tilt angle at the top of the arc. First-article dimensions are checked on every die change, with periodic dimensional checks through the production run.

In-House Zinc Alloy Die-Casting

Bearing housings, adjustment collars, and pivot components are zinc alloy die-cast in-house — a capability brought in-house around 2015 specifically because third-party foundries couldn't hold the bore tolerances needed on pivot housings. The bearing bore on a flip-top pivot housing is held to ±0.05mm: the tolerance that determines whether the pivot pin runs true or wears the housing oval over time.

MIG Welding

Structural joints — bracket-to-arm connections that carry the surface load — are MIG welded. Every weld seam is ground and chemically treated before the part enters the coating line.

Powder coat adhesion failure at weld seams is the most common cosmetic defect in this category. Root cause: weld spatter and oxidation scale not fully removed before coating. The pre-treatment step is not optional.

Surface Treatment Line

In-house line handles zinc plating for pivot and spring components, and powder coating at 60–80μm film thickness for structural brackets and rail components.

Every coated batch goes through a film thickness check and an adhesion cross-cut test before moving to assembly.

Dimensional Tolerances

Stamped arm geometry ±0.15mm

Pivot housing bore ±0.05mm

Powder coat film 60–80μm

100% Functional Test

Final assembly is 100% functionally tested — every unit, not a sample. A mechanism that passes dimensional checks but has a sticky lift arc, a drift issue at the hold position, or a misaligned mounting hole gets pulled before it reaches your container.

Full Quality Control Process

Our complete QC process — incoming material inspection, in-process checks, and outgoing functional testing — is described on the About page.

OEM / ODM

Customization Options for Coffee Table Mechanisms

Standard catalog mechanisms cover the most common coffee table configurations. OEM and ODM work is a routine part of our volume — buyers who need a mechanism built to their specification or developed from a brief.

Customization Dimension	Standard Range	Notes
Surface treatment	Zinc plate, nickel plate, powder coat	Powder coat: any RAL color on runs of 100+ units
Spring rate	Matched to surface weight	Requires tabletop weight data at order stage
Lift height	Typically 250mm – 400mm arc	Custom arm geometry available via OEM tooling
Soft-close damper	Optional add-on	Adds to unit cost; recommended for premium lines
Pivot pin diameter	12mm – 20mm	16mm standard; larger diameter for heavier surfaces
Mounting hole pattern	Standard catalog patterns	Custom patterns via OEM tooling
Packaging	Standard export carton	KD with component labeling for DTC/e-commerce
Branding	Unbranded standard	Custom carton printing and hardware labeling for OEM

OEM: You Supply the Drawings

For OEM work, you supply the drawings. We review for manufacturability — if your geometry creates a stamping problem or a die-cast wall thickness that won't fill reliably, we'll tell you before we build tooling. No surprises after tooling investment.

ODM: Bring Us the Brief

For ODM, bring us the commercial brief: target retail price point, tabletop weight range, end market, and any aesthetic requirements. Our 12-person engineering team develops the mechanism design, builds the tooling in-house, and runs samples through the standard qualification cycle.

Minimum Order Quantities

MOQ is 500 units for standard catalog mechanisms. OEM/ODM tooling projects have MOQs based on tooling amortization — we give you the honest number from your spec and volume projection.

Discuss OEM/ODM Requirements

Logistics & Export

Packaging, Container Loading, and Export Documentation

Coffee table mechanisms ship KD — components packed flat, not assembled — which significantly improves container utilization. We provide CBM-per-carton data with every order so you can calculate freight cost before the container is packed.

KD Flat-Pack Shipping

A 40HQ container typically holds 10,000–18,000 units depending on mechanism type. Lift-top mechanisms with spring assemblies pack less densely than folding bracket sets. Carton dimensions are standardized for 40HQ loading.

DTC / E-Commerce Packaging

For buyers building e-commerce or DTC product lines, we configure retail-ready packaging with component labeling and assembly hardware included in the carton. The packaging spec is part of the OEM arrangement discussion.

Production Lead Time

Standard production lead time is 25–35 days from order confirmation and deposit. Lock your tabletop spec and surface treatment selection before placing the order — revised specs after production has started are the most common delay.

Export Documentation — Ships Complete

No chasing us for documents after the container has sailed.

Standard Documents

Commercial invoice
Packing list
Bill of lading
Certificate of origin

Compliance & Certification

CE declaration of conformity
SGS test reports
RoHS compliance documentation

Market-Specific Support

North America: Material and surface treatment documentation for HTS classification — your customs broker gets what they need.
Europe: CE declaration and test reports as standard.

Coffee table mechanism KD packaging and container loading for export

Common Questions

Frequently Asked Questions

What information do I need to provide to get a quote for a lift-top coffee table mechanism?

Tabletop material (MDF, particleboard, solid wood, glass), dimensions (length × width), and thickness. We calculate the surface weight from those inputs and confirm the spring rate. Without the surface weight, we can't confirm the spring selection — and an incorrectly specified spring is the leading cause of lift-top mechanism failure in the field. Also useful: your target market (for surface treatment recommendation) and annual volume estimate.

What is the difference between a lift-top and a flip-top coffee table mechanism?

A lift-top mechanism raises and tilts the tabletop toward the user — the surface stays attached and moves through an arc. A flip-top mechanism rotates the tabletop 180° on a central pivot, typically to reveal interior storage; the surface flips over rather than lifting. They serve different functional purposes and have different structural requirements. Lift-top mechanisms are spring-loaded and weight-sensitive; flip-top mechanisms are pivot-dependent and bearing-quality-sensitive.

What cycle life should I specify for a coffee table mechanism?

For residential use, 50,000 cycles is the standard floor — that's the minimum we test to as a batch qualification standard. For premium residential products with multi-year warranties, or for commercial/hospitality applications, specify 80,000–100,000 cycles and ask for the test report. The mechanism design is the same; the spring wire gauge and pivot components are uprated for the higher cycle requirement.

Can coffee table mechanisms be customized for non-standard tabletop sizes or unusual lift heights?

Yes. Standard catalog mechanisms cover the most common tabletop size ranges and lift arc geometries. For non-standard dimensions or custom lift heights, OEM tooling is the route — we review your drawings for manufacturability, build the tooling in-house, and run samples through the standard qualification cycle. Bring us your tabletop dimensions, surface weight, and target lift height and we'll confirm whether a catalog mechanism covers it or whether custom tooling is needed.

What surface treatment should I specify for coffee table mechanisms going to coastal or humid markets?

Powder coat over zinc phosphate pre-treatment. The phosphate layer improves coating adhesion on steel surfaces in high-humidity conditions — without it, powder coat can delaminate at the steel interface within 12–18 months in coastal environments. We run the powder line at 60–80μm film thickness, which passes 500-hour salt spray. For Southeast Asia, Florida, Gulf, or Australian coastal markets, specify this configuration explicitly when inquiring.

What is the MOQ for coffee table mechanisms?

500 units for standard catalog mechanisms. OEM/ODM tooling projects have MOQs based on tooling amortization — we calculate the number from your spec and volume projection, not a round figure. Most new buyers start with a 500–1,000 unit trial order to validate the mechanism with their own product before scaling.

Factory-Direct Sourcing

Source Coffee Table Mechanisms Factory-Direct

We've been making furniture mechanisms since 2008 — 17 years, one product category, the same factory floor. For coffee table mechanisms specifically: in-house die-casting on the pivot components that determine long-term motion quality, spring rates matched to your actual tabletop weight, 100% functional testing before shipment, and CE/SGS documentation ready to ship with the order.

If you're evaluating suppliers for a coffee table mechanism program — catalog SKU, private-label line, or OEM development — send us your tabletop spec and volume. We'll come back with a specific mechanism recommendation, a sample timeline, and a quote that reflects the actual configuration.
