Swivel Chair Mechanism

Product Overview

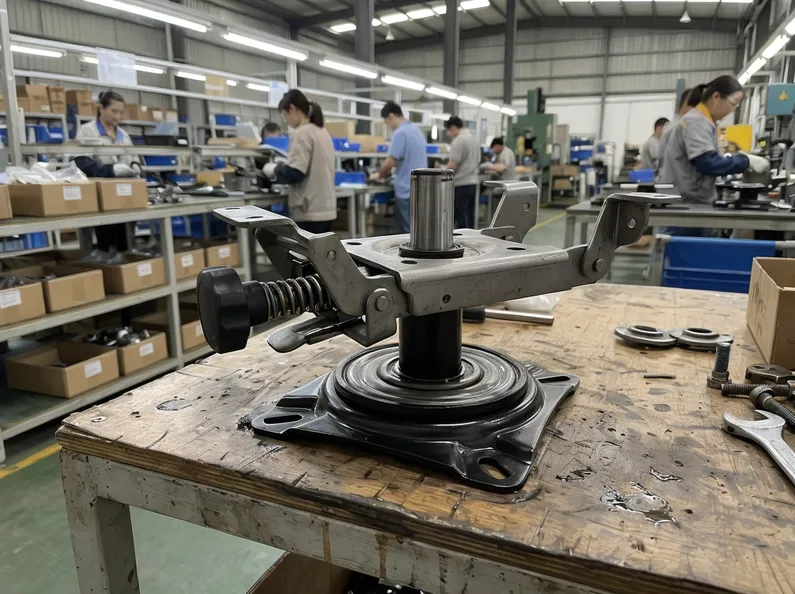

What the Swivel Chair Mechanism Does — and Where It Sits in Your Product Line

The swivel chair mechanism is the rotation assembly that sits between the chair's seat plate and the gas lift column, enabling full 360° rotation. It's a deceptively simple component — a stamped steel housing, a bearing race, and a mounting interface — but the bearing quality and dimensional precision determine whether your chair feels premium or cheap to the end user, and whether your warranty claim rate stays manageable or eats into your margin.

We produce swivel chair mechanisms as a dedicated product line within our chair hardware range. The category page covers the full chair mechanism lineup — this page is specific to the swivel unit: its construction, load ratings, mounting configurations, and where it fits commercially.

The swivel mechanism is distinct from the swivel chair base mechanism, which is the complete base assembly including the five-star base, casters, and gas lift. The swivel mechanism here is the rotation hardware only — the component that integrates into your existing chair frame or mechanism plate. If you're sourcing a complete base assembly, that's a different product.

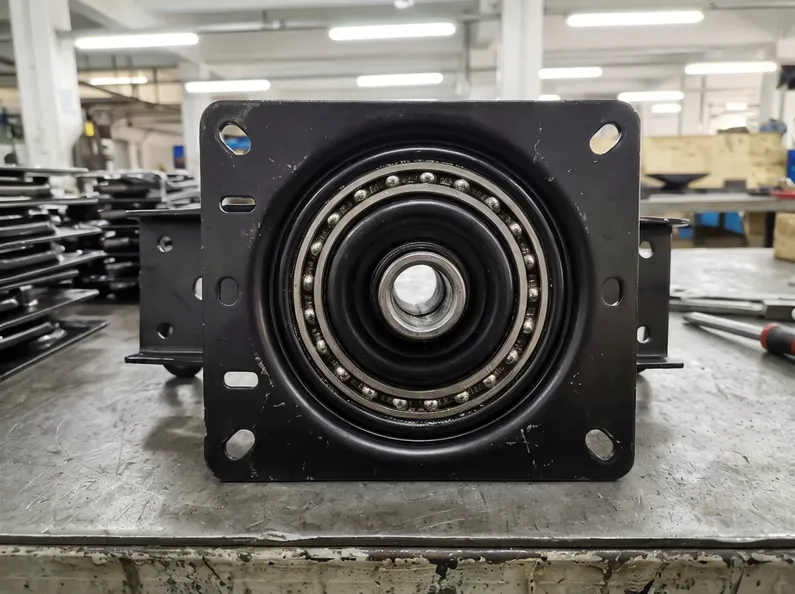

Swivel chair mechanism assembly — seat plate, bearing race, and gas lift column interface

360°

Continuous Rotation

3

Load Ratings

80K+

Cycle Life

Rotation hardware only. This product is the swivel bearing unit that integrates into your existing chair frame. For a complete base assembly with five-star base, casters, and gas lift, see the swivel chair base mechanism.

Technical Data

Specifications

Industry-standard parameters for this product type. Actual specifications may vary by configuration — contact us for detailed product data sheets and drawings.

Standard Specification Table

Parameter	Specification
Rotation	360° continuous, no stop positions
Load capacity	80 kg 120 kg 150 kg
Bearing type	Ball bearing race, steel balls with grease-packed housing
Housing material	Cold-rolled steel (SPCC), stamped and formed
Plate thickness	2.0 mm – 2.5 mm (varies by load rating)
Mounting pattern (top)	Standard 4-hole, 65×65 mm and 70×70 mm bolt circle
Mounting pattern (bottom)	Standard Ø28 mm and Ø32 mm gas lift bore
Surface treatment	Zinc plating (standard) / nickel plating / powder coat (optional)
Operating temperature	-10°C to 60°C
Cycle life	80,000+ rotations at rated load
Certifications	CE SGS RoHS

Specifications shown are industry-standard values for this product type. Actual specifications may vary. Contact us for detailed product data sheets.

Request exact specs and drawings for your application

Three Load Ratings

80 kg, 120 kg, and 150 kg variants cover residential, commercial, and heavy-duty seating markets from a single supplier relationship.

Standard Mounting Patterns

65×65 mm and 70×70 mm bolt circles with Ø28 mm and Ø32 mm gas lift bores cover the majority of production chair frames without custom tooling.

80,000+ Cycle Life

Grease-packed ball bearing race tested to 80,000+ rotations at rated load — the spec that directly controls your warranty claim rate in the field.

Need a Data Sheet?

Request detailed drawings and product data sheets for your specific load rating and mounting configuration.

Request Data Sheet

Bearing Construction and Why It Determines Your Return Rate

The bearing race is where swivel mechanisms fail in the field — and where most of the cost difference between a reliable unit and a cheap one actually lives. We use a full-complement ball bearing race with grease-packed housing. The bearing balls are steel, sized to the load rating of the mechanism, and the housing is sealed to prevent contamination from floor debris and cleaning products.

We've seen mechanisms from other sources use partial-complement bearings to reduce material cost — fewer balls means higher contact stress per ball, which accelerates wear and produces the grinding feel that generates warranty calls.

Bearing Seat Tolerance: ±0.15mm

The stamped steel housing is formed from SPCC cold-rolled steel on our progressive die presses, held to ±0.15mm on the bearing seat diameter. That tolerance is what keeps the bearing race from developing play over time. If the seat is even 0.3mm oversized, the bearing shifts under load and you get the wobble that end users describe as "the chair feels loose."

We check the bearing seat diameter on first-article and periodically through each production run — not just at final assembly.

100% Rotation Test — Every Unit

Every completed swivel mechanism goes through a rotation test before it leaves the line: we check for smooth engagement across the full 360°, verify there's no binding or rough spots, and confirm the bearing play is within spec under a static load. Not a sample check — every unit. The mechanisms that pass dimensional inspection but have a rough rotation or detectable play get pulled and reworked before packing.

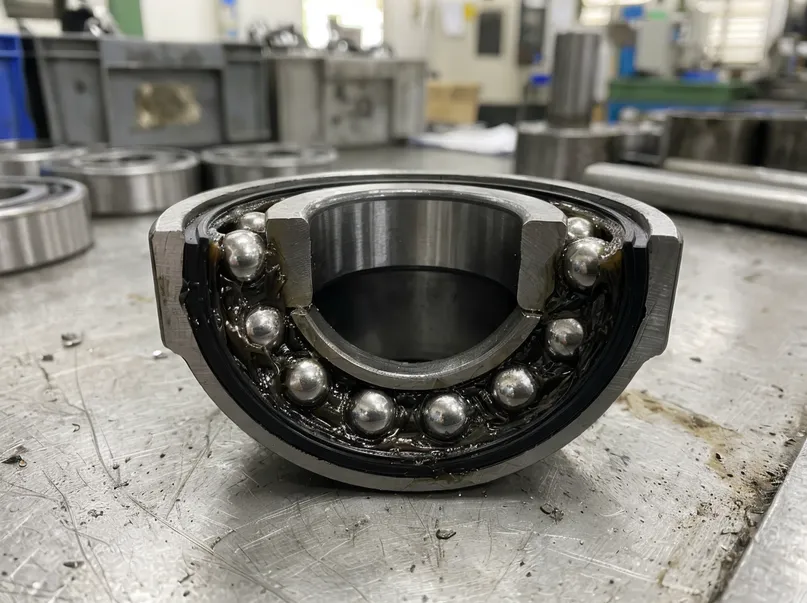

Full-complement ball bearing race cross-section showing grease-packed sealed housing

±0.15mm

Bearing Seat Tolerance

100%

Units Rotation Tested

360°

Full Rotation Check

SPCC

Cold-Rolled Steel Housing

Get a Quote for Swivel Chair Mechanisms

Tell us your load rating and mounting pattern.

Specification Guide

Load Rating Selection: Which Spec Fits Your Market

The three standard load ratings map to different commercial segments, and choosing the right one affects both your unit cost and your downstream warranty exposure.

Standard Residential

80 kg

Light Commercial

Suitable for home office chairs, guest seating, and budget task chairs where the end user is unlikely to exceed this weight threshold and the chair sees intermittent use.

Home office chairs

Guest seating

Budget task chairs (sub-$100 retail)

Unit Cost

Lowest

Most Common

Mid-Range Commercial

120 kg

Contract Office

The most common specification we ship. Covers the majority of adult users in office environments and meets the load requirements for most commercial chair certifications.

If you're unsure which rating your market needs, this is the safe default.

Contract office environments

Most commercial chair certifications

Majority of adult users

Unit Cost

Mid-range

Heavy-Duty Commercial

150 kg

Institutional / Bariatric

Thicker plate stock (2.5 mm), larger bearing complement, heavier housing. The spec that keeps warranty claims off your desk when your chairs go into environments with heavy daily use.

Call centers

Government offices

Healthcare waiting areas

Plate Stock

2.5 mm

Multi-Tier Chair Lines

We've had buyers switch from 120 kg to 150 kg after a single warranty season in a call center deployment. The cost difference per unit is small; the cost of a warranty campaign is not. If you're building a chair line that spans multiple price tiers, we can supply all three ratings with consistent mounting patterns so your assembly line doesn't need to change jigs between SKUs.

Who Buys at Volume

Market Segments Where Swivel Mechanisms Drive Volume

Four buyer types account for the majority of swivel mechanism volume. Each has a different purchasing driver — here's what matters to each and how our product addresses it.

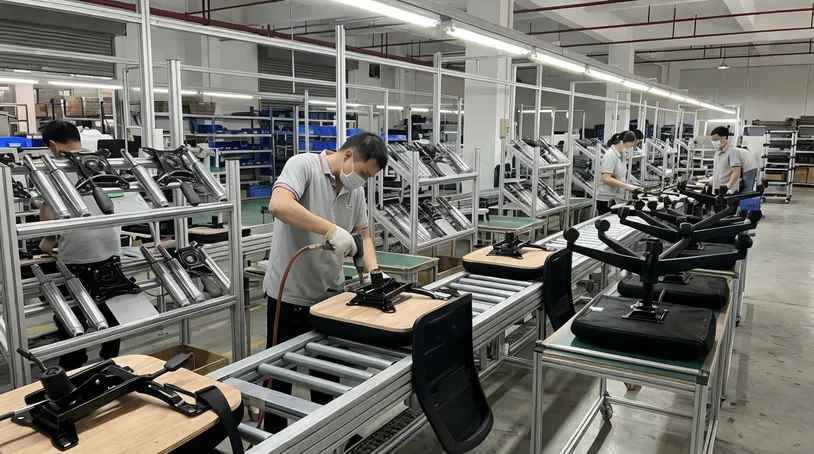

Contract office furniture production line with swivel chair mechanisms

Contract Manufacturing

Contract Office Furniture Manufacturing

Office chair manufacturers are the primary buyers of swivel mechanisms in volume. A mid-size contract furniture manufacturer running 3–5 chair models typically needs 2,000–10,000 swivel units per production run, with reorders tied to their production schedule.

What matters: Consistency. Your assembly line runs on fixed jigs — if the mounting hole pattern drifts between batches, your line stops. We hold ±0.15mm on stamped hole patterns across a 10,000-unit run — same die, same press, same geometry every time you reorder.

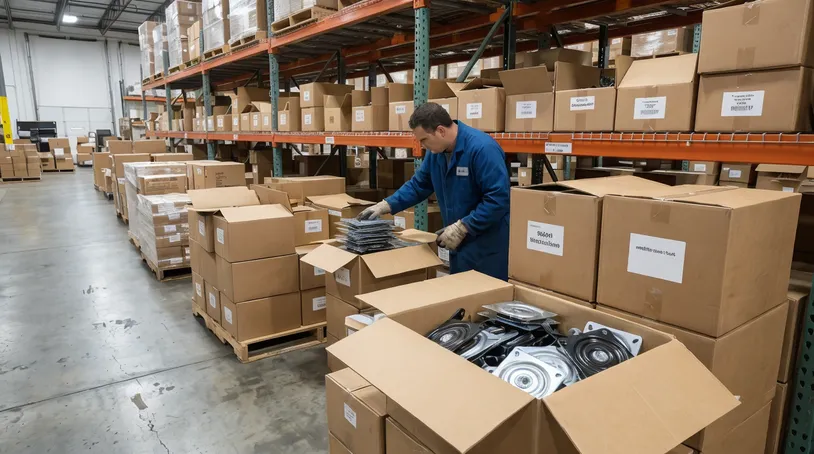

Distribution

Furniture Hardware Distributors

Distributors stocking chair hardware for downstream furniture manufacturers and repair shops need swivel mechanisms as a catalog staple — it's one of the highest-turnover replacement parts in the chair hardware category.

What matters: A distributor carrying our swivel mechanism across two or three load ratings can serve the full range of their customers' needs from a single supplier relationship. Reorder cycles are predictable, the product doesn't go obsolete, and the margin on replacement hardware is typically better than on complete mechanisms.

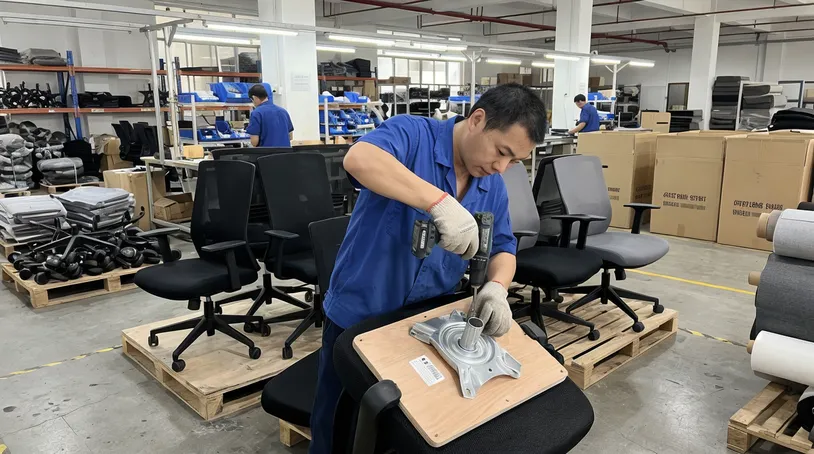

OEM furniture manufacturer preparing export chairs with CE-compliant swivel mechanisms

OEM Export

Overseas Furniture Manufacturers (OEM Integration)

Furniture manufacturers in Southeast Asia, Eastern Europe, and the Middle East who produce chairs for export to North American and European markets need swivel mechanisms that arrive CE-marked and RoHS-compliant, so their finished chairs clear customs without additional testing.

What matters: We ship with CE declaration of conformity and SGS test reports — your compliance documentation is in the box, not something you have to chase us for after the fact.

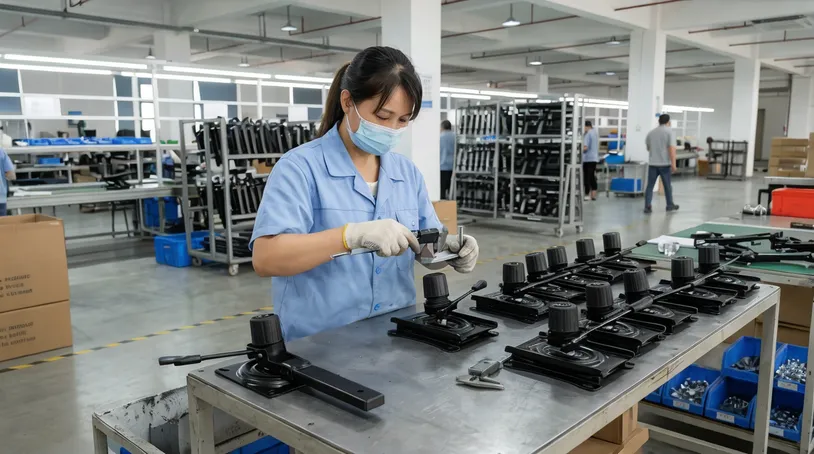

E-Commerce / Private Label

E-Commerce and Private Label Chair Brands

Direct-to-consumer chair brands selling through Amazon, Wayfair, or their own stores need mechanisms that survive the return-and-restock cycle without generating negative reviews. A swivel mechanism that develops bearing noise or wobble after 6 months generates a 1-star review that costs more than the mechanism itself.

What matters: Our 80,000-cycle test standard and 100% pre-shipment functional check are what protect your product rating, not just your warranty budget.

Drop-In Fit

Mounting Compatibility and Integration

The swivel mechanism integrates into your chair at two interfaces: the top plate connects to your seat plate or tilt mechanism, and the bottom bore accepts the gas lift cylinder.

Top Mounting Patterns

4-hole, 65×65 mm bolt circle

The most common pattern for standard task and office chairs

4-hole, 70×70 mm bolt circle

Used on heavier-duty and executive chair frames

Custom patterns

Available for OEM projects — minimum run applies

Bottom Bore Sizes

Ø28 mm

Standard for most residential and light commercial gas lifts

Ø32 mm

Used with heavier-duty gas lift cylinders on commercial chairs

Non-Standard Mounting Pattern?

If your current chair frame uses a non-standard mounting pattern, send us your drawing or a sample mechanism — our engineering team will confirm compatibility or quote a custom tooling option. We've done this enough times that a mounting pattern modification is a straightforward tooling change, not a development project.

Send Your Drawing or Sample

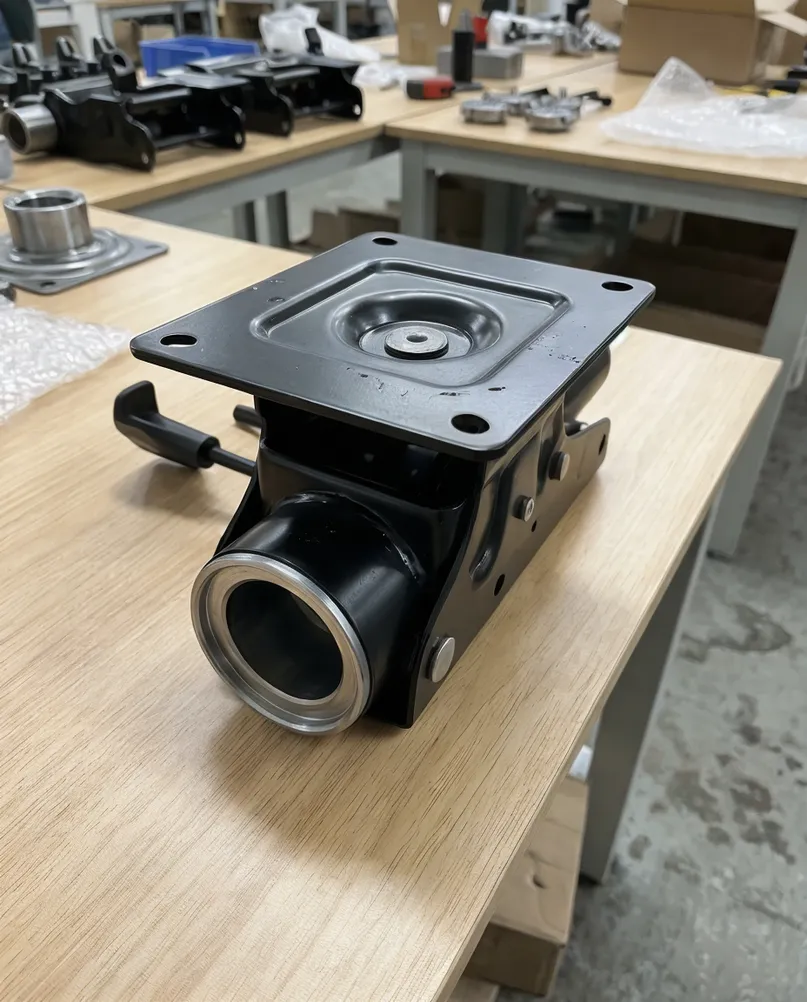

Swivel chair mechanism showing top plate mounting pattern and bottom bore gas lift interface

65×65

Standard bolt circle (mm)

Ø28 / Ø32

Bottom bore options (mm)

Finish & Protection

Surface Treatment Options and Corrosion Performance

Standard finish on swivel mechanisms is zinc plating — it provides adequate corrosion protection for indoor environments and keeps the unit cost down. For buyers whose chairs go into coastal markets, humid climates, or environments with cleaning chemical exposure, we offer two upgrades:

Zinc Plating

Standard — Included

Adequate corrosion protection for indoor environments. Trivalent chromium passivation — no hexavalent chromium. RoHS documentation ships with the order for EU and California markets.

Nickel Plating

Upgrade Option

Better corrosion resistance than zinc, with a brighter appearance. Used when the mechanism is partially visible in the chair design.

200+ hour salt spray

Powder Coating

Upgrade Option — 500+ units

Available in black or custom RAL colors for runs over 500 units. Used when the mechanism is fully visible and needs to match the chair's aesthetic. Film thickness: 60–80μm.

500-hour salt spray

RoHS Compliance

The zinc plating line uses trivalent chromium passivation — no hexavalent chromium. RoHS documentation ships with the order for buyers supplying into EU or California markets.

OEM & Private Label

OEM Customization: What We Can Modify and What We Can't

Customizable

Mounting hole pattern (top plate)

Any standard or custom bolt circle geometry
Bottom bore diameter

Ø28 mm, Ø32 mm, or custom
Load rating

80 / 120 / 150 kg standard; intermediate ratings on request
Surface finish

Zinc plating, nickel plating, powder coat, custom RAL
Plate dimensions

Within the constraints of the bearing housing geometry
Private label marking

Stamped or laser-marked part numbers and brand identifiers

Not Customizable Without New Tooling

Bearing race diameter

Fixed by the housing tooling. Changing it requires new dies.
Overall mechanism height

Constrained by the bearing stack and housing depth.

MOQ & Lead Time Impact

Standard catalog configurations

500 units — 25–35 day production lead time

Modified mounting patterns (existing tooling)

500 units — add 7–10 days for tooling adjustment

New tooling (non-standard geometry)

MOQ based on tooling amortization — we'll give you the honest number during quoting

Have customization requirements?

Tell us your specs — we'll confirm feasibility and quote.

Tell Us Your Requirements

Shipping & Fulfillment

Packaging, Container Loading, and Logistics

Swivel mechanisms are packed in individual poly bags, then bulk-packed in standard export cartons. Carton dimensions are sized for 40HQ container efficiency — we've worked out the pallet configurations so your freight forwarder isn't improvising at the warehouse.

Typical 40HQ loading for swivel mechanisms: 8,000–12,000 units depending on load rating and packaging configuration. We'll confirm the exact loading count for your specific order during quoting so you can plan your freight cost accurately.

For buyers who need retail-ready packaging — individual boxes with product photography and branding — that's handled as part of the OEM arrangement. We can also support FBA-compliant labeling for Amazon sellers.

Export Documentation

Everything ships with the order — no chasing documents after delivery.

Commercial invoice
Packing list
Bill of lading
Certificate of origin
CE declaration of conformity
SGS test report
RoHS compliance statement

OEM & FBA Packaging

Retail-ready individual boxes with product photography and branding, plus FBA-compliant labeling for Amazon sellers — handled as part of the OEM arrangement.

40HQ

Container Type

8–12K

Units per Container

Poly

Individual Bag Pack

FBA

Label Support

Quality & Compliance

Certifications and Compliance

For buyers supplying into markets with additional requirements — BIFMA X5.1 (North America), EN 1335 (Europe), or market-specific standards — we can arrange third-party testing through our SGS relationship. Specify your compliance requirements during quoting and we'll confirm what's needed.

Quality System

ISO 9001:2015

Quality management system — governs our production and QC process.

European Market

CE

European market compliance — declaration of conformity ships with every order.

Third-Party Audit

SGS

Third-party testing and audit — reports available with shipment.

Restricted Substances

RoHS

Trivalent chromium plating — no hexavalent chromium. Full restricted substances compliance.

Market-Specific Testing Available

Need BIFMA X5.1 for North America or EN 1335 for Europe? We can arrange third-party testing through our SGS relationship. Specify your compliance requirements during quoting.

BIFMA X5.1 EN 1335Market-Specific Standards

Manufacturing Capabilities Specify Requirements

Sourcing Guidance

Frequently Asked Questions — Swivel Chair Mechanism Sourcing

What is the difference between a swivel chair mechanism and a swivel chair base mechanism?

The swivel mechanism is the rotation hardware only — the bearing assembly that connects the seat plate to the gas lift column. The swivel chair base mechanism is the complete base assembly: five-star base, casters, gas lift cylinder, and the swivel bearing integrated into the base. If you're building chairs and sourcing components separately, you want the swivel mechanism. If you need a complete base unit ready to attach to a seat, see our swivel chair base mechanism.

What load rating should I specify for commercial office chairs?

For standard commercial office use, the 120 kg rating covers the majority of applications and meets the load requirements for most commercial chair certifications. For environments with heavy daily use — call centers, 24/7 operations, healthcare — specify the 150 kg rating. The 80 kg rating is appropriate for residential and light-duty applications only. When in doubt, specify up: the cost difference between 120 kg and 150 kg per unit is small compared to the cost of a warranty campaign.

How do I verify that a swivel mechanism's mounting pattern is compatible with my chair frame?

Send us your seat plate drawing or a photo of your existing mechanism with the bolt circle dimensions noted. We'll confirm compatibility against our standard patterns or quote a tooling modification if needed. We've matched mounting patterns for buyers across dozens of chair frame designs — it's a routine check, not a development project.

What causes swivel mechanisms to develop bearing noise or wobble in the field?

Two root causes cover most field failures. First, bearing seat diameter out of tolerance — if the housing bore is oversized, the bearing race develops play under cyclic load, which produces the wobble buyers describe as "the chair feels loose." We hold ±0.15mm on bearing seat diameter and check it through each production run. Second, contamination — debris entering an unsealed bearing race accelerates wear and produces grinding noise. Our housings are grease-packed and sealed at assembly. If you're seeing bearing noise on mechanisms from another source, ask them about their bearing seat tolerance and housing seal specification.

What is the MOQ, and can I order multiple load ratings in one shipment?

Standard MOQ is 500 units per configuration. You can mix load ratings and surface finishes in a single order — we run them on the same line, so mixing doesn't extend your lead time. For new buyers, we recommend starting with a sample order (5–10 units per configuration) to verify fit with your chair frames before committing to production quantities.

Do your swivel mechanisms comply with BIFMA or EN 1335 standards?

Our standard testing protocol is equivalent to BIFMA X5.1 load and cycle requirements. CE marking covers EN 1335 compliance for European markets. If your buyer or market requires a formal third-party test report to a specific standard, we can arrange that through our SGS relationship — specify the standard during quoting and we'll include it in the project scope.

Product Line

Related Chair Mechanisms

If the swivel mechanism doesn't match your sourcing need, these are the most relevant alternatives from our chair mechanism product line.

Base Assembly

Swivel Chair Base Mechanism

Complete base assembly with five-star base, casters, gas lift, and swivel bearing. For buyers who need a ready-to-attach base unit rather than the rotation component alone.

Controlled Rotation

Rotating Chair Mechanism

Controlled rotation with optional stop positions. Used in bar stools, reception seating, and specialty applications where full 360° free rotation isn't appropriate.

Height Adjustment

Hydraulic Chair Mechanism

Gas-spring height adjustment mechanism. Often paired with a swivel mechanism in complete chair assemblies.

Center Tilt

Tilt Chair Mechanism

Standard center-tilt for task and office chairs. If you need both tilt and swivel function, we can supply both components with matched mounting patterns.

View the full chair mechanism product line

Start Your Order

Get a Quote for Swivel Chair Mechanisms

Most buyers start with a sample order — 5–10 units across the load ratings you're evaluating — to verify fit and function against your chair frames before committing to production quantities. We can ship samples within 7–10 days of order confirmation.

If you already know your spec, send us your load rating, mounting pattern, surface finish, and target quantity. If you're integrating our swivel mechanism into a new chair design and need a compatibility check first, send us your seat plate drawing or a reference sample.
