Product Overview

What This Mechanism Is and Where It Fits in the Product Line

A sofa bed mechanism is a full folding frame system — not a linkage, not a hinge kit, but a complete structural assembly that deploys a mattress platform from inside a sofa body. The frame carries static sleeping loads across a span of 1,000–1,400mm, which puts it in a different engineering category from recliner linkages or sleeper sofa hardware. The load path runs through the main frame tubes, the cross-member welds, and the folding hinge points — and each of those has to be sized for the job.

We produce sofa bed mechanisms for sofas with 90cm or deeper seat profiles. If your sofa design is shallower — 75–85cm seat depth — the right product is our sleeper sofa mechanism, which uses a bi-fold or tri-fold linkage designed for tighter profiles. The sofa bed mechanism is the full-frame system: it deploys a proper sleeping surface, handles the static load correctly, and is the mechanism your downstream customer expects when they buy a sofa bed.

The distinction matters commercially. Fitting a sleeper mechanism into a sofa designed for a full frame saves a few dollars on hardware and costs you in warranty returns within the first year — the frame geometry isn't designed for that span and you'll see joint fatigue. We've seen that failure mode enough times that we flag it upfront when a buyer sends us a sofa spec that's borderline.

View All Recliner & Sofa Mechanisms

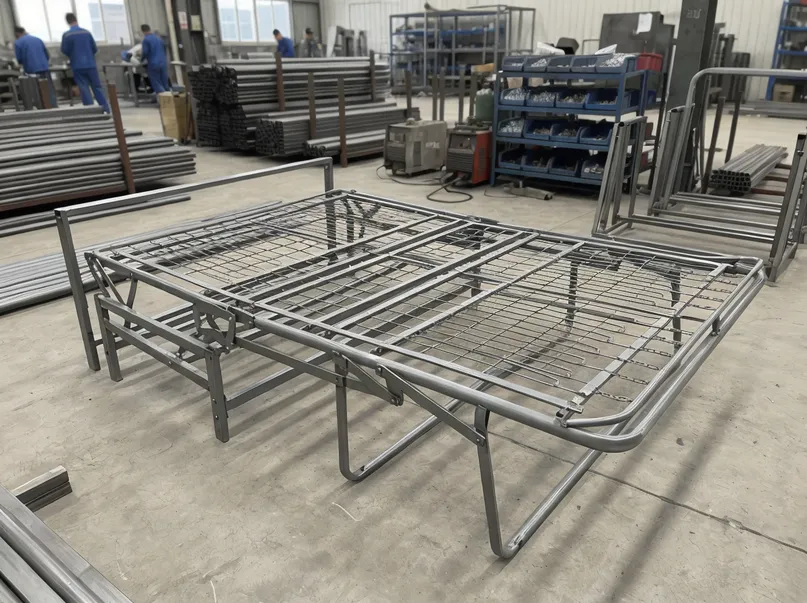

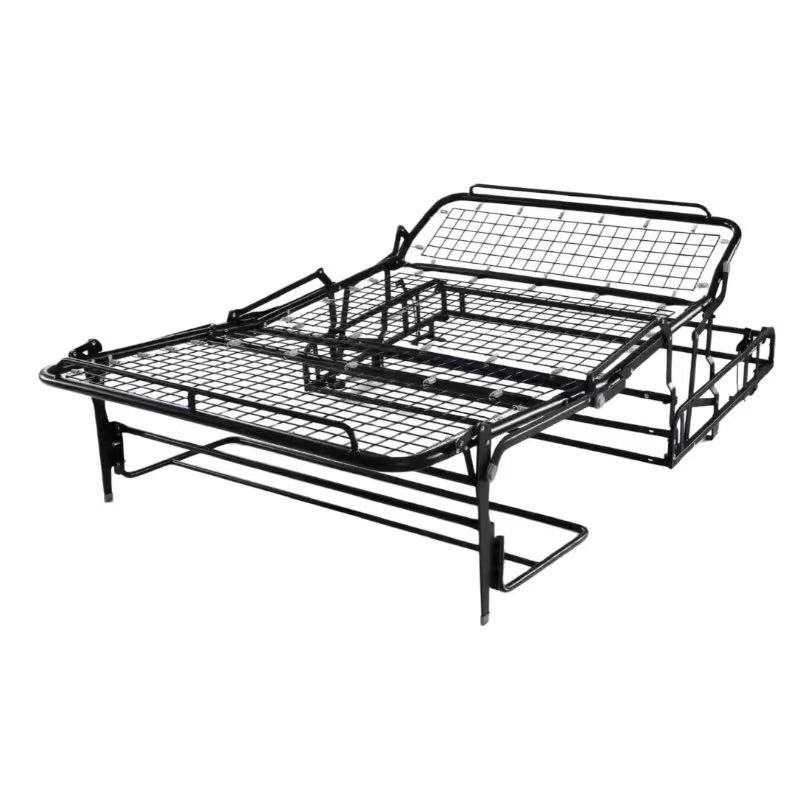

Full folding frame sofa bed mechanism assembly showing deployed mattress platform
This Product

Sofa Bed Mechanism

  • 90cm+ seat depth sofas
  • Full folding frame system
  • 1,000–1,400mm span
  • 250–300 kg static load
Shallower Profiles

Sleeper Sofa Mechanism

  • 75–85cm seat depth
  • Bi-fold / tri-fold linkage
  • Tighter profile design
View product

Engineering Detail

Structural Specifications: What the Frame Is Built From

The structural story on a sofa bed mechanism is tube gauge and weld method — those two variables determine whether the frame holds up under repeated sleeping loads or develops a sag that your customer notices on the second use.

Component Specification Notes
Main frame tubes 1.2–1.5mm wall Gauge by span width — wider spans at 1.5mm
Cross-member tubes 1.0–1.2mm wall Welded to main frame, not clip-fit
Structural joints MIG welded Full penetration on all load-bearing connections
Folding hinge assemblies ±0.15mm tolerance Stamped cold-rolled steel; hardened pivot pins, 20,000-cycle tested
Mattress support Steel or hardwood slats Configuration per buyer spec
Surface finish Powder coat 60–80μm Zinc/nickel plate on tight-tolerance components
Deployed flatness ±2mm Prevents bow end users notice immediately
Deployed width 900–1,400mm Custom widths on OEM runs
Deployed length 1,800–2,000mm Per buyer spec
Load rating (typical) 250–300 kg static ASTM F1566 / BIFMA X5.4 test reports available

Specifications shown are industry-standard values for this product type. Actual specifications depend on your sofa design and target market requirements. Contact us for a detailed product data sheet matched to your spec.

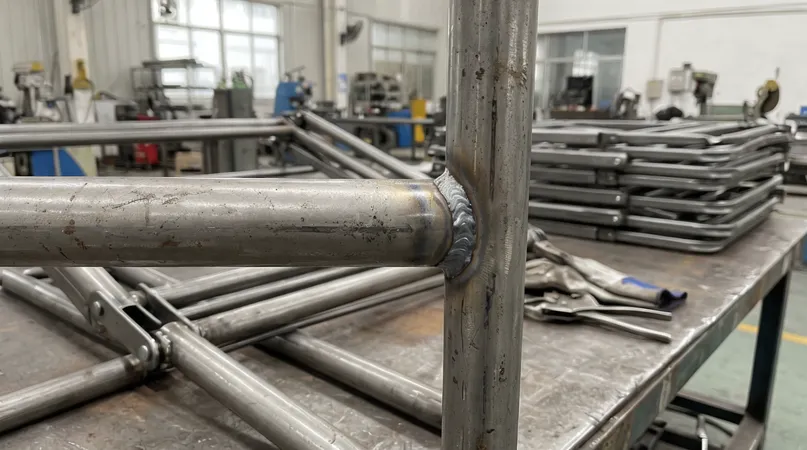

MIG welded structural joint on sofa bed mechanism cross-member

Tube Gauge: Why It Determines Frame Life

We run the main frame tubes at 1.2–1.5mm wall thickness — the gauge selection depends on the deployed span. A 1,400mm-wide frame running at 1.2mm will develop a visible bow under repeated load cycles; we move to 1.5mm at that span width. It adds material cost, but it's the difference between a frame that holds its geometry for 10,000 cycles and one that starts sagging at 3,000.

Hospitality note: Most of our buyers in the hospitality segment specify the 1.5mm gauge as standard — they've seen what happens when a hotel sofa bed sags after six months of guest use.

MIG vs. Spot Welding: The Load-Path Decision

All structural joints are MIG welded. Spot welding is faster and cheaper on the production line, but it doesn't have the penetration depth for load-bearing connections on a frame that's going to carry 250kg repeatedly.

MIG
Full penetration
Load-bearing joints
Spot
Lighter brackets only
Non-load-path use
Get a Quote for Sofa Bed Mechanism

Engineering Detail

Folding Geometry: Why Flat Deployment Is an Engineering Problem

The most common complaint we hear about sofa bed mechanisms from buyers who've had quality problems with other suppliers is a bow in the deployed position — the mattress platform isn't flat, and the end user feels it immediately. This isn't a cosmetic issue. A sleeping surface that bows 10–15mm in the center is a one-star review and a return authorization.

The bow comes from two sources: undersized tube gauge (covered above) and incorrect folding geometry. When the hinge pivot points aren't positioned correctly relative to the frame's center of gravity in the deployed position, the frame wants to fold slightly even when locked — the locking mechanism is fighting the geometry instead of working with it. We engineer the pivot geometry so the frame is in a stable, self-supporting position when deployed, with the lock providing positive retention rather than structural support.

±0.15mm
Hinge assembly stamp tolerance
20,000
Cycle standard batch qualification
±2mm
Deployed flatness spec across full platform

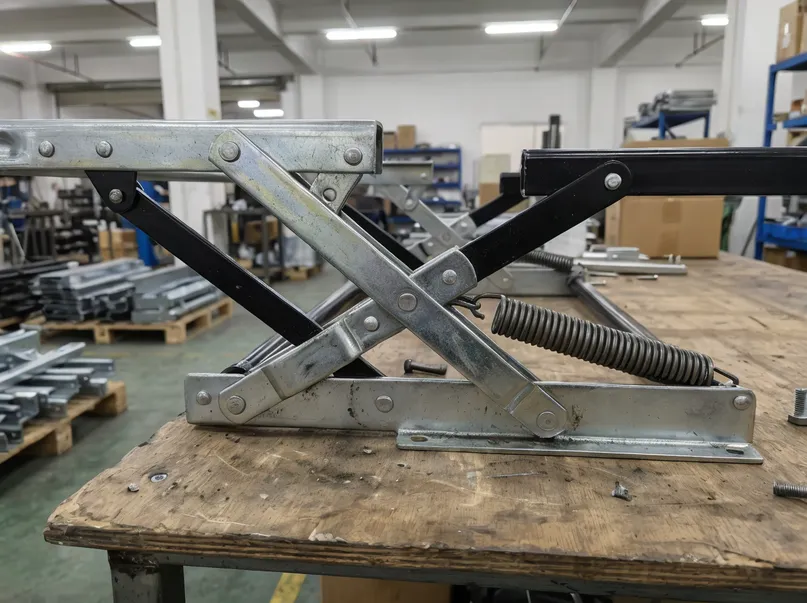

Sofa bed mechanism hinge pivot geometry in deployed flat position

Production-Run Verification

We check deployed flatness on first-article and on periodic pulls during production — not just on the sample we send you, but on the production run your container comes from. The 20,000-cycle figure covers residential use at roughly 5–7 years of nightly deployment.

For hospitality applications where the mechanism deploys daily, we can spec and test to higher cycle counts — tell us the use environment when you send your brief.

Buyer Segments

Market Segments: Where Sofa Bed Mechanisms Generate Repeat Orders

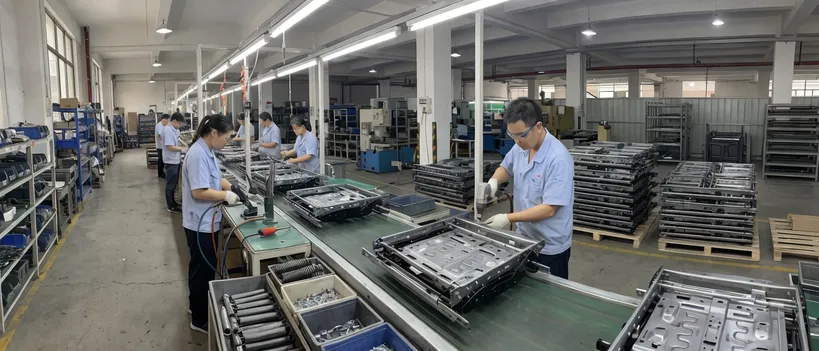

Residential furniture OEM sofa bed mechanism production line
Residential OEM

Residential Furniture OEM

Core volume segment. Sofa manufacturers sourcing mechanisms separately from their upholstery and frame production typically run 2,000–8,000 units per SKU on quarterly replenishment cycles. The mechanism spec is usually locked to a specific sofa model, which means once you're qualified as the supplier, reorders are straightforward — same spec, same documentation, same container configuration.

500-unit MOQ
|
25–35 day lead time
|
Quarterly replenishment

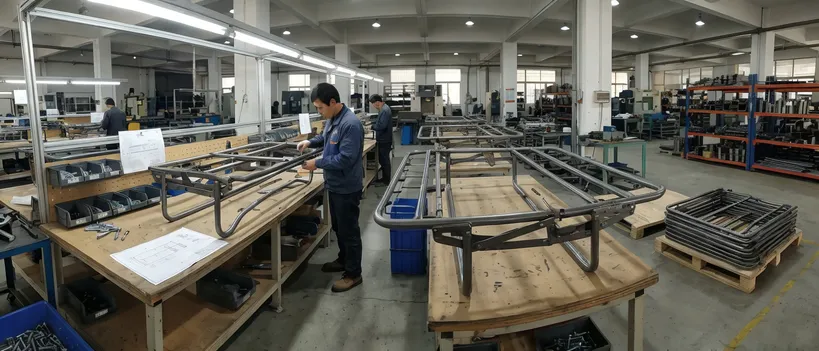

Furniture importers and distributors supplying North American and European retail channels
Importers & Distributors

Furniture Importers and Distributors

Supplying North American and European retail channels — this segment drives the most OEM/ODM activity. Buyers need a mechanism spec'd to a specific sofa design or retail price point rather than selecting from a standard catalog. The North American market has moved toward larger deployed sleeping surfaces (queen-size equivalent, 1,400mm+ width), which is where the 1.5mm tube gauge and MIG-weld spec becomes non-negotiable for warranty performance.

We've shipped into this segment for over a decade and know the compliance documentation your customs broker and retail buyers will ask for.

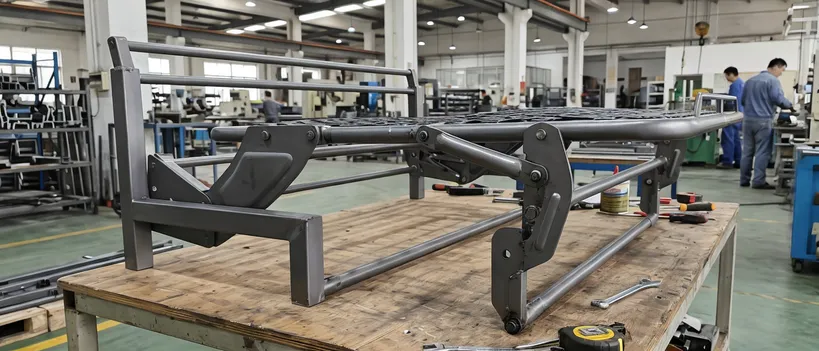

Hospitality and contract furnishing sofa bed mechanism for hotels and serviced apartments
Hospitality & Contract

Hospitality and Contract Furnishing

Hotels, serviced apartments, and short-term rental operators specifying sofa beds at volume. This segment has grown significantly, driven by apartment-hotel expansion in Southeast Asia and the Middle East. The mechanism spec for hospitality differs from residential in three ways:

  • Higher cycle life — 30,000+ cycles standard
  • Simpler operation — guests shouldn't need instructions to deploy the bed
  • Surface finishes that hold up to housekeeping chemicals

Gulf region note: Hospitality buyers in the Gulf region consistently specify powder coat over zinc plate for the frame finish — the humidity and cleaning chemical combination is hard on zinc plate if the passivation isn't right.

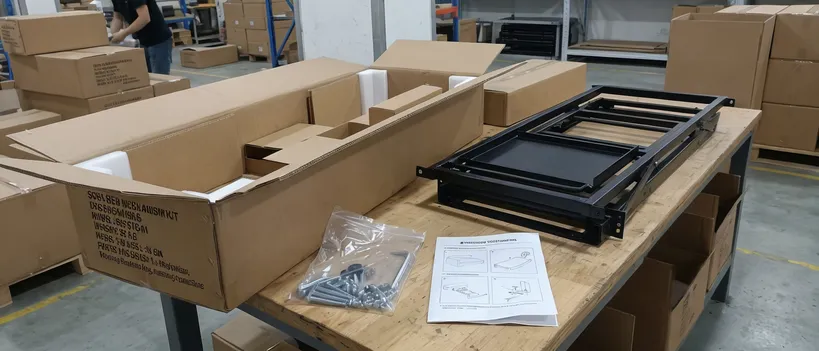

E-commerce furniture brand sofa bed mechanism direct-to-consumer packaging
E-Commerce DTC

E-Commerce Furniture Brands

Sourcing sofa bed mechanisms for direct-to-consumer product lines. Packaging and assembly requirements differ from traditional retail — mechanisms need to be packaged for end-user assembly, with mounting hardware included and installation steps that don't require a professional. We handle that as part of the OEM arrangement, including branded carton design and assembly instruction sheets if needed.

Amazon FBA sellers: We can configure carton dimensions and weight to stay within FBA receiving requirements.

Get a Quote for Sofa Bed Mechanism

Manufacturing Process

How We Make It: Process Details That Affect Your Warranty Exposure

Three production processes determine whether a sofa bed mechanism holds up in the field or generates warranty claims. We own all three in-house.

Progressive Stamping

Cold-rolled steel coil stock feeds our progressive stamping presses, where hinge plates, linkage arms, and structural brackets are formed to ±0.15mm tolerance.

Tolerance is checked at first-article and on periodic pulls throughout each production run — not just on the sample. A hinge plate that's 0.3mm off on the pivot hole shifts the folding arc enough that the frame doesn't deploy fully flat.

Zinc Alloy Die-Casting

Handles locking collars, handle fittings, and adjustment hardware. We brought die-casting in-house in 2015 — die-cast components are where dimensional inconsistency and surface defects originate most often in this product category.

When a buyer reports that a locking collar feels loose or a handle fitting has inconsistent finish batch-to-batch, the root cause is almost always the die-cast part. Owning that process means we own the fix.

Surface Treatment

Full in-house powder coating line at 60–80μm film thickness — the spec that passes 500-hour salt spray without adhesion failure.

We pre-treat every weld seam before coating: grind, clean, and apply conversion coating before the powder goes on. Weld seam adhesion failure is the most common surface defect on welded steel frames — and it's entirely preventable with the right pre-treatment.

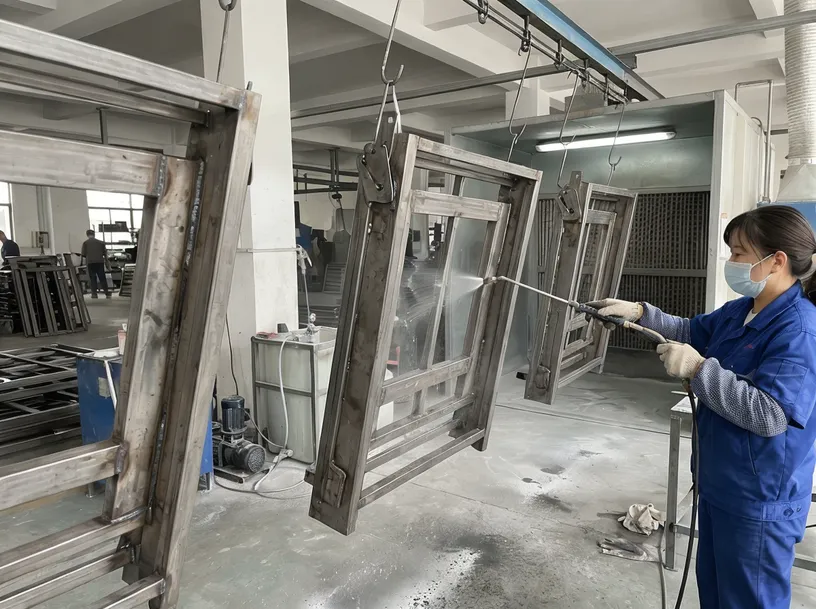

In-house powder coating line showing weld seam pre-treatment process for sofa bed mechanism frames

Why In-House Matters for Warranty

  • Stamping tolerance checked on periodic production pulls — not just first-article samples. Dimensional drift is caught before it ships.

  • Die-casting in-house since 2015. Locking collar and handle fitting defects traced to die-cast root cause — we control the fix, not a third-party supplier.

  • Weld seam pre-treatment added after a coastal-market batch returned with bubbling powder coat at every seam. That failure mode hasn't recurred.

OEM & ODM

Customization Options and OEM Development

Standard catalog configurations cover most residential OEM applications. For non-standard sizes, specific locking mechanisms, or custom surface finishes, we handle that as OEM — with tooling built in-house.

Customization Dimension Standard Range OEM Options
Deployed width 900–1,400mm Custom widths on OEM tooling
Deployed length 1,800–2,000mm Custom lengths available
Frame tube gauge 1.2mm or 1.5mm Per span and load spec
Surface finish Powder coat (standard colors) Custom RAL colors on 500+ unit runs
Locking mechanism Standard lever lock Custom actuation on OEM
Mattress support Steel slat or platform Hardwood slat option available
Packaging Standard export carton Retail-ready, branded, FBA-configured
Assembly instructions Generic Branded, language-specific

OEM: You Supply the Spec

Supply drawings or a sample reference. We review for manufacturability before tooling starts — if your spec has a geometry that will cause production problems or a tolerance that's tighter than necessary, we flag it upfront.

In-house tooling advantage: A geometry change goes back to our tooling team, not to a third-party shop with its own queue. Revision cycles are faster.

ODM: Bring Us a Brief

Target retail price, sofa dimensions, market segment, and any aesthetic direction on visible components. Our 12-person engineering team develops the mechanism design, builds the tooling, runs samples, and iterates until the spec is locked.

They've been solving sofa bed frame geometry problems for years — spring rate selection, pivot positioning, tube gauge trade-offs — not learning them on your project.

MOQ & Color Run Minimums

500
Units — Standard Catalog MOQ
Minimum order quantity for standard catalog sofa bed mechanisms.
500+
Units — Custom RAL Colors
Custom colors available on runs of 500 units or more. Below that, the powder line changeover cost doesn't make sense for either party.

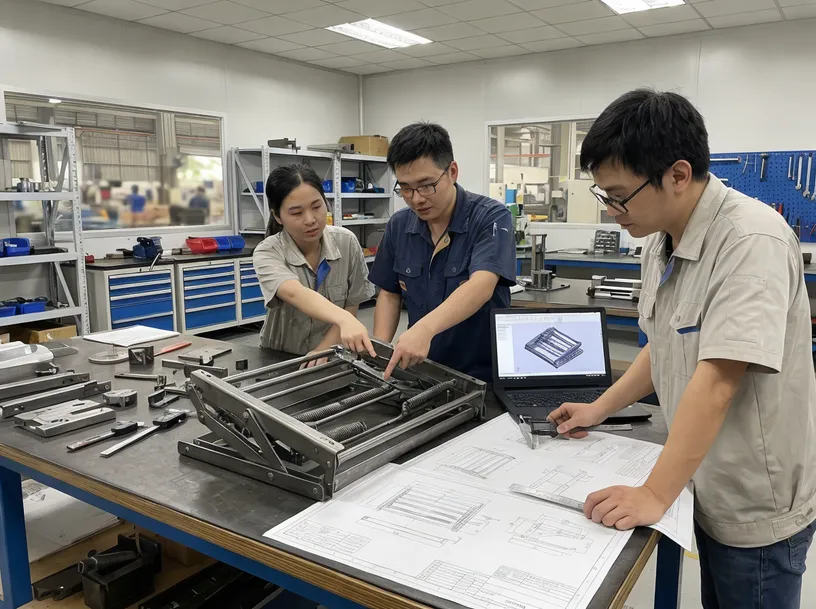

In-house OEM tooling and engineering team developing custom sofa bed mechanism specifications
Explore OEM/ODM Capabilities

Compliance & Certification

Compliance and Certification for Your Target Market

The certifications we hold — ISO 9001:2015, CE, SGS, RoHS — cover the quality management system and European market compliance. CE declaration of conformity and SGS test reports ship with orders for European buyers. RoHS documentation is available for buyers whose downstream customers require restricted substances compliance.

European Market

CE declaration of conformity and SGS test reports ship with every order for European buyers. RoHS compliance documentation is available for buyers supplying into the EU or California markets — no hexavalent chromium in the plating process. Our zinc plating line uses trivalent chromium passivation.

CE Certified SGS Tested RoHS Compliant

North American Market

ASTM F1566 and BIFMA X5.4 are the relevant standards for sofa bed hardware in the commercial market. We can provide test reports to either standard — specify your target market when you send the brief and we'll confirm which documentation your compliance team needs. Material compliance documentation for HTS classification is available for North American importers.

ASTM F1566 BIFMA X5.4 HTS Docs
Quality System
ISO 9001:2015
EU Compliance
CE Certified
Third-Party
SGS Tested
Substances
RoHS Compliant

RoHS Surface Treatment Note

RoHS compliance on surface treatments means no hexavalent chromium in the plating process. Our zinc plating line uses trivalent chromium passivation. For buyers supplying into the EU or California markets, that documentation ships with the order.

Learn more about our manufacturing and certifications

Logistics & Lead Time

Container Loading and Lead Time

Production Lead Time

Standard production lead time for catalog sofa bed mechanisms is 25–35 days from order confirmation and deposit receipt. OEM/ODM projects with new tooling run on a milestone schedule — we give you the production timeline broken into stages, not a single delivery date.

25–35
Days (Catalog)
OEM/ODM
Milestone schedule with tooling stages

Export Documentation

Full export documentation ships with every order. Your customs broker gets what they need without chasing us for documents after the fact.

  • Commercial invoice
  • Packing list
  • Bill of lading
  • Certificate of origin
  • Test reports
  • CE declaration of conformity & SGS reports (EU buyers)
  • Material & compliance docs for HTS classification (NA importers, on request)

Container Loading: KD vs Assembled

Sofa bed frames ship knocked-down where the design allows. KD packing typically increases 40HQ loading quantity by 30–40% versus assembled — that directly reduces your landed cost per unit.

Configuration
Units / 40HQ
vs Assembled
KD Packing
200–250
+30–40%
Assembled
140–160
Baseline

Based on standard 1,200mm-wide mechanism. Exact figures depend on carton configuration — we work this out with your freight forwarder before the first shipment so there are no surprises at the warehouse.

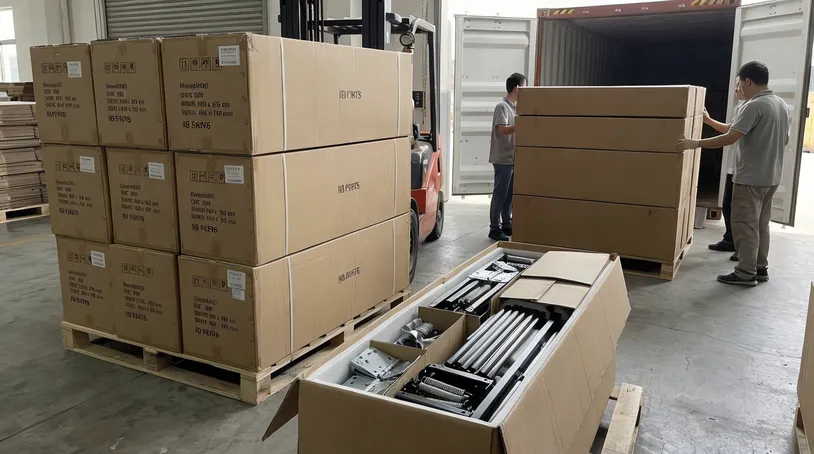

Sofa bed mechanism KD packing for 40HQ container loading

Product Line

Other Mechanisms in This Category

The sofa bed mechanism is one of four products in our recliner and sofa hardware line. If this product doesn't match your sofa design, one of these likely does.

Current Page

Sofa Bed Mechanism

90cm+ seat depth, full sleeping surface. Full folding frame, highest load rating.

Viewing now
Compact Profile

Sleeper Sofa Mechanism

75–85cm seat depth, space-efficient design. Bi-fold or tri-fold, compact stack height.

View product
Single Seat

Recliner Chair Mechanism

Standalone recliner chairs. Footrest + backrest linkage, wall-hugger option.

View product
Sectional

Couch Mechanism

Sectional and multi-seat sofas. Modular bracket system, power-ready option.

View product

Not sure which configuration fits your design? Send us your sofa dimensions and we'll tell you which system fits — and why.

Buyer Questions

Frequently Asked Questions

What is the minimum order quantity for sofa bed mechanisms?

500 units for standard catalog configurations. For OEM/ODM projects with custom tooling, MOQ depends on tooling amortization — we give you the specific number based on your spec, not a round figure.

What load rating does a sofa bed mechanism need to meet for North American retail?

For residential product, most North American buyers specify 250–300 kg static load on the deployed frame and 10,000+ open/close cycles. ASTM F1566 and BIFMA X5.4 are the relevant standards for commercial applications. We can provide test reports to either standard — tell us your target market when you send the brief.

What's the difference between a sofa bed mechanism and a sleeper sofa mechanism?

The sofa bed mechanism is a full folding frame system designed for sofas with 90cm+ seat depth — it deploys a complete mattress platform and is built to carry static sleeping loads across a 1,000–1,400mm span. The sleeper sofa mechanism is a more compact bi-fold or tri-fold linkage for shallower sofa profiles (75–85cm seat depth) where the full frame geometry doesn't fit. If you're not sure which applies to your sofa design, send us the seat depth and we'll tell you.

How do I prevent sofa bed frame sag after 12–18 months of use?

Frame sag comes from two sources: undersized tube gauge for the deployed span, and MIG-weld joints replaced with spot welds on load-bearing connections.

  • Specify 1.5mm wall thickness on main frame tubes for spans over 1,200mm.
  • Confirm all cross-member and hinge mount joints are MIG welded — not spot welded.
  • Verify the folding geometry is engineered so the frame is self-supporting in the deployed position, not relying on the lock to hold it flat.

Can sofa bed mechanisms be used in hospitality applications?

Yes, but the spec needs to match the use environment. Hospitality requires:

  • Higher cycle life — 30,000+ cycles versus 10,000 for residential.
  • Simpler single-step deployment.
  • Surface finishes that resist housekeeping chemicals — specify powder coat at 60–80μm for humid-climate or coastal properties. Zinc plate without proper passivation will show corrosion within the first year in those environments.

Tell us the property type and location when you send your brief and we'll recommend the right configuration.

What surface finish is right for sofa bed mechanisms going to Southeast Asia or the Middle East?

Powder coat at 60–80μm, applied over pre-treated weld seams. That spec passes 500-hour salt spray and handles the humidity and cleaning chemical exposure in those markets.

We've shipped container loads into both regions and the powder coat spec is what protects your warranty exposure. Zinc plate is available but requires trivalent chromium passivation for RoHS compliance — confirm your market's requirements when you order.

Start Your Order

Get a Quote for Sofa Bed Mechanism

Send us your sofa dimensions, target deployed size, and market segment — we'll come back with a specific mechanism recommendation, a quote, and confirmation of which compliance documentation ships with the order. Most new buyers start with a 2-unit sample to test fit and function against their sofa frame before committing to a production run.

Request a Quote View All Recliner & Sofa Mechanisms

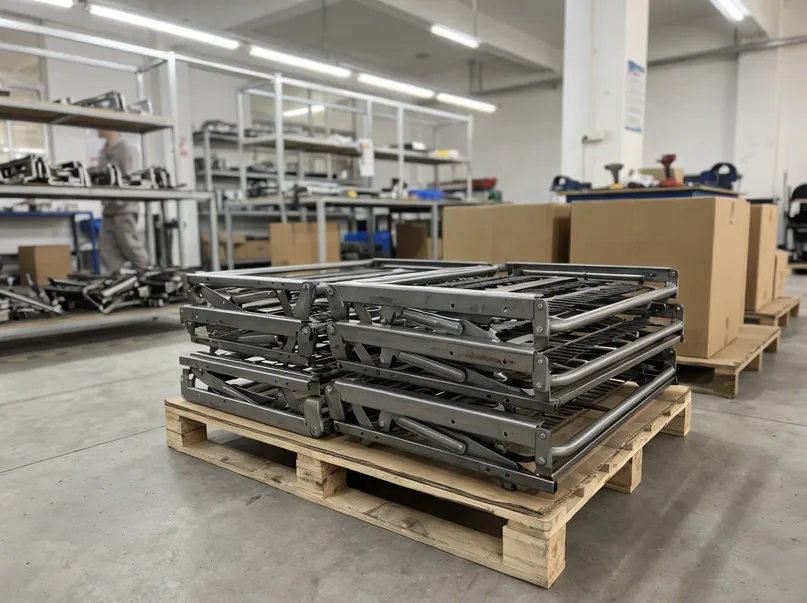

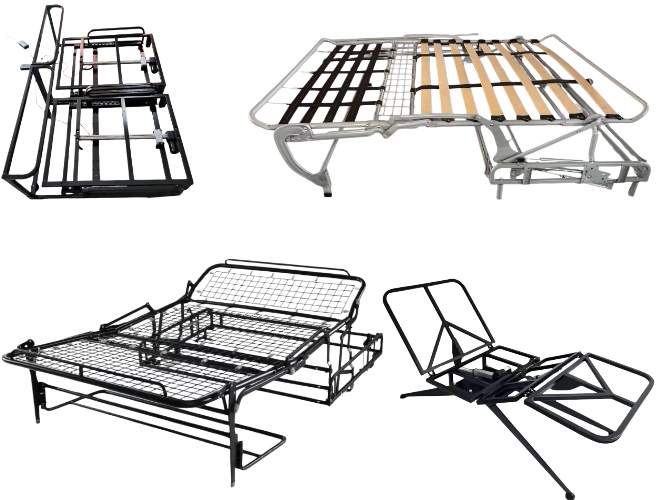

MVMHardware sofa bed mechanism factory direct quote
