What Makes a Folding Mechanism Fail —
and How We Build Around It

Folding mechanisms fail in two places, almost without exception: the hinge pivot and the locking detent. Understanding these failure modes is why our production process looks the way it does.

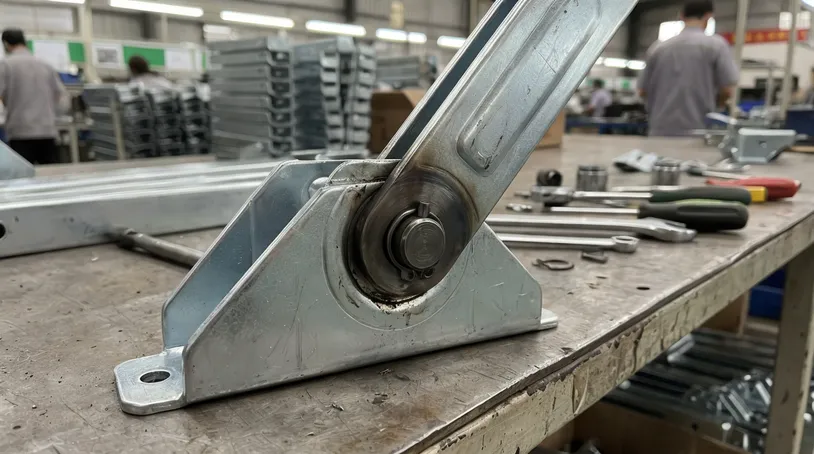

Hardened steel pivot insert in folding furniture mechanism

Failure Point #1

The Hinge Pivot

The pivot develops slop from metal-to-metal wear. By the time your downstream customer notices, the warranty claim is already on your desk.

Our Solution

We specify hardened steel inserts at the contact interface and apply a bonded PTFE-based dry lubricant during assembly — not grease, which attracts debris and degrades, but a film that holds up through the product's service life without maintenance.

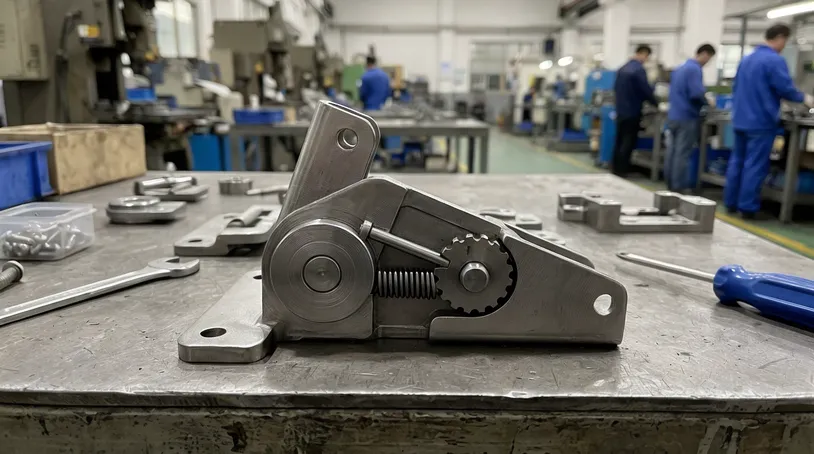

Locking detent subassembly with tight tolerance control

Failure Point #2

The Locking Detent

The lock stops engaging cleanly after a few hundred cycles. Lock engagement failure is almost always a tolerance stack-up problem: individual parts pass inspection, but accumulated variation puts the lock geometry at the margin.

Our Solution

We hold assembly tolerances on locking subassemblies to ±0.1mm versus the ±0.15mm standard for structural components — tighter by design, because the lock is where stack-up failures originate.

Cycle Life Qualification

30,000 Cycles Standard. Higher on Request.

Standard batch qualification for folding hardware is 30,000 fold cycles. For commercial applications — wall-mounted desks in co-working spaces, folding tables in hospitality venues, bed frames in rental properties — we spec and test higher on request.

Tell us the use environment when you inquire and we'll recommend the appropriate cycle life spec. We've had buyers in the contract hospitality segment ask for 80,000-cycle qualification — we can do it, but it changes the material spec and the price. Worth the conversation before you finalize your order.

Get a quote for your folding mechanism requirement

30,000

Standard Catalog Items

Minimum floor for all catalog folding hardware

80,000+

Commercial / Contract Grade

Available on request; changes material spec and price

The 30,000-cycle floor

This is our minimum for catalog items. Higher specs are available — tell us your use environment when you inquire.

Technical Data

Folding Mechanism Specifications

These are industry-standard parameters for our folding furniture mechanism range. Exact values vary by product configuration — contact us for a detailed data sheet on the specific item you're evaluating.

Standard Specification Range

Values shown are industry-standard for this product type. Actual specs vary by configuration.

Parameter	Standard Value / Range
Primary structural material	Cold-rolled steel (SPCC)
Steel thickness (load-bearing brackets)	1.5mm – 3.0mm depending on load rating
Pivot component material	Hardened steel insert + zinc alloy die-cast housing
Dimensional tolerance (stamped components)	±0.15mm standard
Dimensional tolerance (locking subassemblies)	±0.10mm Tighter than structural standard
Surface treatment options	Powder coat (60–80μm), zinc electroplate, nickel electroplate
Salt spray rating (powder coat)	500 hours standard; 800-hour option available
Load cycle testing	30,000 cycles standard; higher on request
Static load rating (typical table bracket)	80–150kg depending on configuration
Certifications	ISO 9001:2015, CE, SGS, RoHS
Standard MOQ	500 units
Lead time (catalog items)	25–35 days from order confirmation

Specifications shown are industry-standard values for this product type. Actual specifications may vary by configuration. Contact us for detailed product data sheets.

Request a spec sheet for your target configuration

Certifications

Quality Management

ISO 9001:2015

European Conformity

CE Certified

Third-Party Testing

SGS Certified

Hazardous Substances

RoHS Compliant

Key Spec Highlights

Locking subassembly tolerance held to ±0.10mm — tighter than structural standard to prevent stack-up failures
PTFE-based dry lubricant at pivot — no maintenance, no debris accumulation
500-hour salt spray standard; 800-hour option available
Static load rating 80–150kg depending on configuration
OEM/ODM with in-house tooling · 500-unit MOQ · 25–35 day lead time

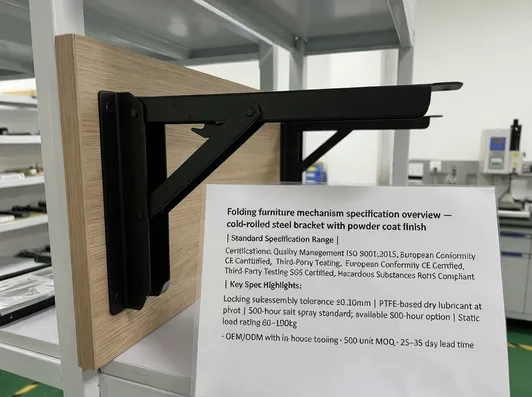

Folding furniture mechanism specification overview — cold-rolled steel bracket with powder coat finish

Market Segments

Application Segments: Where Folding Mechanisms Generate Repeat Orders

Folding hardware sits in several furniture segments that have strong commercial logic for distributors and manufacturers. These aren't lifestyle descriptions — they're market segments with identifiable order patterns.

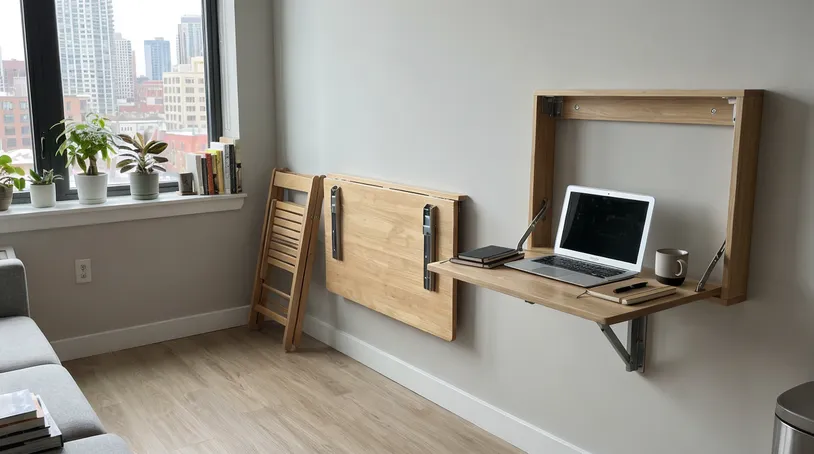

Fold-flat dining table and wall-mounted fold-down desk in urban apartment

Highest Volume

Space-Saving Residential Furniture

Fold-flat dining tables, wall-mounted fold-down desks, and Murphy bed frames are all driven by the same consumer trend: smaller living spaces in urban markets. North American and European importers in this segment typically order 500–2,000 units per SKU per run, with reorder cycles of 3–6 months once a product is established in their catalog.

The mechanism is often the component that determines whether the furniture gets a positive review or a return — a fold-down desk that wobbles or a table bracket that doesn't lock flat generates complaints that land on your brand, not ours.

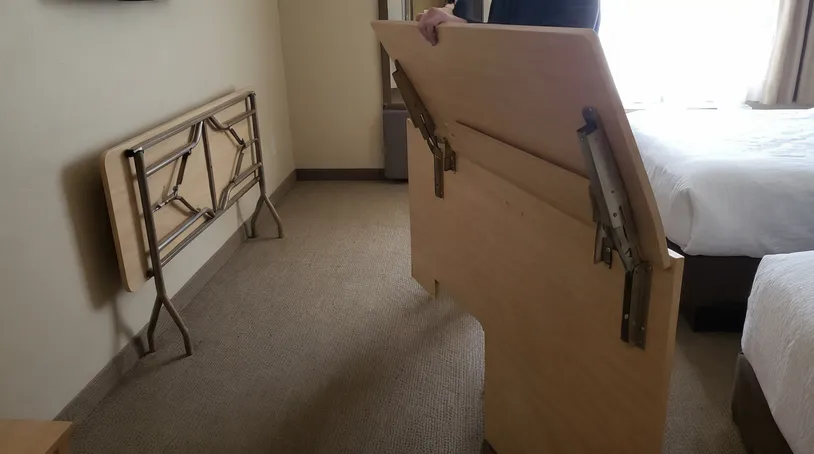

Hotel room fold-down desk and banquet folding table in commercial hospitality setting

High Cycle Requirement

Contract and Hospitality Furniture

This is the segment where cycle life requirements separate suppliers. Hotel room fold-down desks, banquet folding tables, and convertible seating in hospitality venues operate under daily-use conditions that residential hardware isn't rated for. A mechanism that qualifies at 30,000 cycles for residential use may need 60,000–80,000 cycles for a hotel property where the same piece converts twice a day.

Buyers in this segment also have lower tolerance for field failures — a warranty claim in a hotel property involves labor and downtime costs that dwarf the hardware cost. We spec and test to the commercial requirement; if you're supplying this segment, tell us the use environment and we'll quote the appropriate configuration.

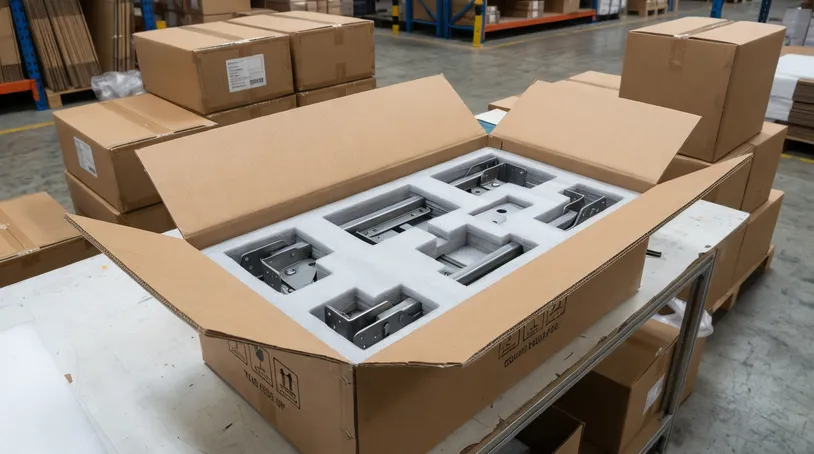

Folding mechanism export packaging with EPE foam inserts for FBA and e-commerce fulfillment

E-Commerce / DTC

E-Commerce Furniture Brands

Brands selling fold-flat and wall-mount furniture on Amazon, Wayfair, or direct-to-consumer channels have a specific concern: the mechanism has to survive the shipping process and assemble correctly without a technician. Folding hardware that arrives with bent brackets or misaligned pivot holes generates negative reviews and return rates that destroy margin on thin-priced SKUs.

Our export packaging uses double-wall corrugated cartons with EPE foam inserts sized to the mechanism geometry — brackets don't shift in transit, pivot components don't get dinged. For buyers running FBA or warehouse fulfillment, we can configure carton labeling and pack quantities to your warehouse requirements.

OEM furniture manufacturer reviewing custom folding mechanism sample with in-house tooling

OEM / ODM

OEM Furniture Manufacturers

Manufacturers building branded fold-flat or convertible product lines often need a specific fold angle, a proprietary locking sequence, or a mechanism geometry that's part of the product's design identity. Standard catalog items won't cover this.

Our ODM capability does — you bring the brief, we develop the mechanism, build the tooling in-house, and iterate samples until the spec is locked. In-house tooling means geometry changes happen on our floor, not in a third-party tooling shop negotiation.

Tell us your target segment and volume

Engineering Detail

The Locking Detent: Why We Treat It as a Separate Engineering Problem

Most folding mechanism suppliers treat the lock as part of the general assembly. We treat it as a separate subassembly with its own tolerance spec and its own test protocol, because that's where the field failures come from.

The locking detent in a folding mechanism has to do two things reliably: engage positively when the mechanism reaches the open or closed position, and hold under the load the furniture will actually see in use. Both requirements are sensitive to tolerance stack-up. If the detent geometry is even slightly off — from dimensional variation in the stamped bracket, the die-cast housing, or the spring — the lock either requires excessive force to engage or doesn't hold under load. Either failure mode generates warranty returns.

±0.1mm

Locking subassembly tolerance (vs. ±0.15mm for structural components)

100%

Lock engagement tested under load before packing

Dual

Source spring supply to eliminate rate substitution failures

Our response to this is tighter tolerances on locking subassemblies, 100% lock engagement testing under load before packing, and a spring rate specification that's tuned to the specific mechanism geometry rather than pulled from a standard catalog. We verify spring rate during incoming inspection on every batch — spring suppliers have been known to substitute rate mid-contract, and a spring that's 15% softer than spec will cause lock engagement problems that don't show up until the product is in the field.

Root Cause: Spring Rate Substitution

We switched to a dual-source spring supply arrangement after one batch of mechanisms came back from a European buyer with intermittent lock failures. The root cause was a spring rate substitution from our then-single supplier. Dual sourcing added cost, but it eliminated that failure mode.

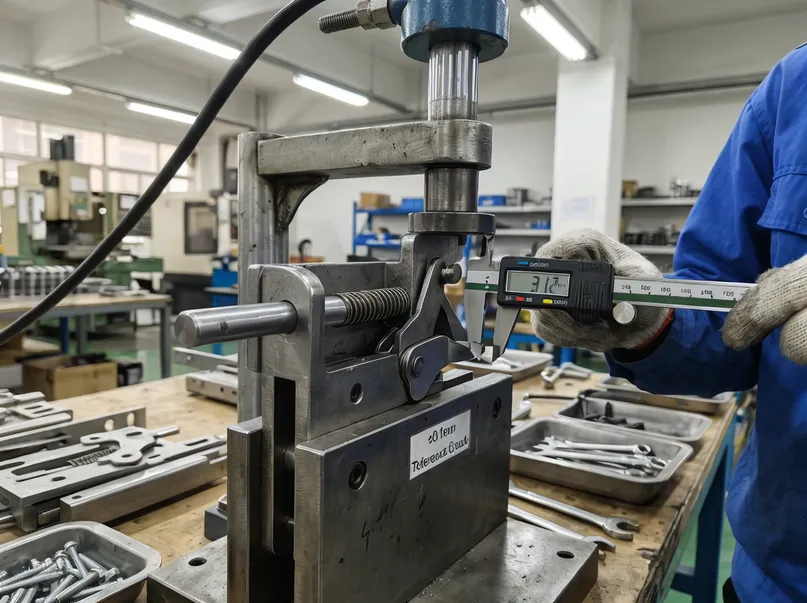

Locking detent subassembly under load testing showing tolerance measurement at ±0.1mm

Locking Subassembly Protocol

Separate tolerance spec for locking subassembly: ±0.1mm vs. ±0.15mm for structural components
Dedicated test protocol separate from general assembly QC
Spring rate verified during incoming inspection on every batch — not sampled
Spring rate tuned to specific mechanism geometry, not pulled from standard catalog
Dual-source spring supply eliminates single-supplier rate substitution risk

Surface Finishing

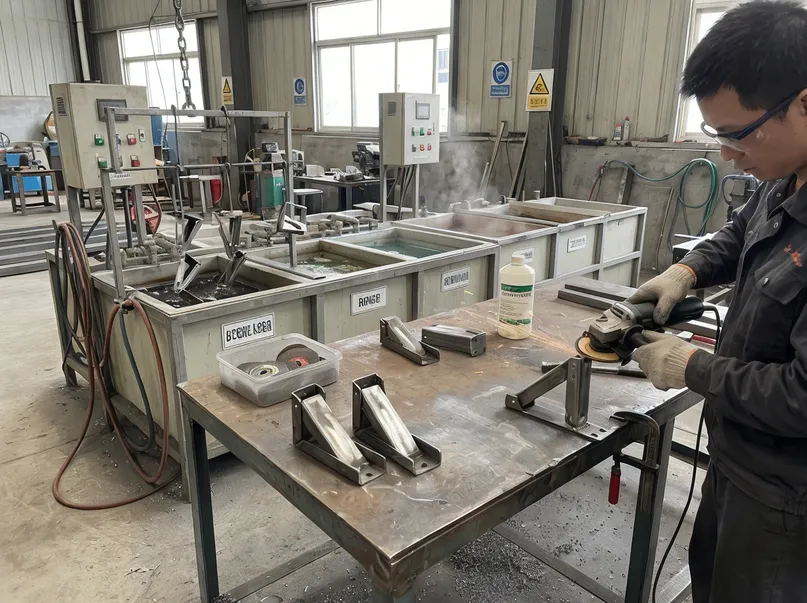

Surface Treatment for Folding Hardware: The Weld Seam Problem

Powder coat adhesion failure at weld seams is the surface defect that shows up in folding mechanisms 6–12 months after shipment. The weld spatter and heat-affected zone create a surface that doesn't bond well with powder coat without proper preparation — and most factories skip the preparation step because it adds time.

We grind and chemically pre-treat every weld seam before the coating line. It adds a step to the process, but it's the step that prevents the bubbling and peeling that generates customer complaints. Our powder line runs at 60–80μm consistent film thickness across a batch, which is the spec range that passes 500-hour salt spray without adhesion failure.

For folding mechanisms going to coastal markets or high-humidity environments — Southeast Asia, the Gulf region, coastal North America — we offer an 800-hour salt spray option using a higher-build primer coat under the topcoat. Zinc electroplating is available for pivot components and tight-clearance hardware where dimensional tolerance after coating is critical; powder coat adds thickness that can affect fit on precision assemblies.

Surface Finish Options

Powder Coat

60–80μm film thickness
Full RAL color range
500-hour salt spray standard
800-hour option available

Zinc Electroplate

RoHS-compliant
Trivalent chromium passivation
For tight-tolerance pivot components
Preserves dimensional fit

Nickel Electroplate

Bright metallic finish
For visible hardware
Premium furniture lines

Custom Development

OEM and ODM Folding Mechanism Development

Custom folding hardware is a larger share of what we produce than most buyers expect. The fold angle, the locking sequence, the deployed and stowed dimensions — these are often product-specific requirements that a catalog item won't satisfy, especially for furniture brands building a proprietary design.

OEM Work

You supply the drawings. We review for manufacturability — if your design has features that will cause production problems or tolerance issues in the folding subassembly, we flag them before tooling is cut. Production runs to your spec.

ODM Work

You bring a brief: the motion sequence you need, the load rating, the deployed and stowed dimensions, the target retail price point, and any aesthetic direction. Our 12-person engineering team develops the mechanism geometry, builds the tooling in-house, runs samples, and iterates until the spec is locked.

Typical ODM development involves 2–3 sample rounds; in-house tooling means geometry revisions happen in days, not weeks.

Engineering team developing custom OEM ODM folding mechanism with in-house tooling

Customization Parameters — Standard Catalog Folding Mechanisms

Dimension	Options
Fold angle	90°, 135°, 180° (fold-flat); custom angles on ODM
Bracket steel thickness	1.5mm, 2.0mm, 2.5mm, 3.0mm
Surface finish	Powder coat (any RAL), zinc plate, nickel plate
Load rating	80kg, 100kg, 120kg, 150kg; higher on ODM
Locking type	Spring detent, push-button release, lever release
MOQ (catalog items)	500 units
MOQ (OEM/ODM)	Quoted based on tooling spec

Ready to develop a custom folding mechanism?

Send us your brief or drawings — we'll come back with a development proposal and quote.

Send Your Brief

Compliance

Compliance and Certification for Your Target Market

Folding furniture mechanisms sold into North American, European, and Australian markets face compliance requirements that affect your ability to list the product and your liability exposure if something fails in the field.

CE Marking

Covers our full folding mechanism range for European market entry. CE declaration of conformity ships with European orders — your customs broker and compliance team get the documentation without chasing us for it.

SGS Third-Party Testing

Independent verification of product performance and material compliance. SGS reports are available with shipment for buyers who need third-party evidence for their own customers or retail partners.

RoHS Compliance

Documented for all surface treatments. Our zinc plating line uses trivalent chromium passivation — no hexavalent chromium. Material compliance documentation ships with the order for EU or California market buyers.

ISO 9001:2015

Covers the full production process from incoming material inspection through outgoing functional testing. For buyers with supplier qualification requirements, third-party factory audits are available on request.

For North American importers, we provide the material and compliance documentation your customs broker needs for HTS classification.

Quality & Certifications

FAQ

Frequently Asked Questions

What is the standard cycle life for folding furniture mechanisms, and when do I need to specify higher?

For residential furniture — fold-flat dining tables, home office fold-down desks, residential Murphy beds — 20,000–30,000 cycles covers the expected service life. For commercial applications where the mechanism operates daily (hotel room fold-down desks, banquet tables, co-working space furniture), specify 50,000 cycles minimum. For high-frequency commercial environments like rental properties or hospitality venues with daily conversion, 80,000–100,000 cycles is the appropriate spec. Tell us the use environment when you inquire and we'll recommend the test protocol.

What steel thickness should I specify for a folding table bracket?

For light-duty residential tables (up to 60kg load), 1.5mm SPCC is standard. For dining tables and work surfaces with higher load requirements (80–120kg), 2.0–2.5mm is the right range. For commercial folding tables in hospitality or event venues where the load and abuse level is higher, 3.0mm with reinforced pivot hardware. If you're unsure, send us the table dimensions and the expected load — we'll spec the bracket thickness and recommend the appropriate configuration.

How do I prevent powder coat from peeling at weld seams on folding mechanisms?

Powder coat adhesion failure at weld seams is caused by inadequate surface preparation before coating — weld spatter and the heat-affected zone don't bond well without grinding and chemical pre-treatment. Ask your supplier specifically whether they grind and pre-treat weld seams before the coating line. A supplier who skips this step will produce mechanisms that look fine at delivery but develop bubbling and peeling within 6–12 months in the field.

What is the minimum order quantity for folding furniture mechanisms?

500 units for standard catalog items. For OEM/ODM tooling projects, MOQ is quoted based on tooling amortization — we give you the honest number based on your spec. Most new buyers start with a 500–1,000 unit trial order to qualify the product with their own customers before scaling.

Folding mechanism vs. transformable mechanism: which do I need?

A folding mechanism handles a single fold motion — the piece folds flat or folds down, and that's the full range of motion. A transformable mechanism handles a multi-position conversion sequence, typically involving multiple pivot points and a locking sequence that changes the furniture's function (sofa to bed, dining to desk). If your product folds to store and unfolds to use, you need a folding mechanism. If your product converts between two distinct functional configurations, you likely need a transformable mechanism.
