Door Furniture Mechanism

Product Definition

What This Product Is — and Where It Sits in the Category

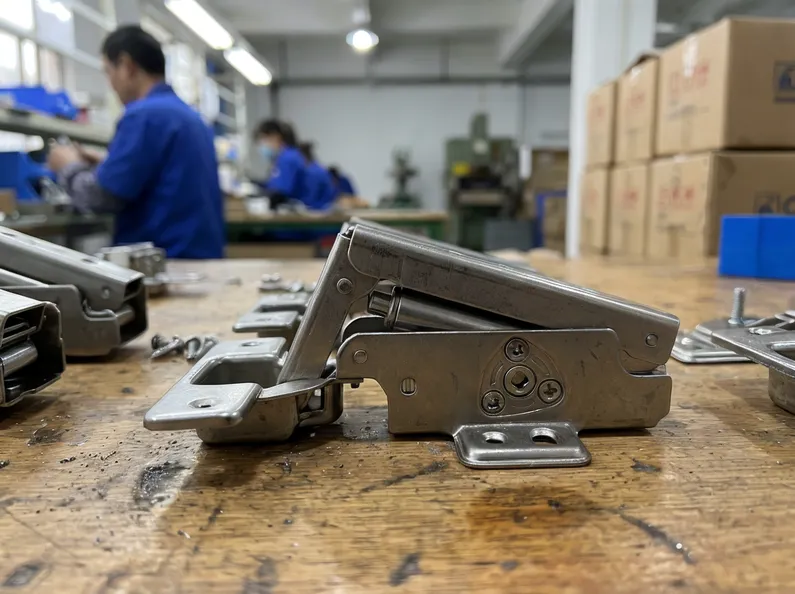

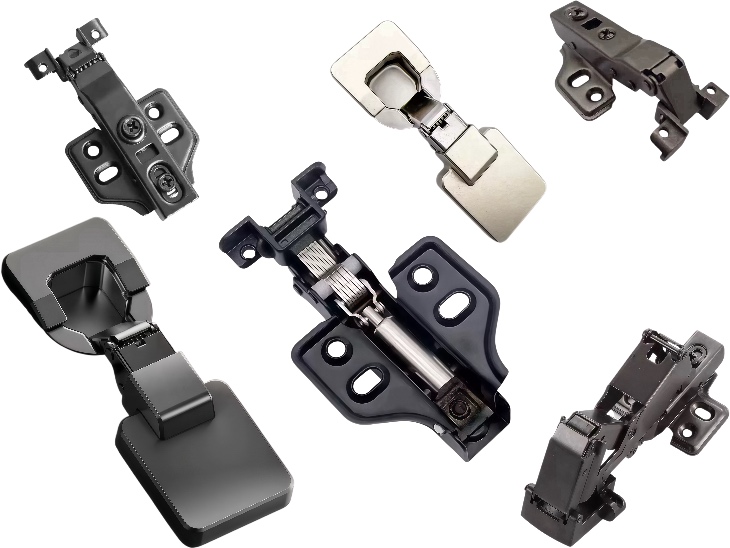

A door furniture mechanism is the hardware assembly that controls how a cabinet or wardrobe door opens, closes, holds position, and adjusts after installation. It's not a decorative fitting — it's the functional core of every door-on-carcass assembly, and it's the component that determines whether a finished piece of furniture works reliably for years or generates warranty returns within months.

Within our door hinge furniture mechanism category, this product line covers the full-function concealed hinge mechanism: cup body, mounting arm, adjustment cam, and integrated or add-on soft-close damper. The category page covers the broader range including standalone pivot systems and damper-only assemblies. This page is specific to the door furniture mechanism as a complete hinge unit — the component your cabinet or wardrobe manufacturer installs as a single assembly, not a collection of separate parts.

The distinction matters for sourcing. A buyer specifying door furniture mechanisms needs to confirm cup bore diameter, overlay configuration, door weight rating, opening angle, and soft-close integration — five variables that determine whether the mechanism fits the application. We'll cover each one with the specificity you need to fill a comparison sheet or write a purchase order.

Get a Quote for This Product

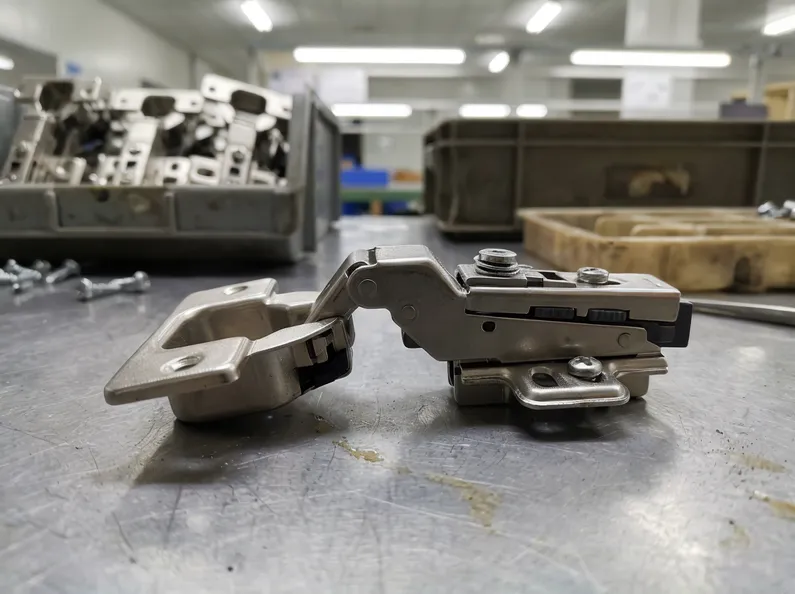

Complete door furniture mechanism assembly showing cup body, mounting arm, and adjustment cam

Complete Assembly

Cup body, arm, cam, and damper — one unit, not separate parts

5 Key Variables

Bore, overlay, weight, angle, soft-close — all confirmed at spec stage

Warranty Protection

Correct spec selection eliminates the primary source of returns

100% Tested

Every unit functionally tested before leaving the production floor

Engineering Data

Technical Specifications

These are the parameters that determine fit for your application. Values shown are for our standard catalog range — OEM configurations carry their own exact specs confirmed at the sample stage.

Parameter

Standard Range

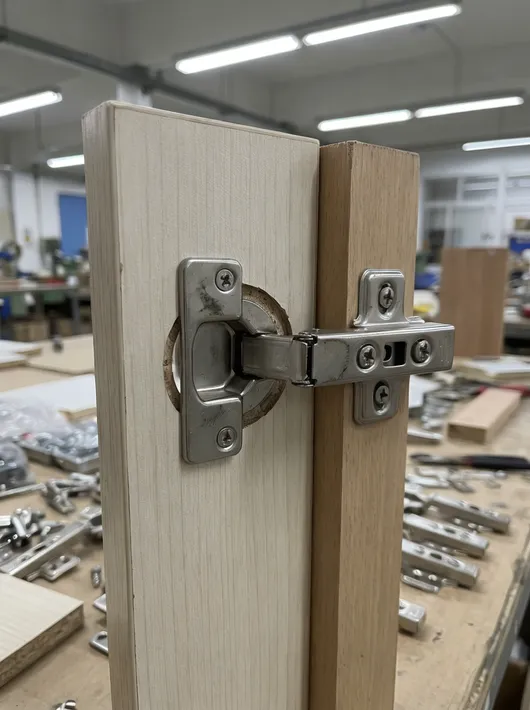

Cup bore diameter

35mm (industry standard)

Door thickness compatibility

16–22mm

Door weight capacity

1.5–8 kg (standard); up to 25 kg (heavy-duty pivot)

Overlay configurations

Full overlay, half overlay, inset

Opening angle

90°, 110°, 165°, 180° (model-dependent)

Adjustment axes

3-way: lateral (±2mm), depth (±2mm), height (±2mm)

Soft-close engagement range

Final 15–20° of closing travel

Soft-close cycle rating

80,000 cycles (standard batch qualification)

Hinge body material

Cold-rolled SPCC steel

Adjustment cam material

Zinc alloy die-cast (in-house)

Mounting plate type

Clip-on (tool-free removal) or screw-fixed

Surface finish options

Nickel plating, zinc plating, powder coating

Powder coat film thickness

60–80μm

Salt spray resistance

500 hrs (powder coat) · 200+ hrs (nickel plate)

Certifications

ISO 9001:2015, CE, SGS, RoHS

Standard MOQ

500 units per SKU

Specifications shown are for standard catalog configurations. Actual values may vary by model. Contact us for detailed product data sheets and OEM specification confirmation.

35mm

Cup Bore Diameter

3-Way

Adjustment Axes

180°

Max Opening Angle

25kg

Max Door Weight

Need Detailed Data Sheets?

Request product data sheets and OEM specification confirmation for your exact application.

Request Specs or Samples

Quality Control

How the Adjustment Cam Determines Your Return Rate

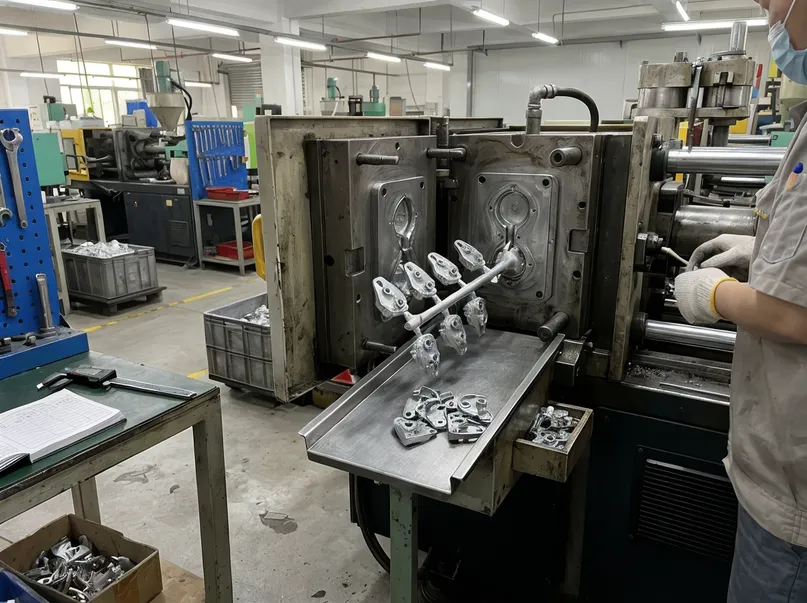

The adjustment cam is the die-cast zinc alloy part inside the hinge arm that holds the door in its adjusted position — lateral, depth, and height. When it's dimensionally consistent and made from certified alloy, it holds. When it isn't, the door drifts out of alignment after installation, and your buyer's customer calls for a service visit or a replacement.

We produce the adjustment cam in-house. Most hinge manufacturers in this region outsource die-cast components to third-party foundries, which means they have no direct control over alloy composition, injection parameters, or dimensional consistency on the cam profile. We brought die-casting inside around 2015 specifically because outsourced cams were the leading source of quality complaints we were seeing — not in our own product, but in the category generally, from buyers who came to us after problems with other suppliers.

Our die-casting process runs with alloy certification on incoming zinc ingot, injection parameter records per batch, and post-cast dimensional checks on the cam profile geometry. When a sample fails the adjustment retention test, the fix is a parameter change on our casting machine, not a conversation with a subcontractor who may or may not prioritize your batch.

Distributor implication

Fewer warranty returns from your downstream customers, and a supplier who can diagnose and fix a cam quality issue without a three-week subcontractor loop. The cam is a small component — it's also the one that determines whether your buyers reorder or switch suppliers.

In-house die-cast zinc alloy adjustment cam for door furniture mechanism

±0.1mm

Cam Profile Tolerance

Tighter than general stamping tolerance of ±0.15mm — because this is where dimensional drift causes field problems.

2015

Die-Casting Brought In-House

Direct control over alloy composition, injection parameters, and cam profile geometry — no subcontractor loop.

Per-Batch Process Records

Alloy certification on incoming zinc ingot, injection parameter records per batch, and post-cast dimensional checks on cam profile geometry — all traceable to the production run.

Integrated Damper

Soft-Close Integration: 80,000 Cycles, Built In

Soft-close is no longer a premium feature in North American and European cabinet markets — it's the baseline expectation at mid-market and above. Buyers who aren't stocking soft-close integrated door furniture mechanisms are losing shelf position to competitors who are.

Our integrated soft-close mechanism builds the damper into the hinge body rather than adding it as a separate clip-on component. The damper engages in the final 15–20° of closing travel, decelerating the door to a controlled stop. Closing force is calibrated for door weights in the 1.5–8 kg range — standard kitchen cabinet doors through mid-weight wardrobe panels.

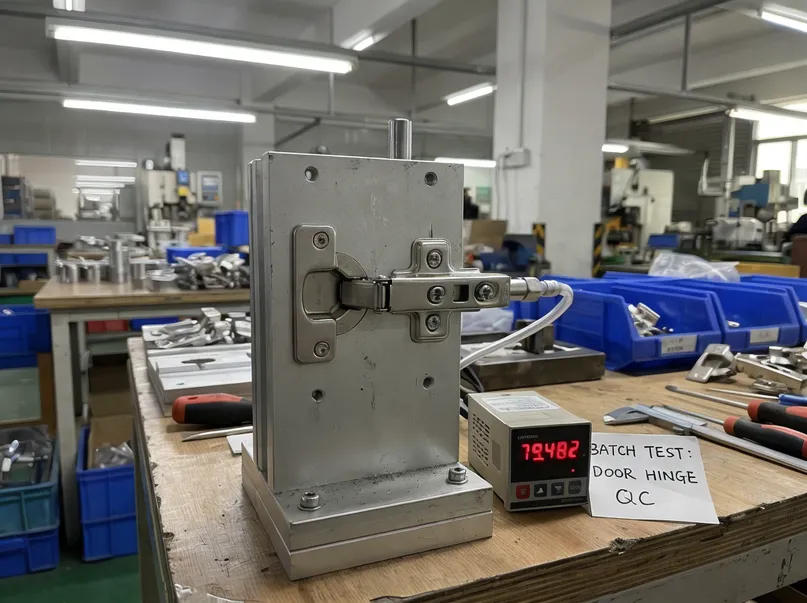

We run 80,000-cycle qualification testing on soft-close damper batches as a standard production check. At three door cycles per day, that's over 70 years of residential use — the damper will outlast the cabinet. The test isn't a marketing threshold; it's the point where seal degradation shows up in accelerated testing, and batches that don't pass don't ship.

Sourcing implication

Integrated soft-close hinges have better cycle life than clip-on damper add-ons, a cleaner installation profile, and no risk of the damper clip detaching in service. For buyers supplying kitchen cabinet manufacturers or wardrobe system assemblers, integrated soft-close is the specification to stock.

80,000

Cycle Qualification

15–20°

Damper Engagement

1.5–8kg

Door Weight Range

Clip-On Damper Add-On

Separate component, risk of clip detachment in service, shorter cycle life, less clean installation profile.

Integrated Soft-Close (Our Spec)

Damper built into hinge body, 80,000-cycle tested per batch, no detachment risk, cleaner install — the specification mid-market and above now expects as standard.

Specification Guide

Configuration Selection: Matching the Mechanism to the Application

The most common sourcing error in this product category is ordering hinge mechanisms without confirming overlay configuration and door weight. Both are fixed by the cabinet construction — you can't adjust overlay after the carcass is built, and running a hinge above its rated door weight accelerates cam wear.

Overlay Configuration

Determined by how the door face sits relative to the carcass edge. Full overlay covers the full carcass face — standard in frameless European-style cabinets. Half overlay is used where two doors share a center partition. Inset sits flush inside the carcass opening and requires tighter tolerance. Specifying the wrong overlay means the door won't close flush — a field installation problem that generates returns.

Door Weight

Determines which hinge model to specify. Standard kitchen cabinet doors in 16mm MDF or particleboard (400–600mm wide) typically run 2–5 kg. Full-height wardrobe doors in 18mm board run 8–15 kg. Specify the hinge's rated capacity at least 20% above your actual door weight — running at rated maximum accelerates adjustment cam wear. For doors above 15 kg, use three hinges per door rather than two.

Opening Angle

A geometry question, not an adjustment. Standard concealed hinges open to 110°. Corner cabinet applications and appliance garages need 165° or 180° variants to allow the door to fold back against an adjacent panel. Confirm the required opening angle before ordering — it's a different hinge, not a setting change.

Soft-Close Specification

Specify as integrated rather than clip-on for any application where cycle life and installation cleanliness matter. The integrated damper is built into the hinge body; the clip-on is an afterthought that adds a failure point.

Overlay Configuration Decision Matrix

Configuration

Cabinet Type

Tolerance Requirement

Full Overlay

Frameless / European-style

Standard

Half Overlay

Shared center partition / face-frame stile

Standard

Inset

Flush inside carcass opening

High — hinge + cabinet

Door Weight vs. Hinge Count

Door Weight

Typical Application

Hinges per Door

2–5 kg

16mm MDF kitchen cabinet

2

8–15 kg

18mm full-height wardrobe

2–3

Above 15 kg

Heavy wardrobe / panel door

3 minimum

Specify rated capacity at least 20% above actual door weight to prevent premature cam wear.

Not certain which configuration fits your application?

Send us the door dimensions, panel material, and a photo of the carcass construction. We'll specify the right mechanism and send back a quote with samples available.

Send Application Details

Buyer Segments

Market Segments: Where Door Furniture Mechanisms Generate Repeat Volume

Highest Volume Segment

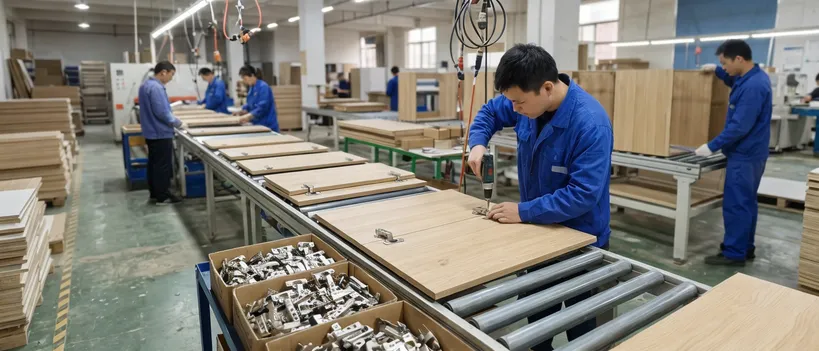

Kitchen Cabinet Manufacturing

A standard kitchen installation uses 20–40 hinge mechanisms; a production cabinet manufacturer running 500 kitchens per month is ordering 10,000–20,000 units per run. Soft-close integrated is now the baseline specification in this segment — distributors supplying kitchen cabinet manufacturers who aren't stocking soft-close are losing orders to those who are.

20–40

hinges per kitchen

10K–20K

units per run (500 kitchens/mo)

Reorder

Regular & predictable

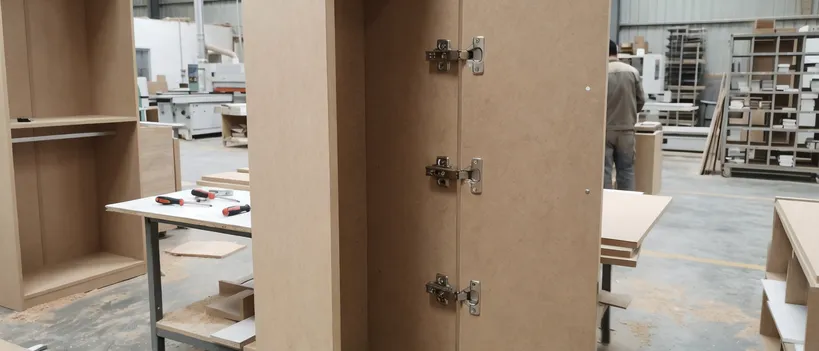

Wardrobe and fitted furniture systems requiring heavy-duty door hinge mechanisms

Heavy-Duty Specification

Wardrobe & Fitted Furniture Systems

Full-height wardrobe doors in 18mm board run 8–15 kg, which pushes into the upper range of standard hinge capacity. Buyers supplying wardrobe system assemblers need to confirm door weight capacity before specifying. This segment tends toward larger per-order quantities and has strong demand in the Middle East and Southeast Asian markets where fitted wardrobe furniture is a standard residential specification.

Middle East Southeast Asia 8–15 kg door weight

Bulk Orders / Long Cycle

Contract Furniture & Hospitality Fit-Out

A single hotel project might specify 2,000–5,000 hinge mechanisms across room furniture, wardrobe units, and built-in cabinetry. Contract buyers typically require CE documentation and test reports as part of the specification package — which is why our CE and SGS certifications ship with every order rather than being available on request.

CE & SGS documentation included with every order

Batch Consistency

Furniture Import Distribution

Importers supplying furniture retailers need consistent batch quality across reorders. A hinge that looks and functions identically in the third container as it did in the first is not a given from every supplier — it requires process controls that hold steel coil spec, die tooling inspection intervals, and coating parameters constant batch to batch. Our ISO 9001:2015 framework is built around exactly this requirement.

ISO 9001:2015 process controls across all production batches

Custom Configurations

OEM Furniture Brands

OEM furniture brands sourcing door furniture mechanisms for proprietary cabinet systems often need custom configurations — specific finishes, modified geometry, or branded packaging. OEM tooling projects are a regular part of our production schedule.

Learn about OEM/ODM capabilities

Finish Specifications

Surface Finish Options and What They Mean for Your Market

Three finish options are available across the door furniture mechanism range. The choice affects more than appearance — it affects dimensional tolerance after coating, corrosion resistance, and compliance documentation for your target market.

Nickel Plating

Bright or Satin

Standard finish for visible hinge components in kitchen and wardrobe applications. Bright nickel gives a chrome-adjacent appearance; satin nickel is the more common specification in contemporary European and North American cabinet hardware.

Adds minimal dimensional thickness — critical on clip-on mounting plate interfaces where powder coat thickness would affect clip engagement.

Zinc Plating

Trivalent Chromium Passivation

Used on structural components where corrosion resistance matters more than appearance. The zinc plating line uses trivalent chromium passivation — no hexavalent chromium in the process.

RoHS compliance documentation is clean for EU and California market buyers. Customs holds on hexavalent chromium surface treatments have become a real risk for buyers shipping into European ports.

Powder Coating

60–80μm Film Thickness

Passes 500-hour salt spray without adhesion failure. Available in standard RAL colors or custom color matching on runs over 500 units. Right choice for buyers whose downstream customers want color-matched hardware.

The 60–80μm spec is non-negotiable. Running thinner at 45–55μm reduced material cost but salt spray results on coastal-market shipments confirmed it was the wrong trade-off.

Dimensional Tolerance

Nickel plating preserves post-coating fit on precision interfaces. Powder coat thickness must be accounted for in clip-on mounting designs.

Corrosion Resistance

Powder coat at 60–80μm: 500-hour salt spray. Zinc with trivalent passivation: structural components in humid or coastal environments.

Compliance Documentation

RoHS documentation available for EU and California markets. No hexavalent chromium in any finish process.

Certifications & Documentation

Compliance and Certification for Your Target Market

Compliance documentation ships with every order — not on request. The certifications below cover the door furniture mechanism range across European, North American, and global sourcing requirements.

European Market

CE Marking

CE declaration of conformity ships with every European order. Not available on request — it is included as standard with every shipment to EU market buyers.

Independent Verification

SGS Third-Party Testing

Independent third-party testing provides verification beyond self-declaration. SGS test reports are available for buyers with supplier qualification requirements.

EU & California Markets

RoHS Compliance

RoHS compliance documentation covers surface treatment chemistry — trivalent chromium passivation on zinc plating, no hexavalent chromium. Available for buyers supplying into EU or California markets.

Quality Management

ISO 9001:2015

Covers the full quality management system: incoming material inspection, in-process dimensional and functional checks, and 100% outgoing functional testing.

Practical meaning for your sourcing: the process that produced your first container is the same process that produces your tenth. Batch-to-batch consistency is documented, not assumed.

North American Importers

HTS Classification Support

Material and compliance documentation provided for HTS classification. Reduces customs clearance friction for North American importers with classification requirements.

Supplier Qualification

Third-Party Factory Audits

Available on request for buyers with supplier qualification requirements. Learn more about our certifications and audit process.

Certified

ISO 9001:2015

Marking

CE Certified

Tested

SGS Verified

Compliant

RoHS / No HexCr

Logistics

Packaging, Container Loading, and Logistics

Door furniture mechanisms are a small-format, finish-sensitive product. Packaging engineering matters: a nickel-plated hinge with a contact scratch from transit is a visible defect that generates returns from your buyers.

Individual PE Foam Sleeves

Each hinge is packed in an individual PE foam sleeve inside a master carton — protecting finish-sensitive surfaces from contact scratches during transit.

40HQ Pallet-Optimized Cartons

Carton dimensions are sized for 40HQ pallet loading — configurations are pre-worked so your freight forwarder isn't improvising at the warehouse.

Mixed-SKU Packing

For orders with multiple overlay configurations or finish variants, we configure mixed-carton packing with itemized packing lists by SKU and carton for your receiving team.

Production Lead Time

Catalog Mechanisms

25–35 days from order confirmation and deposit.

OEM with New Tooling

Longer lead time. We provide a milestone schedule — not a single delivery date that obscures where the time goes.

Full Export Documentation

Everything your customs broker and compliance team need ships with the order:

Commercial invoice
Packing list
Bill of lading
Certificate of origin
CE declaration of conformity
SGS test reports
RoHS compliance documentation

Custom Manufacturing

OEM and Custom Configurations

Standard catalog mechanisms cover the majority of applications, but a meaningful share of our door furniture mechanism production runs under OEM arrangements — custom finishes, modified geometry for proprietary cabinet systems, or branded packaging for furniture labels.

OEM

You supply the drawings and specifications. We review them for manufacturability before committing to tooling — if there's a geometry that will cause production problems or a tolerance that's tighter than necessary, we'll flag it before the tooling is cut.

The design is yours; we make it work in production.

ODM

You bring a brief: target retail price, market segment, door weight range, finish requirements, and any aesthetic direction. We develop the mechanism design, build the tooling in-house, run samples, and iterate until the spec is locked.

In-house tooling means a geometry change on a sample is a parameter adjustment on our floor, not a three-week wait for a third-party tooling shop. Most ODM projects go through 2–3 sample rounds before the spec is confirmed.

MOQ — Catalog Mechanisms

500 units

per SKU

MOQ — OEM/ODM Tooling Projects

Spec-dependent

MOQ is based on tooling amortization — we provide the specific number based on your spec.

Send Us Your OEM Brief or Drawings

Related Products

Sibling Products in the Door & Hinge Category

The door furniture mechanism is one of three product lines under our door hinge furniture mechanism category. If this product doesn't match your application, the sibling products may:

Sibling Product

Door Mechanism

If you need a broader door motion system beyond the hinge assembly itself, including door positioning and stay hardware.

View Product

Sibling Product

Hinge Furniture Mechanism

If your application is a specialized hinge configuration outside the standard concealed cup hinge range covered here.

View Product

Not sure which product fits your sourcing requirement? Send us your application details and we'll point you to the right configuration.

Contact Us

Buyer FAQ

Frequently Asked Questions

What is the difference between full overlay, half overlay, and inset door furniture mechanisms?

Overlay describes how the door face sits relative to the carcass edge. Full overlay covers the full carcass face — the door completely covers the cabinet side panel edge. This is the standard configuration for frameless European-style cabinets. Half overlay is used where two doors share a center partition; each door covers half the partition width. Inset means the door sits flush inside the carcass opening, with the door face level with the cabinet face frame.

Each configuration requires a different hinge geometry — they are not interchangeable. Specifying the wrong overlay means the door won't close flush, which is a field installation problem that generates returns.

What soft-close cycle rating should I specify for kitchen cabinet applications?

80,000 cycles is the threshold we use for standard batch qualification, and it's appropriate for residential kitchen cabinet applications. At three door cycles per day, that's over 70 years of use.

For high-frequency commercial applications — hospitality cabinetry, office kitchenettes, or any environment where doors are opened and closed significantly more than residential frequency — specify mechanisms from a batch tested to higher cycle counts, or ask us about our heavy-duty soft-close range. The 80,000-cycle figure is our floor for standard catalog product, not our ceiling.

How do I prevent door alignment from drifting after installation?

Alignment drift after installation is almost always a die-cast cam quality issue — the cam profile is either dimensionally inconsistent from the factory or the alloy is soft enough to deform under sustained load.

At the sourcing stage, specify mechanisms from a manufacturer who controls their own die-casting process and can document alloy certification. At the installation stage, confirm the adjustment cam is fully engaged (audible click on clip-on systems) and that the mounting screws are torqued to specification — undertorqued mounting plates allow micro-movement that mimics cam slippage.

What certifications are required for door furniture mechanisms sold into the EU?

CE marking is the primary requirement for furniture hardware sold into the EU market. For door furniture mechanisms, CE compliance covers the essential safety requirements under the relevant EN standards for furniture hardware. SGS third-party testing provides independent verification.

RoHS compliance is relevant to surface treatment chemistry — specifically, no hexavalent chromium in the plating process. We ship CE declaration of conformity and SGS test reports with every European order. RoHS documentation is available for buyers whose downstream customers require it.

What is the MOQ for door furniture mechanisms, and is sampling available?

Standard MOQ is 500 units per SKU for catalog configurations. Most new buyers in this category start with a sample order — typically 2–5 units per configuration — to test fit and function with their own cabinet construction before committing to a production run.

We can ship samples within the standard lead time for small quantities. Send us your application details and target configuration, and we'll confirm sample availability and lead time.

Full overlay vs. half overlay: which configuration sells better in North American distribution?

Full overlay dominates in North American frameless cabinet construction — it's the standard for European-style cabinets that have become the market norm in mid-market and above kitchen cabinetry. Half overlay is used in face-frame cabinet construction where two doors share a center stile, which is more common in traditional-style cabinetry.

If you're building a starter SKU mix for North American distribution, full overlay soft-close integrated is the highest-volume configuration. Half overlay is worth stocking as a secondary SKU for buyers supplying traditional-style cabinet manufacturers.

Factory-Direct Sourcing

Source Door Furniture Mechanisms from MVMHardware

We've been producing door furniture mechanisms on dedicated production lines since the factory's early years — it's not a side category. The engineering team has seen the failure modes in this product range.

The QC process is built around the specific defect types — cam slippage, damper seal failure, powder coat adhesion at the cup rim — that generate returns in the field. The export documentation is ready for your target market before you ask for it.

If you're building a new product line, expanding an existing hinge range, or consolidating door furniture mechanism sourcing with a single factory-direct supplier, send us your requirements. A photo of what you're currently sourcing, your target retail price point, and your volume expectations is enough for us to come back with a specific recommendation and a detailed quote.

Request a Quote

Get in Touch

Email

[email protected]

+86 132 1014 9517

Send us a photo of what you're currently sourcing, your target retail price point, and your volume expectations — we'll come back with a specific recommendation and a detailed quote.

17+

Years Manufacturing

ISO

9001:2015 Certified

500

Units MOQ
