Sleeper Sofa Mechanism

Hinge Assembly & Tolerance Control

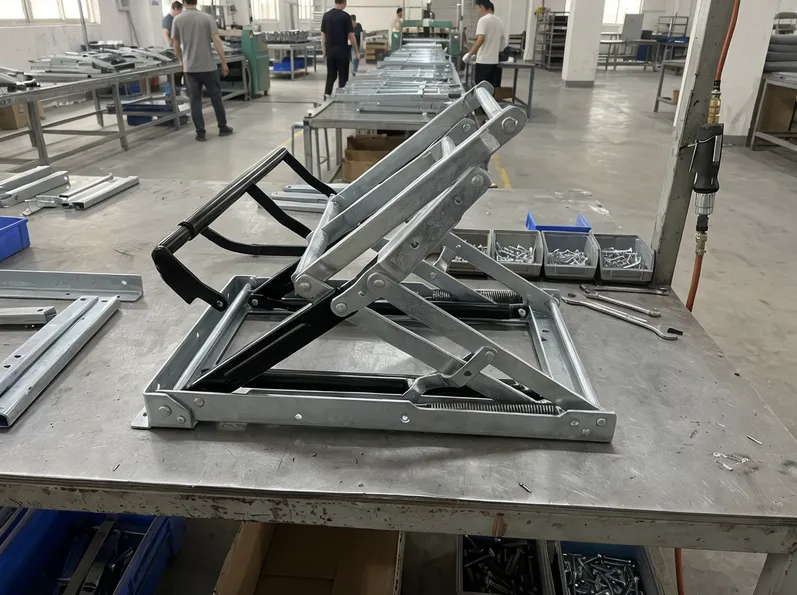

The hinge assembly is where sleeper sofa mechanisms fail most often in the field — and it's where we spend the most attention in production. The hinge pivot points carry the full deployed load every time the mechanism opens, and they do it at a geometry that puts maximum stress on the pin and bracket interface at the transition between folded and flat.

Loose tolerances at the stamping stage mean the pivot hole drifts, the pin fits with play, and that play becomes visible wear within a few thousand cycles. We hold ±0.15 mm on all linkage plates and bracket stampings — that's the tolerance our QC team checks on first-article and periodic pulls throughout each run, not just at the start.

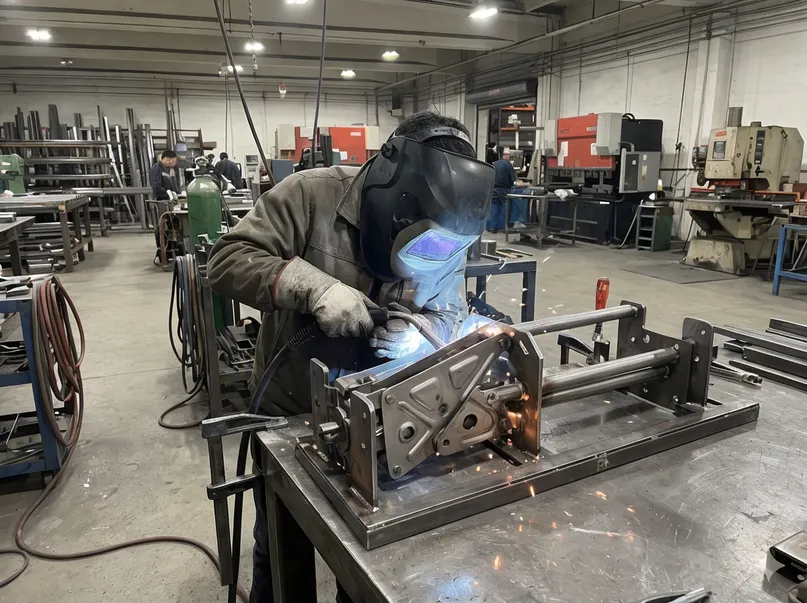

Frame Welding: MIG, Not Spot

Frame tubes on the main structural members run at 1.2–1.5 mm wall thickness depending on the span width of the deployed surface. We MIG-weld all load-bearing joints — not spot-weld. Spot welding is faster and cheaper, but the penetration depth isn't adequate for joints that carry repeated load cycles across a sleeping surface. A spot-welded joint on a sleeper frame will show fatigue cracking before a MIG joint does, and by the time it's visible, the mechanism is already past the point of reliable use.

Surface Coating & Powder Line

After welding, every weld seam is ground and pre-treated before surface coating. Powder coat adhesion failure at weld seams is one of the more common surface defects we see on competitor product — the weld creates a heat-affected zone that, if not properly prepared, doesn't bond to powder coat the same way the base steel does.

We added the pre-treatment step after seeing adhesion failures on early production runs. The powder line now runs at 60–80 μm consistent film thickness across the batch — the spec that passes 500-hour salt spray. For buyers supplying into Southeast Asia, coastal Middle East, or coastal North America, that's the number that protects your warranty exposure.

In-House Zinc Alloy Die-Casting

Zinc alloy die-cast components — the hinge collars, adjustment fittings, and any decorative hardware on visible parts — are produced in-house. Most mechanism factories in this region outsource die-casting to third-party foundries. We brought it in-house in 2015 because die-cast components are where dimensional inconsistency originates most often.

When a hinge collar has batch-to-batch variation in its bore diameter, the pivot pin fits differently across units, and that variation shows up as inconsistent deployment feel — some units smooth, some stiff. Owning the die-cast process means we own the dimensional consistency of those components.
