Push Back Chair Mechanism —
Backrest Recline, Fixed Seat

Stamped from cold-rolled steel, 100% functionally tested before shipment. Standard and OEM configurations available from 500 units.

Get a Quote All Mechanisms

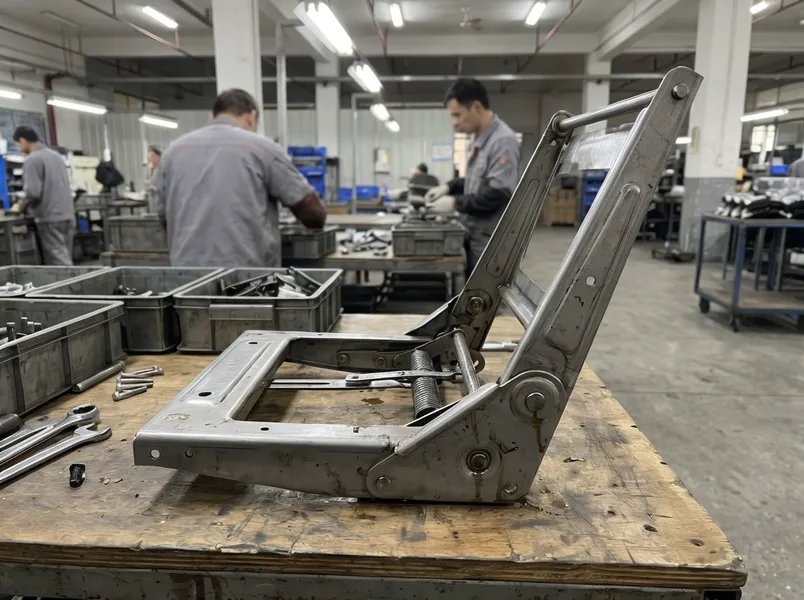

Push back chair mechanism — backrest recline fixed seat, cold-rolled steel construction

Product Overview

What a Push Back Mechanism Is — and Where It Fits Your Product Line

The push back chair mechanism operates on a single principle: the backrest reclines when the user leans back, and the seat plate stays stationary. There is no tilt tension to adjust, no synchro ratio to calibrate, no seat-angle change. The user pushes back, the backrest follows, and when they sit upright again, a return spring brings the backrest forward.

That simplicity is the commercial point. A push back mechanism costs less to produce, less to assemble, and less to explain to an end user than a tilt or synchro unit. For chair lines where the selling proposition is comfort and appearance rather than ergonomic adjustability — guest chairs, reception seating, side chairs, lighter-duty task chairs — the push back mechanism delivers the recline feature without the mechanism cost of a full tilt unit. Your margin on the finished chair is better, and your assembly line runs faster because there are fewer adjustment steps.

We produce this mechanism on the same stamping and assembly lines as our full tilt and synchro range. The plate geometry is different; the manufacturing discipline is the same. Every unit goes through 100% functional testing before it ships — tilt action, return spring engagement, lock position if specified — so the recline feel your end users experience is consistent across your production run, not just across your sample units.

Browse the full chair mechanism line

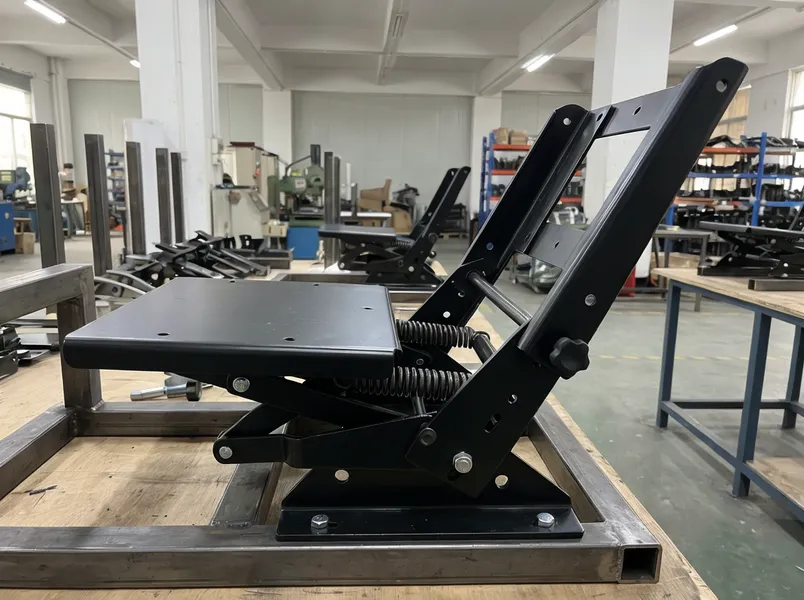

Push back chair mechanism showing backrest recline action with fixed seat plate
15°–25°
Backrest Recline Range
80–150kg
Load Capacity
60K+
Cycle Life

Guest Chairs

Comfort and appearance-led seating where ergonomic adjustability is not the selling point.

Reception Seating

Lobby and front-of-house chairs where clean aesthetics and low maintenance matter.

Side Chairs

Conference and meeting room side seating with a recline feature at lower mechanism cost.

Lighter-Duty Task

Task chairs where recline is desired but full synchro complexity is not justified by the price point.

Engineering Data

Technical Specifications

Industry-standard parameters for this mechanism type. Contact us for exact drawings and configuration details for your application.

Specification Table
Mechanism type Push back (backrest recline, fixed seat)
Base material Cold-rolled steel (SPCC/Q235)
Plate thickness 2.0 mm – 2.5 mm (standard duty)
Load capacity 80 kg – 150 kg (configuration dependent)
Backrest recline angle 15° – 25° from vertical (typical range)
Return spring Integrated coil spring, tension fixed or adjustable
Gas lift compatibility Standard Ø50 mm cylinder bore
Mounting pattern Standard 4-hole; custom patterns available
Surface treatment Zinc plating (standard), powder coat (optional)
Operating temperature -10°C to 60°C
Cycle life 60,000+ cycles (BIFMA X5.1 equivalent protocol)

Specifications shown are industry-standard values for this mechanism type. Actual specifications may vary by configuration. Contact us for detailed product data sheets and drawings.

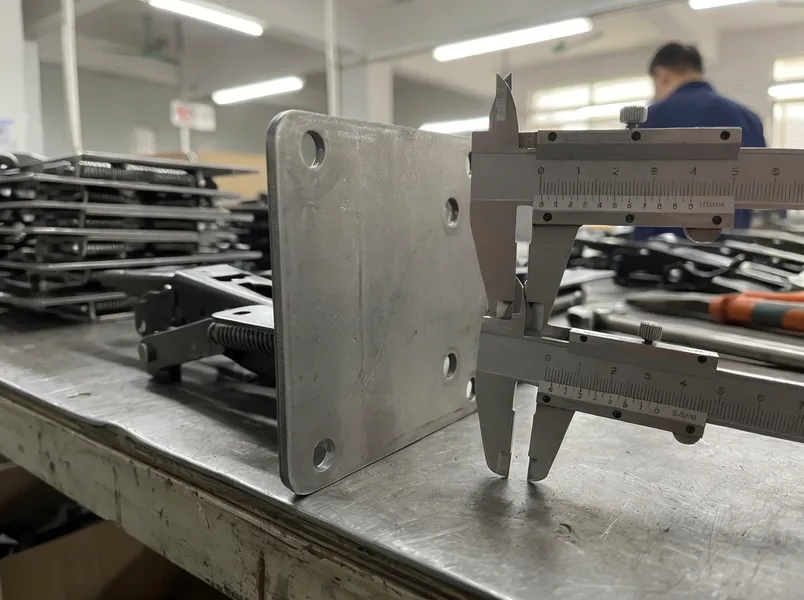

Cold-rolled steel push back chair mechanism plate construction detail showing 2.0–2.5mm thickness

Reinforced Plate Option

The 2.0–2.5 mm plate thickness is the right range for guest and reception chair applications. If you're targeting a heavier-duty application — extended-use task seating or institutional environments — ask us about the reinforced plate option; we can run the same mechanism geometry at 3.0 mm with adjusted spring rate.

Standard 4-Hole Mount
Custom mounting patterns available on request for OEM applications.
100% Functional Test
Every unit tested for tilt action, spring engagement, and lock position before shipment.
Request a Quote or Technical Drawing

Applications

Market Segments Where Push Back Mechanisms Drive Volume

Push back mechanisms are the right engineering choice across four high-volume B2B segments. Here's where buyers are ordering — and why the mechanism fits each application.

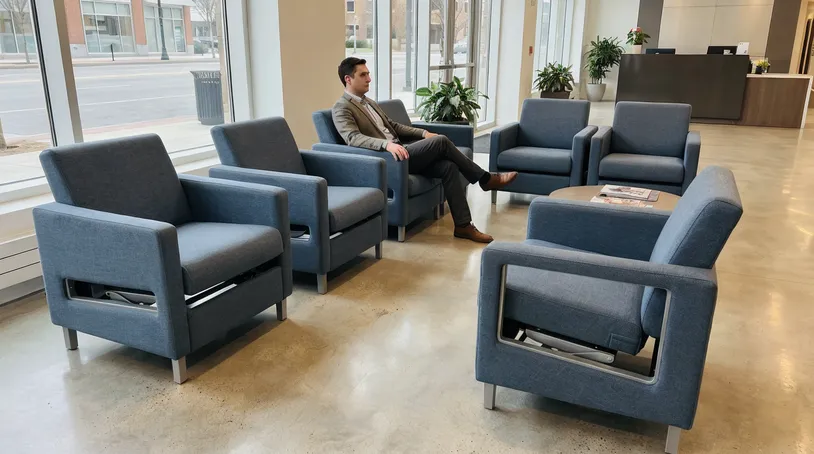

Push back mechanism in hotel lobby and corporate reception guest seating
Core Market

Guest & Reception Seating

Hotels, corporate lobbies, waiting rooms, and healthcare reception areas all need chairs that offer a recline feature without the complexity of a full tilt mechanism. The end user sits for 20–60 minutes, leans back occasionally, and doesn't need tension adjustment or multiple lock positions. The push back mechanism delivers exactly that — and the chair manufacturer keeps the mechanism cost low enough to hit the price points these buyers expect.

For distributors supplying contract furniture dealers, guest chair programs are typically ordered in sets of 20–100 units per project, with repeat orders tied to hotel renovations and office fit-outs. The push back mechanism's low unit cost means your margin on the finished chair is protected even at competitive project pricing.

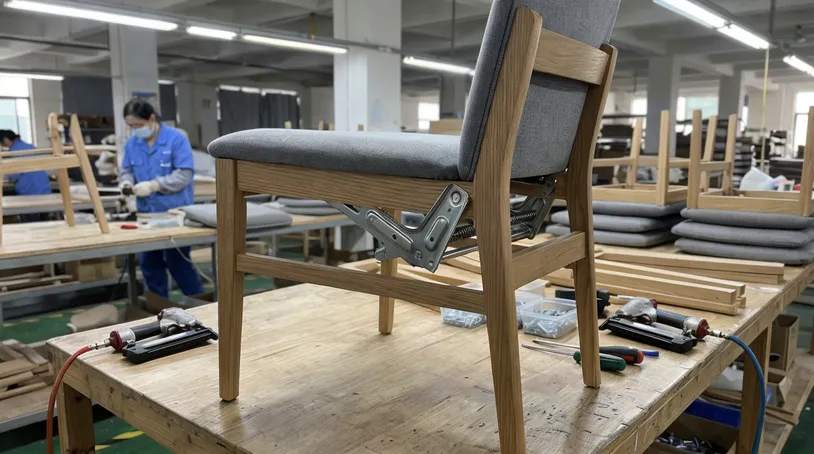

Push back mechanism in dining and conference side chairs
Side & Occasional

Side Chair and Occasional Seating

Dining chairs, conference side chairs, and occasional seating for residential and light commercial use. These applications don't need the cycle life of a task chair mechanism — 60,000 cycles is more than sufficient — and the fixed-seat design keeps the chair's visual profile clean.

Furniture manufacturers building mid-range dining and conference lines use push back mechanisms to add a recline feature that photographs well in catalog imagery without adding mechanism complexity to the assembly process.

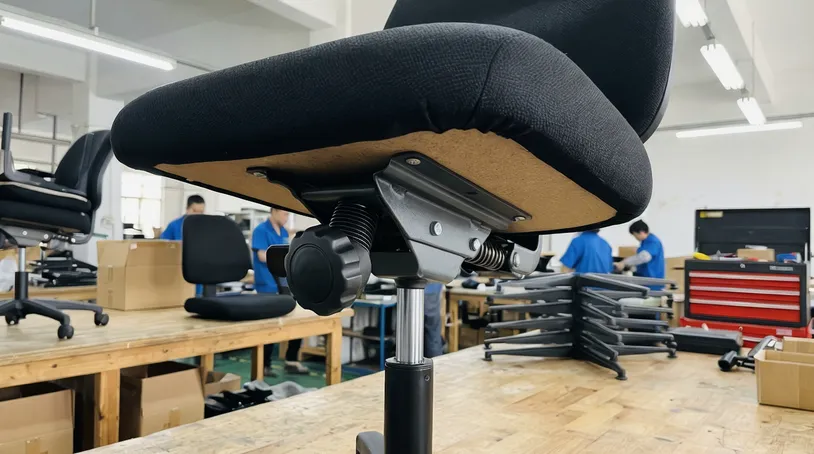

Push back mechanism in budget and mid-range task chairs for e-commerce
Budget & Mid-Range

Budget and Mid-Range Task Seating

At the sub-$150 retail price point, a full synchro or knee-tilt mechanism is cost-prohibitive. The push back mechanism gives the chair a recline feature — which buyers at this price tier expect — while keeping the mechanism cost in line with the chair's margin structure.

This is the mechanism that separates a $99 task chair from a $79 fixed-back chair on the retail floor. We supply push back mechanisms to several buyers who private-label task chairs for e-commerce channels — the recline feature is a key listing differentiator at this price tier.

Push back mechanism in hotel room and lounge hospitality furniture
Hospitality

Hospitality Furniture

Hotel room chairs, lounge seating, and restaurant chairs with a recline feature. Hospitality buyers order in volume — 200 to 1,000+ units per property — and they reorder on renovation cycles, typically every 5–8 years.

The push back mechanism's durability at 60,000+ cycles covers the full renovation cycle without warranty issues. For hospitality distributors, this is a segment with predictable reorder patterns and volume that justifies stocking the mechanism as a standard SKU.

Tell us your target segment and volume

Mechanism Comparison

Push Back vs. Tilt vs. Synchro: Positioning Your Chair Line

Buyers evaluating push back mechanisms are often deciding between this and a standard tilt or synchro unit. Here's how we advise buyers when they ask.

Feature Push Back Standard Tilt Synchro Tilt
Seat movement Fixed Tilts with backrest Tilts at ratio (1:2 or 1:3)
Backrest recline Yes Yes Yes
Tension adjustment Optional Standard Standard
Mechanism complexity Low Medium High
Typical retail price tier Sub-$150 $100–$300 $250+
Best application Guest, reception, side chairs Mid-range task, office Ergonomic, premium task
Cycle life requirement 60,000 cycles 60,000–80,000 cycles 80,000–100,000 cycles

The Push Back Mechanism Is Not a Compromise

The push back mechanism is the right mechanism for applications where seat movement would be a liability rather than a feature. A guest chair that tilts the seat when the user leans back feels unstable. A push back mechanism keeps the seat planted and lets the backrest do the work. That's the correct engineering choice for the application, not a cost-cutting shortcut.

If you're building a task chair line that needs seat movement, the standard tilt mechanism or synchro mechanism is the right direction. If you need a recline feature with a fixed seat, you're in the right place.

Manufacturing Process

How We Manufacture This Mechanism

Every push back mechanism is produced in-house — stamping, welding, surface treatment, and functional testing on a single production line. No outsourced subassemblies, no tolerance stack from multiple suppliers.

Progressive Die Stamping

The mechanism plate is stamped from cold-rolled steel coil on our progressive die presses. Mounting holes, pivot slots, and spring anchor points are formed in a single press pass — dimensional consistency holds across a full production run without operator-dependent variation. We hold ±0.15 mm on stamped plates, so your assembly line can use fixed jigs without per-piece adjustment.

MIG Welding — Pivot Bracket

The backrest pivot bracket is MIG-welded to the plate with verified penetration depth. This joint takes cyclic load every time the user reclines — insufficient weld penetration is the most common cause of field failures we see in competitor mechanisms. Penetration depth is verified, not assumed.

Return Spring Assembly

The return spring is assembled and pre-loaded to spec before the unit goes to functional testing. Spring tension determines how the mechanism feels in use — pre-loading to spec at assembly ensures consistent feel across the production run, not just the first sample.

Surface Treatment

Standard push back mechanisms ship with zinc plating. For buyers whose downstream markets require powder coat — either for color matching or corrosion resistance in humid environments — we run powder coat at 60–80 μm film thickness on the same in-house line we use across the full mechanism range.

Standard Finish
Zinc Plating
Optional Finish
Powder Coat 60–80 μm

Custom RAL colors available on runs over 500 units.

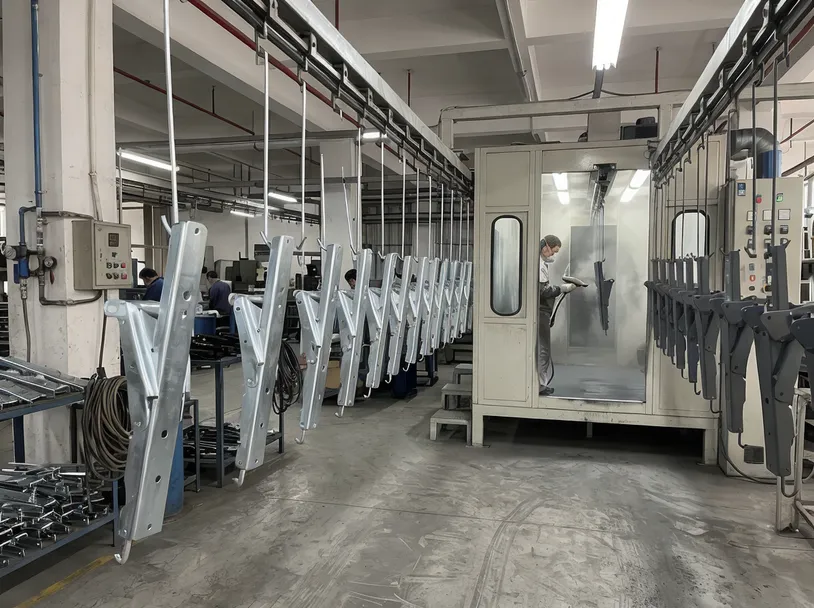

Push back chair mechanism surface treatment — zinc plating and powder coat finish line

The category page covers our full manufacturing process in detail — see how we produce chair mechanisms.

OEM & Custom Orders

Customization Options

Push back mechanisms are one of the more customizable items in our catalog. The core geometry is simple enough that modifications don't require full tooling rebuilds — most configurations are achievable within standard MOQ at no tooling premium.

Customization Options MOQ Impact
Mounting hole pattern Standard 4-hole or custom layout Custom pattern: 500 units minimum
Plate thickness 2.0 mm, 2.5 mm, 3.0 mm No MOQ change for standard thicknesses
Recline angle range 15°–25° adjustable; fixed-angle options available Fixed angle: discuss with engineering
Return spring tension Light, medium, or heavy (user weight range) No MOQ change
Lock positions No lock (free recline), single-position lock, multi-position Multi-position lock adds tooling cost
Surface treatment Zinc plating, powder coat (any RAL), nickel plating Powder coat custom color: 500 units
Gas lift bore Ø50 mm standard; Ø60 mm available No MOQ change
Private label / OEM Custom geometry, branding, packaging Discuss tooling amortization

OEM Development

Standard catalog push back mechanisms ship at 500-unit MOQ. If you need a configuration outside our standard range — a non-standard mounting pattern for a specific chair frame, a modified recline angle, or a custom lock mechanism — our engineering team handles OEM development with tooling cut in-house.

First sample typically returns in 25–35 days from drawing approval.

Custom Color Runs

Custom RAL powder coat colors are available on runs over 500 units. Below that threshold, the powder line changeover cost doesn't make sense for either party.

For smaller color-specific runs, zinc plating with a clear or black finish is the practical option.

Have a specific chair frame?

Send us your chair frame drawings or a reference sample — we'll spec the right configuration.

Send Drawings

Standards & Documentation

Compliance and Certification

Push back mechanisms from MVMHardware ship with the documentation your compliance team needs. Cycle life testing follows BIFMA X5.1 equivalent protocols — 60,000 cycles at rated load as the standard qualification threshold.

Quality Management

ISO 9001:2015

Quality management system governing production, inspection, and traceability.

European Market

CE Marking

Declaration of conformity ships with the order — no paperwork chase after delivery.

Third-Party Audit

SGS

Third-party audit and product testing. Reports available on request. BIFMA and EN 1335 testing arrangeable through our SGS relationship.

Restricted Substances

RoHS

Restricted substances compliance documentation standard for EU and California market buyers.

North American Importers

We provide the material and compliance documentation your customs broker needs for HTS classification. Specify BIFMA certification documentation requirements at the quoting stage.

EU Buyers

CE declaration of conformity and SGS reports ship with the order. Your compliance team doesn't need to chase us for paperwork after the fact.

Logistics & Landed Cost

Packaging, Loading, and Landed Cost

Push back mechanisms are packed in standardized export cartons sized for 40HQ container loading. Container loading efficiency is engineered in — more units per container means lower freight cost per unit, which protects your landed cost margin.

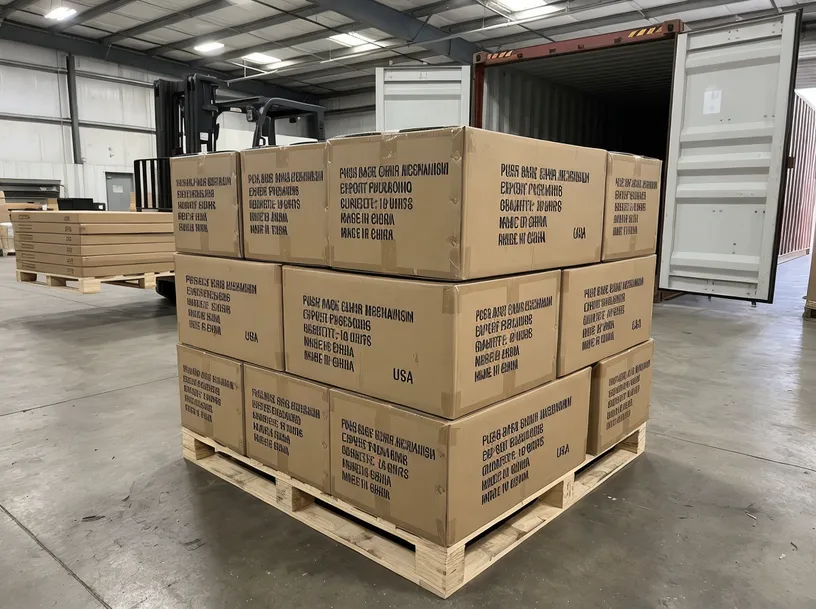

Push back chair mechanism export carton packaging for 40HQ container loading

Standard Export Cartons

10–20 units per carton depending on mechanism size, with foam or corrugated insert protection for the spring assembly and pivot components. Pallet configurations pre-calculated for main mechanism sizes.

E-Commerce & Amazon FBA

Mechanisms can be packed in retail-ready inner cartons with your branding and FBA labeling as part of an OEM arrangement. Blind drop-shipping and white-label packaging handled at the OEM level — discuss requirements during quoting.

Total Landed Cost Comparison

If you're comparing suppliers on total landed cost rather than FOB unit price, ask us for the carton dimensions and loading count for your specific configuration. We've worked out carton dimensions to maximize 40HQ utilization.

Compare on Landed Cost, Not FOB Price

Ask us for carton dimensions and 40HQ loading counts for your mechanism configuration. Your freight forwarder isn't improvising at the warehouse — pallet configurations are pre-calculated.

Our Capabilities
FAQ

Frequently Asked Questions

What is the difference between a push back chair mechanism and a standard tilt mechanism?

A push back mechanism reclines only the backrest — the seat plate stays fixed. A standard tilt mechanism moves the seat and backrest together as a single unit. For guest chairs, reception seating, and side chairs, the fixed seat is the correct design: it keeps the chair stable when the user leans back. For task chairs where the user needs to recline while keeping their feet on the floor, a tilt or synchro mechanism is the better fit. The choice is driven by the end-use application, not by cost alone.

What recline angle range is standard for push back mechanisms?

The typical range is 15°–25° of backrest recline from vertical. Most guest and reception chair applications use 18°–20° — enough recline to feel comfortable without making the chair feel unstable. We can adjust the angle range within the 15°–25° window by modifying the stop geometry; angles outside this range require engineering review and may affect the return spring specification.

What load capacity should I specify for hospitality and contract applications?

For standard guest and reception seating, 100–120 kg is the appropriate specification. For hospitality environments where the chair will see heavy daily use, specify 130–150 kg with the reinforced plate option. We test to 1.5× rated load as a structural margin check — a 120 kg rated mechanism is tested to 180 kg static load before it ships.

Can I get a push back mechanism with a locking recline position?

Yes. We offer single-position lock (backrest locks at the reclined position) and multi-position lock configurations. The lock mechanism adds a lever or button actuator — this is a die-cast component we produce in-house, so the fit and finish are consistent with the rest of the mechanism. Multi-position lock requires a tooling modification; discuss at the quoting stage.

What is the MOQ and lead time for standard push back mechanisms?

Standard catalog push back mechanisms: 500 units MOQ, 25–35 days production lead time from order confirmation and deposit. Sample orders (2–5 units) ship within 7–10 days. For OEM configurations with new tooling, lead time runs longer — we'll give you the milestone schedule during quoting.

Do push back mechanisms require any special installation considerations?

The mounting pattern is the critical fit dimension — your chair frame's seat plate holes need to match the mechanism's mounting pattern. We provide dimensional drawings with every sample order so your frame tooling can be confirmed before bulk production. Gas lift cylinder bore compatibility (standard Ø50 mm) should also be verified against your existing cylinder spec. Beyond those two dimensions, installation is straightforward: four bolts to the seat plate, backrest bracket to the mechanism pivot.

Get a Quote

Get a Quote for Push Back Chair Mechanisms

Most new buyers start with a sample order — 2–5 units — to verify fit against their chair frames and test the recline feel before committing to production quantities. We ship samples within 7–10 days of order confirmation.

If you're ready to move to production, send us your chair frame drawings or a reference mechanism. If you're evaluating the push back mechanism against other types for a new chair line, tell us your target retail price point and end-use segment — we'll recommend the configuration that fits your margin structure and your market.

Request a Quote for This Mechanism View All Chair Mechanisms

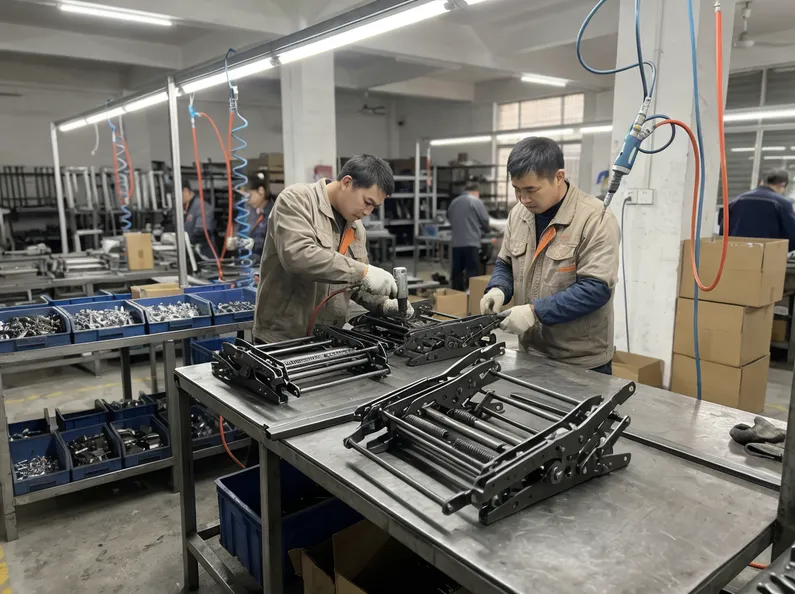

Push back chair mechanism factory — MVMHardware Guangdong
