Lift Top Furniture Mechanism

Spring-matched to your surface weight, 50,000-cycle qualified, CE and SGS certified. Every mechanism ships with spring rate confirmed against your tabletop spec — not a catalog guess.

ISO 9001:2015 CE SGS RoHS
Get a Quote All Table Mechanisms

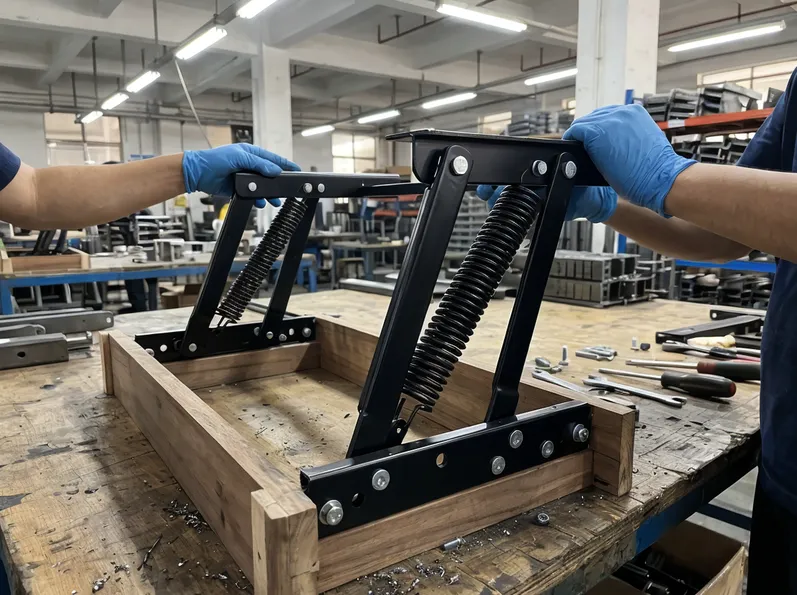

Lift top furniture mechanism assembly showing spring and pivot hardware
500
Min. MOQ
50K
Cycle Tested
17+
Years Mfg.

Product Overview

What This Mechanism Does and Where It Fits in Your Product Line

The lift top furniture mechanism is the hardware assembly that raises a coffee table surface upward and tilts it toward the user — converting a static table into a working surface at seated height. The mechanism handles the full motion arc: smooth lift from the resting position, stable hold at the elevated angle without drift, and controlled return without slamming.

It's the component that determines whether a lift-top coffee table is a reliable SKU or a warranty problem.

For your sourcing decision, the relevant question isn't what a lift-top mechanism is — it's whether this one is specified correctly for your product and whether the supplier has the process discipline to hold that spec across a production run. Those are the two places where lift-top mechanisms fail in the field, and they're both addressable before your order ships.

We produce lift-top fittings as part of our full table surface mechanism range, which covers butterfly leaf, flip-top, extension slides, and folding leg hardware. The lift-top line runs on a dedicated press and assembly sequence — it doesn't share tooling or assembly time with the other mechanism types.

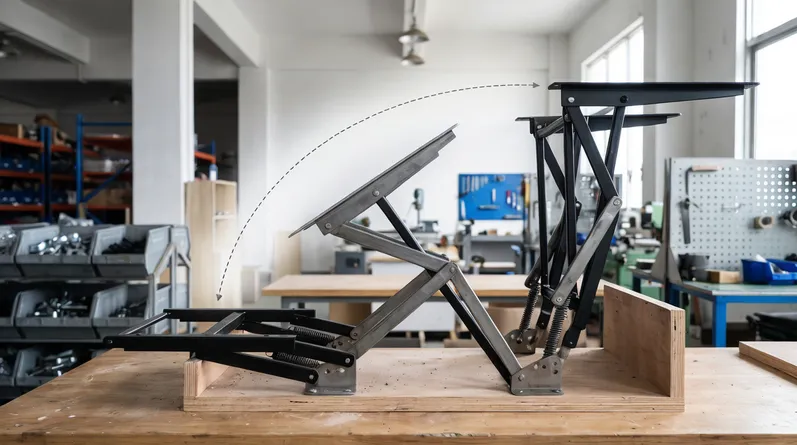

Lift top mechanism showing full motion arc from resting to elevated position
Smooth Lift
Full arc control
Stable Hold
No drift at angle
Controlled Return
No slam-down

Critical Specification Step

The Spring Matching Problem — and Why We Don't Skip It

A lift-top mechanism has one critical variable that determines whether it works correctly in your product: the spring rate must be matched to the actual weight of the tabletop it's going under. A mechanism with a spring calibrated for a 10kg MDF surface will feel sluggish and wear prematurely under a 20kg solid wood top. The same mechanism under a lighter surface will feel overly aggressive on the lift and may not hold position reliably at the elevated angle.

Neither failure mode shows up in a catalog spec sheet — they show up in your customer's living room six months after delivery.

Our process: spring rate confirmed before order ships

We require buyers to provide tabletop material, dimensions, and thickness before we confirm the spring selection. We calculate the surface weight from that data and match the spring rate to within ±15% of the optimal load range. If you're sourcing a lift-top mechanism without providing this information to your supplier, you're accepting a guessed spring rate — and the field failure rate that comes with it.

A buyer once came to us after a 3,000-unit run from another supplier generated a wave of warranty claims — the mechanism was fine, the spring was wrong for the top weight. The fix required a full product recall. That's the commercial cost of skipping the spring matching step.

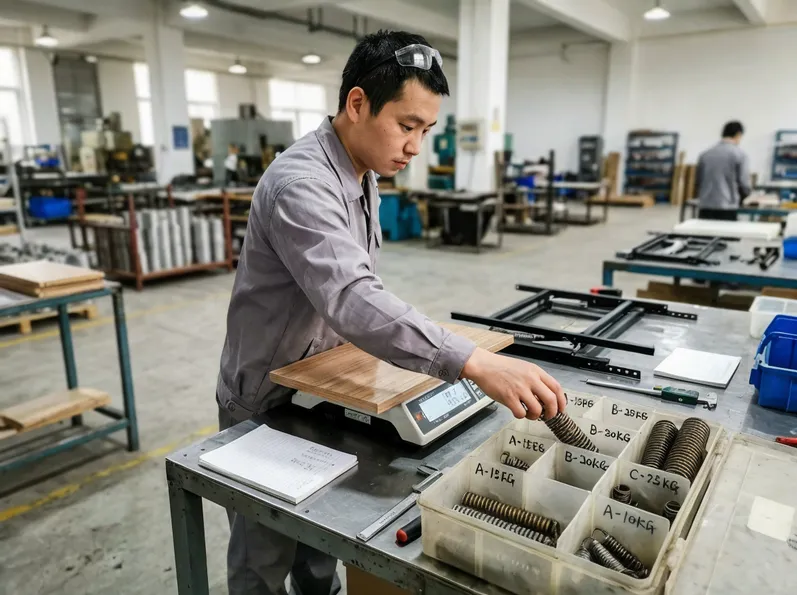

Spring rate matching process showing tabletop weight measurement and spring selection

Spring Wire Gauge: Where Most Suppliers Cut Corners

The spring wire itself runs at a heavier gauge than the minimum spec for the load range. The most common failure mode on lift-top mechanisms from lower-spec suppliers is spring fatigue at the 6–12 month mark — the surface starts to feel heavy, or the hold position drifts.

The root cause is almost always undersized spring wire cross-section, not spring count. More coils of thin wire don't substitute for the right wire diameter. We've standardized on the heavier gauge across the lift-top line because the material cost difference is marginal and the cycle life difference is not.

Catalog Guess
  • Generic spring rate
  • Thin wire gauge
  • Fatigue at 6–12 mo.
  • Warranty exposure
MVM Process
  • ±15% load match
  • Heavy-gauge wire std.
  • 50,000-cycle qualified
  • Confirmed before ship

Provide Your Spec

Share tabletop material, dimensions, and thickness. We calculate actual surface weight from your data.

Spring Rate Confirmed

We match spring rate to within ±15% of optimal load range before confirming your order — not after it ships.

25–35 Day Lead Time

500-unit MOQ. CE, SGS, ISO 9001:2015 certified. Spring-matched production run ships on schedule.

Get a Quote for This Mechanism View All Table Surface Mechanisms

Distribution Intelligence

Market Segments: Where Lift-Top Coffee Tables Sell

Lift-top coffee tables are a staple SKU in several furniture market segments, each with distinct volume and margin profiles. Understanding where your product lands determines the specification decisions that follow.

Primary Volume Driver

Residential Multifunctional Furniture

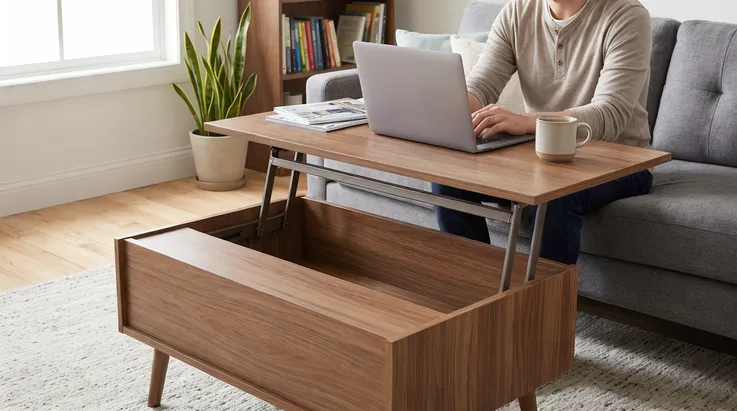

Residential lift-top coffee table in living room setting

Lift-top coffee tables are a consistent seller for furniture retailers across North America and Europe. The mechanism is what justifies the price premium over a static table, and the SKU reorders reliably once a retailer has validated it with their customer base.

Importers building private-label furniture lines treat lift-top coffee tables as anchor SKUs because the mechanism differentiates the product at the retail level.

Your margin on the mechanism component is protected by the functional value it adds — this isn't a commodity fitting.

High-Growth Channel

E-Commerce Furniture

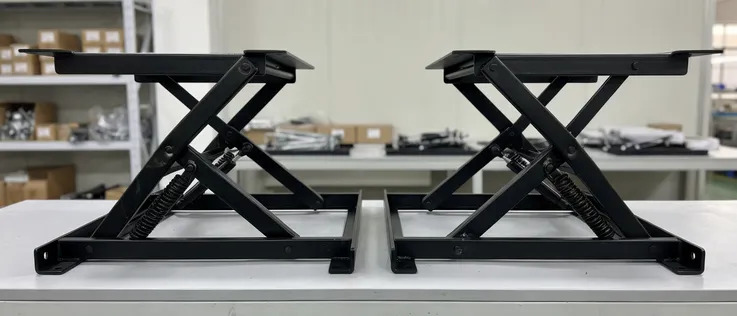

E-commerce DTC lift-top furniture mechanism product

Amazon, Wayfair, and independent DTC brands represent a high-growth channel for lift-top tables. The mechanism spec matters here because e-commerce return rates are directly tied to product performance — a mechanism that fails in the first year generates a return, a negative review, and a suppressed listing.

Buyers in this channel are increasingly specific about cycle life requirements and spring matching because they've seen the downstream cost of getting it wrong.

This segment has grown substantially for our customers over the past three years — lift-top coffee tables are worth prioritizing if you're building an e-commerce furniture line.

Daily-Use Demand

Home Office & Compact Living

Lift-top tables as convertible work surfaces drive demand in this segment. The end consumer is using the mechanism daily — lift to work height in the morning, return for the evening. That use pattern puts real cycle demands on the mechanism.

Specification Requirement
Specify 80,000-cycle option — not the standard 50,000-cycle floor

Buyers in this segment should upgrade cycle life specification to match the daily-use pattern of the end consumer.

Commercial Application

Contract & Hospitality

Hotel room occasional tables and serviced apartment furniture require mechanisms that hold up to commercial use cycles. This segment typically requires CE documentation and load test reports.

CE Documentation
Load Test Reports
Provided as Standard

Specification Guide

Surface Treatment Selection for Your Target Market

The surface treatment on a lift-top mechanism affects corrosion resistance, dimensional tolerance on the pivot components, and the visual finish on any hardware that's visible in the assembled product. Match your treatment to your distribution geography.

Standard Option

Zinc Plating

Indoor Residential

The standard for indoor residential applications. Provides 200-hour salt spray resistance, which is sufficient for North American and European indoor environments.

Technical Note

Zinc plating is the correct choice for pivot pin and spring components where dimensional tolerance after coating is critical. Powder coat adds 60–80μm per surface, which affects fit on tight-clearance assemblies.

North America, Europe (indoor)
Recommended for Coastal
Humid / Coastal Markets

Powder Coat over Zinc Phosphate

High Humidity Coastal

The specification for humid or coastal markets. The phosphate pre-treatment layer is what makes the difference: it improves coating adhesion at the steel interface in high-humidity conditions.

Without Phosphate Pre-Treatment

Powder coat can delaminate within 12–18 months in coastal environments.

Specification

60–80μm film thickness. Passes 500-hour salt spray.

Southeast Asia, Florida, Gulf region, coastal Australia
Premium Finish

Nickel Plating

Visible Hardware

Available for buyers whose end market expects a premium finish on visible hardware. Used on the pivot collar and any exposed bracket surfaces in configurations where the mechanism is partially visible in the assembled product.

Partially visible mechanism configurations
Zinc Plating
200-hr salt spray
Powder Coat / Zinc Phosphate
500-hr salt spray
Powder Coat Thickness
60–80μm film

Tell Us Your Distribution Geography

When you inquire, tell us your target market geography and we'll confirm the right surface treatment for your distribution footprint. Coastal and humid-climate markets require a different specification than standard indoor residential — getting this right at the sourcing stage prevents field failures.

Get Specification Advice

OEM / ODM

Customization Options and OEM/ODM

Standard catalog lift-top mechanisms cover the most common tabletop weight ranges and coffee table dimensions. Custom configurations are a routine part of our work.

What Can Be Customized

  • Spring rate — matched to your specific surface weight (required, not optional)
  • Bracket arm length — for non-standard table height or lift arc requirements
  • Pivot geometry — for custom lift angle or hold position
  • Surface treatment — zinc plate, powder coat, nickel plate, or combination
  • Powder coat color — any RAL color on runs of 100+ units
  • Branded packaging — retail-ready cartons

MOQ & Lead Time by Configuration

Standard Catalog
500-unit MOQ · 25–35 day lead time

Standard configurations ship on the fastest cycle. No tooling work required.

Custom Spring Rate
500-unit MOQ · Same lead time

Spring selection is a production parameter, not a tooling change. No lead time penalty.

Custom Geometry / Pivot Modification
MOQ & lead time quoted per spec

Requires tooling work. We quote honestly based on your spec — not a round figure. Tooling revision cycles run in days because we don't wait on a third-party tooling shop.

ODM Development

Bring Us a Brief — We Design the Mechanism

For ODM development, our 12-person engineering team handles mechanism design, tooling build, and sample qualification entirely in-house. You bring the brief; we deliver a qualified sample.

  • Mechanism design in-house
  • Tooling build in-house
  • Sample qualification in-house
  • Tooling revisions in days, not weeks
MVMHardware engineering team reviewing lift-top mechanism ODM design drawings
Discuss Custom Configuration

Assembly & Installation

Installation Footprint and Assembly Considerations

Lift-top mechanisms mount to the underside of the tabletop and to the table base frame — typically four mounting points on the top surface and four on the base. The mounting hole pattern is standardized for the most common coffee table frame dimensions, and we provide the mounting template with every order.

Resting Height Addition

The mechanism adds approximately 35–50mm to the table's minimum height in the resting position. Relevant for buyers whose product spec includes a maximum resting height.

Full Lift Height

At full lift, the surface rises 250–320mm above the resting position depending on bracket arm length configuration. Confirm your target lift height at inquiry and we'll confirm the bracket arm spec.

Bolt-On Installation

Assembly at the furniture manufacturer's end is straightforward — bolt-on installation with standard hardware. No welding, no special tooling. Mounting template included with every order.

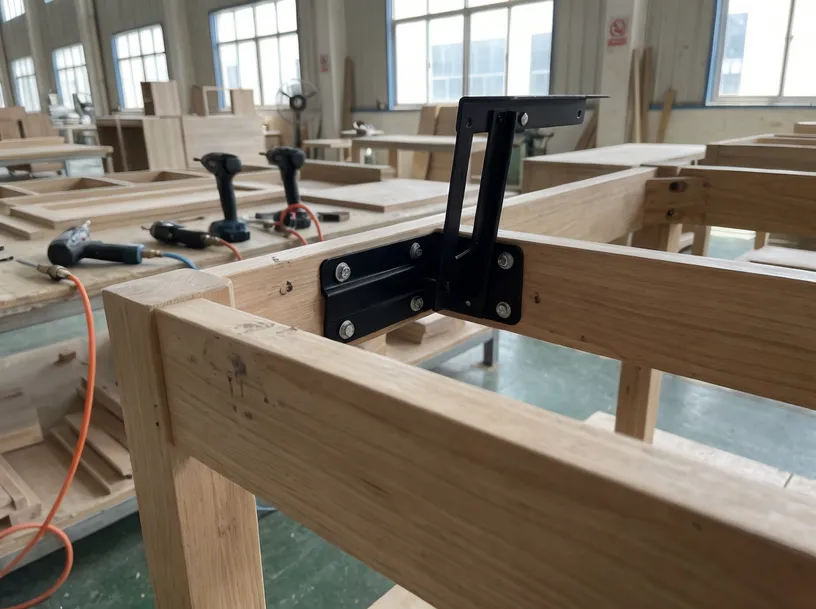

Lift-top mechanism bolt-on installation showing four mounting points on table base frame
E-Commerce / End-User Assembly

For buyers supplying into e-commerce channels where end-user assembly is required, the mechanism can be pre-assembled to the table base at our facility as part of the OEM arrangement — reducing the assembly steps the end consumer faces.

Most Common Installation Error

The most common installation error we see is over-torquing the pivot fasteners. The pivot needs to rotate freely — if the fastener is tightened to the point where it clamps the pivot arm, the motion stiffens and the hold position becomes unreliable.

Torque spec included in installation documentation with every order.
Installation Summary
Mounting points (top) 4 points
Mounting points (base) 4 points
Height addition (resting) 35–50mm
Lift travel range 250–320mm
Special tooling required None
Mounting template Included
Pre-assembly (OEM) Available
Factory Direct

Source Lift-Top Mechanisms Factory-Direct

We've been making lift-top furniture mechanisms since 2008 — the same factory, the same engineering team, the same QC process that's shipped to furniture manufacturers and importers across North America, Europe, the Middle East, and Southeast Asia.

The sourcing decision for a lift-top mechanism comes down to two things: is the spring matched correctly to your surface weight, and will the mechanism hold that spec across every unit in your production run? We address both before your order ships — spring rate confirmed against your tabletop data, 100% functional testing on every unit before packing.

Send us your tabletop spec, target market, and volume. We'll come back with a spring rate confirmation, a mechanism recommendation, and a quote that reflects the actual configuration.

WhatsApp
+86 132 1014 9517
MOQ: 500 units (standard catalog)
Get a Quote for This Mechanism View All Table Surface Mechanisms

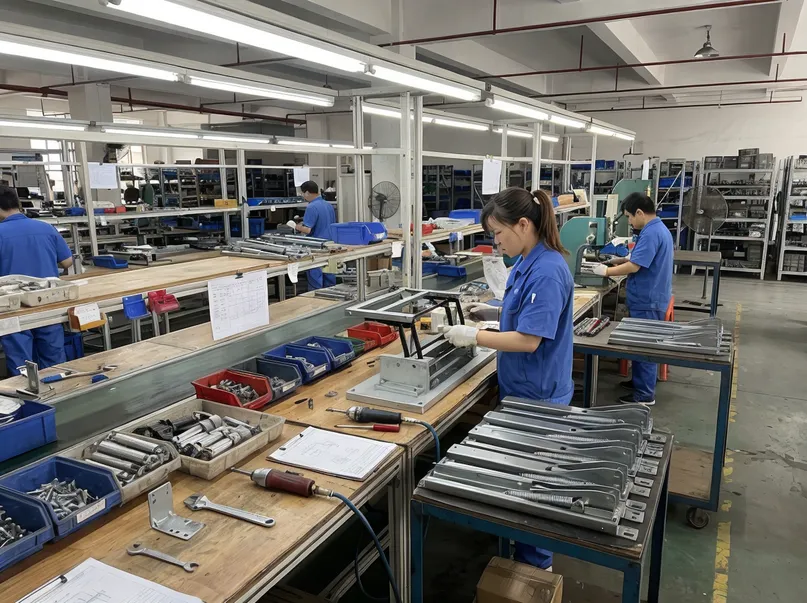

Lift-top furniture mechanism factory production line at MVMHardware
