Multi-Point Adjustable Chair Mechanism

Height, tilt tension, and backrest angle in one integrated assembly. Built for furniture manufacturers and distributors who need consistent batch quality across high-volume runs. Every unit 100% functionally tested before shipment.

ISO 9001:2015 CE SGS RoHS
Get a Quote All Chair Mechanisms

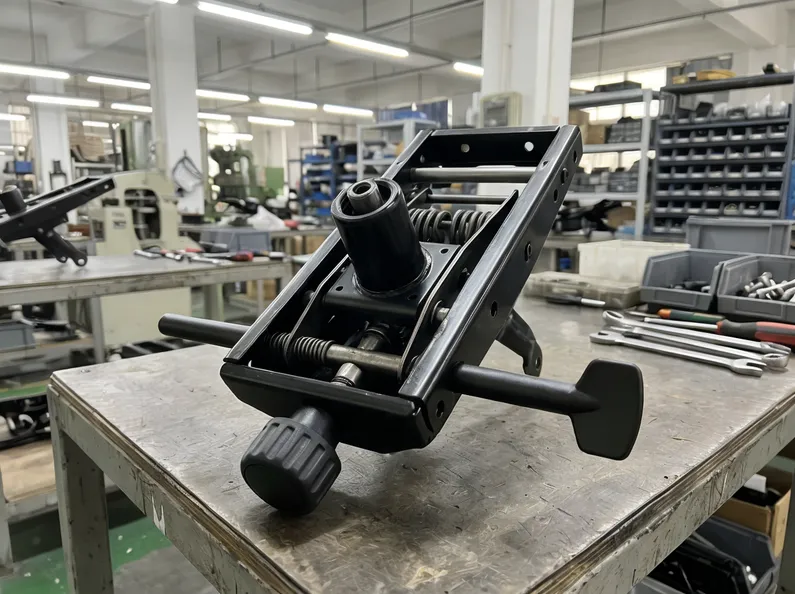

Adjustable chair mechanism assembly showing tilt tension knob, backrest lock, and gas lift interface
500
Unit MOQ
OEM/ODM
Tooling Available

Product Overview

What the Adjustable Chair Mechanism Does — and Where It Sits in the Market

An adjustable chair mechanism is the central control assembly that integrates seat height adjustment, tilt tension control, and backrest angle locking into a single mounting plate. It's the component that determines whether a chair feels like a precision instrument or a liability — and it's the component your downstream customers will notice first when something goes wrong.

The distinction from a standard tilt mechanism matters commercially. A basic tilt mechanism offers one degree of freedom: the seat tilts, the backrest follows. An adjustable chair mechanism adds independent control points — typically a tension knob for tilt resistance calibration, a multi-position backrest lock, and gas lift height adjustment — so the end user can configure the chair to their body and task.

That configurability is what separates a mid-market office chair from an entry-level one, and it's what lets your buyers justify a higher retail price point.

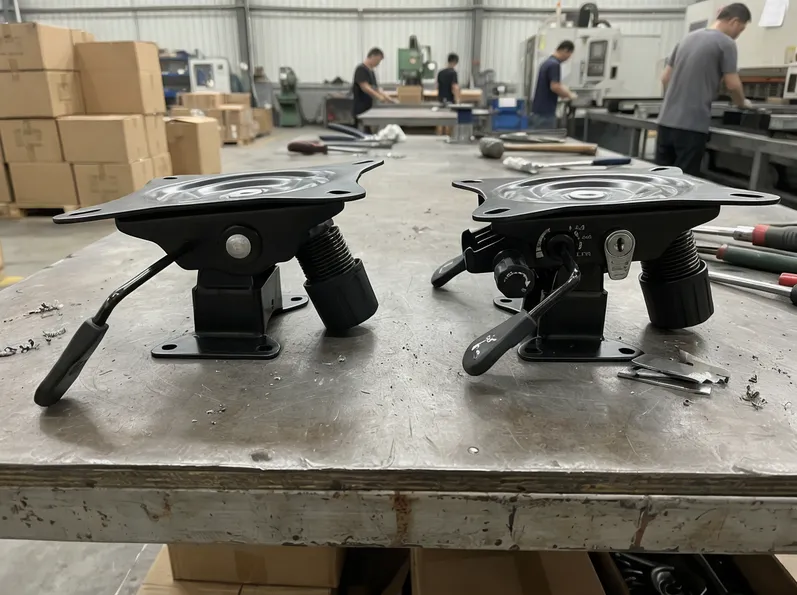

Side-by-side comparison of adjustable chair mechanism versus standard tilt mechanism showing independent control points

Market Context — Since 2008

We've been producing adjustable mechanisms since 2008. The category has evolved — buyers in North America and Europe now expect tighter tolerances on the tilt tension knob (the feel of that adjustment is a perceived-quality signal your downstream customers register immediately), and the load ratings for commercial office environments have moved up as ergonomic standards tighten.

Our current standard spec reflects those market realities, not where the category was a decade ago.

17+
Years Manufacturing
100%
Functionally Tested

Seat Height Adjustment

Gas lift height adjustment via Class 3 or Class 4 cylinder interface. Lets end users configure seating position to desk height and body proportions.

Tilt Tension Control

Knob-controlled spring tension with 5–8 calibration steps. The tactile quality of this knob is a perceived-quality signal that shows up directly in product reviews.

Backrest Angle Lock

3–5 position lock standard; continuous lock available on OEM configurations. Independent backrest control is the key differentiator from basic tilt mechanisms.

Get a Quote for This Adjustable Chair Mechanism

Engineering Data

Technical Specifications

Specifications shown are industry-standard values for this product type. Exact parameters vary by configuration. Contact us for detailed product data sheets and drawings.

Parameter Specification
Mechanism plate material Cold-rolled steel (SPCC), 2.5mm typical
Tilt range 15°–20° backward, 3°–5° forward (model-dependent)
Backrest lock positions 3–5 positions (standard); continuous lock on OEM
Tilt tension adjustment Knob-controlled spring tension, 5–8 adjustment steps
Gas lift compatibility Class 3 and Class 4 gas cylinders (standard bore)
Seat plate mounting Standard 4-hole pattern, 65×65mm to 70×70mm
Static load rating 150 kg typical (commercial grade)
Cycle life tested 100,000 tilt cycles minimum (standard batch qualification)
Surface finish Zinc plating (standard); powder coat or nickel plating available
Adjustment knob material Zinc alloy die-cast
Packaging Individual poly bag + carton; 20–30 units per master carton
Request Detailed Specs and CAD Drawings

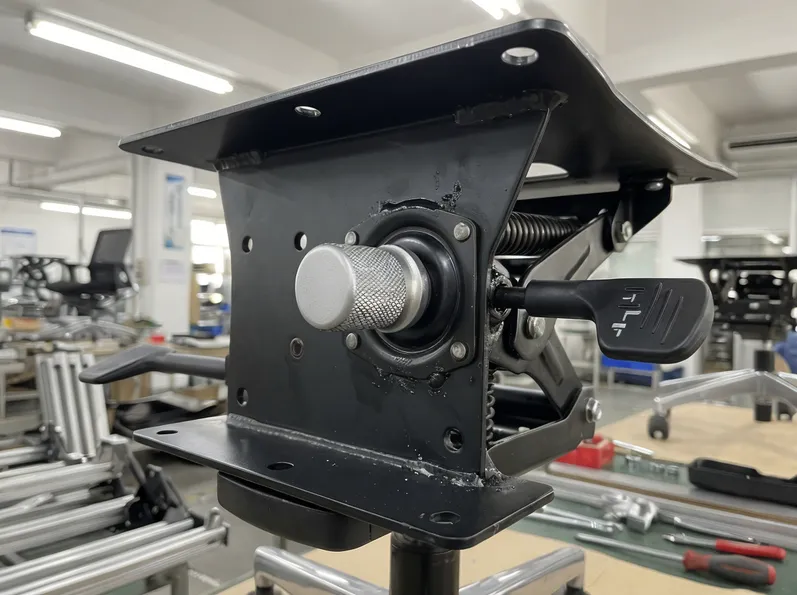

Close-up technical detail of adjustable chair mechanism showing tilt tension knob, backrest lock positions, and mounting plate

In-House Die-Cast Knob — Why It Matters

The tilt tension knob is die-cast in-house — zinc alloy, with a knurled grip profile refined over several tooling iterations. The feel of that knob under a buyer's hand is a quality signal that shows up in product reviews and warranty claims.

Outsourced die-cast knobs are where most factories lose control of tactile quality. We brought die-casting in-house around 2015 specifically because batch-to-batch inconsistency on die-cast components was the leading source of quality complaints from European buyers.

Certified
ISO 9001:2015
Compliance
CE · SGS · RoHS
Load Rating
150 kg Static
Cycle Tested
100,000 Cycles

Load Cycle Testing and QC: What "100% Tested" Actually Means

The 100,000-cycle figure is our standard batch qualification floor for adjustable mechanisms going into commercial office environments. BIFMA X5.1 — the North American standard for office seating — requires 100,000 cycles for commercial certification. We use that as our minimum, not our target. Mechanisms specified for high-use environments (call centers, co-working spaces, hospitality) get tested to 150,000 cycles before we sign off on the batch.

Cycle Testing Standards

  • 100,000 cycles — standard batch qualification floor; BIFMA X5.1 commercial certification minimum
  • 150,000 cycles — high-use environments: call centers, co-working spaces, hospitality
  • 100,000 cycles is our minimum, not our target

100% Functional Inspection

Every unit goes through 100% functional inspection before packing — not AQL sampling. Every unit. The inspection checks:

  • Tilt lock engagement at each position
  • Tension knob rotation through full range
  • Gas lift actuation
  • Mounting hole alignment

In-Process Quality Controls

Stamping Stage
±0.15mm

Dimensional tolerance on mechanism plates. Pivot geometry off by more than 0.2mm makes the tilt arc feel wrong — buyers notice even when they can't name the cause.

Structural Welds
Pull-Test

Every structural weld is pull-tested in-process. A mechanism that passes dimensional checks but has a sticky lock or misaligned hole gets pulled before packing.

Coating Run
Film Thickness

Film thickness measured on every coating run. That's the check that keeps warranty claims off your desk.

Certifications and Compliance

ISO 9001:2015 is the framework. CE and SGS certifications cover the product range for European and international market compliance. RoHS documentation is available for buyers supplying into EU or California markets.

Framework
ISO 9001:2015
Market
CE Certified
International
SGS Certified
EU / California
RoHS Docs Available

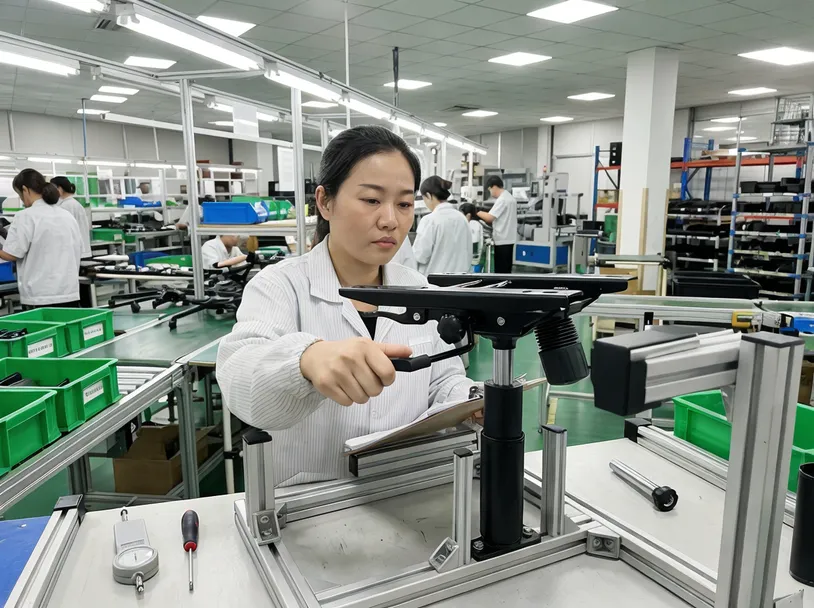

QC functional inspection of adjustable chair mechanism on production line

Buyer Segments

Market Segments Where This Mechanism Generates Repeat Orders

Four distinct buyer profiles drive volume on the adjustable mechanism. Each has a different procurement pattern, order size, and reason for specifying this component over a simpler tilt mechanism.

Commercial office seating environment with adjustable chair mechanisms
Core Volume Segment

Commercial Office Seating

Corporate procurement cycles run on 3–5 year replacement schedules. Facilities managers specify by mechanism type when reordering — if your chair passed the last procurement cycle, the mechanism spec gets written into the next RFQ. That's a reorder pattern worth building into your product line.

Typical Distributor Volume
2,000–10,000 units per SKU per year

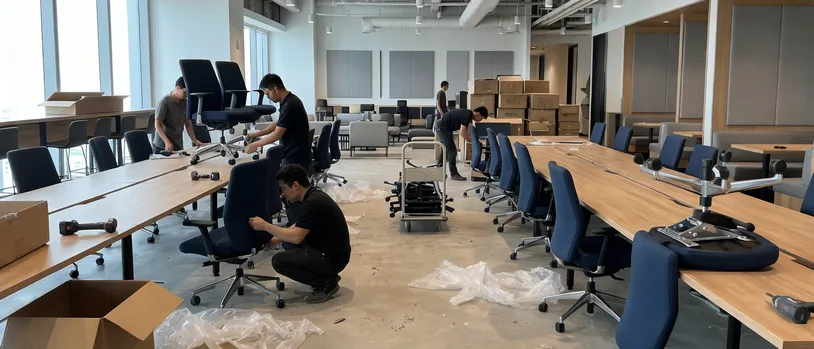

Hospitality and co-working contract furniture installation
Higher-Margin Segment

Contract Furniture for Hospitality and Co-Working

Hotels and co-working operators buy in project quantities and specify on durability and aesthetics simultaneously. The adjustable mechanism's multi-position lock and clean zinc-plated finish photograph well in product catalogs — which matters when your buyer is selling to interior designers and procurement consultants.

Project Order Size
500–3,000 units per property

This segment has grown noticeably for our distributors in the Middle East and Southeast Asia — worth paying attention to if you're building a hospitality-focused product line.

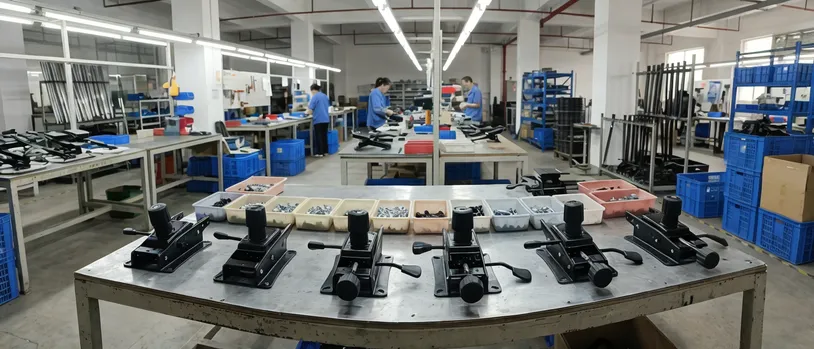

OEM furniture manufacturer mid-market to premium chair product range
OEM / Product Range

OEM Furniture Manufacturers

Mid-market to premium office chair manufacturers use the adjustable mechanism as the differentiating component between their entry and mid-tier SKUs. We supply several manufacturers in this configuration — they run a simple tilt mechanism in their entry chair and our adjustable mechanism in the next tier up.

Retail Price Step-Up Supported
$15–25 retail price difference the mechanism fully supports

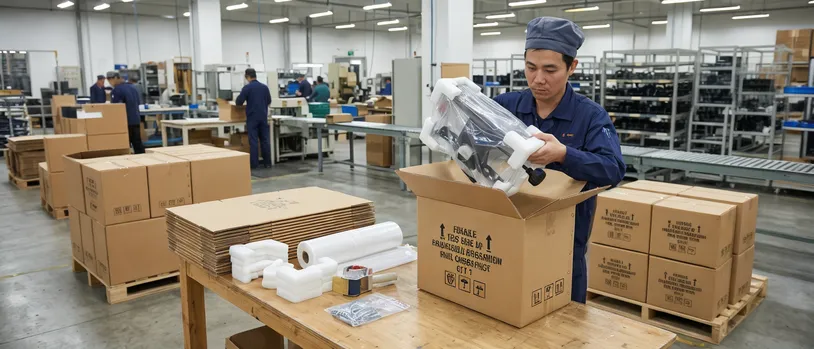

E-commerce direct-to-consumer furniture brand packaging for mail-order
E-Commerce / DTC

E-Commerce and Direct-to-Consumer Furniture Brands

Brands sourcing for Amazon or independent stores need mechanisms that survive mail-order handling and generate zero assembly complaints. Our packaging — individual poly bag, foam corner protection, standardized master cartons — is designed for that channel.

  • Ships flat, assembles with standard hardware
  • Adjustment knob pre-installed and protected
  • Packaging designed for mail-order handling
Discuss Your Target Market and Volume Requirements

OEM / ODM Configuration

Customization: What Can Be Specified, What Can't

Standard catalog adjustable mechanisms ship from 500 units MOQ. That's the floor for catalog items — no tooling cost, no minimum commitment beyond the order itself.

Adjustable Without New Tooling

OEM parameters — production changes only

  • Surface finish

    Zinc plating (standard), nickel plating, powder coat in standard colors, or custom RAL colors on runs over 500 units.

  • Tension spring rate

    Multiple spring rates stocked. Specifying a stiffer or lighter tilt feel is a production parameter, not a tooling change.

  • Gas lift bore compatibility

    Configurable for Class 3 or Class 4 cylinders depending on your chair's height range.

  • Packaging and labeling

    Branded cartons, retail-ready packaging, and blind drop-ship labeling available as part of OEM arrangements.

Requires New Tooling

Higher MOQ + lead time applies

  • Mechanism plate geometry

    Non-standard mounting patterns or seat plate dimensions require a new stamping die. Tooling lead time is typically 20–30 days; milestones provided on schedule.

  • Backrest bracket configuration

    Custom backrest attachment geometry for proprietary chair frames.

  • Knob profile and branding

    Custom die-cast knob shapes or branded logos require new die-casting tooling.

ODM Projects

Brief-to-Production Engineering

ODM projects — where you bring us a brief and we develop the mechanism design — are handled by our 12-person engineering team. We've done this for buyers who needed a mechanism that fit a specific chair shell geometry that no catalog item matched.

Tooling is built in-house, so revision cycles don't wait on a third-party tooling shop.

ODM Process Flow

1
Brief
2
Concept Drawings
3
Sample
4
Revision
5
Production
Send Us Your Spec or Sample Reference for a Custom Quote

Installation & Support

Mounting, Assembly, and After-Sales Cost Reduction

The adjustable chair mechanism mounts to the seat plate via 4 bolts (standard M8 or M10, depending on configuration) and connects to the gas lift cylinder via a standard taper bore. Assembly at the furniture manufacturer level is straightforward — no special tooling required, and the mechanism ships with all adjustment components pre-assembled and pre-tested.

Simple Bolt-On Mounting

4-bolt mount to seat plate via standard M8 or M10 hardware. Standard taper bore connects to gas lift cylinder. No special tooling required at the furniture manufacturer level.

Ships Pre-Assembled

All adjustment components arrive pre-assembled and pre-tested. Your line workers install, not configure. Reduces assembly errors and rework at the production stage.

Lower After-Sales Call Volume

The adjustment knob and backrest lock are the two components that generate the most after-sales contact. Both are designed for intuitive operation without instructions — the knob turns clockwise to increase tension, the lock lever has positive detent positions that click audibly.

Multi-Detent Lock Design

A real cost reduction, not a soft benefit

We've seen after-sales call volume drop significantly for buyers who switched from mechanisms with ambiguous lock positions to our multi-detent design. Fewer calls to your support line is a measurable operational saving.

Audible
Click Confirmation
Positive
Detent Positions

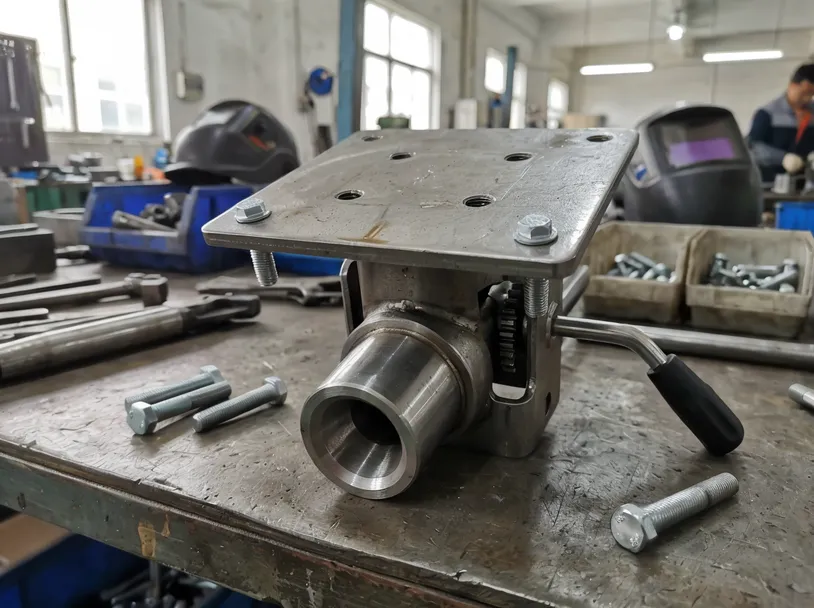

Adjustable chair mechanism mounting hardware showing M8 bolt pattern and taper bore gas lift connection

Standard 4-bolt seat plate mount with M8/M10 hardware. Taper bore gas lift connection. No special tooling required at assembly.

Spare Parts for Field Support

Replacement parts — tension springs, lock levers, mounting hardware — are available as spare components for buyers who need to support installed product in the field.

Tension Springs
Lock Levers
Mounting Hardware

If you're supplying into a segment where after-sales service is part of your value proposition, ask us about spare parts packaging when you place your initial order.

Regulatory Compliance

Compliance Documentation for Your Target Market

CE declaration of conformity and SGS test reports ship with every order — your customs broker and compliance team get the documentation without chasing us after the fact. For North American importers, we provide the material and compliance documentation needed for HTS classification.

CE & SGS Documentation

CE declaration of conformity and SGS test reports ship with every order. Your customs broker and compliance team receive documentation without follow-up requests.

RoHS & Environmental

No hexavalent chromium in the zinc plating process — we converted to trivalent chromium passivation. The powder coating line uses low-VOC formulations. Documentation available for EU and California supply chains.

BIFMA X5.1 Alignment

Our standard 100,000-cycle test protocol is designed to meet BIFMA X5.1 commercial office seating requirements. We don't claim mechanism-level BIFMA certification — that's a chair-level certification — but the test data supports your chair's path to certification.

North American OEM Buyers

If you're building a chair for the North American commercial market and need to understand what the mechanism test data covers, send us the question — we've been through this with several OEM customers and can walk you through it.

Download Compliance Docs

Product Selection

Selecting the Right Mechanism for Your Chair Program

The adjustable chair mechanism is the right choice when your chair needs to justify a mid-market or premium price point. Use the guide below to confirm fit — or identify the right alternative for your program's requirements.

Mechanism Best For Price Tier
Simple / Tilt Mechanism Entry-level seating, cost-sensitive programs Entry
Adjustable Chair Mechanism
Current page
Mid-market office, hospitality, OEM step-up SKU Mid
Synchro Mechanism Premium ergonomic seating — synchronized seat-and-back movement in a fixed ratio Premium
Forward Tilt Mechanism Active seating, drafting chairs — primary motion is forward tilt Mid–Premium
Step Down

Entry-Level Programs

If cost is the primary constraint, the simple or tilt mechanism serves that segment at lower unit cost without the adjustability feature set.

View Tilt Mechanism
Current Selection

Mid-Market Programs

The adjustable mechanism justifies a mid-market or premium price point with multi-position recline, tension control, and seat height adjustment in a single unit.

Get a Quote
Step Up

Premium Ergonomic Programs

If your program requires synchronized seat-and-back movement, the synchro mechanism is the right direction — it commands a higher price point and is specified for premium ergonomic seating.

View Synchro Mechanism
View the Full Chair Mechanism Range

Buyer Reference

Frequently Asked Questions

What is the standard MOQ for adjustable chair mechanisms?

500 units for catalog configurations. OEM orders with custom tooling have MOQs that depend on tooling amortization — we give you the honest number based on your spec, not a round figure. Most OEM tooling projects land between 1,000 and 3,000 units for the initial run.

What load rating should I specify for commercial office use?

150 kg static load is the standard for commercial office environments and covers the vast majority of end-user applications. For high-use environments — call centers, 24/7 operations, hospitality — specify 180 kg and ask us about the reinforced plate option. The difference is a 0.5mm increase in plate thickness and a heavier-gauge spring; it adds modest unit cost but eliminates the failure mode that generates warranty claims in those environments.

How do I know if this mechanism is compatible with my gas lift cylinder?

Standard Class 3 and Class 4 gas cylinders (22mm and 28mm taper bore) are both supported in our catalog. If you're using a non-standard cylinder, send us the bore diameter and taper angle — we can confirm compatibility or configure accordingly. The most common compatibility issue we see is buyers sourcing cylinders and mechanisms from different suppliers without confirming the taper spec; it's worth verifying before your first production run.

What certifications does this mechanism carry?

CE declaration of conformity and SGS test reports are available for all catalog items. RoHS compliance documentation is available for EU and California market requirements. ISO 9001:2015 covers our quality management system. BIFMA X5.1 alignment is supported by our 100,000-cycle test data — see the compliance section above for detail on how that applies to chair-level certification.

Can the tilt tension be adjusted for different user weight ranges?

Yes — the tension knob provides 5–8 adjustment steps covering a typical user weight range of 50–120 kg. For OEM programs targeting specific user demographics (e.g., heavy-duty seating for users up to 150 kg), we can specify a stiffer spring rate without tooling changes. Tell us your target user weight range when you inquire and we'll recommend the right spring spec.

What is the production lead time?

25–35 days from order confirmation and deposit receipt for catalog items. OEM projects with new tooling run longer — we provide a milestone-by-milestone production schedule, not a single delivery date. The most common delay is revised specs after production starts; lock your spec before placing the order.

Factory Direct

Get a Quote for Your Adjustable Chair Mechanism Program

Send us your target volume, market, and any spec requirements — we'll come back with a specific recommendation, pricing indication, and lead time.

If you're evaluating this mechanism against what you're currently sourcing, send us a sample or photo of the existing unit and we'll do a direct comparison.

Most new buyers in this category start with a sample order of 2–5 units to test fit and function with their own chair frames before committing to a production run. We can arrange samples quickly — contact us to discuss.
