Sideboard Furniture Mechanism

Product Overview

What a Sideboard Furniture Mechanism Does — and Where Ours Fits

A sideboard mechanism is the hardware that controls how the cabinet's surface or door panel moves: a drop-down flap that folds out to become a serving shelf, a lift-top panel that rises to reveal interior storage, a stay system that holds a door open at a fixed angle without slamming. The mechanism is invisible when the furniture is closed and the first thing the end user interacts with when it's open — which means it's the component that determines whether your downstream customer's product feels premium or cheap on first contact.

We produce sideboard furniture mechanisms as part of our broader table and surface mechanism line, which covers the full range of furniture surface motion hardware. The sideboard-specific products in our catalog focus on three motion types: drop-down flap stays, lift-top fittings adapted for sideboard proportions, and soft-close hinge systems for horizontal panel applications. Each is produced on the same stamping and die-casting lines that handle our full table mechanism range — the same material grades, the same tolerance standards, the same 100% functional test before shipment.

The commercial case for sourcing sideboard mechanisms from a dedicated manufacturer rather than a general hardware supplier comes down to cycle life and dimensional consistency. A sideboard in a dining room gets opened and closed multiple times daily. The mechanism needs to hold its operating feel — smooth deployment, positive stay engagement, controlled return — across 50,000+ cycles without developing play in the pivot or losing spring tension. That's an engineering requirement, not a marketing claim, and it's what we build to.

Get a Quote for Sideboard Mechanisms

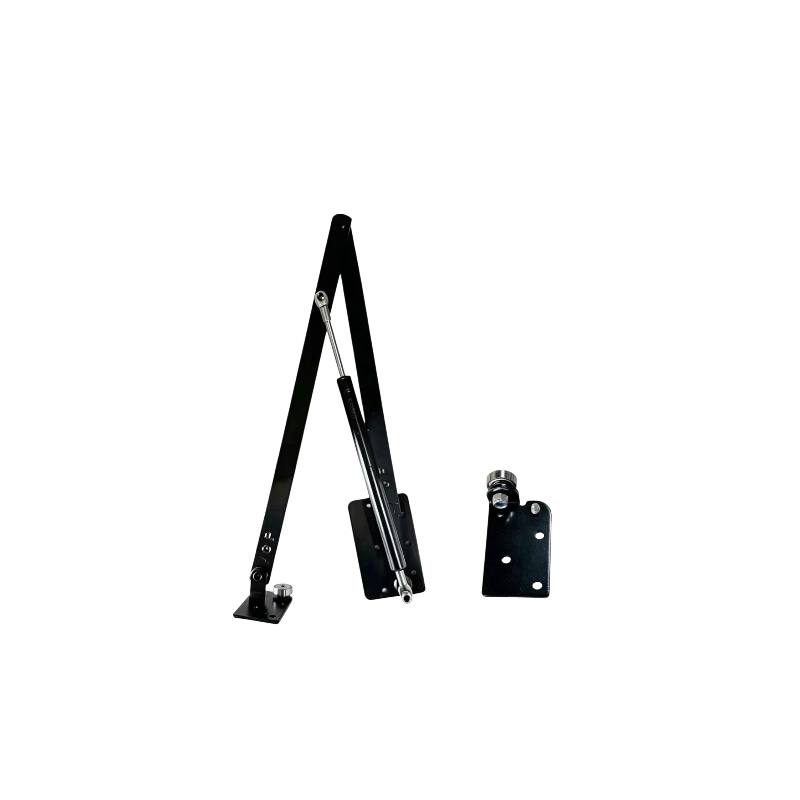

Sideboard mechanism motion types including flap and lift-top hardware

Drop-Down

Flap Stay

Lift-Top

Fitting

Soft-Close

Hinge System

100% Functional Testing Before Shipment

Every mechanism is tested on the same stamping and die-casting lines that produce our full table mechanism range — same material grades, same tolerance standards.

Product Catalog

Mechanism Types: What We Produce for Sideboard Applications

Three motion types cover the full range of sideboard and buffet cabinet hardware requirements. Each is engineered to specific load ratings, cycle life targets, and installation footprints.

Core Sideboard Hardware

Drop-Down Flap Stay

The drop-down flap stay is the core sideboard mechanism — it controls the front or top panel as it folds down from closed to horizontal, holds it at the open position, and manages the return. The stay must do three things reliably: support the panel weight at full extension without deflecting, hold the open position without drift under load (a serving surface that slowly drops while in use is an immediate warranty claim), and return the panel to closed without slamming.

We run the flap stay arm in 2.0mm cold-rolled steel, stamped and formed on our progressive die lines. The pivot joint uses a zinc alloy die-cast housing — produced in-house — with a friction adjustment that allows the stay tension to be set at installation to match the panel weight. This matters because sideboard panels vary significantly in weight depending on the cabinet maker's material choice: a 6mm MDF panel and a 22mm solid oak panel require different stay tension to hold position correctly. The friction adjustment means the same mechanism SKU covers a wider panel weight range, which simplifies your inventory.

Fixed-friction pivots from other suppliers work fine for the panel weight they were tuned for at the factory and generate complaints on everything else. The adjustable design adds one die-cast component and eliminates a whole category of field complaints.

The stay arm geometry is designed for a 90° deployment arc — panel closed vertical to panel open horizontal — with a positive stop at 90° that prevents over-rotation. Soft-close damping is available as a configuration option on runs of 500+ units; the damper cartridge integrates into the pivot housing without changing the mounting footprint.

Arm Material

2.0mm Cold-Rolled Steel

Pivot Housing

Zinc Alloy Die-Cast

Deployment Arc

90° with Positive Stop

Friction

Adjustable at Install

Soft-Close Option

500+ unit runs

Drop-down flap stay style hardware for sideboard panels

Key Advantage

Adjustable friction pivot covers a wider panel weight range from a single SKU — simplifies your inventory and eliminates the field complaints that come with fixed-friction designs.

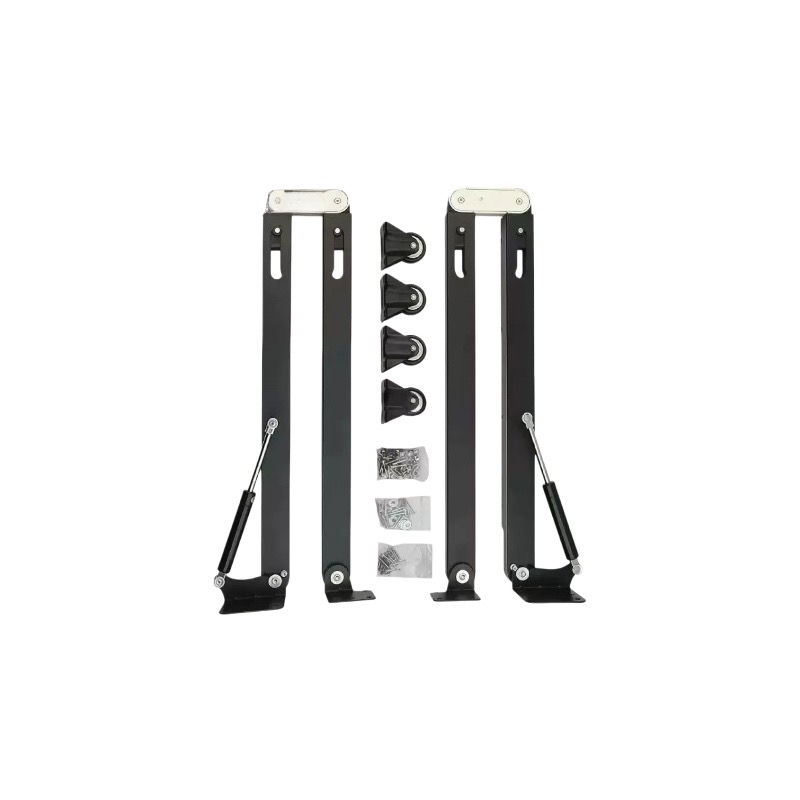

Lift-top hardware used in sideboard and buffet applications

Critical Spec Step

We require buyers to provide panel weight before confirming spring selection. A mechanism tuned for a 6kg panel will feel sluggish and wear the spring prematurely under a 12kg top.

Storage Access Hardware

Lift-Top Sideboard Fitting

Lift-top fittings for sideboards operate on the same mechanical principle as our coffee table lift-top mechanisms — the panel rises and tilts toward the user — but the geometry is adapted for sideboard proportions: narrower panel width, lower operating height, and typically a lighter surface weight than a coffee table top.

The spring rate on sideboard lift-top fittings is calibrated for panels in the 4–14kg range, which covers the typical sideboard top in MDF, particleboard, or thin solid wood construction. We require buyers to provide their panel weight before we confirm the spring selection — a mechanism tuned for a 6kg panel will feel sluggish and wear the spring prematurely under a 12kg top. This is the same discipline we apply across our lift-top range, and it's the single most effective way to prevent early mechanism failure in the field.

The lift-top fitting mounts to the cabinet carcass with a standard four-point bracket pattern. Mounting hole positions are consistent across our sideboard and coffee table lift-top SKUs, which simplifies tooling for furniture manufacturers running multiple product lines from the same factory.

Panel Weight Range

4–14 kg

Mount Pattern

4-Point Bracket

Compatible Materials

MDF · Particleboard · Thin Solid Wood

Hole Compatibility

Shared with Coffee Table SKUs

Horizontal Panel Hardware

Soft-Close Hinge System for Horizontal Panels

For sideboard applications where the top panel opens upward on a rear hinge — common in blanket chest and storage sideboard designs — we supply soft-close hinge systems rated for horizontal panel loads. The hinge body is 2.5mm cold-rolled steel with a hydraulic damper integrated into the barrel. The damper controls the closing speed across the final 30° of travel, which is where uncontrolled panels generate the impact that damages both the hinge and the cabinet joint over time.

Load rating on the standard horizontal hinge is 8kg per pair — sufficient for most MDF and particleboard sideboard tops. For heavier solid wood applications, we offer an uprated version with a larger damper cartridge and a 14kg per pair rating. Specify your panel weight and we'll confirm the correct configuration.

Hinge Body

2.5mm Cold-Rolled Steel

Damper Type

Hydraulic, Barrel-Integrated

Damping Zone

Final 30° of Travel

Standard Load

8 kg / pair

Uprated Load

14 kg / pair

Application

Blanket Chest · Storage Sideboard

Request Specifications or a Sample

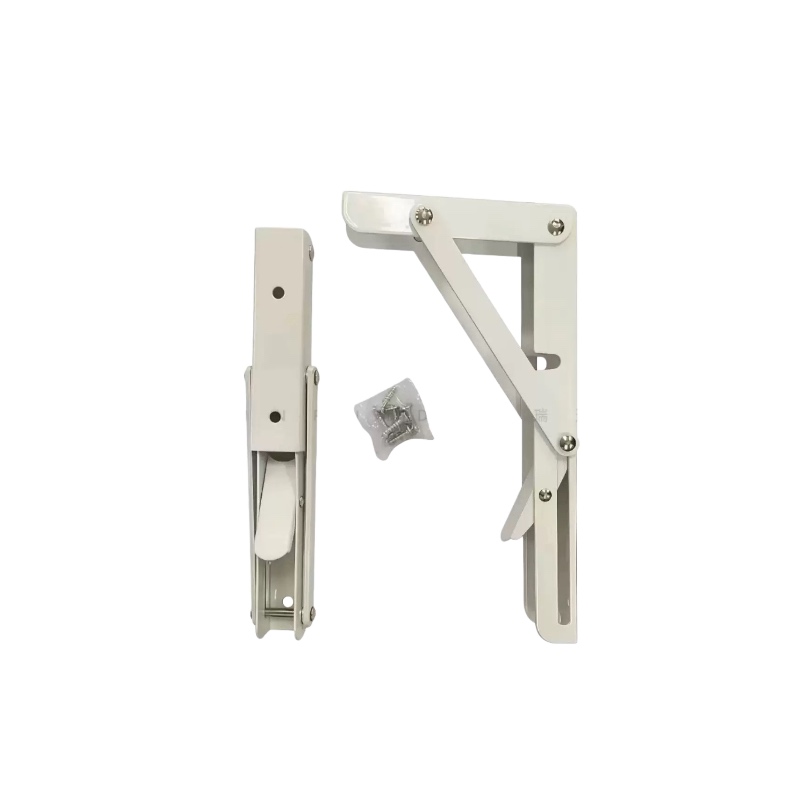

Hinge-style hardware for horizontal panel applications

Two Load Configurations

8 kg

per pair — MDF & particleboard tops

14 kg

per pair — solid wood uprated version

Related Mechanisms in This Line

Sibling Product

Coffee Table Mechanism

Sibling Product

Lift Top Furniture Mechanism

Sibling Product

Rotating Table Mechanism

Sibling Product

Desk Furniture Mechanism

Product Data

Technical Specifications

Standard catalog values for our three primary sideboard mechanism types. Surface treatment selection and steel thickness directly affect fit on tight-clearance pivot assemblies — details that matter before you finalize your panel design.

Parameter	Drop-Down Flap Stay	Lift-Top Fitting	Soft-Close Hinge
Primary material	Cold-rolled steel (SPCC) + zinc alloy die-cast	Cold-rolled steel (SPCC)	Cold-rolled steel (SPCC)
Steel thickness	2.0mm arm; 1.5mm bracket	1.5mm – 2.0mm	2.5mm hinge body
Surface treatment	Zinc plating or powder coat (60–80μm)	Zinc plating	Nickel plating
Panel weight range	4–20kg (adjustable friction)	4–14kg (spring-matched)	Up to 8kg/pair (std); 14kg/pair (uprated)
Deployment arc	90° (vertical to horizontal)	Lift + tilt, 35–45° tilt angle	90–105° open range
Soft-close option	Available (500+ unit runs)	Not standard	Integrated damper standard
Cycle life	50,000 cycles minimum	50,000 cycles minimum	—
Certifications	CE, SGS, RoHS	CE, SGS, RoHS	CE, SGS, RoHS
MOQ	500 units	500 units	500 units

Specifications shown are standard catalog values. Actual parameters may vary by configuration. Contact us for detailed product data sheets and custom configuration options.

Zinc Plating — Interior Standard

Zinc plating is standard for interior cabinet applications where dimensional tolerance on pivot components is critical. Powder coat adds 60–80μm per surface, which can affect fit on tight-clearance pivot assemblies.

Nickel Plating — Visible Premium

For buyers whose end market expects a visible premium finish on exposed hardware, nickel plating is available. Delivers a refined surface appearance without the dimensional build-up of powder coat.

Powder Coat — Structural Brackets

Powder coating is specified for structural brackets where corrosion resistance matters more than dimensional precision. Not recommended for tight-clearance pivot components.

Buyer Context

Market Segments: Where Sideboard Mechanisms Generate Repeat Volume

Three segments account for the majority of repeat orders. Understanding which one you're building for affects mechanism selection, documentation requirements, and how you should structure your initial order.

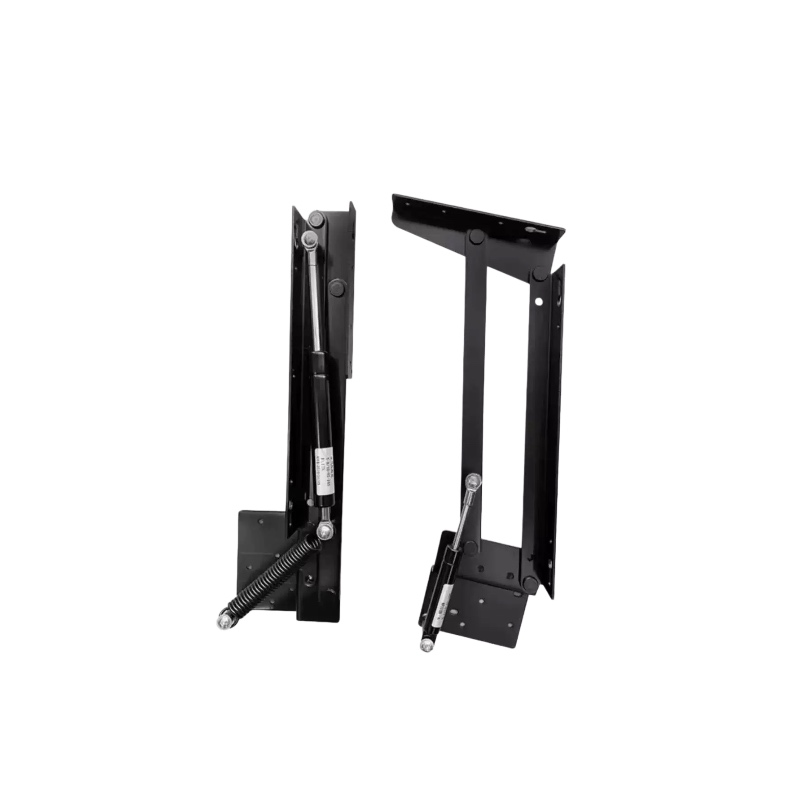

Residential furniture application using lift-top and flap hardware

Primary Volume

Residential Dining & Living Furniture

Sideboard and buffet cabinets are staple SKUs for furniture retailers across North America and Europe. The mechanism is what separates a functional storage piece from a static cabinet — and it's the feature that justifies the price premium.

Importers and distributors building private-label furniture lines in this category reorder consistently once they have a working SKU with a reliable mechanism.

Typical initial order 500–2,000 units

Established SKU scale 5,000+ units/SKU

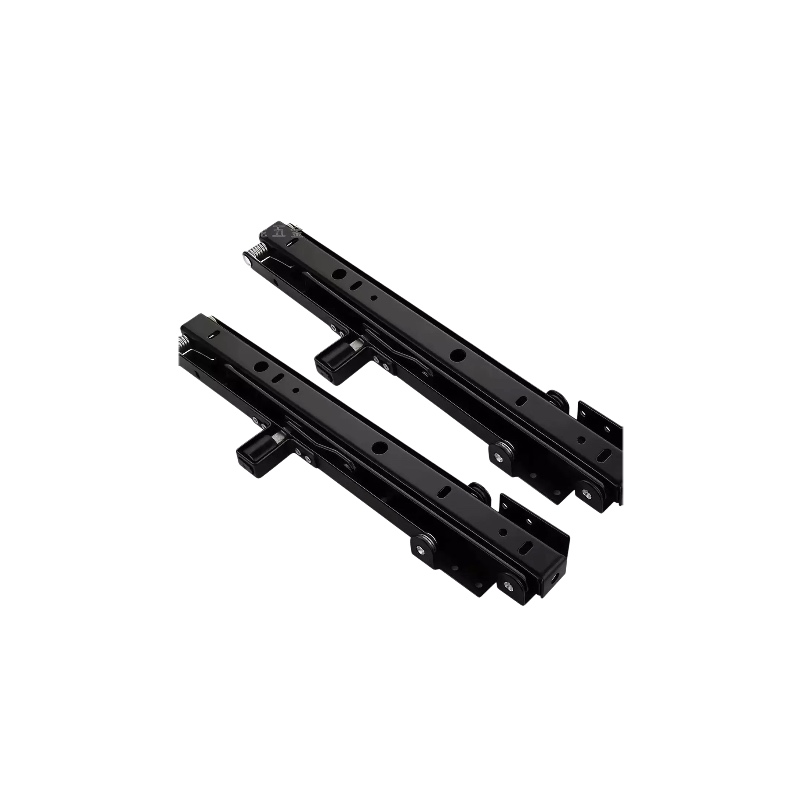

Contract and hospitality furniture mechanism application

Contract & Hospitality

Contract & Hospitality Furniture

Hotel room credenzas, restaurant sideboards, lobby buffet units — this segment requires mechanisms that hold up to commercial use cycles and come with CE documentation. Larger batches with more predictable reorder schedules make it attractive for importers building a stable supply relationship.

The soft-close requirement is nearly universal in hospitality specifications. Plan for the damper configuration from the start rather than retrofitting.

CE documentation required — standard with our supply

Soft-close damper: specify at order, not retrofit

OEM / Cabinetry

Kitchen & Dining Cabinetry Manufacturers

Cabinet makers producing sideboard-adjacent products — media consoles with drop-down panels, bar cabinets with lift-top sections — use the same mechanism types. OEM configuration is common: a specific panel size and weight, needing a mechanism built to that spec rather than adapted from a catalog item.

Bring us your panel dimensions and weight and we'll confirm whether a catalog mechanism covers it or whether a custom configuration is needed.

Drop-down panel mechanisms for AV/media access are a growing request in this segment

Discuss Your Target Market and Volume

Whether you're building a residential private-label line, supplying a hospitality contract, or configuring OEM mechanisms for a cabinet manufacturer — tell us your segment, panel specs, and volume and we'll confirm the right mechanism and configuration.

Contact Us

Manufacturing Process

How We Make These: Process Details That Affect Your Downstream Quality

Every tolerance decision in our production process has a direct consequence on the mechanism performance your customers experience. Here is what we control and why it matters.

Progressive Stamping: Arm Profile Consistency

The flap stay arm starts as cold-rolled SPCC steel coil stock, fed through our progressive stamping presses. The arm profile — pivot hole, stop geometry, and mounting holes — is formed in a single progressive die sequence.

Why single-pass matters

When pivot hole and stop geometry are formed in the same die, their positional relationship is held to ±0.15mm across the production run. Separate operations accumulate tolerance stack-up that shows up as variation in deployed panel angle across a batch.

In-House Die-Cast Pivot Housing

The zinc alloy pivot housing is produced on our in-house die-casting line. Most mechanism factories in this region outsource die-cast components to third-party foundries. We brought that process inside in 2015 specifically because bore tolerance on pivot housings is where dimensional variation causes functional problems.

Bore tolerance: ±0.05mm

This is the tolerance that determines how much play exists in the pivot and whether the friction adjustment holds its setting over time. A loose bore means the friction collar cannot maintain consistent tension — the stay starts to drift under load within the first year of use.

Weld Seam Pre-Treatment Before Surface Coating

Weld seams on bracket assemblies are ground and chemically treated before parts enter the surface treatment line. Powder coat adhesion failure at weld seams — visible as rust or coating lift at the joint — is one of the most common quality complaints on furniture hardware in humid markets.

Coastal market relevance

The pre-treatment step adds time to the process, but it determines whether your coastal-market customers see rust on a mechanism that is supposed to last five years.

100% Functional Testing Before Shipment

Every unit is cycled through its full deployment arc. Stay engagement is checked under load. Return motion is verified. Units that pass dimensional inspection but show any stiffness, drift, or incomplete stop engagement are pulled before packing.

Not sampling — every unit

This is not a statistical sampling protocol. Every unit in the shipment is individually tested before it is packed.

Progressive stamping production line for table and cabinet mechanism components

Tolerance Summary: What We Hold and Why

±0.15mm

Pivot hole to stop geometry positional tolerance

Held via single progressive die pass. Controls deployed panel angle consistency across a batch.

±0.05mm

Pivot housing bore tolerance

In-house die-casting. Determines friction collar performance and long-term drift resistance.

100%

Pre-shipment functional test rate

Every unit cycled, loaded, and verified. Not sampling.

OEM & Configuration

Customization: What Can Be Configured and What Can't

Standard catalog mechanisms cover the most common panel weight ranges and deployment geometries. For specifications outside catalog parameters, we handle OEM configuration as a routine part of our work.

No new tooling required

Standard Tooling Configuration

500-unit MOQ

Friction tension setting
Drop-down flap stays matched to your panel weight specification.
Surface treatment selection
Zinc plating, nickel plating, or powder coat.
Soft-close damper inclusion or exclusion
On flap stay mechanisms, per your product specification.
Mounting hole pattern adjustments
Within the existing bracket geometry — no new tooling required.

Custom powder coat colors available on runs of 100+ units.

Tooling cost quoted separately

OEM Tooling Required

MOQ by amortization

Non-standard arm length or deployment arc
Outside the 85–95° catalog range.
Panel weight outside catalog range
Above 20kg for flap stay, above 14kg for lift-top mechanisms.
Custom bracket geometry
For non-standard cabinet carcass configurations.
Branded or private-label hardware
Custom markings, logos, or private-label finishing.

ODM Development

Have a Commercial Brief but No Finished Drawing?

For ODM development — where you have a commercial brief but not a finished drawing — our 12-person engineering team develops the mechanism design, builds tooling in-house, and runs samples through our standard qualification cycle.

Tooling revisions run in days, not weeks, because we are not waiting on a third-party tooling shop.

Engineering team reviewing mechanism tooling for ODM development

Send Us Your Panel Specs for a Configuration Quote

Panel weight, deployment arc, cabinet carcass dimensions, and target market. We will confirm whether your requirements fall within standard tooling or require OEM tooling, and quote accordingly.

Get Configuration Quote

Regulatory Readiness

Compliance and Documentation for Your Target Market

Every certification listed below ships with your order. Your compliance team and customs broker don't need to chase documentation after the container has sailed.

European Market

CE Marking

Declaration of conformity ships with every order. Covers our full sideboard mechanism range for European market entry.

Third-Party Verification

SGS Test Reports

Available for buyers whose retail customers or compliance teams require independent third-party verification beyond CE.

Restricted Substances

RoHS / REACH

Trivalent chromium passivation — no hexavalent chromium. Satisfies EU RoHS, REACH, and California Prop 65 frameworks. Material safety documentation ships with order.

Quality System

ISO 9001:2015

Incoming material inspection, in-process dimensional checks, and 100% outgoing functional testing are documented procedures. Audit reports available on request.

North American Importers

We provide the material and surface treatment documentation your customs broker needs for HTS classification.

Relevant HTS Heading

8302

Base metal mountings, fittings, and similar articles for furniture. Specific subheading documentation available for your product configuration.

Surface Treatment: Zinc Plating

The zinc plating process uses trivalent chromium passivation. This is relevant for buyers supplying into multiple regulatory frameworks simultaneously.

No hexavalent chromium — EU RoHS compliant

REACH requirements satisfied

California Prop 65 framework compatible

Material safety documentation ships with order

Buyer Questions

Frequently Asked Questions

Direct answers to the questions buyers ask before placing a trial order. If your question isn't here, contact us with your panel spec and we'll give you a straight answer.

What is the MOQ for sideboard furniture mechanisms?

500 units for standard catalog configurations. OEM configurations requiring new tooling have MOQs based on tooling amortization — we calculate the honest number from your spec and volume projection. Most new buyers start with a 500–1,000 unit trial order to validate the mechanism with their own cabinet design before scaling.

How do I match a flap stay to my sideboard panel weight?

Provide the panel material, dimensions, and thickness — we calculate the surface weight and confirm the friction setting. The stay tension must be matched to the actual panel weight within a reasonable range for the mechanism to hold position correctly under load. A stay set for a 6kg panel will drift under a 14kg solid wood panel within months of use. We don't confirm a flap stay order without knowing the panel weight.

What is the difference between a drop-down flap stay and a soft-close hinge for sideboard applications?

The flap stay controls a panel that deploys from vertical (closed) to horizontal (open) — typically a front panel that becomes a serving surface. The soft-close hinge controls a panel that opens upward on a rear hinge — typically a top panel on a storage sideboard or blanket chest.

The motion arc and load direction are different, which means the hardware is different. If you're unsure which applies to your cabinet design, send us a sketch or photo and we'll confirm.

Can sideboard mechanisms be supplied with soft-close damping?

Yes. Soft-close damping is available as a configuration option on the drop-down flap stay on runs of 500+ units. The damper cartridge integrates into the pivot housing without changing the mounting footprint, so it doesn't require a different installation procedure. The soft-close hinge for upward-opening panels includes an integrated hydraulic damper as standard.

What certifications do your sideboard mechanisms carry?

CE, SGS, and RoHS. CE covers European market entry; SGS provides third-party test verification; RoHS documents restricted substances compliance. ISO 9001:2015 covers the quality management system. All documentation ships with the order.

CE SGS RoHSISO 9001:2015

Can you produce sideboard mechanisms to custom dimensions or panel weight ratings?

Yes, through OEM tooling. Standard catalog mechanisms cover panel weights up to 20kg (flap stay) and 14kg (lift-top). For heavier panels or non-standard deployment geometries, we quote tooling cost and MOQ based on your specific configuration.

Bring us your panel spec and we'll tell you whether a catalog item covers it or whether custom tooling is the right path.

Factory-Direct

Source Sideboard Mechanisms Factory-Direct

We've been manufacturing furniture mechanisms since 2008. For sideboard mechanisms specifically: dedicated stamping and die-casting lines, in-house pivot housing production to ±0.05mm bore tolerance, 100% functional testing on every unit, and a 12-person engineering team available for OEM configuration work.

Dedicated Production Lines

Dedicated stamping and die-casting lines with in-house pivot housing production to ±0.05mm bore tolerance.

100% Functional Testing

Every unit is functionally tested before shipment. No sampling — full-batch verification on every production run.

OEM Engineering Support

12-person engineering team available for catalog SKU, private-label, and full OEM configuration work.

Ready to Evaluate Us as a Supplier?

If you're evaluating suppliers for a sideboard mechanism program — catalog SKU, private-label line, or OEM development — send us your panel spec and target volume. We'll come back with a mechanism recommendation, sample timeline, and a quote that reflects the actual configuration.
