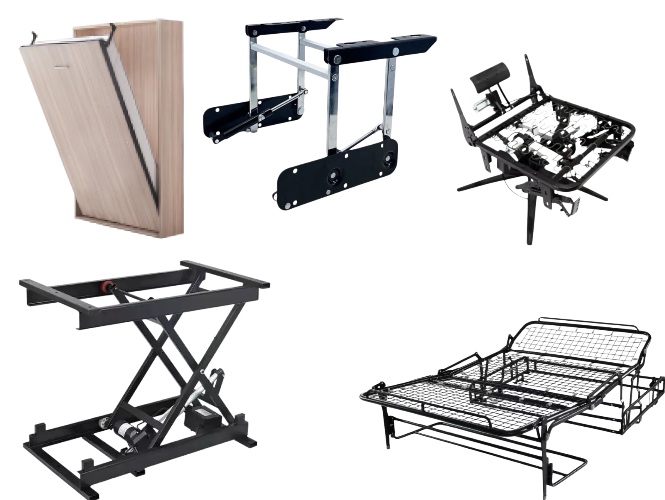

Transformable Furniture Mechanism

Engineering Complexity

What Makes Transformable Mechanisms the Most Demanding Product in This Category

Transformable furniture mechanisms are the most mechanically complex hardware we produce. A rotating mechanism has one motion axis. A sliding mechanism has one travel direction. A transformable mechanism has multiple pivot points, a defined motion arc, a locking sequence, and a conversion feel that has to be deliberate — not accidental, not stiff, not loose. Every one of those variables is an engineering decision, and every one of them is a potential failure point if the geometry isn't right.

We've been designing and manufacturing transformable furniture mechanisms since the early years of the factory. The product range covers sofa-to-bed conversion frames, dining-to-desk linkages, storage ottomans with lift-top hardware, wall-bed mechanisms, and multi-position recliner linkages. What these have in common is that the buyer's downstream customer interacts with the conversion mechanism directly — they pull the handle, push the backrest, lift the top — and the quality of that interaction is what determines whether the furniture feels premium or cheap. The mechanism is invisible when it works. It's the only thing anyone notices when it doesn't.

The engineering challenge we focus on is motion arc geometry. Pivot spacing that's off by a few millimeters creates a dead spot mid-travel — a point where the conversion requires a sudden extra push that feels wrong and generates customer complaints. Spring rate selection determines whether the conversion feels assisted or heavy. Locking detent geometry determines whether the mechanism holds its position under load or creeps. We've seen all of these failure modes come back from the field, and we've built our design process around preventing them from the first sample rather than iterating them out after production has started.

Transformable mechanisms are also where OEM/ODM requests are most concentrated in our order book. Buyers in this segment frequently have a specific conversion sequence in mind — a particular motion arc, a proprietary locking method, a conversion that's part of the product's design identity. That's exactly the kind of brief our engineering team is set up to develop.

Get a Quote for Transformable Mechanisms

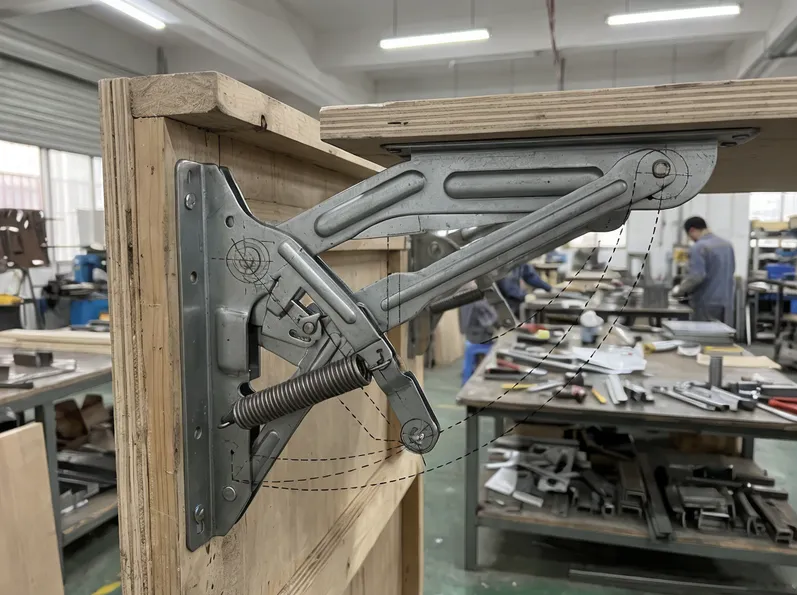

Motion Arc Geometry

Pivot spacing precision to eliminate dead spots mid-travel

Spring Rate Tuning

Calibrated to top weight so conversion feels assisted, not heavy

Locking Detent

Holds position under load without creep

Product Range

Transformable Mechanism Types: What We Manufacture

The catalog covers the main conversion hardware categories. Custom motion sequences outside this list are handled through ODM development.

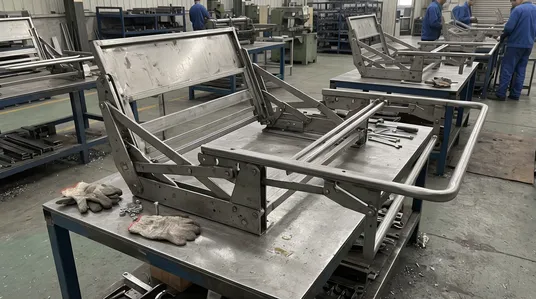

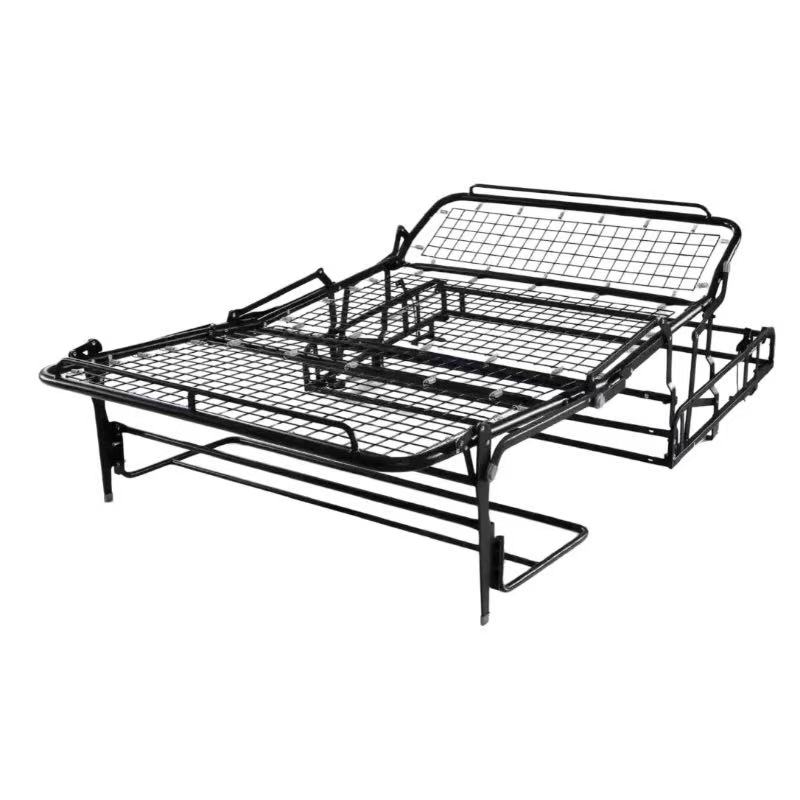

Sofa-to-bed conversion frame mechanism hardware

Highest Volume

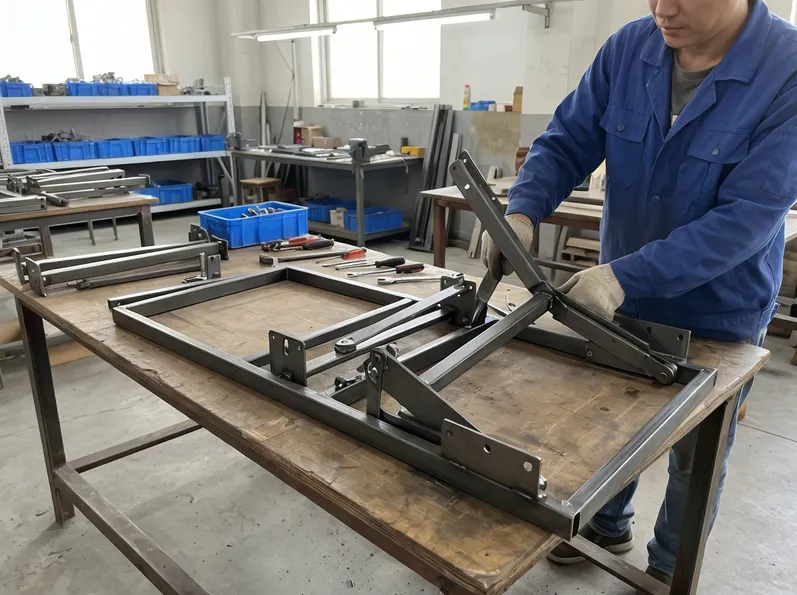

Sofa-to-Bed Conversion Frames

The frame unfolds from sofa configuration to flat sleeping surface through a two-stage pivot sequence — backrest folds down, seat extends forward. Rated 200–250kg for standard residential spec. Main load-bearing members run 1.5–2.0mm cold-rolled steel. Pivot points use hardened steel inserts to prevent bore enlargement over service life — critical for rental property and hospitality applications where the mechanism converts daily.

Load Rating200–250 kg

Steel Gauge1.5–2.0 mm CRS

Pivot InsertsHardened Steel

MotionTwo-Stage Pivot

Spring-Assisted

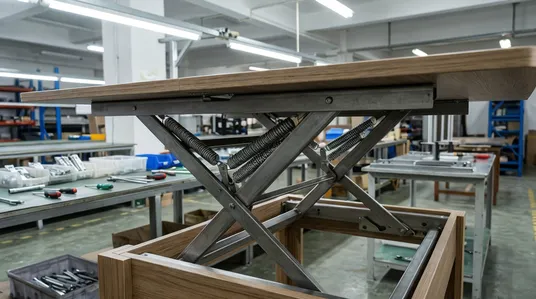

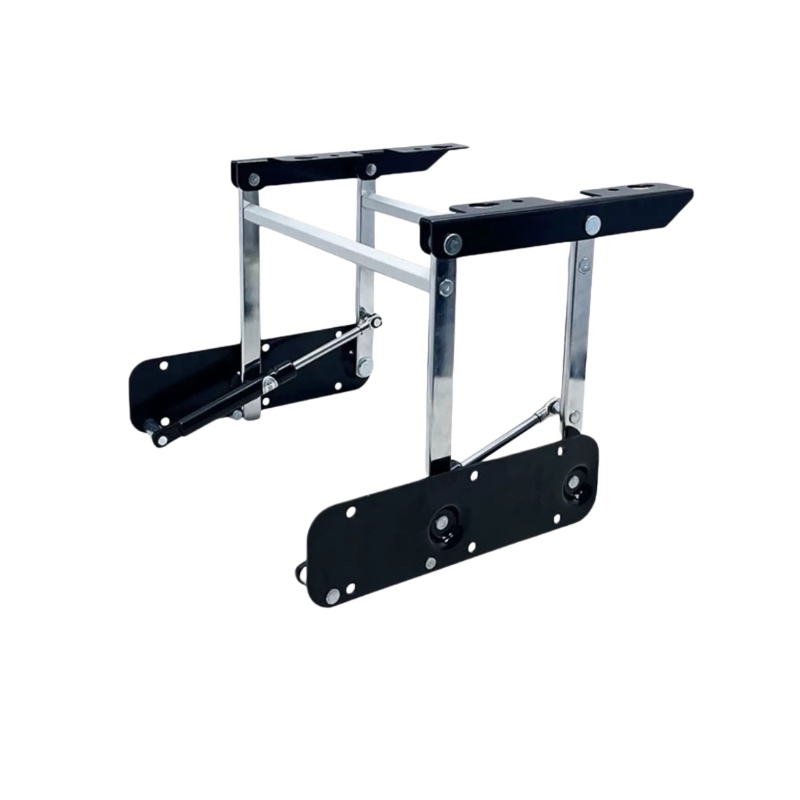

Lift-Top Table Hardware

Raises and tilts the table surface to ergonomic working height while the storage compartment below becomes accessible. Spring rate is tuned to the buyer's specified top weight range during production — a spring rate that works for a 12 kg top will feel wrong on an 18 kg top. The raised position locks automatically via over-center geometry on the linkage arm. No secondary latch required.

Assist TypeSpring-Assisted

Lock MethodOver-Center Auto

Spring TuningPer Top Weight

Secondary LatchNot Required

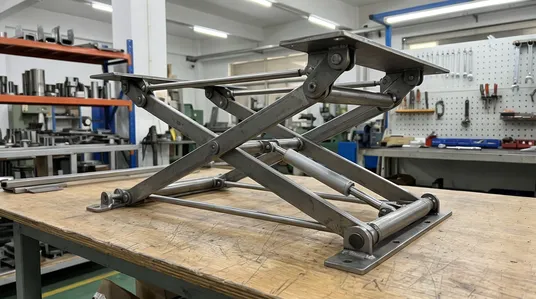

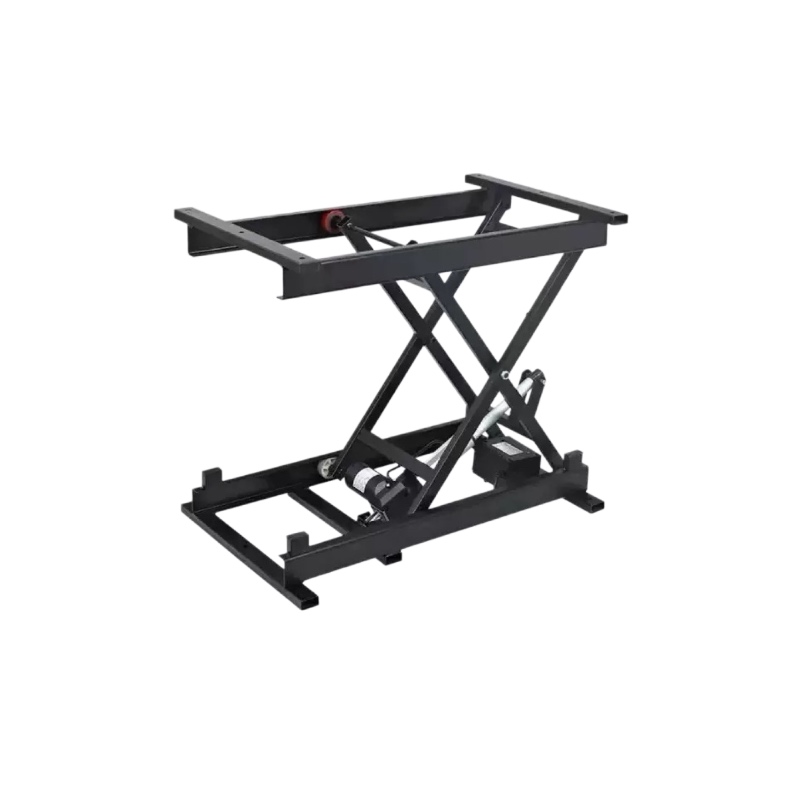

Dining-to-desk conversion linkage two-axis mechanism

Two-Axis Linkage

Dining-to-Desk Conversion Linkages

Height-adjustable and configuration-change hardware for furniture that serves dual functions: dining table to lower coffee table, desk to console, dining set to compact storage. The conversion sequence typically involves a height adjustment combined with a surface angle change, which requires a two-axis linkage rather than a simple pivot. Common in compact living and multifunctional furniture for urban residential and small-space hospitality.

Linkage TypeTwo-Axis

MotionHeight + Angle

SegmentCompact Living

ApplicationUrban / Hospitality

Ratchet Locking

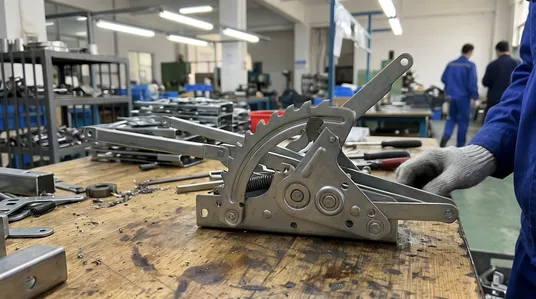

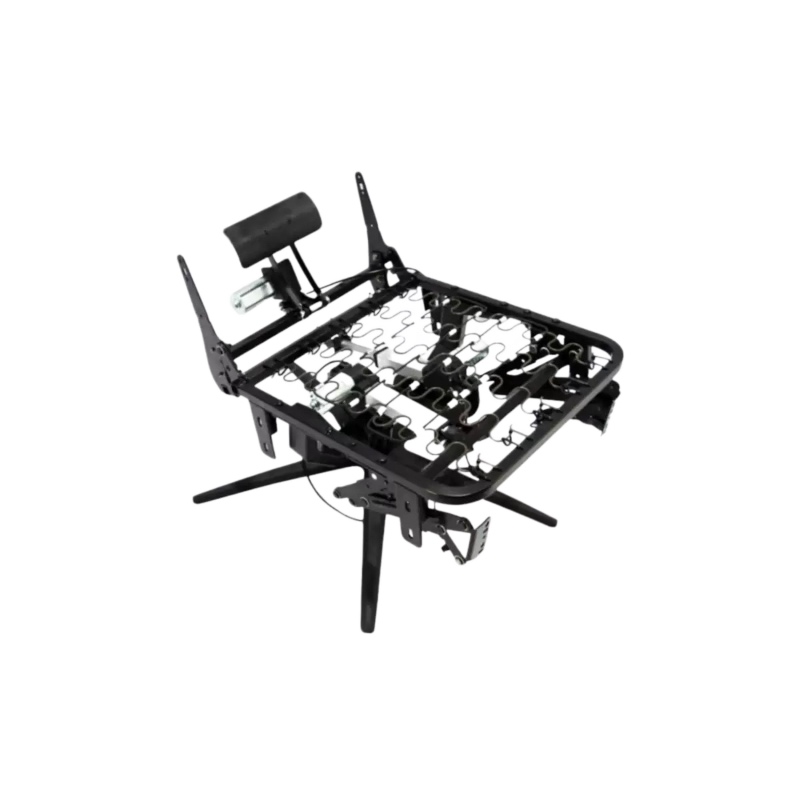

Multi-Position Recliner Linkages

Recliner mechanisms that lock at multiple backrest angles rather than a single reclined position. Each position needs to engage cleanly, hold under body weight, and release without requiring excessive force. Standard configuration uses a ratchet-style locking bar with detent spacing set to 15° increments as the default. Custom increments available for OEM applications.

Lock TypeRatchet Bar

Default Increment15° Steps

Custom IncrementsOEM Available

Hold ConditionUnder Body Weight

Counterbalance Spring

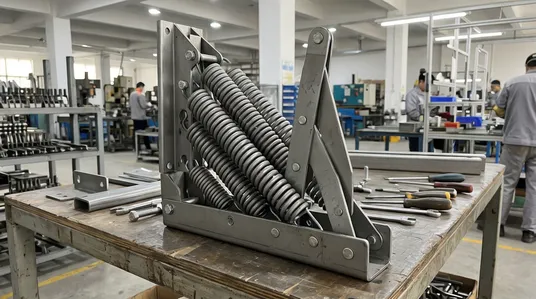

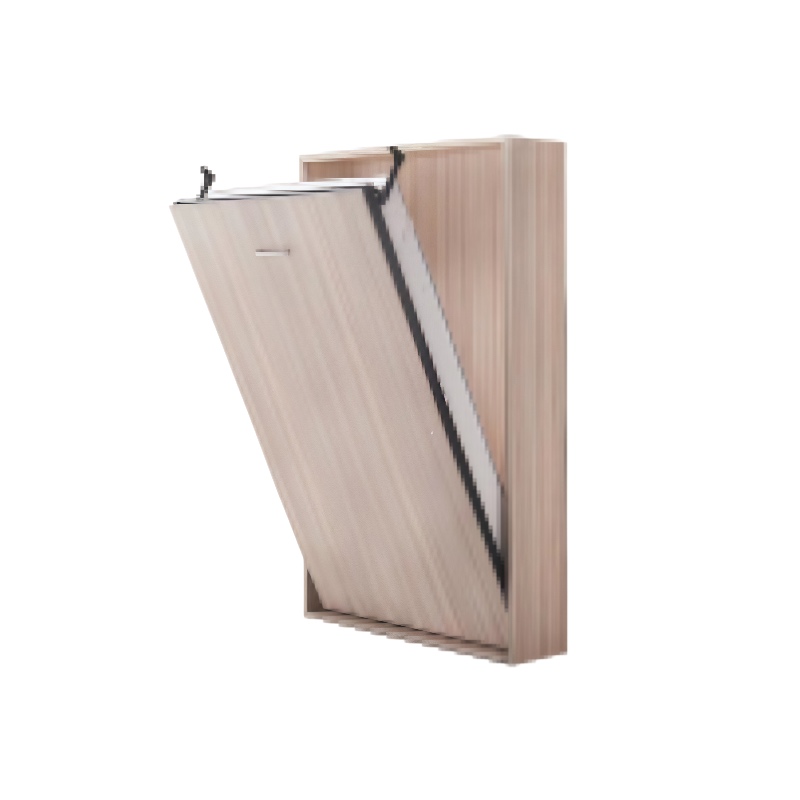

Wall-Bed (Murphy Bed) Mechanisms

Vertical-fold hardware for wall-mounted beds that fold flat against the wall when not in use. The counterbalance spring system offsets the mattress and frame weight so the bed lowers and raises with controlled, manageable force. Spring sizing is calculated to the buyer's specified mattress weight. Spring selection guidance is provided as part of the order process.

Fold DirectionVertical

Balance SystemCounterbalance Spring

Spring SizingPer Mattress Weight

GuidanceIncluded in Order

Custom Motion Sequences

Have a specific conversion sequence in mind — a proprietary motion arc, a custom locking method, a conversion that's part of your product's design identity? That's exactly the kind of brief our engineering team is set up to develop through ODM.

Request Specifications

Manufacturing Standards

Technical Specifications

These are industry-standard parameters for transformable furniture mechanisms. Actual specifications vary by product configuration — contact us for exact data sheets on specific items.

Parameter	Specification
Primary structural material	Cold-rolled steel (SPCC), 1.5–2.5mm for load-bearing members
Pivot components	Hardened steel inserts at high-wear contact points
Adjustment / locking hardware	Zinc alloy die-cast; in-house production
Dimensional tolerance (stamped components)	±0.15mm standard; ±0.10mm on locking subassemblies
Surface treatment	Powder coat 60–80μm; zinc electroplate; nickel electroplate
Salt spray rating	500 hours standard (powder coat); 800-hour option available
Load rating (sofa bed frames)	200–250kg typical; higher on request
Cycle life testing	20,000 cycles standard residential; 50,000 cycles commercial spec
Lock engagement testing	100% functional test under load before shipment
Certifications	ISO 9001:2015, CE, SGS, RoHS
Standard MOQ	500 units (catalog items)
Lead time (catalog items)	25–35 days from order confirmation

Specifications shown are industry-standard values for this product type. Actual specifications may vary by configuration. Contact us for detailed product data sheets.

ISO 9001:2015 CE SGS RoHS Get exact specs for your application

Commercial Context

Where Transformable Mechanisms Sell: Market Segments Worth Knowing

The commercial logic for transformable furniture hardware is straightforward: furniture that does two things commands a higher retail price than furniture that does one thing. Your downstream customers pay a premium for convertibility, and the mechanism is what makes that premium defensible.

Compact Urban Residential

The largest segment for sofa bed and lift-top hardware. Apartment furniture in North American and European urban markets has been trending toward multifunctional pieces for years — a sofa bed that works as a guest bed, a coffee table with lift-top storage, a dining table that converts to a desk.

500–2,000

units per SKU
per season

Reorder patterns are predictable once a product is established in a retailer's range.

Short-Term Rental & Hospitality

A higher-volume, higher-spec segment. Sofa beds in Airbnb properties and hotel rooms convert daily — the cycle life requirement is 5–10x what residential furniture sees. Operators have learned the hard way that residential-spec mechanisms fail within 18 months of commercial use, and they're willing to pay for commercial-spec hardware.

50–200

units per
project order

Project-based ordering from property management companies; repeat orders as properties are added or refurbished.

Furniture OEM Manufacturers

Building branded convertible product lines are the primary source of ODM work in this category. They have a specific conversion sequence in mind — a motion arc that's part of the product's design identity, a locking method that's proprietary, a mechanism that competitors can't easily copy.

Custom tooling development is the entry point

Production volumes scale as the product line grows.

Contract & Office Furniture

A smaller but consistent segment for multi-position recliner linkages and height-adjustable conversion hardware. Office lounge furniture, collaborative seating, and flexible workspace furniture all use transformation hardware.

Commercial cycle life + compliance documentation required

Corporate procurement requires full spec and certification packages.

Quality Engineering

The Engineering Behind Lock Engagement — Why It's the Failure Mode That Matters Most

Lock engagement failure is the warranty return driver in transformable furniture. The mechanism converts fine, but the lock doesn't hold — the sofa backrest creeps under seating load, the lift top slowly descends, the recliner position doesn't stay set. This is the complaint that generates returns, negative reviews, and lost accounts for distributors.

The root cause is almost always tolerance stack-up. Individual components are within their dimensional spec, but the accumulated assembly tolerance puts the lock geometry at the margin — close enough to engage under light load, not reliable enough to hold under real use. The problem is invisible in a sample evaluation because samples are assembled carefully; it shows up in production batches where assembly speed introduces variation.

We address this at two points in the process. First, locking subassemblies are held to ±0.10mm assembly tolerance rather than the ±0.15mm standard for structural components — tighter than necessary for strength, but necessary for lock geometry consistency. Second, every unit goes through 100% lock engagement testing under load before packing. Not a sample pull — every unit. A mechanism that passes dimensional inspection but fails to hold its locked position under the test load gets pulled at the final station.

Test Load Standards by Product Type

Sofa Bed Frames

Tested at 120% of rated seating load in the locked sofa configuration

Lift-Top Mechanisms

Top held at raised position under a 15kg downward force

Recliner Linkages

Each lock position tested under body-weight simulation

Test Protocol Documentation Available

Useful if you have downstream customers with quality audit requirements. We can provide the full test protocol documentation on request.

Ask About Our Lock Engagement Test Protocol

±0.10mm

Locking Subassembly Tolerance

vs. ±0.15mm standard for structural components

100%

Units Load-Tested Before Packing

Not a sample pull — every unit, every batch

120%

Sofa Bed Test Load

Rated seating load applied in locked sofa configuration

OEM / ODM Development

Customization: OEM/ODM for Proprietary Conversion Sequences

Transformable mechanisms are the product category where custom development makes the most commercial sense. A unique conversion sequence is a genuine product differentiator — your competitors can't replicate it without developing their own tooling, which takes time and investment. That's margin protection built into the product design.

What Can Be Customized

Motion arc geometry — pivot spacing, travel range, conversion angle
Locking positions and detent spacing
Spring rate and assist force
Structural steel gauge (1.5mm to 3.0mm depending on load requirement)
Surface finish — any RAL powder coat color; zinc or nickel plate
Branded or retail-ready packaging
Mechanism dimensions to fit your furniture frame spec

OEM — Your Drawings

You supply the drawings and specifications. We review for manufacturability — if your design has features that will cause production problems or tolerance issues, we flag them before tooling is cut. Production runs to your spec.

ODM — Your Brief

You describe the motion sequence, load requirements, target retail price point, and any aesthetic direction. Our 12-person engineering team develops the linkage geometry, builds tooling in-house, runs samples, and iterates until the spec is locked. In-house tooling means geometry changes happen on our floor — no third-party tooling shop delays when a sample needs adjustment.

The most common delay in ODM projects is buyers sending revised specs after tooling has been cut. Lock your motion sequence and load requirements before tooling starts — a geometry change after the first tool is cut adds time and cost that neither of us wants.

Customization Parameters and MOQ

Customization Type	MOQ	Tooling
Catalog item, standard finish	500 units	No tooling required
Catalog item, custom color/finish	500 units	No tooling required
Modified catalog geometry	500–1,000 units	Tooling quoted per spec
Full ODM custom mechanism	Quoted per spec	In-house tooling development

Start Your Development Project

Send Your Brief or Drawings for a Development Proposal

Our engineering team reviews for manufacturability and responds with a development proposal — no commitment required at this stage.

Send Brief or Drawings

Finish & Compliance

Surface Finish Selection for Your Target Market

The finish choice on transformable mechanisms affects more than appearance — it affects dimensional fit, corrosion performance, and compliance documentation. Here's how we make the call.

Powder Coat

60–80μm · RAL Range

Standard finish for visible components and structural members where dimensional tolerance after coating is not critical. Passes 500-hour salt spray — adequate for indoor residential and office furniture in normal environments.

Coastal Markets

Southeast Asia, Gulf region, coastal North America: specify the 800-hour option, which uses a higher-build primer under the topcoat.

Zinc Electroplating

Pivot Components · Threaded Hardware

Used on pivot components, threaded hardware, and tight-clearance assemblies where powder coat thickness would affect fit. The plating layer is thinner and more dimensionally consistent.

RoHS Compliant

Trivalent chromium passivation — no hexavalent chromium. Documentation ships with the order for EU and California market requirements.

Nickel Electroplating

Premium Furniture Lines

Used on visible hardware in premium furniture lines where the mechanism is partially exposed in the design — a common requirement in Scandinavian-influenced furniture where the hardware is part of the aesthetic.

Design-Forward

Specified when exposed hardware is an intentional design element, not a hidden component.

EU Market

RoHS documentation ships with the order. No separate request required after the fact.

North American Importers

Material compliance documentation for HTS classification is available without you having to request it separately after the fact.

Logistics & Export

Packaging, Container Loading, and Export Documentation

Transformable mechanisms range from compact lift-top hardware to full sofa bed frames — the packaging and loading approach differs accordingly.

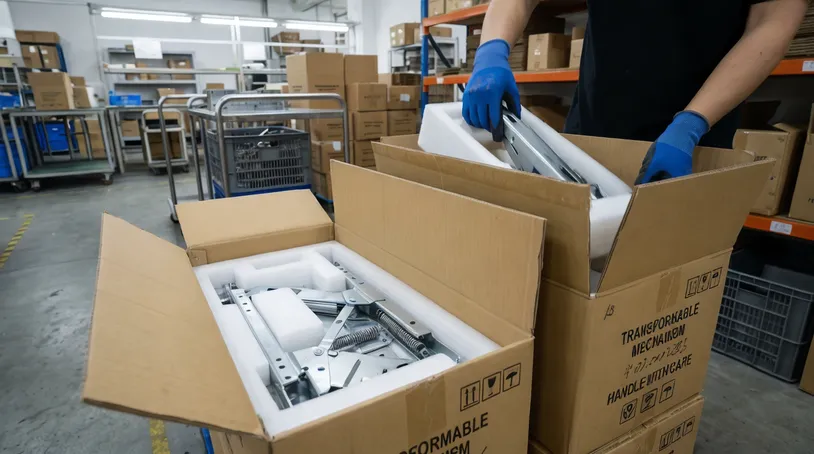

Compact mechanism packaging in double-wall corrugated cartons with EPE foam inserts

Compact Mechanisms

Lift-top · Recliner Linkages · Dining Conversion

Packed in double-wall corrugated cartons with EPE foam inserts protecting pivot components and spring assemblies. Carton dimensions are standardized for 40HQ pallet loading.

Freight planning: We provide CBM per carton and container loading quantities before you confirm the order so your freight calculation is accurate.

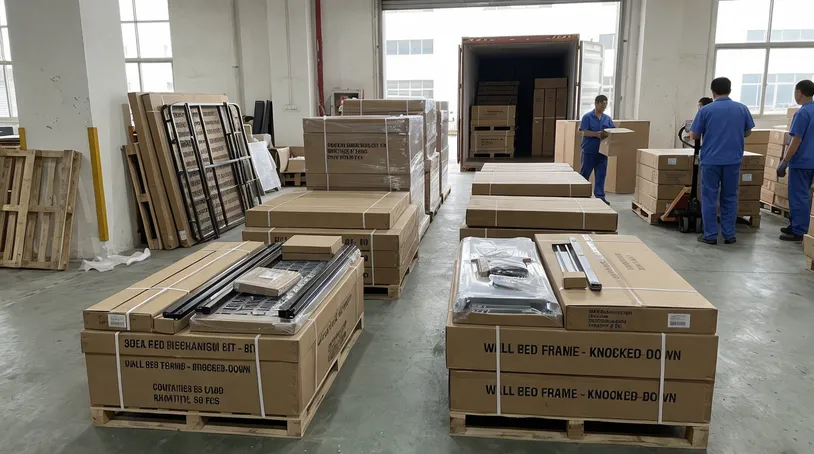

Sofa bed frame and wall-bed mechanism KD knocked-down packing for container shipping

Large Assemblies

Sofa Bed Frames & Wall-Bed Mechanisms

KD Packing · Large Assemblies

Packed KD (knocked-down) where the design allows, which improves container utilization and reduces the risk of damage to extended linkage arms in transit.

Cost benefit: KD packing reduces your landed cost per unit on freight-sensitive markets.

Full Export Documentation — Standard with Every Order

No chasing documents after shipment. Every order ships complete.

Commercial Invoice

Packing List

Bill of Lading

Certificate of Origin

Test Reports

CE / SGS (EU orders)

European Orders

CE declaration of conformity and SGS reports ship automatically with every European order.

North American Importers

Material and compliance documentation for HTS classification available on request.

Production Lead Time

25–35 Days

from order confirmation and deposit receipt · catalog items

Start the Sourcing Conversation

Frequently Asked Questions

What is the MOQ for transformable furniture mechanisms?

500 units for standard catalog items. For OEM/ODM tooling projects, MOQ is quoted based on tooling amortization — we give you the honest number based on your spec, not a round figure. Most new buyers start with a 500–1,000 unit trial order to qualify the product with their own customers before scaling.

What cycle life should I specify for sofa bed mechanisms going into short-term rental properties?

Residential-spec sofa bed mechanisms are typically rated to 20,000–30,000 cycles, which covers 10–15 years of occasional home use. Short-term rental properties (Airbnb, serviced apartments) convert daily — that's 365 cycles per year, meaning a residential-spec mechanism reaches end-of-life in under 10 years of commercial use, often sooner. Specify 50,000 cycles minimum for rental property applications; for high-turnover properties, 80,000 cycles is the safer spec. Tell us the use environment when you inquire and we'll recommend the appropriate test protocol and structural spec.

How do I evaluate whether a transformable mechanism's lock will hold in production batches, not just samples?

Ask the supplier specifically how they test lock engagement — and whether it's 100% testing or a sample pull. Sample-pull testing misses the tolerance stack-up variation that shows up in production batches. We test every unit under load at the final station; the test protocol and load parameters are available on request. If a supplier can't tell you their exact test load and whether it's 100% or sampled, that's the answer.

What's the lead time for a custom ODM transformable mechanism?

Catalog items ship in 25–35 days from order confirmation. ODM projects with new tooling run longer — the timeline depends on design complexity, tooling lead time, and sample iteration rounds. We give you a milestone-by-milestone production schedule rather than a single delivery date. The most common delay is spec changes after tooling starts; locking your motion sequence and load requirements before tooling begins is the single biggest factor in keeping the project on schedule.

Can you match a mechanism I'm currently sourcing from another supplier?

Yes. Send us a sample or your current spec sheet — we'll review it for manufacturability, identify any design features that are causing production or quality issues, and quote factory-direct. If your current mechanism has known failure modes, we'll flag what we'd change and why. Send your sample or spec sheet.

What certifications do your transformable mechanisms carry?

ISO 9001:2015 covers the quality management system across the full production process. CE covers European market compliance for the mechanism range. SGS third-party audit reports are available with shipment. RoHS compliance is documented for buyers supplying into EU or California markets. For buyers with specific downstream compliance requirements — BIFMA, EN standards, or market-specific certifications — contact us to discuss what documentation is available or can be arranged.
