Rotating Chair
Mechanism

Controlled rotation hardware for bar stools, reception seating, and specialty chair applications — manufactured to ±0.15mm tolerance. Optional stop positions, 360° free rotation, and swivel-lock configurations. Every unit 100% functionally tested before shipment.

Get a Quote All Chair Mechanisms

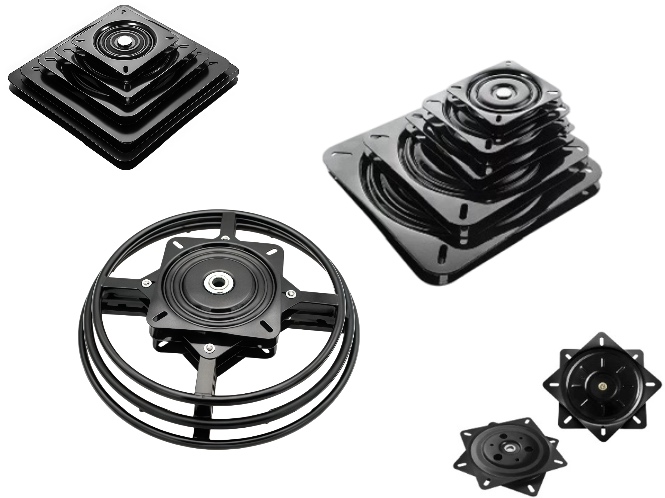

Rotating chair mechanism — controlled rotation hardware for bar stools and reception seating
±0.15mm
Stamping Tolerance
60k+
Cycle Life

Product Overview

What the Rotating Chair Mechanism Is — and Where It Differs from a Standard Swivel

The rotating chair mechanism controls rotational movement at the seat level, but it's a different product from a standard 360° swivel base. A swivel mechanism is designed for continuous, unrestricted rotation — the kind used in office task chairs where the user spins freely. A rotating mechanism adds control to that motion: defined stop positions, rotation-limiting hardware, or a swivel-lock that holds the seat at a fixed angle until released.

That distinction matters commercially. Bar stools with a 360° free-spin feel cheap to the end user and generate warranty complaints about uncontrolled rotation. Reception chairs that spin freely in a waiting room create a maintenance problem. The rotating mechanism solves both by giving the seat a controlled, deliberate feel — smooth rotation when the user wants it, stable positioning when they don't.

That's the feature your downstream customers are paying for, and it's the spec that separates a $180 bar stool from a $90 one on the same retail floor.

Request a Quote

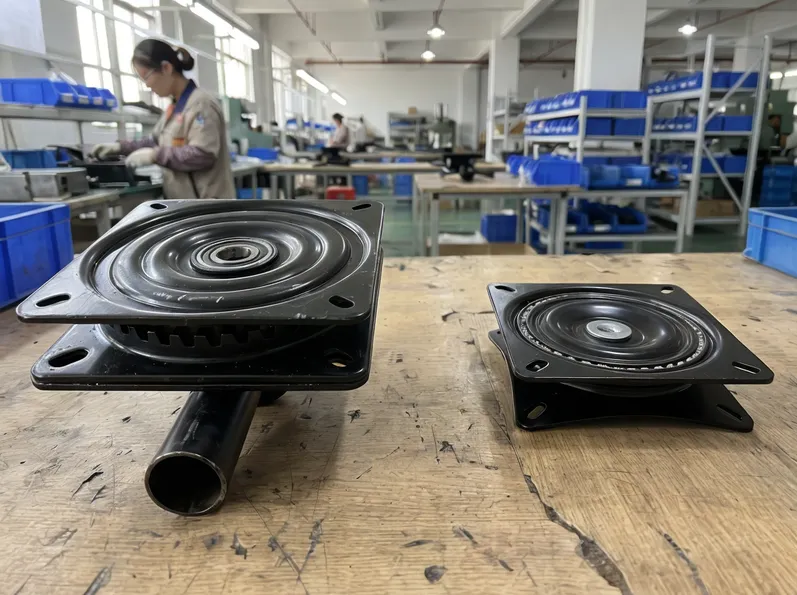

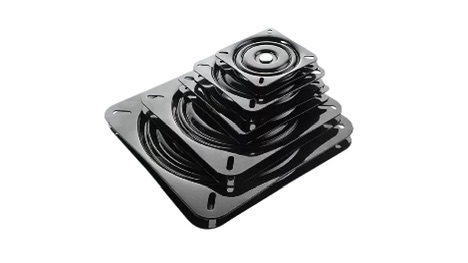

Rotating chair mechanism vs standard swivel — controlled stop positions vs free rotation

Manufacturing Foundation

We produce the rotating chair mechanism on dedicated swivel and rotation lines within our 12,000 m² Guangdong facility. The mechanism plate is cold-rolled steel, stamped to ±0.15mm on progressive dies — the same tolerance standard held across the full chair mechanism line. Bearing assemblies are selected for smooth rotation under lateral load, which is the load condition that separates bar stool and counter-height applications from standard seated-height use.

Standard Swivel Mechanism

Continuous, unrestricted 360° rotation. Designed for office task chairs where the user spins freely. No stop positions, no lock engagement.

No rotation control — not suitable for bar stool or reception applications
This Product

Rotating Chair Mechanism

Controlled rotation with defined stop positions, rotation-limiting hardware, or swivel-lock. Smooth when the user wants it, stable when they don't.

Separates a $180 bar stool from a $90 one on the same retail floor

Engineering Data

Technical Specifications

Industry-standard parameters for this mechanism type. Actual specifications vary by configuration — contact us for exact product data sheets.

Parameter Specification
Base material Cold-rolled steel (SPCC/Q235), zinc alloy die-cast components
Plate steel thickness 2.0 mm – 3.0 mm (standard duty to heavy duty)
Load capacity 120 kg – 180 kg (configuration dependent)
Rotation range 360° continuous or limited-arc (90°, 180°, 270° stop configurations)
Bearing type Ball bearing swivel assembly, smooth rotation under lateral load
Swivel lock Optional — lever-actuated or push-button lock engagement
Mounting pattern Standard 4-hole and 6-hole; custom patterns available
Gas lift compatibility Ø50 mm and Ø60 mm cylinder bore (standard)
Surface treatment Zinc plating, nickel plating, powder coating (black, silver, custom RAL)
Operating temperature -10°C to 60°C
Cycle life 60,000+ cycles at rated load (BIFMA X5.1 equivalent protocol)

Specifications shown are industry-standard values for this mechanism type. Contact us for detailed product data sheets and configuration-specific parameters.

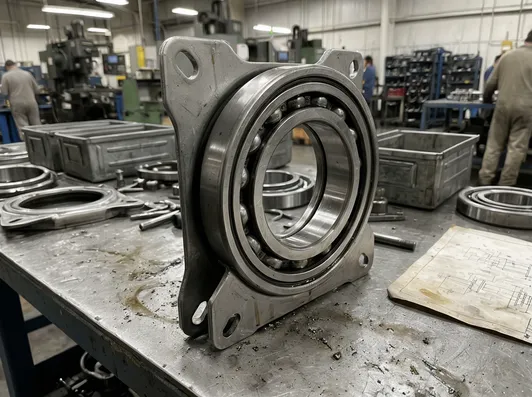

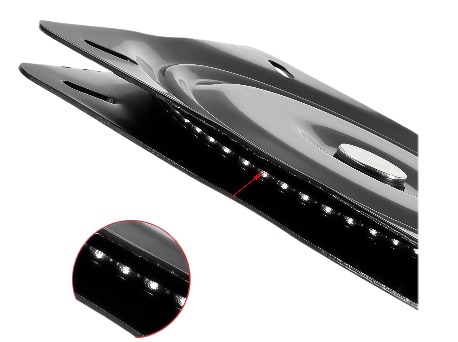

Rotating chair mechanism bearing assembly — lateral load rated for bar stool and counter-height applications

Bearing Assembly — Where We Focus

Bar stool and counter-height applications put lateral load on the bearing that standard office chair swivel assemblies aren't designed for — the user's weight is distributed differently at 65–75 cm seat height versus 45–50 cm.

We spec the bearing for the actual load geometry of elevated seating, not just the vertical load rating. Competitor mechanisms using office-chair swivel assemblies in counter-height products fail at the bearing race within 12 months. The load math is different.

Get a quote with your load and height requirements
±0.15mm
Stamping Tolerance
12,000
m² Facility
180kg
Max Load Capacity
60k+
Cycle Life

Market Segments

Application Segments and Commercial Opportunity

The rotating mechanism serves four distinct B2B segments — each with different volume profiles, margin dynamics, and specification requirements. Understanding where your product sits determines how you spec the mechanism and what you pay for it.

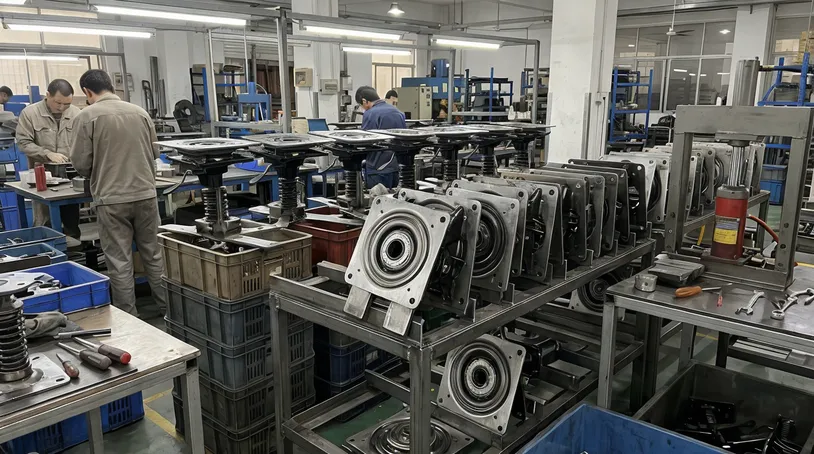

Bar and counter seating rotating mechanism for hospitality
Highest Volume

Bar and Counter Seating

The highest-volume segment for rotating mechanisms. Bar stools and counter-height chairs for restaurants, hotels, bars, and residential kitchen islands all require rotation hardware that handles elevated seat heights and lateral load.

Hospitality buyers — hotel chains, restaurant groups, contract furniture suppliers — order in quantities of 200–2,000 units per project, with repeat orders as venues refresh their seating.

Buyer insight:

The rotating mechanism with optional stop positions is the spec that separates commercial-grade bar stools from residential-grade product — and it's the feature your hospitality buyers will pay a margin premium for.

200–2,000
Units per project
Repeat
Venue refresh cycles

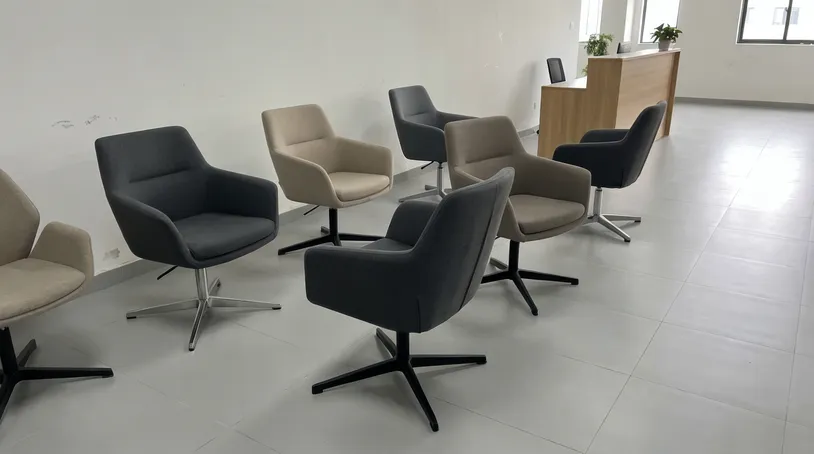

Reception and lobby seating with controlled rotation mechanism
Healthcare & Corporate

Reception and Lobby Seating

Reception chairs in corporate offices, medical facilities, and hotel lobbies need controlled rotation — visitors and patients shift position frequently, but the chair shouldn't spin freely. A 360° lock-capable rotating mechanism gives the end user smooth repositioning without the uncontrolled spin that generates complaints.

Healthcare procurement in particular specifies swivel-lock as a functional requirement for patient-facing seating.

Procurement note:

This segment orders 50–500 units per facility, with annual or biennial refresh cycles. Healthcare specs swivel-lock as a hard functional requirement — not a preference.

50–500
Units per facility
Annual
Refresh cycle

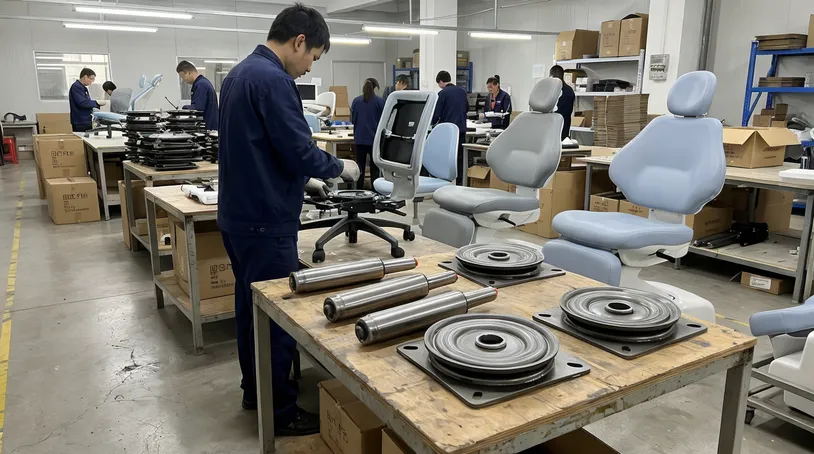

Specialty seating including salon dental and medical procedure chairs
Higher Margin

Specialty and Custom Seating

Drafting chairs, salon chairs, dental and medical procedure chairs, and industrial workstation seating all use rotating mechanisms with specific stop-position or lock requirements. These are lower-volume but higher-margin segments — the mechanism spec is a functional requirement, not a commodity choice, so price sensitivity is lower.

If you're supplying into any of these verticals, the rotating mechanism with configurable stop positions is the component that makes your product viable in the segment.

Segment note:

Salon and medical seating has been a growing segment over the past three years — worth building into your product line if you're not already there.

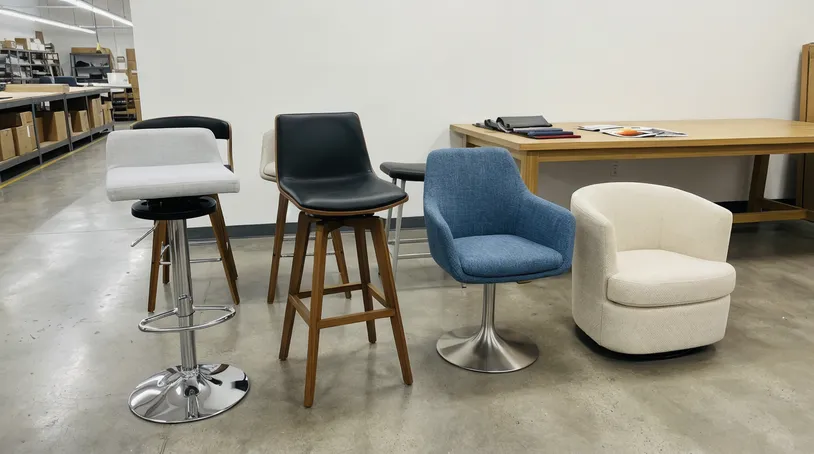

Residential furniture OEM bar stools and swivel accent seating
Residential OEM

Residential Furniture OEM

Furniture manufacturers producing bar stools, accent chairs, and swivel accent seating for the residential market need rotation hardware that balances cost with perceived quality. The rotating mechanism at standard duty spec hits the price point for mid-range residential product while delivering the smooth, controlled feel that drives positive reviews and reduces returns.

Margin protection:

Fewer returns from "wobbly" or "uncontrolled" rotation complaints means lower after-sale cost. For residential OEM buyers, this is a margin-protection play, not just a quality spec.

Manufacturing Process

How We Manufacture the Rotating Mechanism — Process Details That Affect Your Order

Every process decision below has a direct downstream effect on your assembly line, your quality complaints, or your warranty exposure. These aren't marketing claims — they're the manufacturing parameters that determine whether the mechanism performs to spec in your application.

Mechanism Plate Stamping

The mechanism plate is stamped from cold-rolled steel coil on progressive dies. The complete plate geometry — mounting holes, bearing seat, stop-position notches — comes out of a single press stroke, so every plate in a production run is dimensionally identical.

Assembly line impact

We don't drill mounting holes as a secondary operation; they're formed in the same stroke as the plate. If you're mounting these mechanisms to chair frames on a jig, the hole pattern consistency is what keeps your line running without manual adjustment per piece.

Stop-Position Hardware: Zinc Alloy Die-Cast

Stop-position hardware is a zinc alloy die-cast component — the detent collar or stop pin that engages the rotation limit. We die-cast these in-house, which is relevant because dimensional consistency on the stop collar is what determines how positive the stop engagement feels.

Quality exposure

A loose-fitting stop collar produces a mechanism that feels imprecise — the kind of quality complaint that comes back as a return, not a warranty claim, because the buyer can't point to a failure, just a bad feel. We control the die-casting parameters and trimming on our floor, so the fit is consistent batch to batch.

Bearing Assembly: Press-Fitted to Spec

Bearing assembly is pressed into the mechanism plate under controlled force — not hand-pressed, which introduces variation in seating depth and bearing preload.

Preload matters

Bearing preload affects rotation smoothness: too loose and the seat wobbles under lateral load; too tight and rotation requires noticeable effort. We set preload to spec on a press fixture, not by feel.

Surface Treatment

Surface treatment follows the same process as the full chair mechanism line: phosphate pre-treatment wash, then powder coat at 60–80μm film thickness, or electroplating for components where post-coating dimensional tolerance is critical.

Corrosion performance

The powder line passes 500-hour salt spray — relevant for coastal market distribution and outdoor-adjacent hospitality applications.

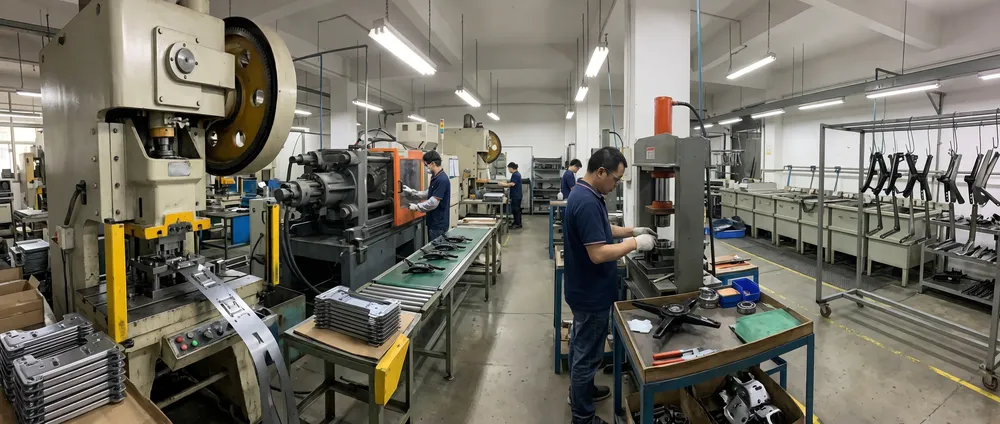

MVMHardware rotating chair mechanism manufacturing floor — stamping, die-casting, bearing press, surface treatment

Every process step — from progressive die stamping to controlled-force bearing press to in-house die-casting — is designed to eliminate the variation that generates quality complaints downstream in your assembly or in your end customer's hands.

60–80μm
Powder coat film thickness
500h
Salt spray rating
1-stroke
Complete plate geometry
In-house
Die-casting & trimming

OEM & Private Label

Customization Options for OEM and Private-Label Buyers

The rotating chair mechanism is one of the more customization-friendly products in our line because the core variables — rotation range, stop positions, lock type, mounting pattern, and surface finish — can all be modified without full tooling development.

Customization Dimension Options MOQ Impact
Rotation range 360° free, 180° limited, 90° limited, custom arc No MOQ change for standard arcs
Stop positions 2, 4, or 6 positions; custom position count Minor tooling adjustment for non-standard counts
Swivel lock None, lever-actuated, push-button No MOQ change for standard lock types
Mounting pattern Standard 4-hole, 6-hole, custom hole pattern Custom patterns require tooling — discuss during quoting
Surface finish Zinc plating, nickel plating, powder coat (black, silver, custom RAL) Custom RAL available on runs over 500 units
Load rating Standard (120 kg), heavy duty (150 kg), extra heavy (180 kg) Plate thickness and bearing spec change accordingly
Private label Branded packaging, custom part marking Available on OEM arrangements

Standard Catalog Configurations

Standard catalog configurations ship at 500-unit MOQ. Custom stop-position counts or non-standard mounting patterns require tooling modification — we'll quote the tooling cost and revised MOQ based on your spec.

New Seating Line Development

For buyers developing a new seating line, we can work from your drawings or from a reference sample. Our engineering team will flag any manufacturability issues before tooling starts, not after.

Ready to spec your configuration?

Send us your spec or reference sample — we'll come back with a feasibility assessment and quote.

Send Your Spec

Quality & Compliance

Certifications and Compliance

The rotating chair mechanism ships with the same compliance documentation as our full chair mechanism line. Documentation is ready to ship with your order — not something you have to chase us for afterward.

Quality System

ISO 9001:2015

Quality management system governing production, inspection, and traceability.

European Market

CE

European market compliance; declaration of conformity ships with the order.

Third-Party Audit

SGS

Third-party audit and testing; reports available on request.

Restricted Substances

RoHS

Restricted substances compliance; documentation available for EU and California market buyers.

Surface Treatment Details

Surface treatments use trivalent chromium passivation on zinc plating — no hexavalent chromium. Powder coating uses low-VOC formulations.

For buyers supplying into the EU, California, or other regulated markets, the material compliance documentation is ready to ship with your order.

Additional Certification Testing

If your target market requires additional certification — EN 1335, BIFMA X5.1, or market-specific standards — we can arrange third-party testing through our SGS relationship.

Specify this requirement during quoting so we can build it into the production schedule.

Certified
ISO 9001:2015
Compliant
CE Declaration
Audited
SGS Tested
Compliant
RoHS
No Hex Chrome
Trivalent Cr Only
Coating
Low-VOC Powder

Buyer Guidance

Frequently Asked Questions

What is the difference between a rotating chair mechanism and a swivel chair mechanism?

A swivel mechanism provides continuous 360° free rotation — the standard for office task chairs. A rotating mechanism adds control: defined stop positions, rotation arc limits, or a swivel lock that holds the seat at a fixed angle. The distinction matters for bar stools, reception seating, and specialty applications where uncontrolled spin is a functional problem. If your end product needs the seat to rotate smoothly but stop predictably, you need a rotating mechanism, not a standard swivel.

What load rating do I need for bar stool applications?

For standard residential and light commercial bar stools (seat height 65–75 cm), specify 120–150 kg load rating with a bearing assembly rated for lateral load at elevated height. For heavy commercial use — restaurant and hotel bar seating with high turnover — specify 150–180 kg with heavy-duty bearing. The load geometry at bar stool height is different from standard seated height; don't use a standard office chair swivel spec and expect the same service life.

Can I get a rotating mechanism with a specific number of stop positions?

Yes. Standard configurations are 2, 4, and 6 stop positions. Non-standard counts (3, 5, 8, etc.) require a tooling modification to the detent collar — we'll quote the tooling cost during the inquiry. For most buyers, 4-position (0°, 90°, 180°, 270°) covers the majority of applications.

What is the MOQ for rotating chair mechanisms?

Standard catalog configurations start at 500 units. Custom configurations with modified stop positions or non-standard mounting patterns have MOQ based on tooling amortization — we'll give you the specific number during quoting, not a round figure. For new buyers, we recommend a 2–5 unit sample order first to verify fit with your chair frame before committing to production quantities.

How do I prevent rotation bearing failure in high-use commercial applications?

Specify the correct load rating for your seat height and use environment — this is the most common source of premature bearing failure. Beyond that: ensure the mechanism mounting is rigid (flex in the chair frame transfers to the bearing as cyclic lateral load), and specify a bearing preload that matches your rotation frequency. We set bearing preload on a press fixture during assembly; if you're seeing bearing wear in the field, the first question is whether the mechanism was spec'd for the actual load geometry, not just the user weight.

Product Line

Related Chair Mechanisms

If the rotating mechanism isn't the right fit for your application, these are the closest alternatives in our line.

Swivel Series

Swivel Chair Mechanism

360° continuous free rotation, no stop positions. Standard for office task chairs and any application where unrestricted rotation is the requirement.

View Product
Base Assembly

Swivel Chair Base Mechanism

The complete base-level swivel assembly including bearing plate and mounting hardware. If you need the full base unit rather than just the mechanism plate, this is the product.

View Product
Lever Series

Lever Chair Mechanism

Lever-actuated adjustment combining tilt lock and height. If your application needs both rotation control and tilt function in a single mechanism, this is worth evaluating.

View Product

Not sure which configuration fits your product? Tell us your chair type, seat height, and target market.

Get a Recommendation
Work With Us

Source Rotating Chair Mechanisms from MVMHardware

Most new buyers start with a sample order — 2–5 units to test fit, rotation feel, and stop-position engagement against their chair frames. We can ship samples within 7–10 days of order confirmation.

New to MVMHardware?

Start with a sample order of 2–5 units to test fit, rotation feel, and stop-position engagement against your chair frames. Samples ship within 7–10 days of order confirmation.

Once you've validated the mechanism against your frame, send us your volume requirements and any customization specs to move forward.

Developing a New Seating Line?

Tell us your target price tier, seat height range, and end-use segment. We'll suggest the configuration based on what's working for our existing buyers in your market.

Our engineering team works with OEM and private-label buyers at every stage — from mechanism selection through final spec confirmation.
