Lever Chair Mechanism

Product Overview

What the Lever Mechanism Does and Where It Fits Your Line

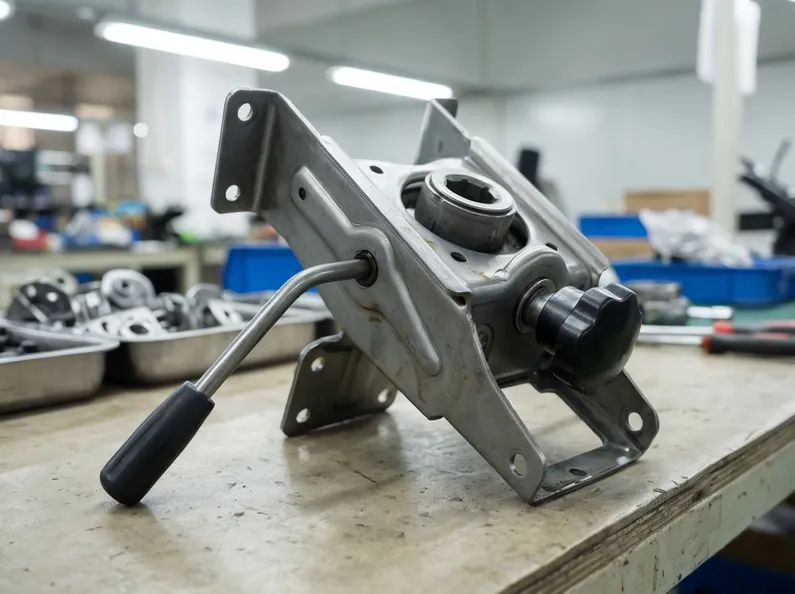

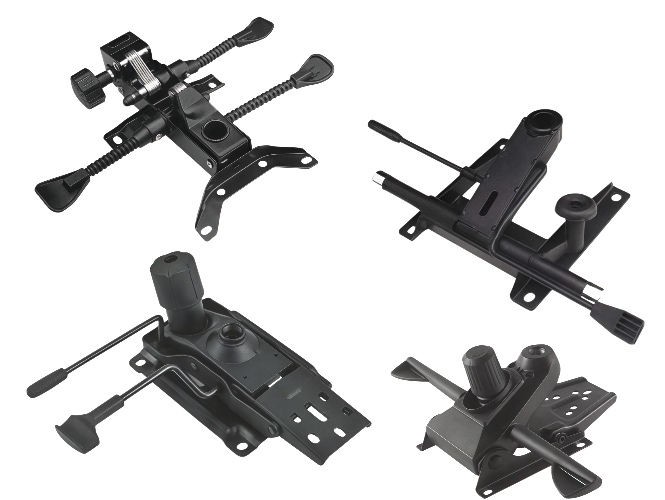

The lever chair mechanism combines tilt-lock and seat-height adjustment into a single lever interface. The user pulls or pushes one lever to release the tilt lock, and a second actuation triggers the gas lift for height change — depending on configuration, these functions can share one lever or run on two dedicated levers mounted to the same mechanism plate.

Either way, the operating logic is simple enough that end users figure it out without instructions, which matters when you're supplying seating for offices, schools, or any environment where chairs get used by people who've never read a manual.

This is the mechanism that sits between a basic fixed-tilt unit and a multi-function synchro. It gives the end user meaningful adjustment without the complexity or cost of a full ergonomic mechanism. For your product line, that means a mechanism that supports a $80–$200 retail price point — the volume tier where most task chair and budget office chair sales actually happen.

We produce the lever chair mechanism on dedicated lines at our 12,000 m² Guangdong facility. As a chair mechanism manufacturer with 17+ years in this category, we've run enough iterations of this design to know where the failure points are and how to engineer around them.

Request a Quote for Lever Chair Mechanisms

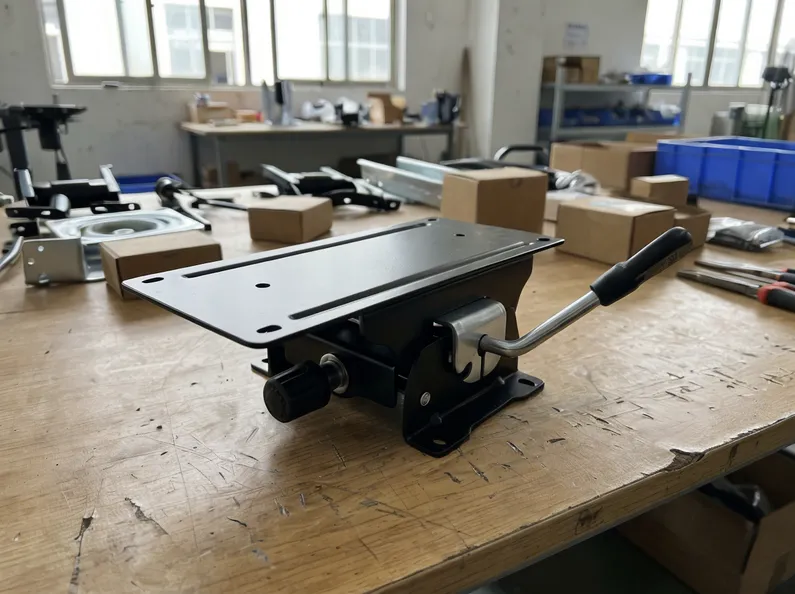

Lever chair mechanism product view showing lever actuation and mounting plate

Tilt Lock + Height

One interface

$80–$200 Retail

Volume tier

12,000 m² Facility

Guangdong

Office Task Seating

The dominant application. Lever actuation is the expected interface at this price tier — familiar to buyers, easy to spec, and straightforward for assembly lines.

Educational & Institutional

Schools and institutions need chairs that users can adjust without instruction. The lever mechanism's intuitive operation reduces support burden in high-turnover environments.

Budget-to-Mid-Range OEM

For OEMs building volume lines, the lever mechanism delivers the adjustment features buyers expect without the BOM cost of a synchro or multi-function mechanism.

Engineering Data

Technical Specifications

Industry-standard parameters for this mechanism type. Contact us for exact product data sheets and configuration-specific drawings.

Standard Specification Table

Base material	Cold-rolled steel (SPCC / Q235)
Plate thickness	2.0 mm – 2.5 mm (standard duty)
Load capacity	100 kg – 130 kg (static rated)
Tilt angle range	0° – 15° with locking positions
Lever actuation force	≤ 25 N (ergonomic threshold)
Gas lift compatibility	Standard Ø50 mm and Ø60 mm
Mounting pattern	Standard 4-hole; custom available
Surface treatment	Zinc plating (std); powder coat opt.
Cycle life	60,000+ cycles (BIFMA X5.1 equiv.)
Operating temperature	-10°C to 60°C
Lever material	Zinc alloy die-cast (in-house)

Specifications shown are industry-standard values for this mechanism type. Actual specifications may vary by configuration. Contact us for detailed product data sheets.

Get Exact Specs and a Quote for Your Volume

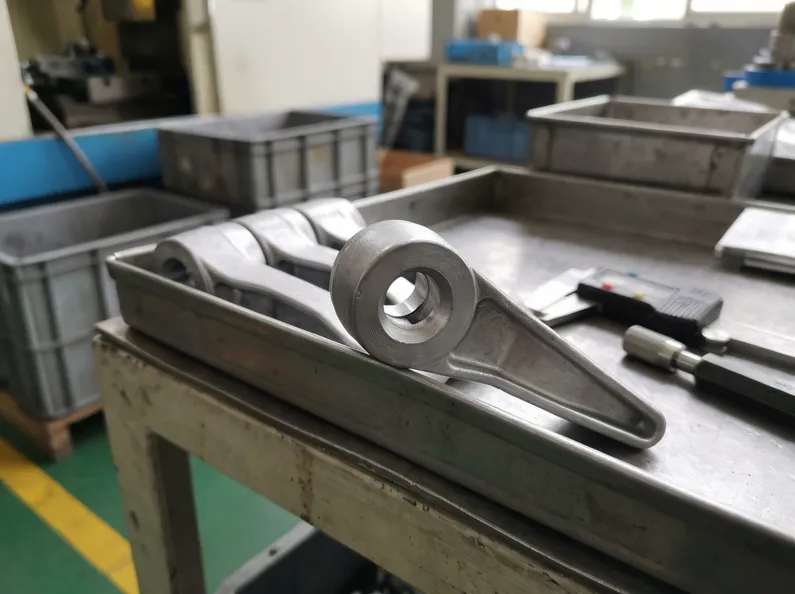

In-house zinc alloy die-cast lever for chair mechanism — consistent bore fit and batch-to-batch dimensional control

Why We Die-Cast the Lever In-House

The lever itself is zinc alloy die-cast on our own floor — we brought die-casting in-house in 2015 after outsourced levers were the leading source of fit complaints.

Dimensional variation in the lever bore caused loose actuation feel and assembly-line rejection rates that added cost to every order. Running the die-casting ourselves means the lever-to-plate fit is consistent batch to batch, and your assembly line doesn't stop to sort rejects.

2015

Die-casting brought in-house to eliminate fit variation

100%

Functionally tested before shipment

Market Fit

Where This Mechanism Earns Margin for Your Business

Budget and Mid-Range Office Task Chairs

The $80–$200 retail task chair is the highest-volume segment in commercial office seating globally. Buyers in this tier need a mechanism that delivers visible adjustment functionality — something the end user can actually operate — without pushing the mechanism cost into territory that collapses the margin. The lever mechanism hits that balance. One lever, two functions, straightforward assembly, and a unit cost that leaves room for your markup.

Contract office furniture dealers and mid-market chair manufacturers are the buyers who move the most volume on this mechanism type. Orders typically run 1,000–5,000 units per SKU, with quarterly or semi-annual reorder cycles tied to their production schedules. Consistent batch quality and on-time delivery matter more than the lowest possible unit price — a mechanism that causes assembly-line stoppages costs more than the price difference between suppliers.

Education and Institutional Seating

Schools, universities, and government offices buy task seating on annual procurement budgets — 200 to 1,000 units per order, repeat annually. These buyers specify simple, durable mechanisms because the chairs get used by multiple people daily and maintenance budgets are thin. The lever mechanism's straightforward actuation means fewer user errors and fewer service calls.

"Institutional buyers specifically request lever mechanisms over multi-function units because their facilities staff can explain the adjustment in one sentence to building occupants."

Institutional orders in this segment are predictable and repeatable — the same school district reorders every 2–3 years as their fleet ages. For a distributor, that's recurring revenue with low acquisition cost per order.

Home Office and Residential Furniture

The home office segment expanded significantly after 2020 and hasn't fully contracted. Residential chair buyers want adjustment features but aren't willing to pay ergonomic-tier prices. The lever mechanism gives furniture retailers a product story — "adjustable height and tilt lock" — at a price point that works for online retail and big-box distribution.

If you're supplying Amazon, Wayfair, or regional furniture chains, this mechanism supports the feature set those channels need to justify a $120–$180 retail price.

E-commerce channel buyers care about return rates. A mechanism with intuitive lever actuation generates fewer "I can't figure out how to adjust it" returns than multi-function units with complex adjustment sequences.

Manufacturing Process

How We Make the Lever Mechanism — The Details That Affect Your Order

Progressive Die Stamping — Plate Geometry

The mechanism plate is stamped on progressive dies from cold-rolled steel coil. Progressive die stamping produces the complete plate geometry — mounting holes, pivot slots, lever pivot bore, spring anchor points — in a single press pass. Tolerances hold at ±0.15 mm across the plate, which means your mounting patterns are consistent across a 5,000-unit run without operator-dependent variation. If you're running a fixed-jig assembly line, that consistency is what keeps your line moving.

In-House Tooling — No Dimensional Drift Between Orders

We maintain the tooling for this mechanism in-house. When you reorder, we run the same die that produced your first batch. No re-tooling lead time, no dimensional drift between orders. Buyers who've sourced from factories that outsource their tooling know what happens when the tool shop changes a detail between runs.

MIG-Welded Tilt Pivot — Verified Penetration Depth

Tilt pivot joints are MIG-welded with verified penetration depth. The tilt pivot is the highest-stress point on any chair mechanism — cyclic load at the pivot is what causes fatigue cracking in mechanisms that fail in the field at 20,000–30,000 cycles. We test representative units from each production run to 60,000+ cycles at rated load. If a pivot fails in testing, the batch gets reworked before it ships.

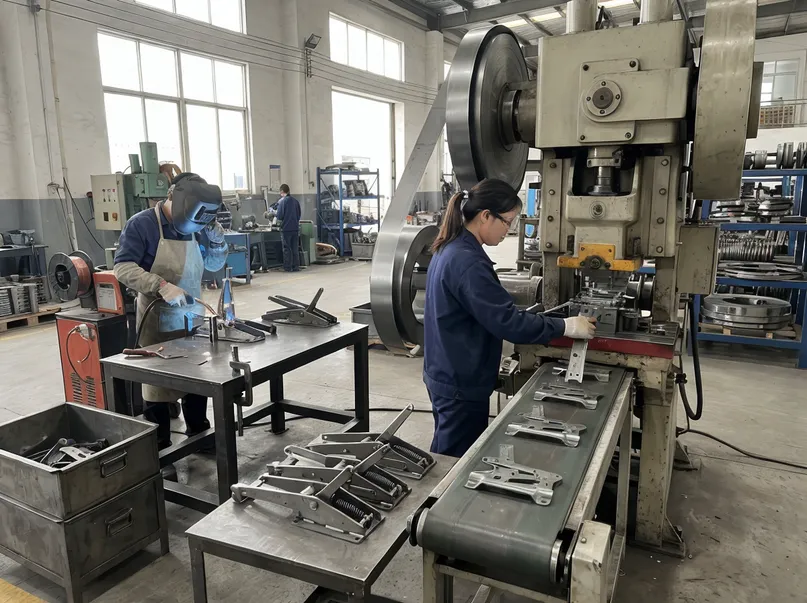

Lever chair mechanism manufacturing — progressive die stamping and MIG welding process at MVMHardware factory

Surface Treatment Options

Standard: Zinc Plating

Default surface treatment on all standard lever mechanisms. Provides reliable corrosion resistance for typical indoor commercial environments.

Optional: Powder Coat over Phosphate Pre-Treatment

For buyers targeting coastal markets or humid environments. 60–80 μm film thickness, 500-hour salt spray tested. The phosphate pre-treatment step is non-negotiable on our powder coat line — it's what separates a coating that lasts from one that bubbles within a season.

±0.15mm

Plate Tolerance

60K+

Cycle Test

500hr

Salt Spray

OEM & Custom Orders

Customization Options for Your Specific Chair Design

Standard lever mechanisms ship at 500-unit MOQ. Custom configurations are available across the following parameters — submit your drawing or reference sample and we'll confirm compatibility or quote a modified plate at no engineering charge for standard modifications.

Customization Dimension	Options
Mounting hole pattern	Standard 4-hole or custom pattern (submit drawing)
Plate thickness	2.0 mm (standard) / 2.5 mm (heavy duty)
Lever geometry	Standard or custom profile (OEM tooling, min. 1,000 units)
Lever finish	Zinc alloy natural, black powder coat, chrome plating
Surface treatment	Zinc plating (standard), powder coat (custom RAL available ≥ 500 units)
Gas lift bore	Ø50 mm (standard) / Ø60 mm (specify at order)
Private label	Packaging and component branding available

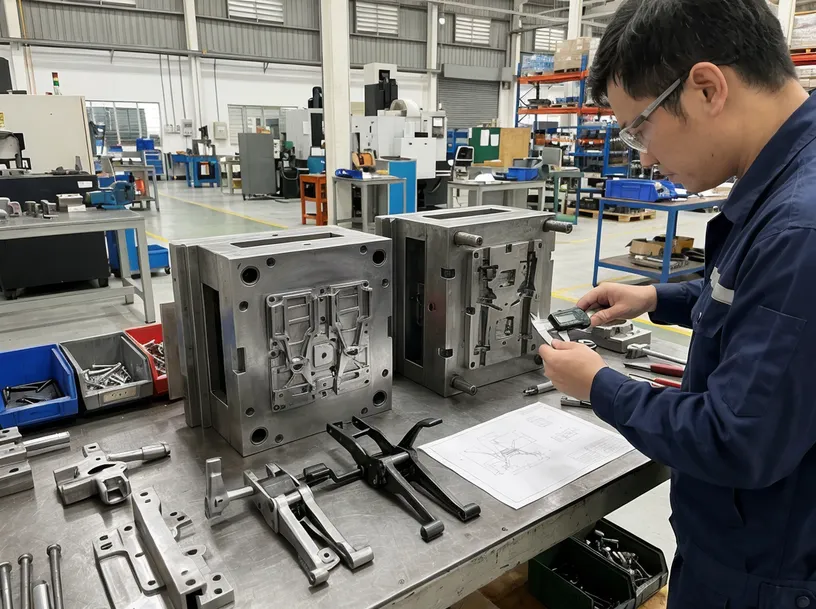

Custom lever mechanism OEM tooling and configuration options

OEM Tooling — In-House

Custom lever geometry requires OEM tooling. Our engineering team cuts tooling in-house, so sample iterations run faster than working through a third-party tool shop. First sample typically arrives 25–35 days from drawing approval, depending on complexity.

If your chair frame uses a non-standard mounting pattern, send us the drawing or a reference sample. We'll confirm compatibility or quote a modified plate at no engineering charge for standard modifications.

Send Your Specs for a Custom Quote

Quality & Compliance

Certifications and Compliance

The lever chair mechanism ships with CE marking and SGS test documentation. RoHS compliance is standard — no restricted substances in the steel, zinc alloy, or surface treatment materials. ISO 9001:2015 governs the quality management system across our facility.

Quality System

ISO 9001:2015

Governs the quality management system across our entire manufacturing facility.

EU Market

CE Marking

CE documentation covers the mechanism's structural and safety requirements for EU buyers.

Testing

SGS Tested

SGS test documentation ships with every order. Third-party BIFMA testing available through our SGS relationship on request.

Materials

RoHS Compliant

No restricted substances in the steel, zinc alloy, or surface treatment materials. Standard across all units.

EU Buyers

CE documentation covers the mechanism's structural and safety requirements. Documentation is included with shipment and available in advance for your compliance review.

North American Buyers

We test to BIFMA X5.1 equivalent protocols. If your customer or end-market requires formal BIFMA certification, we can arrange third-party testing through our SGS relationship.

Learn About Our Manufacturing & Certification Capabilities

Mechanism Comparison

Lever Mechanism vs. Other Chair Mechanisms — Finding the Right Fit

The lever mechanism isn't the right choice for every chair line. Here's how it positions against the adjacent options:

Mechanism Type	Best For	Lever Mechanism Advantage
Simple/basic tilt	Fixed or minimal-adjustment budget seating	Lever adds height + tilt lock at modest cost step-up
Lever mechanism	Budget to mid-range task chairs, institutional seating	Single-lever simplicity, lower unit cost than synchro
Tilt mechanism	Standard office task chairs	Lever integrates height actuation; tilt-only units don't
Synchro mechanism	Premium ergonomic task chairs ($300+ retail)	Synchro adds seat/back ratio control; higher cost
Hydraulic mechanism	Height-only adjustment without tilt lock	Lever adds tilt lock function to height adjustment

If you're building a chair line that spans multiple price tiers, the lever mechanism typically anchors the entry-to-mid tier while synchro handles the premium tier. Many of our buyers run both SKUs — contact us and we can quote both in a single order.

Buyer Questions

Frequently Asked Questions

What is a lever chair mechanism and how does it differ from a standard tilt mechanism?

A lever chair mechanism uses a single lever (or dual levers on the same plate) to control both tilt lock and seat height adjustment. A standard tilt mechanism typically controls only the tilt function, with height adjustment handled separately. The lever mechanism integrates both functions into one actuation interface, which simplifies the end-user experience and reduces the number of components your assembly line handles. For budget to mid-range seating, this integration is the feature that justifies the price step above a basic tilt unit.

What load capacity should I specify for commercial office use?

For standard commercial office use (single-shift, 8 hours/day), a 100 kg static rated load is the minimum. For environments with heavier users or multi-shift use (call centers, 24/7 operations), specify 130 kg. We test to 1.5× rated load on a statistical sample basis — so a 130 kg rated mechanism is structurally verified to 195 kg before it ships. Specify your end-use environment when you inquire and we'll confirm the right load rating.

Can the lever mechanism be configured for left-hand or right-hand lever placement?

Standard configuration is right-hand lever placement. Left-hand placement is available as a custom configuration — it requires a mirrored plate geometry, which we can produce from existing tooling with minor modification. MOQ for non-standard lever placement is typically 500 units. Specify your requirement at the inquiry stage.

What is the MOQ and lead time for lever chair mechanisms?

Standard lever mechanisms start at 500 units. Lead time for standard configurations is 20–30 days from order confirmation and deposit. Custom configurations (modified mounting patterns, OEM lever geometry) add 25–35 days for tooling before production begins. Sample orders (2–5 units) ship within 7–10 days.

500

Min. Order Units

20–30 days

Standard Lead Time

7–10 days

Sample Order Ship

Does the lever mechanism work with all gas lift cylinders?

Standard configurations are compatible with Ø50 mm and Ø60 mm cylinder bores — the two most common sizes in the market. If your existing chair frame uses a non-standard cylinder diameter, send us the spec and we'll confirm compatibility or quote a modified bore. Mixing cylinder specs in a single order is not a problem — specify per-unit requirements at order placement.

What certifications does the lever chair mechanism carry?

CE marking, SGS test documentation, and RoHS compliance are standard. ISO 9001:2015 governs our QC system. BIFMA-equivalent cycle testing is part of our standard protocol. If your market requires formal BIFMA or EN 1335 certification, we can arrange third-party testing — contact us to discuss requirements before your order.

CE Marking

SGS Tested

RoHS Compliant

ISO 9001:2015

Request a Quote

Get a Quote for Lever Chair Mechanisms

Most new buyers start with a sample order — 2–5 units to test fit against your chair frames and verify lever actuation feel before committing to production quantities. We ship samples within 7–10 days of order confirmation.
