Tilt Chair Mechanism —
Standard Center-Tilt for Mid-Range Office and Task Chairs

The workhorse tilt chair mechanism — center-pivot design, tension-adjustable, built for 60,000+ cycle commercial life.

Stamped from cold-rolled steel to ±0.15mm tolerance. Every unit 100% functionally tested before it ships. The mechanism your mid-range task chair line needs to hold margin without warranty callbacks.

Get a Quote for This Tilt Mechanism View All Chair Mechanisms

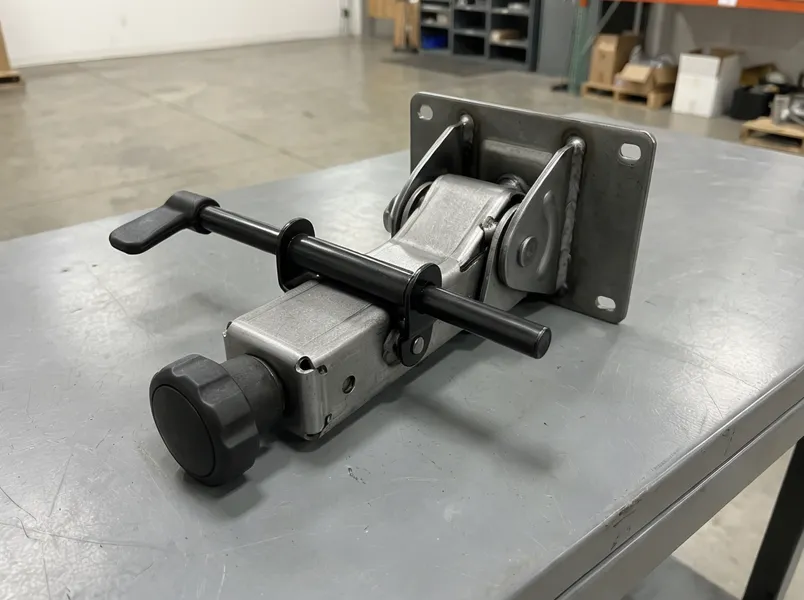

Standard center-tilt chair mechanism — cold-rolled steel, tension-adjustable, 60,000-cycle rated
60K+
Cycle Life
±0.15mm
Tolerance
100%
Tested

Product Overview

What This Mechanism Is and Where It Sits in the Chair Line

The tilt chair mechanism is a center-pivot assembly that allows the seat and backrest to recline together as a single unit when the user leans back, returning to upright via a coil spring when pressure is released. Tension is adjustable — typically via a knob underneath the seat — so the resistance can be tuned to the user's weight. A tilt-lock lever holds the chair in a fixed recline position when engaged.

This is the standard mechanism for mid-range office and task chairs in the $100–$300 retail bracket. It's not the most feature-rich mechanism in our catalog — that's the synchro chair mechanism, which moves seat and backrest independently at a fixed ratio. And it's not the stripped-down budget option — that's the simple chair mechanism.

The standard tilt sits in the middle: enough adjustment to justify a mid-tier price point, simple enough to assemble quickly on your production line, and durable enough to survive commercial office use without warranty claims.

If you're building or importing a task chair line targeting the $150–$250 retail range, this is the mechanism that fits the cost structure and the feature expectation. Most of our buyers in this segment run it as their core SKU, with the synchro as a step-up option on their premium models.

Request a Quote for the Standard Tilt Mechanism

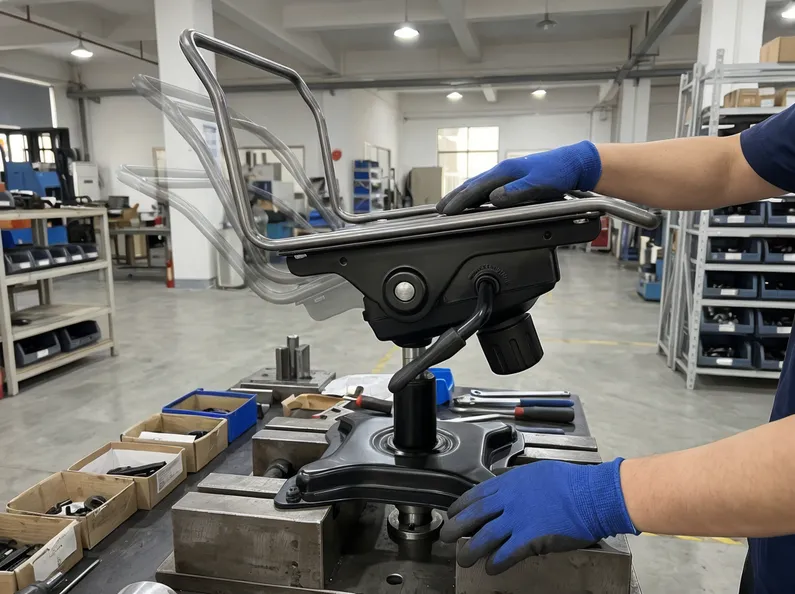

Center-pivot tilt mechanism assembly showing seat and backrest recline movement
Position
Mid-Range Tier
$100–$300 retail
Adjustment
Tension Knob
+ tilt lock lever
Movement
Unified Recline
Seat + back together

Where It Fits in the Catalog

Simple mechanism — budget tier, minimal adjustment
Standard tilt — this product, mid-range core SKU
Synchro mechanism — premium, independent seat/back ratio

Technical Data

Tilt Mechanism Specifications

These are industry-standard parameters for this mechanism type. Actual specifications may vary by configuration — contact us for detailed product data sheets and drawings.

Parameter
Specification
Mechanism type
Center-pivot tilt, seat and backrest move together
Base material
Cold-rolled steel (SPCC), Q235 for heavy-load variants
Plate thickness
2.0–2.5 mm (standard); 2.5–3.0 mm (heavy-duty)
Load capacity
120 kg (standard) · 150 kg (heavy-duty)
Tilt angle range
0°–15° (standard); up to 20° extended-range
Tilt return
Coil spring, tension-adjustable via knob
Tilt lock
Multi-position lever lock, positive engagement
Gas lift compatibility
Ø50 mm and Ø60 mm cylinder bore (standard)
Mounting pattern
Standard 4-hole; custom patterns available
Surface treatment
Zinc plating (standard); nickel or powder coat on request
Cycle life
60,000 cycles minimum (BIFMA X5.1 equivalent)
Operating temperature
-10°C to 60°C
Certifications
CE SGS RoHS

Specifications shown are industry-standard values for this mechanism type. Contact us for exact product data sheets and configuration-specific parameters.

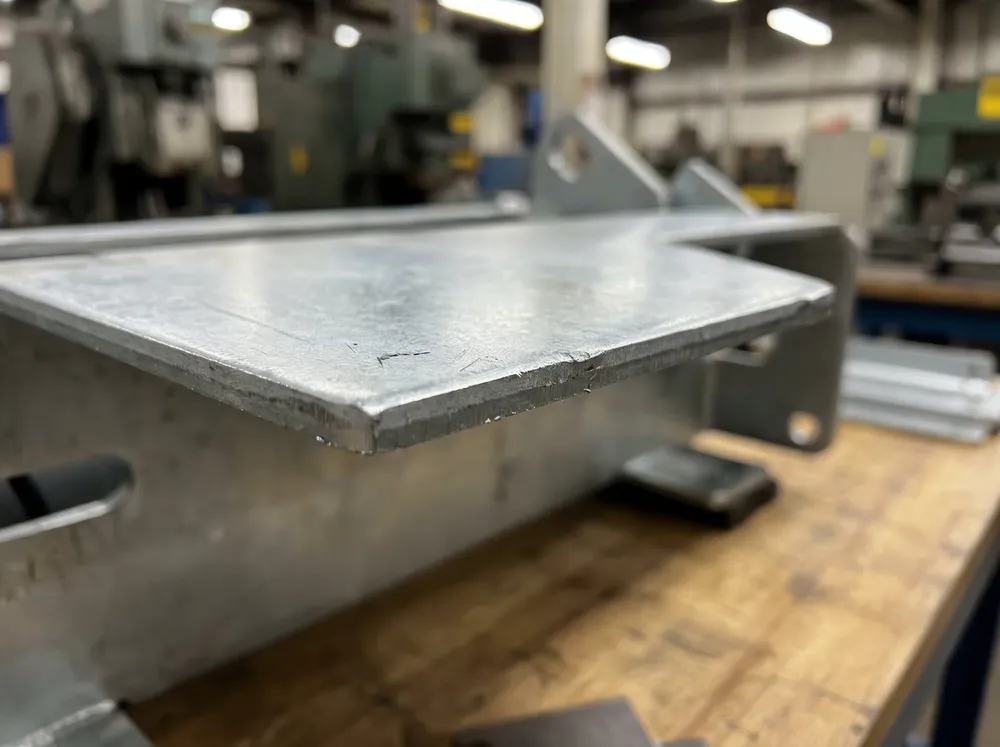

Cold-rolled steel plate detail showing 2.0–2.5mm thickness and zinc plating finish

Spec Up for Shift-Work Environments

The heavy-duty variant at 150 kg / 3.0 mm plate is what we recommend for call center and 24/7 environments. The standard 120 kg spec is right for typical 8-hour office use, but if your downstream buyers are supplying shift-work environments, spec up.

Standard vs. Heavy-Duty

Load Capacity 120 kg → 150 kg
Plate Thickness 2.0–2.5 mm → 2.5–3.0 mm
Tilt Angle 15° → up to 20°
Send Frame Drawings for Fit Confirmation
Manufacturing Process

How We Build the Tilt Pivot — The Part That Determines Cycle Life

The tilt pivot is the highest-stress point on any chair mechanism. Every load cycle — every time a user leans back and returns — runs through that joint. Get the pivot wrong and you get fatigue cracking at 20,000–30,000 cycles, which is inside the first year of daily office use. We've seen it on competitor mechanisms that come through our lab for comparison testing. The failure mode is almost always the same: insufficient weld penetration at the pivot bracket, or an undersized pivot pin that work-hardens and cracks under cyclic load.

Pivot Construction Standards

  • MIG-Welded with Verified Penetration Depth

    Structural joint verification — not visual inspection only. Weld penetration is confirmed at the bracket, not assumed.

  • Pivot Pin Sized to Load Rating with Safety Margin

    Pin diameter is calculated against the rated load, not minimized for cost. Work-hardening and cyclic crack failure are designed out at the specification stage.

  • 60,000+ Cycle Accelerated Testing Per Production Batch

    Representative units from each production run are tested at rated load before the batch ships. Pivot failure in testing triggers batch rework — this is standard protocol, not an exception process.

The mechanism plate itself is stamped on progressive dies from cold-rolled steel coil stock. Progressive die stamping produces the complete plate geometry — mounting holes, pivot slots, spring anchor points — in a single press stroke, so dimensional consistency holds across a 10,000-unit run without operator-dependent variation.

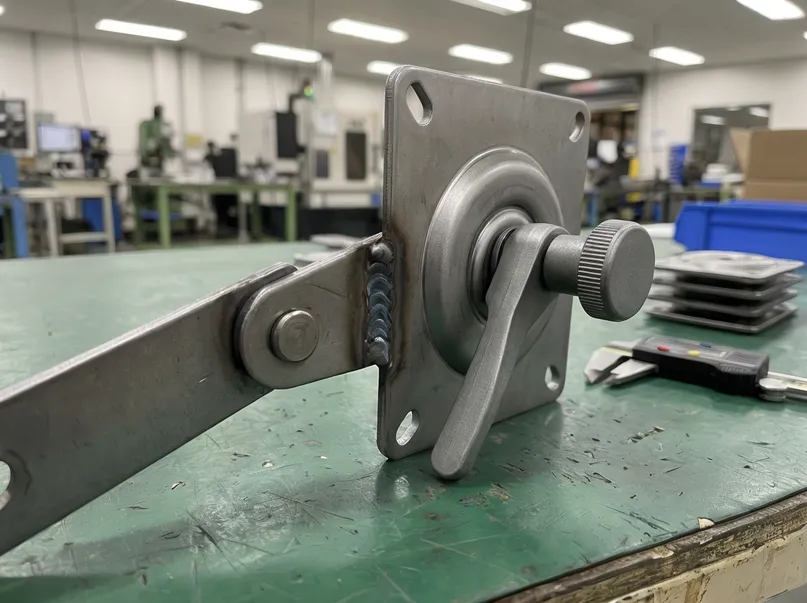

Tilt pivot MIG weld construction and progressive die stamped mechanism plate
±0.15mm
Stamping tolerance across 10,000-unit runs
60,000+
Cycles tested at rated load per batch

In-House Die-Cast Controls

The tilt-lock lever and tension adjustment knob are zinc alloy die-cast, produced in-house. We brought die-casting inside in 2015 specifically because outsourced die-cast components were the leading source of quality complaints — loose-fitting knobs, inconsistent surface finish, dimensional variation that caused assembly problems. Controlling that process on our floor means the components your end users actually touch meet the same standard as the structural parts they never see.

Your assembly line can use fixed jigs without manual adjustment per piece, and your mounting patterns stay consistent across reorders because we're running the same die that produced your last batch.

Buyer Segments

Market Segments Where This Mechanism Drives Recurring Orders

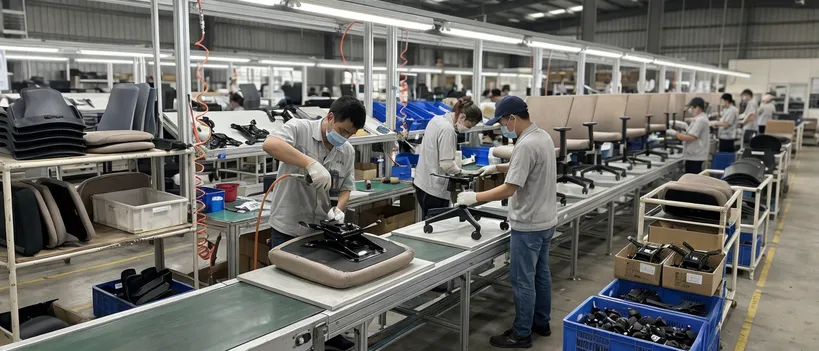

Contract office furniture manufacturing assembly line using tilt chair mechanisms
Primary Segment

Contract Office Furniture Manufacturing

Office furniture manufacturers running mid-range task chair lines are the primary buyer for this mechanism. A typical contract furniture manufacturer runs 3–5 mechanism SKUs across their seating line — the standard tilt covers the volume middle of that range.

  • Order patterns: 2,000–10,000 units per production run, reorders every 3–6 months
  • Progressive die stamping keeps hole positions consistent across reorders — your assembly line stays tooled without adjustment
  • Same die, same geometry, every run — batch consistency is structural, not a quality-control promise

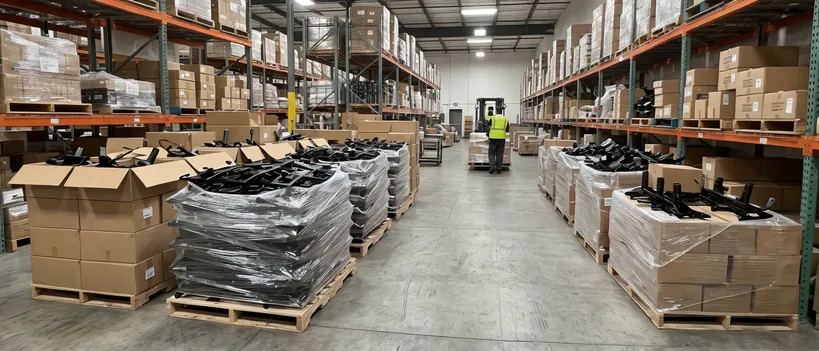

Office furniture importer and distributor warehouse stocking tilt chair mechanisms
Volume SKU

Office Furniture Importers and Distributors

If you're importing assembled chairs or sourcing mechanisms for your own assembly operation, the standard tilt is the SKU that moves volume. It fits the broadest range of mid-tier chair frames and supports healthy margin at the $150–$250 retail level.

  • Core mechanism SKU for North American and European distributors
  • Standard tilt + synchro together cover most of the task chair market — natural two-SKU stocking strategy
  • Synchro serves as the premium upsell; standard tilt anchors the volume middle

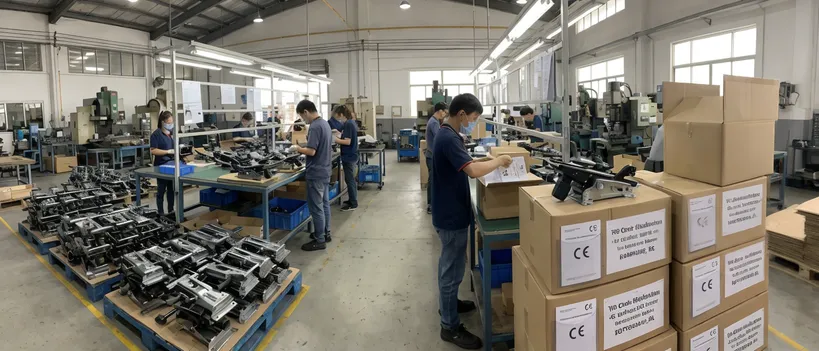

OEM chair manufacturer in Southeast Asia producing for European export with CE certified mechanisms
Export Manufacturing

OEM Chair Manufacturers in Southeast Asia and the Middle East

Furniture manufacturers in Vietnam, Malaysia, Turkey, and the Gulf states who produce for export to Europe and North America need mechanisms that arrive with CE and SGS documentation already in hand. Your buyers' compliance teams won't accept mechanisms without it, and chasing certification paperwork after the fact costs time and delays shipments.

  • CE declaration of conformity and SGS test reports ship with the order
  • Your customs broker and compliance team get what they need on arrival — no follow-up required
  • This segment has grown significantly over the past three years as regional furniture manufacturing in Southeast Asia scales up for European export
Corporate office fit-out contractor specifying commercial seating with certified tilt mechanisms
Project Procurement

Corporate Procurement and Fit-Out Contractors

Project contractors specifying seating for office fit-outs — 200 to 2,000 chairs per project — need mechanisms that meet commercial durability specs and come with documentation for the project file. The 60,000-cycle rating covers the standard commercial office use case, and CE certification satisfies European building and workplace compliance requirements.

  • 60,000-cycle rating meets commercial office durability specifications
  • CE certification satisfies European building and workplace compliance requirements
  • Contractors reorder on project cycles — predictable volume and repeat business when the chair holds up in the field
2,000–10,000
Units per production run (contract manufacturers)
200–2,000
Chairs per fit-out project (procurement contractors)
$150–$250
Retail price range supported by this mechanism

Configure Your Order

Customization Options and What They Mean for Your Order

The standard tilt mechanism ships in a catalog configuration, but most buyers need at least one modification. Here's what we can do and what it means for your MOQ and lead time.

Customization What's Possible MOQ Impact
Mounting hole pattern Custom 4-hole or 6-hole patterns, non-standard spacing 500 units minimum; same lead time as standard
Plate thickness / load rating 2.0 mm, 2.5 mm, 3.0 mm options Standard MOQ; specify at order
Tilt angle range Extended range up to 20° available Standard MOQ
Surface treatment Zinc plating (standard), nickel plating, powder coat (black, silver, custom RAL) Custom RAL colors: 500 units minimum
Gas lift bore Ø50 mm (standard), Ø60 mm, custom bore on request Custom bore: confirm via inquiry
Private label / branding Branded packaging, laser-marked components Discuss at quoting stage
Full OEM geometry Custom plate geometry, modified pivot location, integrated features Tooling project — quoted based on your spec

Standard Catalog MOQ

Standard catalog mechanisms ship at 500-unit MOQ. Custom mounting patterns and surface treatments don't change that threshold. We tell you that upfront rather than quoting it and surprising you later.

Full OEM Tooling Projects

Full OEM tooling projects have flexible MOQ arrangements based on tooling amortization. We work through the numbers during quoting rather than giving you a round figure.

Ready to configure your order?

Tell us your configuration requirements — we'll come back with a specific quote.

Request a Quote

Regulatory Compliance

Compliance Documentation for Your Target Market

All documentation ships with the order. You don't chase us for paperwork after the container leaves.

CE Marking

Covers European market requirements. Declaration of conformity included as standard with every order.

SGS Third-Party Testing

Provides the audit trail your compliance team needs. SGS test reports ship with the order as standard documentation.

RoHS Compliance

Confirms restricted substance compliance for EU and California markets. No hexavalent chromium — trivalent chromium passivation on the zinc plating line.

HTS Classification Docs

For North American importers, we provide the material and compliance documentation your customs broker needs for HTS classification.

BIFMA Cycle Testing

BIFMA X5.1 equivalent cycle testing is our standard protocol. If your buyer or project spec requires formal BIFMA certification, we can arrange third-party testing through our SGS relationship.

60,000-cycle tested as standard

What Ships With Every Order

  • CE declaration of conformity
  • SGS test reports
  • RoHS compliance statement
  • Packing documentation

Need specific certification documentation?

Learn more about our manufacturing and certification capabilities.

About Our Certifications

Logistics & Landed Cost

Packaging, Container Loading, and Landed Cost

Tilt mechanisms are packed in standardized export cartons, individually wrapped to prevent surface damage in transit. Carton dimensions are sized for 40HQ container loading efficiency — we've worked out the pallet configurations so your freight forwarder isn't improvising at the warehouse.

Typical 40HQ loading for standard tilt mechanisms: approximately 3,000–4,000 units depending on configuration and packaging spec. For buyers calculating landed cost per unit, container utilization at this volume is efficient — the mechanism's compact form factor means you're not paying to ship air.

For buyers who need retail-ready packaging, branded cartons, or FBA-compliant labeling for Amazon or Wayfair fulfillment, that's handled as part of the OEM arrangement. We've set up branded packaging programs for several North American importers who sell through both B2B and e-commerce channels — the same mechanism, two packaging configurations, one supplier relationship.

Export Carton Packing

Individually wrapped units in standardized cartons. Pallet configurations pre-calculated for 40HQ loading — no guesswork at the warehouse.

40HQ Container Capacity

Approximately 3,000–4,000 units per 40HQ depending on configuration. Compact form factor maximizes container utilization — you're not paying to ship air.

OEM & Retail-Ready Packaging

Branded cartons, FBA-compliant labeling for Amazon or Wayfair. Same mechanism, two packaging configurations — one supplier relationship for both B2B and e-commerce channels.

Buyer FAQ

Frequently Asked Questions — Tilt Chair Mechanism Sourcing

What is the difference between a standard tilt mechanism and a synchro-tilt mechanism?

A standard tilt moves the seat and backrest together as a single unit — the whole chair rocks from a center pivot. A synchro-tilt mechanism moves seat and backrest independently at a fixed ratio (typically 1:2 or 1:3), keeping the user's feet closer to the floor during recline. The synchro design is the feature that justifies a $300+ retail price point on ergonomic task chairs. For mid-range task chairs in the $150–$250 range, the standard tilt is the right cost-to-feature fit. If you're building a premium ergonomic line, look at our synchro chair mechanism.

What cycle life should I specify for commercial office use?

For standard office task chairs used 8 hours daily, 60,000 cycles covers roughly 3–5 years of heavy use. That's our minimum test threshold for this mechanism. For 24/7 environments — call centers, control rooms, shift-work facilities — specify the heavy-duty variant and ask us about 100,000-cycle testing. Specifying cycle life in your purchase order protects you from warranty claims downstream; we'll confirm the test protocol in writing.

Can I get a custom mounting hole pattern without a full OEM tooling project?

Yes. Modified mounting patterns are a standard customization — we adjust the die punch layout for your hole spacing and run it at standard MOQ (500 units). This is the most common customization request we get from buyers who are fitting our mechanism into an existing chair frame design. Send us your frame drawing or a dimensioned sketch and we'll confirm feasibility before quoting.

What causes tilt mechanisms to fail prematurely, and how do I avoid it when sourcing?

The two most common failure modes are tilt pivot fatigue cracking and tilt-lock slip under load. Pivot cracking comes from insufficient weld penetration at the pivot bracket or an undersized pivot pin — it shows up at 20,000–30,000 cycles, inside the first year of daily use. Lock slip comes from worn or imprecisely machined lock engagement surfaces. When evaluating suppliers, ask specifically for cycle test reports at rated load, not just at reduced load. Ask whether the pivot joint is MIG-welded with penetration verification or just tack-welded. Those two questions separate manufacturers who test seriously from those who don't.

What is the MOQ, and can I mix this with other mechanism types in one order?

Standard tilt mechanisms start at 500 units. You can mix multiple mechanism types in a single order — our production lines run by product type, so different mechanisms run in parallel rather than sequentially. A mixed order doesn't extend your lead time. For new buyers, we recommend starting with 2–5 sample units to verify fit with your chair frames before committing to production quantities.

Does this mechanism come with CE certification, and what documentation ships with the order?

Yes. CE declaration of conformity, SGS test reports, and RoHS compliance documentation ship with every order as standard. You don't need to request them separately. For North American buyers, we include the material documentation your customs broker needs for HTS classification. If your project or buyer spec requires BIFMA certification, we can arrange third-party testing — ask us at the quoting stage.

Explore the Full Line

Related Mechanisms — Finding the Right Fit for Your Chair Line

The standard tilt is the right choice for most mid-range task chair applications. If your requirements point elsewhere, use this guide to match mechanism type to your target price tier and end-use environment.

Independent Movement

Synchro Chair Mechanism

1:2 or 1:3 ratio, independent seat and backrest movement. The mechanism that supports $300+ retail pricing for ergonomic lines.

View Synchro Mechanism
Active Sitting

Forward Tilt Chair Mechanism

Adds a 5° forward seat angle for drafting and lab applications. Designed for active sitting postures.

View Forward Tilt
Backrest Only

Push Back Chair Mechanism

Backrest recline only — seat stays fixed. Common in guest chairs and lighter-duty task seating.

View Push Back
Budget Volume

Simple Chair Mechanism

Minimal adjustment, high volume, tight landed cost. The lowest unit cost option for budget seating lines.

View Simple Mechanism
Executive / Conference

Knee Tilt Chair Mechanism

Pivot point shifted forward — seat front stays level during recline. Preferred for executive and conference seating.

View Knee Tilt
Full Catalogue

View All Chair Mechanisms

Browse the complete mechanism line by price tier, movement type, and end-use segment.

View Full Line

Not sure which configuration fits your target price tier and end-use environment? Send us your chair design brief and retail positioning — we'll recommend the right mechanism.

Request a Quote

Get a Quote for the Tilt Chair Mechanism

Most new buyers start with a sample order — 2–5 units — to test fit, function, and finish against their chair frames before committing to production quantities. We can ship samples within 7–10 days of order confirmation.

If you already know your configuration, send us your mounting pattern drawing, load rating requirement, and target volume. If you're building a new chair line and need mechanism recommendations across multiple price tiers, tell us your target retail range and end-use segment — we'll suggest the mechanism mix based on what's moving for our existing buyers in your region.
