Heavy-Duty & Industrial

Metal Chair Mechanism

Full-metal chair mechanisms built for environments where plastic components fail — industrial, outdoor, institutional, and high-abuse seating applications.

Cold-rolled steel body, zinc alloy die-cast hardware, 100% functional testing before shipment. When your downstream customers can't afford mechanism failure, this is the spec.

ISO 9001:2015 CE Certified SGS · RoHS 500-unit MOQ
Get a Quote All Chair Mechanisms

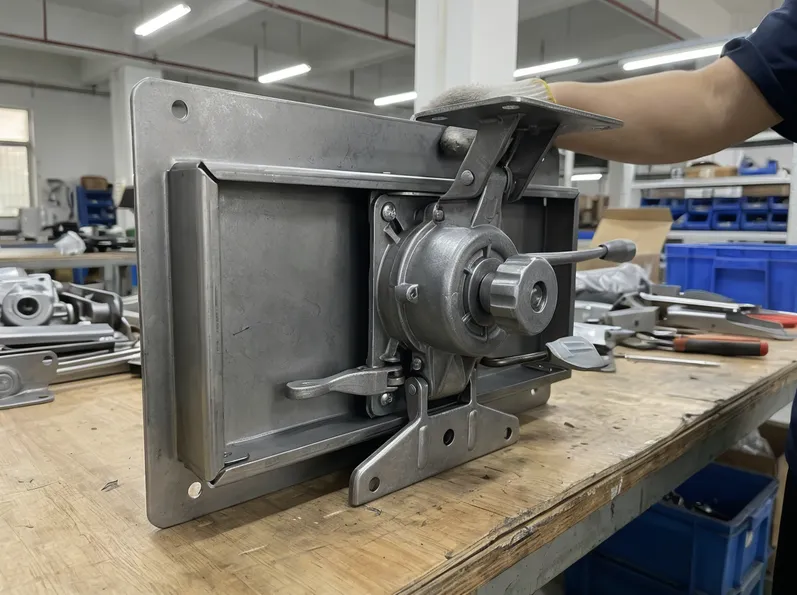

All-metal chair mechanism — cold-rolled steel body with zinc alloy die-cast hardware

Product Intelligence

What Makes a Metal Chair Mechanism Different — and When You Need It

Most chair mechanisms combine a stamped steel structural plate with plastic adjustment knobs, nylon tilt-lock levers, and polymer bushings at the pivot points. That's a reasonable design for a climate-controlled office chair used eight hours a day by a single occupant. It's the wrong design for a factory floor, an outdoor terrace, a school workshop, or any environment where temperature swings, moisture, UV exposure, or rough handling are part of daily life.

Impact Resistance

All-metal knobs, levers, and housings don't crack under impact. Zinc alloy die-cast components absorb shock loads that shatter polymer equivalents.

UV & Solvent Stability

No polymer degradation from UV exposure or industrial solvents. Metal components maintain dimensional stability across the full operating temperature range of -20°C to 80°C.

Humidity & Coastal Environments

Zinc plating, nickel plating, or powder coating (60–80 μm) prevents seizing in humid or coastal environments where nylon bushings absorb moisture and bind.

Heavy-User Load Cycles

Rated to 80,000+ cycles at load. A 120 kg user dropping into the chair repeatedly across a ten-year service life is the design scenario, not the edge case.

In-House Die-Cast Components

All-metal components sourced from our in-house zinc alloy die-casting operation — the same facility supplying die-cast parts across our 25-mechanism catalog. No third-party component suppliers.

Same Production Lines

Produced on the same progressive die stamping lines as our full chair mechanism range, using SPCC cold-rolled steel plate at 2.0–3.0 mm thickness depending on load rating.

Sourcing Decision Framework

Is All-Metal Right for Your Market Segment?

The relevant question isn't "is all-metal better?" — it's "does your target market segment require it?" For climate-controlled office environments with standard occupancy, a standard mechanism is the correct spec. For factory floors, outdoor terraces, school workshops, institutional seating, or any application with temperature swings, moisture, UV exposure, or rough handling, all-metal construction is the correct spec.

View full chair mechanism range
Standard Mechanism
  • Climate-controlled office
  • Single occupant, 8hr/day
  • Standard load ratings
  • Lower unit cost
Metal Mechanism
  • Industrial / outdoor
  • High-abuse, multi-user
  • 120–200 kg rated
  • 10-year service life

Engineering Data

Technical Specifications

Specifications shown are industry-standard values for this product type. Exact parameters vary by configuration. Contact us for detailed product data sheets and drawings.

Parameter Specification
Body material Cold-rolled steel (SPCC / Q235)
Steel plate thickness 2.0 mm – 3.0 mm (standard and heavy-duty)
Adjustment components Zinc alloy die-cast (knobs, levers, lock housings)
Pivot bushings Steel or brass (no nylon/polymer)
Load capacity 120 kg – 200 kg (varies by configuration)
Tilt angle range 0° – 20° with adjustable spring tension
Tilt lock positions 3–5 positions (configuration-dependent)
Mounting pattern Standard 4-hole and 6-hole; custom patterns available
Gas lift compatibility Ø50 mm and Ø60 mm cylinder bore
Surface treatment Zinc plating, nickel plating, or powder coating (60–80 μm)
Operating temperature -20°C to 80°C
Cycle life 80,000+ cycles at rated load (BIFMA X5.1 equivalent)
Certifications CE, SGS, RoHS; ISO 9001:2015 quality system
Request a Quote with Your Target Spec

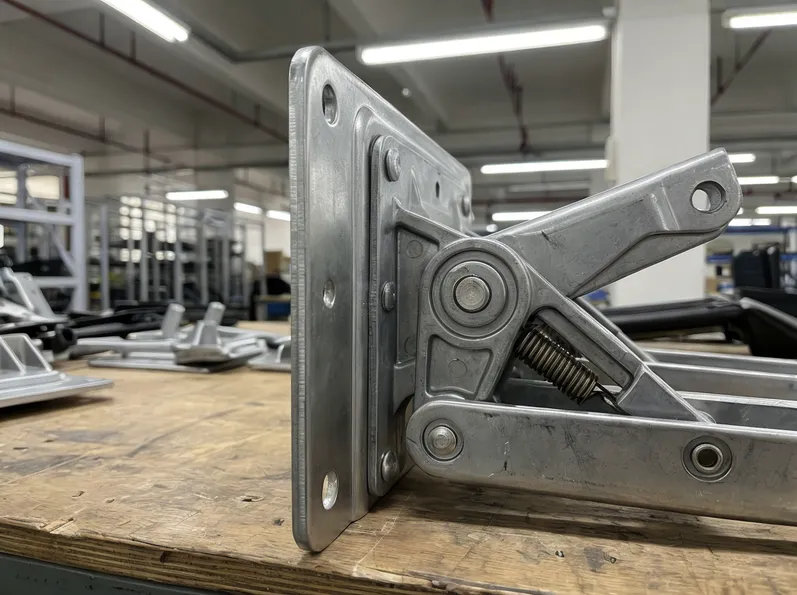

Metal chair mechanism technical detail — steel plate thickness and zinc alloy die-cast components
200 kg
Max Load Capacity
80K+
Cycle Life at Rated Load
3.0 mm
Max Steel Plate Thickness
100°C
Operating Temp Range

Surface Treatment Options

Zinc Plating
Standard corrosion protection. Suitable for indoor industrial and institutional environments.
Nickel Plating
Enhanced corrosion and wear resistance. Preferred for coastal and high-humidity applications.
Powder Coating (60–80 μm)
Full color range available. OEM color matching supported. Preferred for outdoor and branded seating programs.
Market Applications

Where Metal Chair Mechanisms Generate Recurring Revenue

These are the commercial segments where all-metal construction is either required by the application or commands a meaningful price premium over standard mechanisms — both of which translate to margin opportunity for your business.

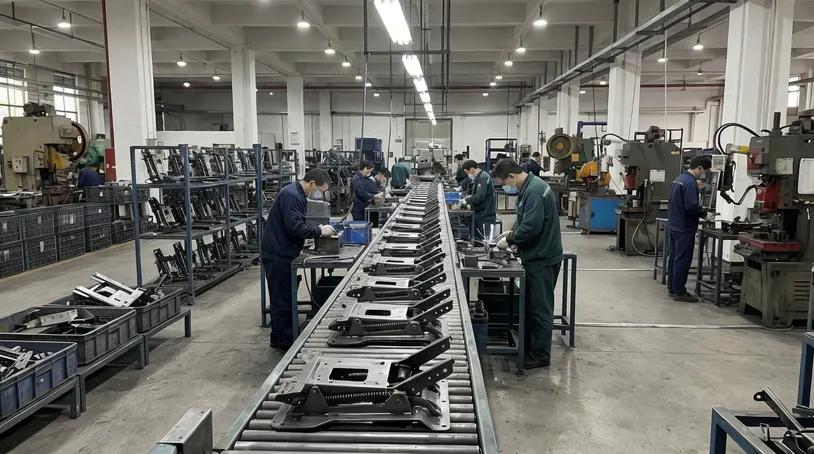

All-metal chair mechanisms in industrial manufacturing facility

Industrial and Manufacturing Facilities

Factory floors, warehouses, and production environments expose seating to oil mist, metal dust, temperature cycling, and rough handling. Plastic mechanism components absorb contaminants, crack under impact, and degrade from solvent cleaning. Facilities managers in this segment have learned to specify all-metal mechanisms after one replacement cycle with standard hardware — which means once you place this product with an industrial furniture supplier or facilities contractor, the reorder is predictable.

50–300
Units per facility
3–5 yr
Replacement cycle
Metal chair mechanisms for outdoor restaurant terrace and hotel pool deck seating

Outdoor and Semi-Outdoor Seating

Restaurant terraces, hotel pool decks, stadium seating, and covered outdoor venues need mechanisms that survive humidity, rain exposure, and UV without degrading. Zinc-plated or powder-coated all-metal mechanisms are the only viable option for these applications — polymer components yellow, crack, and seize within 12–18 months of outdoor exposure. Hospitality and venue operators in coastal markets (Southeast Asia, the Gulf, Mediterranean) are particularly active buyers of this specification.

Growing inquiry volume from Middle East hospitality projects — the combination of heat, humidity, and high-end venue standards makes all-metal the default spec.

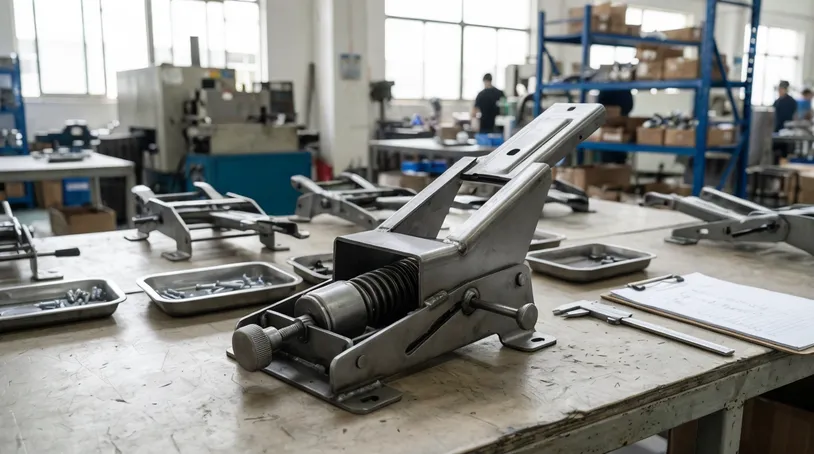

All-metal chair mechanisms for schools, healthcare, and institutional environments

Institutional and High-Abuse Environments

Schools, correctional facilities, military installations, and healthcare settings share a common requirement: mechanisms that survive deliberate abuse and require zero maintenance. All-metal construction eliminates the failure modes that generate maintenance calls — broken plastic levers, cracked knob housings, seized polymer bushings. For distributors supplying institutional furniture contractors, the metal mechanism specification is a straightforward upgrade sell that protects your customer's maintenance budget and your own warranty exposure.

200–1,000
Units per project
Annual
Repeat cycles

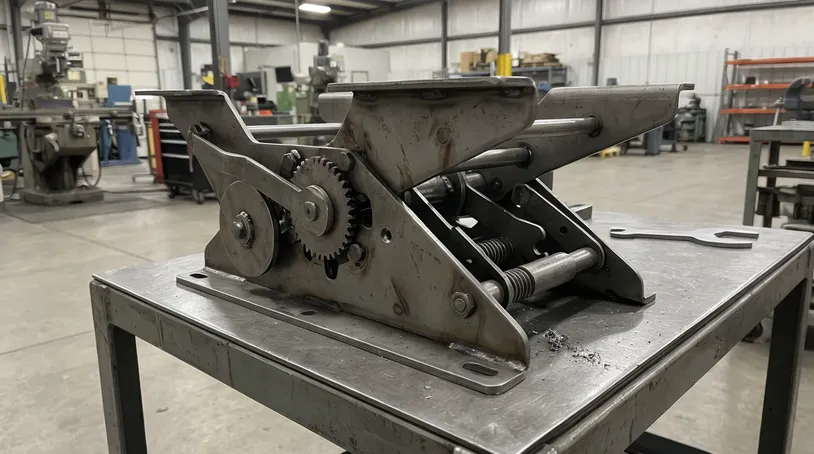

Metal chair mechanisms for contract and specification furniture in airports and transit hubs

Contract and Specification Furniture

Architects and interior designers specifying commercial seating for high-traffic public spaces — airports, transit hubs, libraries, government offices — increasingly write all-metal mechanism requirements into their specifications. If you supply to the contract furniture channel, having a certified all-metal mechanism in your catalog means you can respond to these specs without substitution. The contract channel also tends to be less price-sensitive than the commodity office furniture market, so the mechanism's higher unit cost is absorbed into the project margin rather than squeezed.

Tell us which segment you're targeting — we'll confirm the right configuration
Manufacturing Process

Material and Process Decisions That Affect Your Warranty Exposure

Cold-rolled steel plate stamping on progressive die press for chair mechanism structural plates

Structural Plate: Cold-Rolled Steel

The structural plate is stamped from cold-rolled steel coil — SPCC for standard-duty configurations, Q235 for heavy-load. We run these on progressive die presses, which means the complete plate geometry (mounting holes, pivot slots, spring anchor points, tilt-stop features) is produced in a single press stroke. Tolerances hold at ±0.15 mm across a production run. If you're assembling chairs on a fixed-jig line, that consistency is what keeps your assembly process running without per-piece adjustment.

In-House Zinc Alloy Die-Casting

The all-metal component set — tilt-lock levers, adjustment knobs, spring housings, pivot bushings — comes from our in-house zinc alloy die-casting operation. We brought die-casting in-house in 2015 after outsourced components became the leading source of quality complaints: loose-fitting knobs, dimensional variation between batches, surface finish inconsistency. Controlling the shot parameters, cooling cycle, and trimming on our own floor means the components your end users actually operate meet the same dimensional standard as the structural parts they never see.

Pivot Bushing Tolerance

±0.05 mm
Pivot bore tolerance

Pivot points use steel or brass bushings rather than nylon. We hold the bore tolerance at ±0.05 mm on pivot points — tighter than the plate tolerance — because that's where the tilt action feel is determined. A loose pivot bushing produces the "clunky" tilt feel that generates end-user complaints even when the mechanism is structurally sound.

Powder Coat Thickness

60–80 μm
Structural plates & visible surfaces

Powder coat at this thickness passes 500-hour salt spray testing — the threshold for coastal and outdoor applications. We run a full phosphate pre-treatment wash before every powder coat run; skipping pre-treatment is how you get adhesion failure at weld seams within six months of deployment.

Zinc Plating for Critical Dimensions

Surface treatment on metal mechanisms runs either zinc plating for corrosion resistance on components where dimensional tolerance post-coating is critical, or powder coat for structural plates and visible surfaces. The choice is determined by whether the component's fit tolerance can absorb the coating thickness — zinc plating adds less dimensional variation than powder coat on precision-fit parts.

Competitor Comparison Finding

We've had buyers send us competitor mechanisms for comparison — the bushing fit is almost always where the difference shows up. Metal bushings require tighter dimensional tolerances at the pivot bore to achieve smooth action, and they add marginal weight. For a metal mechanism specifically, where the die-cast components are visible and tactile, this matters more than on a standard mechanism where plastic covers most of the hardware.

OEM & Private Label

Customization Options for OEM and Private-Label Buyers

Standard metal chair mechanisms ship at 500-unit MOQ. Custom configurations are available across the following parameters — most without MOQ impact.

Customization Dimension Options MOQ Impact
Steel plate thickness 2.0 mm, 2.5 mm, 3.0 mm No MOQ change for standard thicknesses
Mounting hole pattern Standard 4-hole / 6-hole, or custom pattern Custom pattern requires tooling — discuss during quoting
Tilt angle range 0°–15°, 0°–20°, 0°–25° No MOQ change
Load rating 120 kg, 150 kg, 200 kg No MOQ change for standard ratings
Surface finish Zinc plating, nickel plating, powder coat (standard black/silver or custom RAL) Custom RAL available on runs of 500+ units
Component branding Laser engraving or embossing on die-cast components Tooling cost applies; discuss during quoting
Private-label packaging Custom box, label, and documentation Available on standard production runs

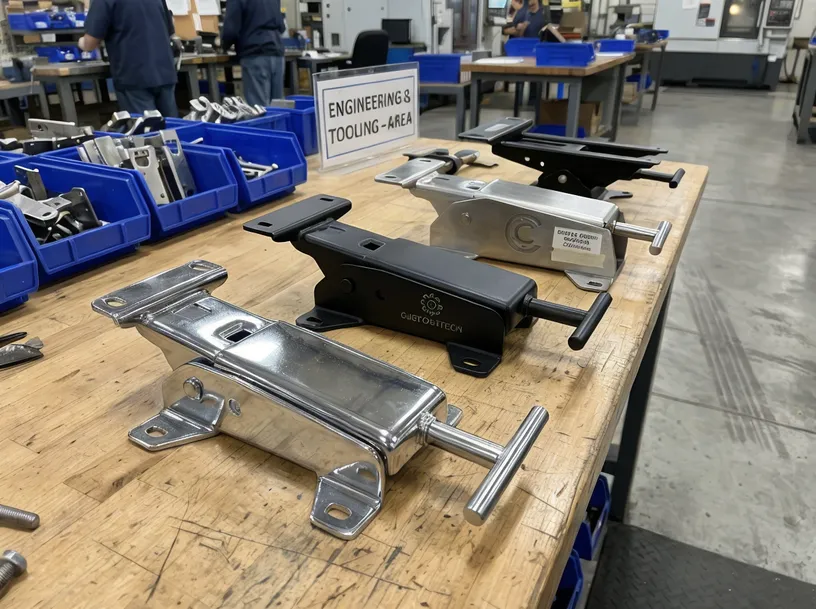

OEM custom metal chair mechanism configurations showing surface finish and branding options

What We Don't Offer

We don't offer hybrid configurations that mix metal structural components with plastic adjustment hardware — that defeats the purpose of the all-metal spec and creates inconsistency in your product line. If you need a lower-cost option with some plastic components, the standard tilt mechanism or simple chair mechanism is the right starting point.

Engineering Team Support

Our 12-person engineering team handles OEM tooling development — modified mounting patterns, non-standard pivot geometry, integrated features. Send us a drawing or reference sample and we'll come back with a feasibility assessment and tooling quote.

Discuss Custom Configuration

Compliance & Documentation

Certifications and Compliance for Your Target Markets

Metal chair mechanisms from MVMHardware ship with full documentation. Your compliance team gets what they need without follow-up requests.

EU Markets

CE Marking

Meets EU machinery and product safety directives. Required for EU market entry across retail and contract channels.

Third-Party Verified

SGS Test Reports

Third-party structural and cycle-life verification. Formal BIFMA certification can be arranged through our SGS relationship on request.

Material Compliance

RoHS Compliance

Material composition documentation for restricted substances. Relevant for EU market entry and retail channel requirements.

Quality System

ISO 9001:2015

Quality management system certification covering the full production process — from raw material intake through final inspection.

North American Contract Furniture

For buyers supplying North American contract furniture channels, BIFMA X5.1 is the relevant standard for seating structural performance. Our cycle-life and load testing follows BIFMA X5.1 equivalent protocols.

If your customer or project specification requires formal BIFMA certification, we can arrange third-party testing through our SGS relationship. Specify this requirement during quoting.

Middle East & Southeast Asia

CE and SGS documentation typically satisfies import and project specification requirements across these markets. If your market has additional requirements, tell us during the inquiry — we've navigated most of the common certification paths for our existing export markets.

All documentation ships with the order. Your compliance team gets what they need without follow-up requests.

Logistics & Costing

Packaging, Container Loading, and Landed Cost

Metal chair mechanisms are heavier than standard mechanisms — the all-metal component set adds 15–25% to unit weight compared to equivalent plastic-component mechanisms. This affects your freight calculation and is worth factoring into your landed cost model before finalizing the order.

Standard Packaging

Individual mechanisms in corrugated inner boxes. Master carton of 10–20 units depending on mechanism size, palletized for container loading.

FBA-Ready Configuration

FNSKU labeling and poly-bag inner packaging available for e-commerce channels running alongside wholesale business. Configured to FBA warehouse receiving requirements.

Container Optimization

Exact CBM and carton count provided with your quotation. For buyers consolidating multiple mechanism types, we coordinate the packing list to maximize container utilization.

Landed Cost Planning

Container loading quantities vary by mechanism size and configuration. We provide exact CBM and carton count with your quotation so you can calculate freight before committing — no surprises at the booking stage.

Buyer Reference

Frequently Asked Questions

Technical and commercial questions answered for buyers specifying metal chair mechanisms for the first time or switching from standard polymer-component mechanisms.

What is the difference between a metal chair mechanism and a standard chair mechanism?

The structural plate is steel in both cases. The difference is in the adjustment and pivot components: standard mechanisms use nylon or polymer knobs, levers, and bushings; metal mechanisms use zinc alloy die-cast or steel equivalents throughout. Metal construction is specified when the end-use environment involves moisture, temperature extremes, UV exposure, solvents, or rough handling that would degrade polymer components. For standard indoor office use, the polymer-component mechanism is lighter and lower cost. For industrial, outdoor, or institutional applications, all-metal is the correct specification.

What load capacity do metal chair mechanisms support?

Standard metal mechanism configurations are rated at 120 kg and 150 kg. Heavy-duty configurations reach 200 kg. Load rating is determined by plate thickness, pivot pin diameter, and weld specification — not just the material type. If your application requires a specific load rating, specify it during quoting and we'll confirm the configuration.

Do metal chair mechanisms require different mounting hardware than standard mechanisms?

Mounting hole patterns are standardized across our mechanism range — standard 4-hole and 6-hole patterns are compatible with most chair frame designs. If you're switching from a standard mechanism to a metal mechanism on an existing chair frame, the mounting pattern is typically a direct swap. The weight difference may require checking your gas lift cylinder rating, since the mechanism adds to the total seat assembly weight. We can advise on this during the technical review.

What surface treatment is best for outdoor or coastal applications?

For outdoor and coastal environments, powder coat at 60–80 μm over phosphate pre-treatment is the standard specification — it passes 500-hour salt spray testing. For mechanisms in direct water contact or marine environments, zinc plating on structural components provides additional corrosion protection. We can specify a combination treatment (zinc plate on structural plate, powder coat on visible surfaces) for maximum corrosion resistance. Tell us your deployment environment and we'll recommend the right treatment.

What is the MOQ and lead time for metal chair mechanisms?

Standard configurations: 500 units, 25–35 days production lead time after sample confirmation. Custom configurations with tooling modifications: MOQ and lead time discussed during quoting based on tooling complexity.

Standard MOQ
500 units
Production Lead Time
25–35 days
Sample Lead Time
7–10 days

Sample orders (2–5 units) are available to verify fit and function before committing to production quantities.

Can metal chair mechanisms be certified to BIFMA X5.1?

Our testing protocol follows BIFMA X5.1 equivalent procedures for load and cycle-life verification. Formal BIFMA certification requires third-party testing — we can arrange this through our SGS relationship if your project or customer specification requires it. Specify the requirement during quoting so we can include the testing cost and timeline in your quote.

Request a Quote

Get a Quote for Metal Chair Mechanisms

The fastest path to a useful quote is to send us your target spec: load rating, mounting pattern, surface treatment, and target order volume. If you're not sure which configuration fits your market, tell us the end-use environment and your downstream customer type — we'll recommend the configuration based on what's working for our existing buyers in similar segments.

Most new buyers start with a 2–5 unit sample order to verify fit with their chair frames before committing to production quantities. Samples ship within 7–10 days.

Request a Quote View All Chair Mechanisms

Contact Us Directly

Phone / WhatsApp
+86 132 1014 9517
Factory
Guangdong, China
Learn About Our Factory
