Factory-Direct ISO 9001:2015 CE · SGS · RoHS

Sliding Chair
Mechanism

Seat-slide depth adjustment built into the mechanism plate — no separate rail assembly required.

Cold-rolled steel construction, ±0.15mm stamping tolerance, 60,000-cycle tested. Fits standard 4-hole and 6-hole mounting patterns. OEM geometry available.

Get a Quote All Chair Mechanisms

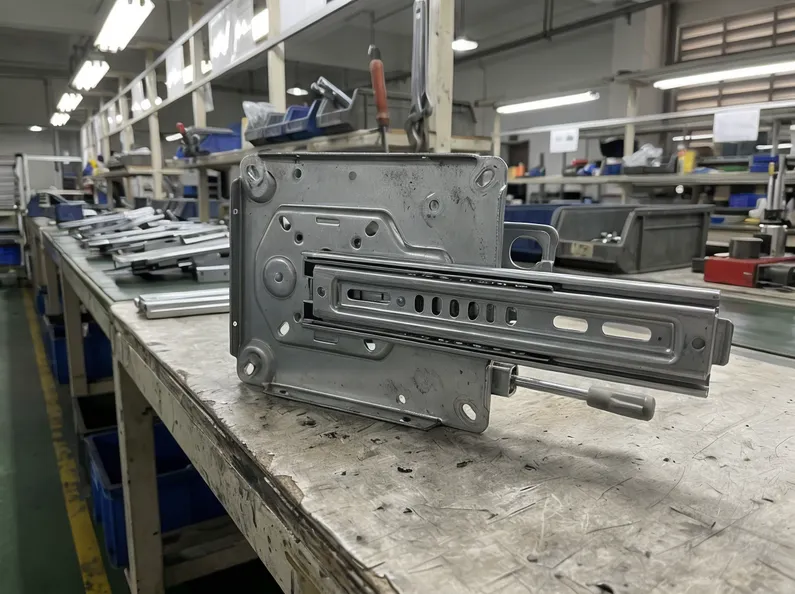

Sliding chair mechanism with integrated seat-slide depth adjustment rail — MVMHardware factory-direct
Cycle Tested
60,000 Cycles
500
Unit MOQ
Tolerance
±0.15mm
Load Rating
120 kg Static
Slide Travel
40–80mm
Experience
17+ Years

Product Overview

What the Sliding Chair Mechanism Does — and Where It Fits Your Product Line

A sliding chair mechanism integrates seat-slide depth adjustment directly into the mechanism plate, allowing the seat pan to travel forward and rearward — typically 40–80mm — along a built-in rail track. The adjustment locks at the user's chosen position via a lever or paddle release. No separate seat-slide rail assembly bolted underneath. One component handles both the tilt function and the depth adjustment.

One Component. Two Functions.

That integration matters commercially. If you're building a mid-range ergonomic task chair, adding seat depth adjustment is the feature that moves the product out of the basic tilt tier and into a higher retail price bracket — without adding a second component, a second assembly step, or a second supplier relationship. The mechanism does the work of two parts.

We produce the sliding chair mechanism on the same progressive die stamping lines as our full chair mechanism range. The slide rail geometry is stamped into the plate in the same press operation as the mounting holes and pivot points, so the dimensional relationship between the slide track and the mounting pattern is held to the same ±0.15mm tolerance as the rest of the plate.

That consistency is what lets your assembly line use fixed jigs without per-piece adjustment. Dimensional variation between the slide track and mounting pattern is eliminated at the press stage — not corrected downstream.

Request a Quote for Sliding Chair Mechanisms
Progressive die stamping of sliding chair mechanism plate showing integrated rail geometry and mounting holes
40–80mm
Slide Travel Range
±0.15mm
Stamping Tolerance
60K
Cycles Tested

Mounting Pattern Compatibility

Standard 4-hole mounting pattern
Standard 6-hole mounting pattern
Ø50mm and Ø60mm gas lift cylinder bore
Custom OEM geometry available

Engineering Data

Technical Specifications

Industry-standard parameters for this mechanism type. Contact us for exact product data sheets and drawings.

Parameter
Specification
Base material
Cold-rolled steel (SPCC / Q235)
Plate thickness
2.0 mm – 2.5 mm (standard duty)
Slide travel range
40 mm – 80 mm (custom available)
Load capacity
120 kg static rated load
Tilt angle
0° – 15° (spring tension adjustable)
Lock positions
Infinite friction lock or multi-position detent
Mounting pattern
Standard 4-hole and 6-hole; custom available
Gas lift compatibility
Ø50 mm and Ø60 mm cylinder bore
Surface treatment
Zinc plating (std); powder coat or nickel available
Cycle life
60,000 cycles at rated load (BIFMA X5.1 equiv.)
Operating temperature
-10°C to 60°C
Carton packaging
Typically 20–30 units per carton

Specifications shown are industry-standard values for this mechanism type. Actual specifications may vary by configuration. Contact us for detailed product data sheets.

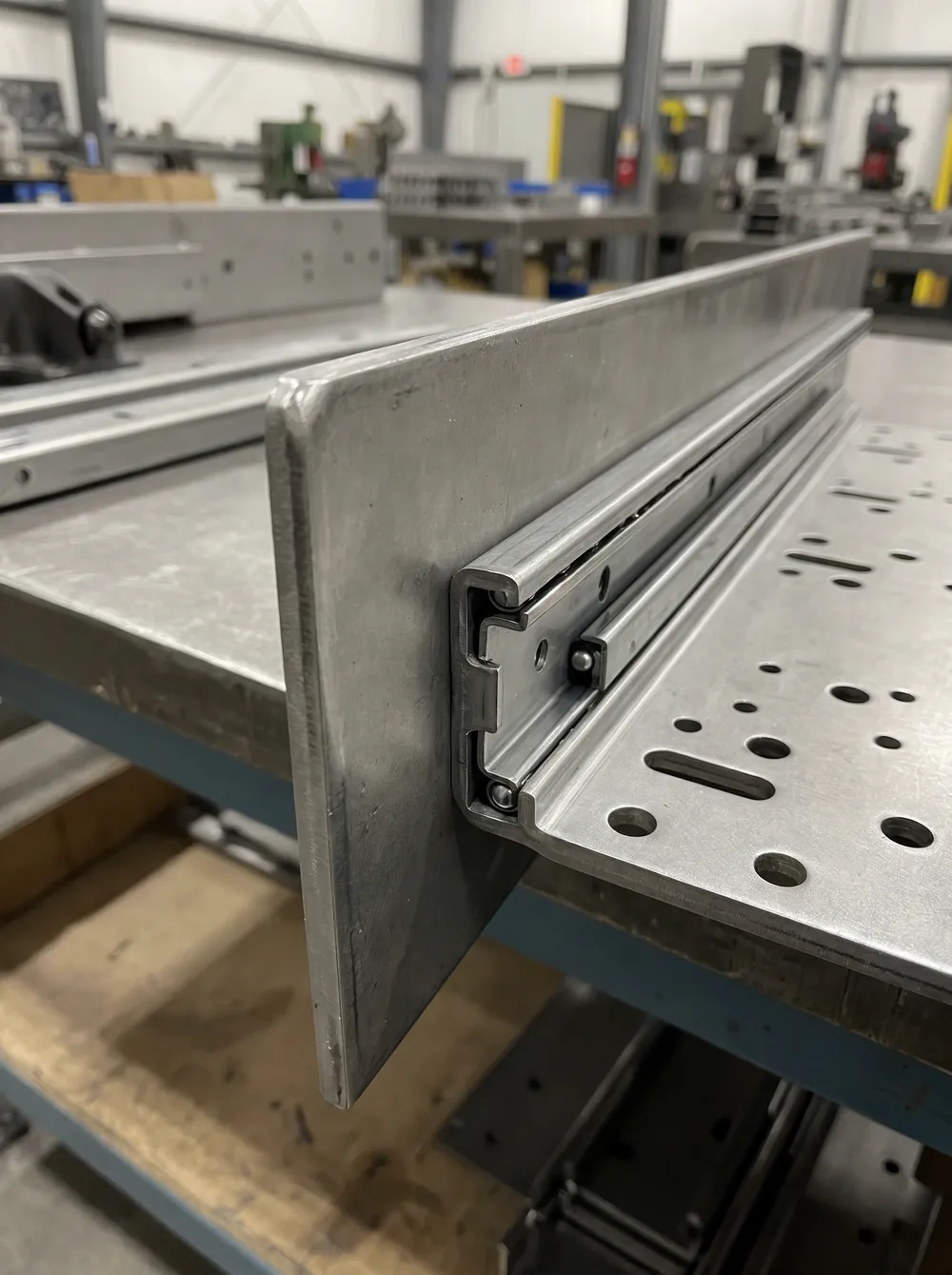

Sliding chair mechanism technical detail showing plate thickness, slide rail geometry, and mounting hole pattern

Key Performance Highlights

±0.15mm Stamping Tolerance
Slide rail geometry and mounting pattern held to the same tolerance in a single press operation.
BIFMA X5.1 Equivalent Protocol
60,000-cycle test at rated 120 kg load. Validated for commercial seating durability requirements.
OEM Geometry Available
Custom mounting patterns, slide travel ranges, and surface treatments for your specific chair platform.
Get Exact Specs & a Quote

Market Segments

Where This Mechanism Earns Its Place — Market Segments

Seat depth adjustment is the feature that separates a basic task chair from an ergonomic one in the buyer's mind. That positioning creates specific commercial opportunities for distributors, manufacturers, and contractors sourcing this mechanism.

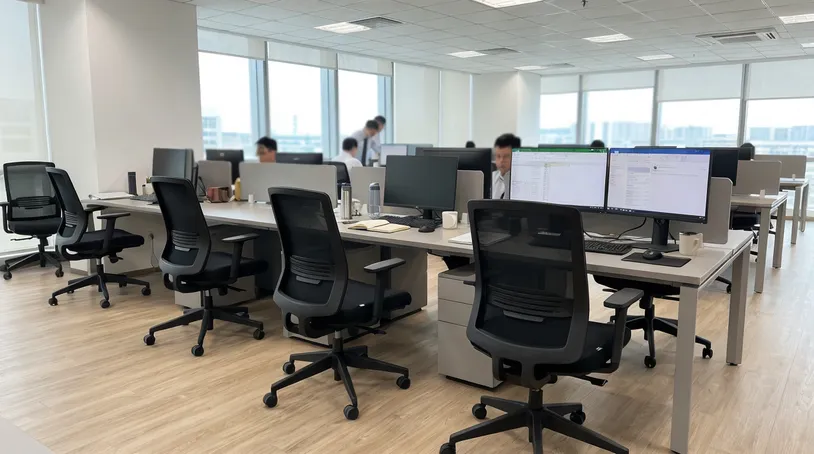

Mid-range ergonomic office task chairs in an open-plan office
$150–$350 Retail Tier

Mid-Range Ergonomic Office Seating

The $150–$350 retail task chair segment is where sliding mechanisms generate the most volume. Buyers in this tier are building chairs that need to justify a price premium over basic tilt models — seat depth adjustment is one of the three or four features that do that work (alongside synchro tilt and adjustable lumbar).

If you're manufacturing or importing a chair line in this price band, the sliding mechanism is the component that lets you market "ergonomic" credibly without moving into full multi-axis mechanism territory.

Typical Order Pattern
1,000–5,000 units/run · 2–3 restocks/year

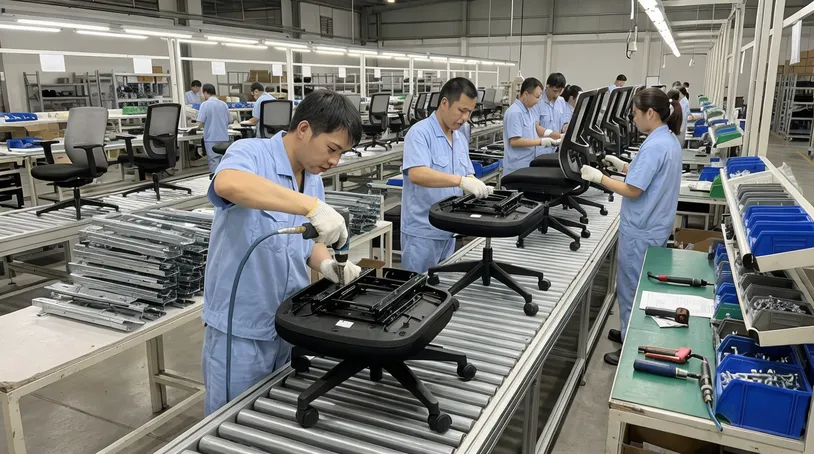

Contract office furniture assembly line with chair mechanisms
OEM / Contract

Contract Office Furniture Manufacturers

OEM chair manufacturers building for corporate contract accounts — office fit-outs, hotel business centers, co-working spaces — often specify seat slide as a standard feature across their commercial seating line. These buyers need batch-to-batch dimensional consistency above all else: your assembly line is running hundreds of chairs per day, and a mounting hole that's 0.5mm off stops the line.

Dimensional Tolerance
±0.15mm across 10,000-unit runs via progressive die stamping

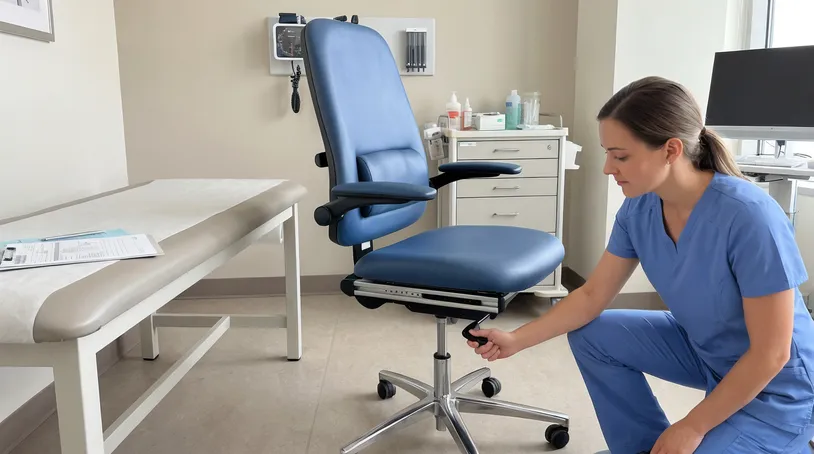

Healthcare examination room seating with ergonomic adjustment
Healthcare & Specialist

Healthcare & Specialist Seating

Clinical environments — examination rooms, dental operatories, laboratory workstations — require seating that accommodates a wide range of user body dimensions without manual tool adjustment. Seat depth adjustment is a standard specification in healthcare seating procurement.

These orders tend to be smaller in unit volume but higher in per-unit value and repeat on annual procurement cycles. Compliance documentation (CE, RoHS) is typically required at the time of tender — we ship certification paperwork with every order.

Typical Volume & Compliance
200–800 units · CE & RoHS docs shipped with every order

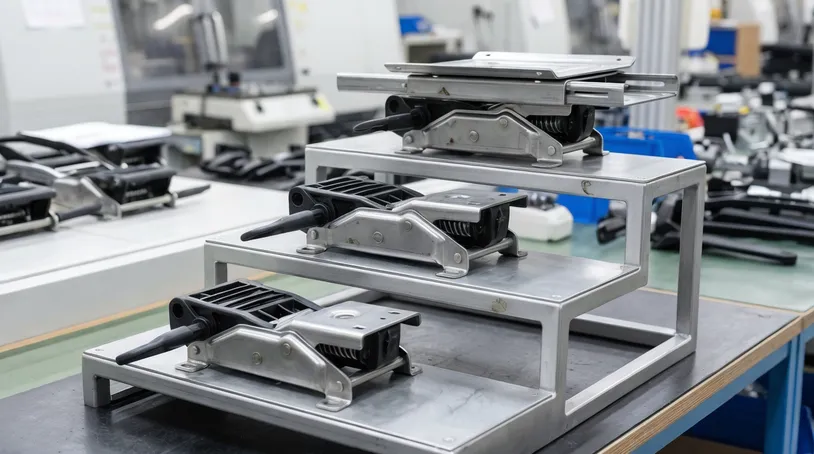

Ergonomic chair mechanism distributor catalog with tiered product range
Distribution

Ergonomic Seating Distributors

If you're distributing ergonomic chair components or complete chair kits, the sliding mechanism is a natural addition to a catalog that already carries synchro and tilt units. It consolidates your sourcing — same supplier, same quality standard, same logistics relationship — and gives your downstream customers a clear upgrade path from basic tilt to full ergonomic specification.

Distributor Tier Model (Northern Europe)
Tier 1
Basic Tilt
Tier 2
Standard Synchro
Tier 3
Synchro + Slide

Maps cleanly to three retail price points. Simple to sell, simple to stock.

Engineering & Durability

How We Make the Slide Function Reliable Across 60,000 Cycles

The slide rail is the part of this mechanism that fails first if it's not made correctly. The failure mode is predictable: the rail channel wears unevenly under cyclic load, the slide action becomes stiff or develops lateral play, and the lock stops holding position cleanly.

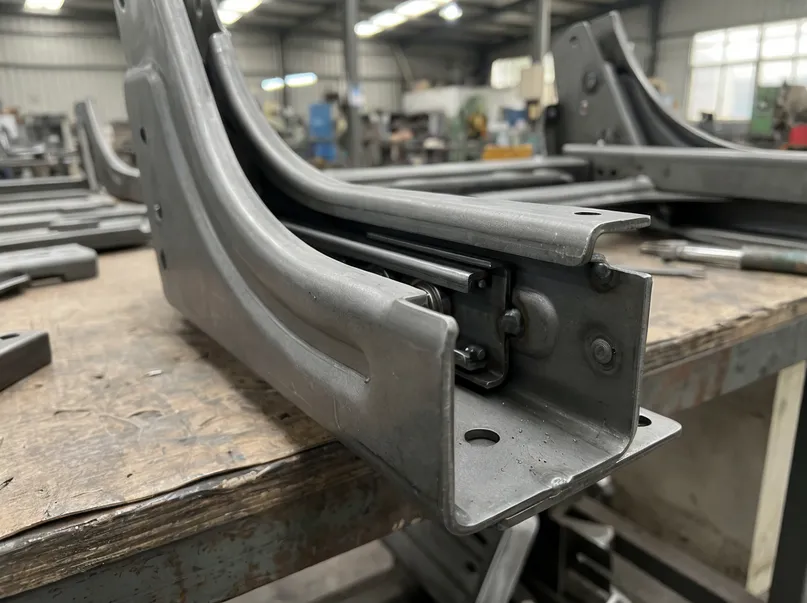

Close-up of slide rail channel construction showing zinc phosphate treatment and steel stamping
2.0–2.5mm
Q235 Steel Plate Thickness
60,000+
Rated Cycle Life
1.5×
Rated Load Lock Test
100%
Units Functionally Tested

Rail Channel Material & Geometry

The rail channel geometry is stamped from Q235 steel at 2.0–2.5mm plate thickness. We've seen competitor mechanisms fail in our lab — the root cause is almost always insufficient rail channel hardness or loose dimensional tolerance on the slide interface.

Zinc Phosphate Pre-Treatment

Channel surfaces go through a controlled zinc phosphate pre-treatment before plating. The phosphate layer isn't just a corrosion step — it provides a micro-texture that retains lubricant in the channel interface, which is what keeps the slide action smooth after 30,000+ cycles rather than running dry and developing stick-slip. We apply a light grease to the channel at final assembly, and the phosphate layer holds it there.

Lock Mechanism & 100% Functional Test

The lock mechanism — whether friction lock or detent — is assembled and tested as part of the 100% functional test on every unit. We check that the lock engages positively at the user's chosen position and holds under a 1.5× rated load application without creep. A lock that slips under load is a warranty claim waiting to happen for your downstream customer. We catch it here, not in the field.

Dual-Surface Friction Lock Upgrade

We switched from a simpler friction-only lock design to a dual-surface friction lock on our standard sliding mechanism after seeing field reports of position creep in high-humidity environments. The dual-surface design adds about 8% to the mechanism cost but eliminates the failure mode entirely.

Most buyers in Southeast Asia and the Middle East have moved to this configuration.
No stick-slip after 30,000+ cycles
Phosphate micro-texture retains lubricant
Zero position creep under 1.5× load
Dual-surface friction lock, 100% tested
Humidity-stable in SE Asia & Middle East
Dual-surface lock eliminates high-humidity creep

OEM & Custom Orders

Customization Options for Your Chair Design

Standard sliding mechanisms fit most chair frame geometries, but OEM requirements come up regularly — different slide travel, modified mounting patterns, custom lock actuation. Here's what we can do:

Customization Dimension Standard Range Custom Capability
Slide travel 40–80 mm Up to 120 mm with modified rail length
Mounting hole pattern 4-hole and 6-hole standard Any pattern; tooling cut in-house
Lock type Friction lock (standard) Detent, paddle-release, or lever-actuated
Plate thickness 2.0–2.5 mm Up to 3.0 mm for heavy-duty applications
Surface finish Zinc plating Nickel plating, powder coat (any RAL, 500+ unit runs)
Tilt angle range 0°–15° Modified spring rate for different angle ranges
Private label Not included Packaging and component marking available

Standard MOQ

500 units for standard configurations. No custom tooling required — order from existing rail and lock combinations.

Custom Tooling Projects

Quoted based on modification complexity. First sample from a new OEM tool typically takes 25–35 days from drawing approval. Tooling cut in-house.

Not sure whether your requirement needs custom tooling or can be handled with a standard configuration? Send us your chair frame drawing or a photo of your current mechanism — we'll tell you directly.

Send Your Specs

Quality & Compliance

Certifications and Compliance Documentation

The sliding chair mechanism ships with the following documentation as standard. Your compliance team gets what they need without follow-up requests.

Quality Management

ISO 9001:2015

Quality management system certification covering design, production, and inspection.

EU Market Access

CE Marking

Conformity with applicable EU machinery and product safety directives.

Third-Party Testing

SGS Test Reports

Third-party structural and cycle-life testing. Independent verification of performance claims.

Material Compliance

RoHS Compliance

Material composition documentation for restricted substances. Ships with every order.

Market-Specific Standards Testing

For buyers selling into markets with specific standards requirements, we can arrange third-party testing through our existing SGS relationship.

European Standard
EN 1335
European office chair standard
North American Standard
BIFMA X5.1
North American commercial seating
US Standard
ANSI/BIFMA
Equivalent US market requirements

Specify your target market standard at the time of inquiry and we'll confirm test coverage before production.

Our Manufacturing & Quality Systems All documentation ships with the order.

Logistics & Procurement

Packaging, Container Loading, and Landed Cost

Sliding chair mechanisms ship in individual poly-bag packaging inside corrugated cartons, typically 20–30 units per carton depending on mechanism size and configuration. Cartons are stacked on standard pallets for container loading.

Container Loading Estimates

Standard Container
20GP
8,000–10,000
units
High-Cube Container
40HQ
18,000–22,000
units

KD-Friendly Design

Mechanisms are KD-friendly — the slide rail and tilt assembly are pre-assembled and tested as a unit, but the gas lift cylinder and base are not included, keeping the per-unit volume compact for container efficiency.

The container loading density on this mechanism type is favorable compared to assembled chair components — a direct advantage when calculating landed cost per unit.

E-Commerce & FBA Distribution

For e-commerce or FBA distribution, we can configure individual retail-ready packaging with your branding. Blind drop-shipping and white-label packaging are available on runs over 500 units.

Minimum Run
500+ units
for branded packaging
Service
Blind Drop-Ship
available
Branding
White-Label
packaging supported

Buyer Guidance

Frequently Asked Questions

Technical and procurement questions answered for buyers specifying sliding chair mechanisms.

What is the difference between a sliding chair mechanism and a standard tilt mechanism?

A standard tilt mechanism controls the recline angle of the seat and backrest — it doesn't move the seat forward or backward. A sliding chair mechanism adds a seat-slide rail to the mechanism plate, allowing the seat pan to travel 40–80mm in the fore-aft direction independently of the tilt function. Most sliding mechanisms also include tilt adjustment, so you get both functions in one unit. The seat slide is the feature that allows users of different leg lengths to position the seat edge correctly relative to the back of their knees — which is the ergonomic claim that justifies the price premium over a basic tilt chair.

What slide travel range should I specify for a commercial ergonomic chair?

For a general-purpose ergonomic task chair targeting a broad user population, 60–70mm of slide travel covers the range from the 5th to 95th percentile seated depth dimension.

40mm
Budget ergonomic lines where minimizing mechanism cost is a priority
60–70mm
General-purpose ergonomic task chair — covers 5th to 95th percentile seated depth
80mm+
Healthcare workers and specialist applications requiring maximum adjustability

Custom travel ranges up to 120mm are available for specialist applications.

Can the sliding mechanism be combined with a synchro-tilt function?

Yes, but they are separate mechanism types.

Full-Featured Option
Ergonomic Chair Mechanism

Combines synchro-tilt with seat slide and lumbar integration in a single unit. The right product if you need synchro-tilt plus seat slide. See our ergonomic chair mechanism.

This Product
Sliding Chair Mechanism

Standard tilt plus seat slide. The more cost-efficient choice when synchro-tilt is not required for your price point.

How do I prevent the slide lock from slipping over time?

Lock slip under load is almost always a surface wear issue on the friction interface — the lock surface wears smooth, reducing clamping force.

Dual-Surface Friction Lock

Our dual-surface friction lock design distributes the clamping load across a larger contact area, which slows wear and maintains holding force across the mechanism's service life. Specifying a mechanism with a dual-surface lock (rather than single-surface friction) is the most effective way to prevent this failure mode. Ask us about this configuration when you inquire.

What is the MOQ and lead time for sliding chair mechanisms?

Standard MOQ
500 units
Production Lead Time
20–30 days
after sample confirmation & deposit
Sample Order
2–5 units
ships within 7–10 days of confirmation
Custom Config Tooling
+25–35 days
before production begins

For new buyers, we recommend a 2–5 unit sample order first to verify fit with your chair frame before committing to production volume.

Do you supply the gas lift cylinder separately?

The sliding chair mechanism plate is supplied pre-configured for standard Ø50mm and Ø60mm gas lift cylinder bores. Gas lift cylinders are available separately — contact us with your height range and load rating requirements.

Procurement note: Ordering mechanism and cylinder together from the same supplier simplifies your incoming inspection and ensures the bore fit is confirmed before production.

Related Chair Mechanisms

Ergonomic Chair Mechanism

Synchro-tilt + seat slide + lumbar integration. The full-featured option for premium ergonomic seating above $300 retail.

Synchro Chair Mechanism

Synchro-tilt without seat slide. If your price point doesn't support the full ergonomic spec but you need the synchro function, this is the step down.

Adjustable Chair Mechanism

Multi-function unit combining height, tilt, and seat-depth adjustment. More complex than the sliding mechanism; suited for chairs with a higher feature count.

Tilt Chair Mechanism

Standard tilt without seat slide. The cost-efficient option when depth adjustment isn't a specification requirement.

View the Full Chair Mechanism Product Line

Get a Quote for Sliding Chair Mechanisms

Most new buyers start with a 2–5 unit sample to test fit against their chair frame before committing to production quantities. We can ship samples within 7–10 days of order confirmation.

If you already have a mechanism spec or a reference sample from your current supplier, send it to us — our engineering team will confirm compatibility or identify the closest configuration in our catalog, and come back with a detailed quote and drawings.
